Hello everyone. In this thread, I am going to attempt to document the building of my latest model La Flore by Constructo. I bought this kit last year although I really hadn't had the time to build it until now, during the lockdown I have plenty of time and I work on it about 5 hours a day!

I won't be writing many of the parts' names and forgive me if I make any mistake as English is not my first language and I don't even know some of the parts' names in Spanish!

I am open to all the advice you can give me so come on!!

I hope you like it!!!

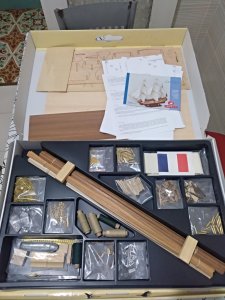

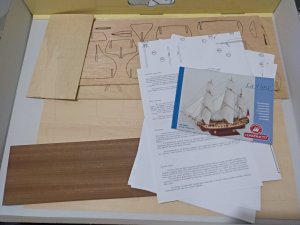

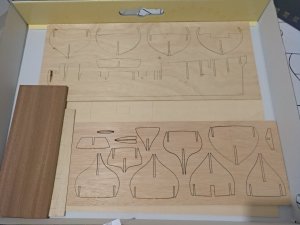

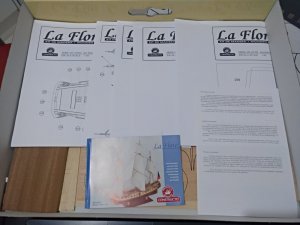

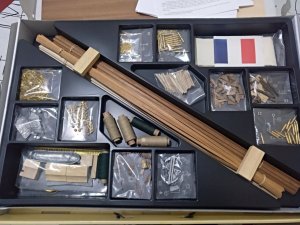

First some photos of the contents of the box.

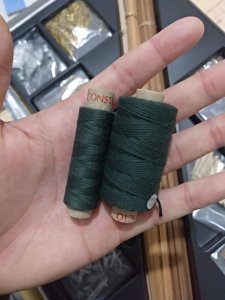

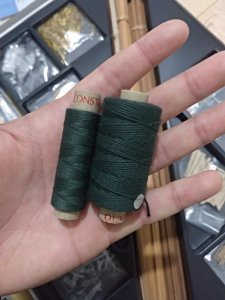

I had some issues with the "black" thread because as you can clearly see it is GREEN! I emailed Constructo but they didn't help me. They said sometimes this happens when the black colour is "lighter" than normal. I have been searching to buy a new thread and I think I have found some. As this is going to be used towards the end, at the moment it doesn't really bother me. Apart from this, everything is on the box well packed and in good condition. Constructo has good quality.

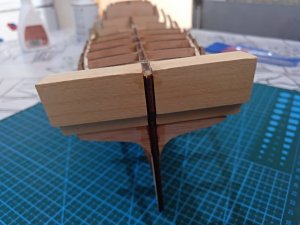

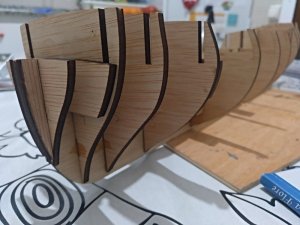

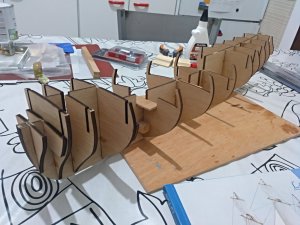

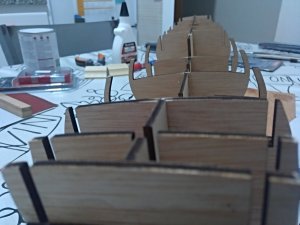

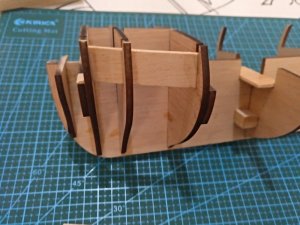

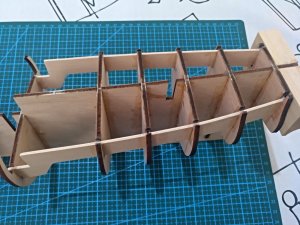

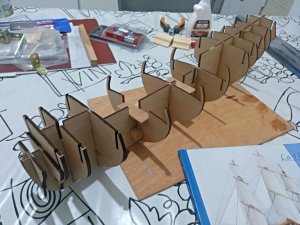

Here I started with the false keel.

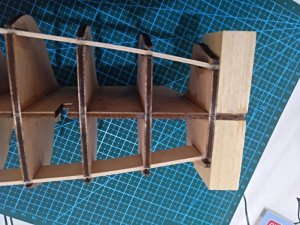

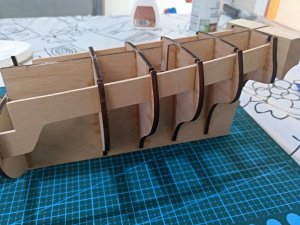

Here I put some wood strips to hold the cannons on each side of the ship. I really liked this ship because of the gun line on each side.

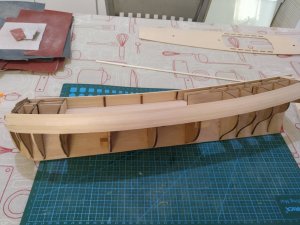

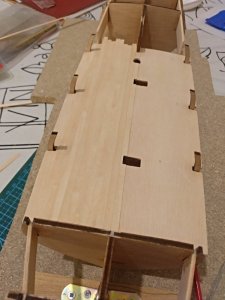

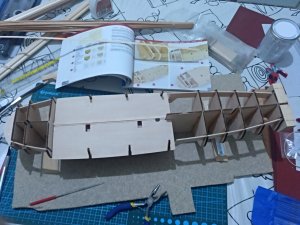

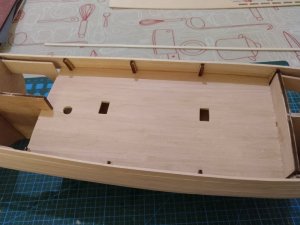

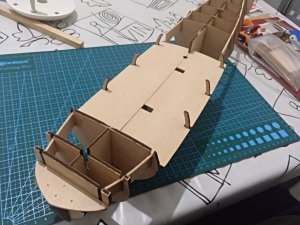

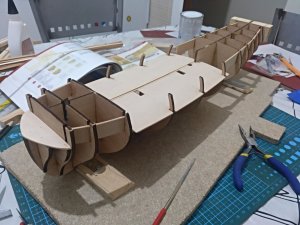

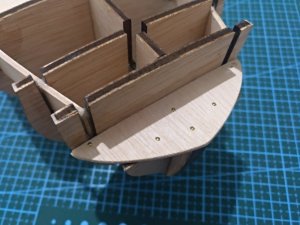

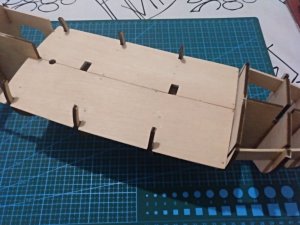

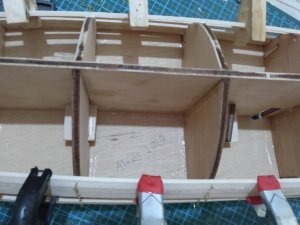

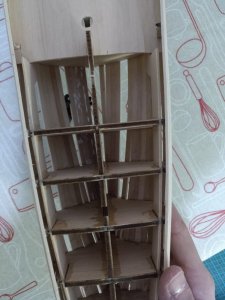

Then I glued the two lower decks. The prow deck and the waist deck. After this, I sanded the pins and started to plank both decks.

IMG_20190310_190601_099.jpgIMG_20190310_190618_089.jpgIMG_20190310_204855_143.jpgIMG_20190310_204923_314.jpgIMG_20190311_231231_815.jpg


Attachments

  • IMG_20190209_181457_920.jpg
    158 KB · Views: 1
  • IMG_20190310_190708_663.jpg
    230.3 KB · Views: 3
  • IMG_20200504_121023_716.jpg
    255.5 KB · Views: 4
  • IMG_20200504_121028_437.jpg
    186.7 KB · Views: 4
Joined
Aug 9, 2019
Messages
31
Points
58

Location
Almazora, Spain

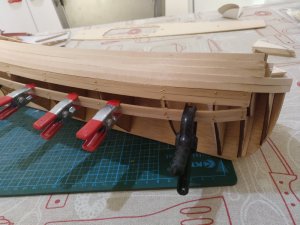

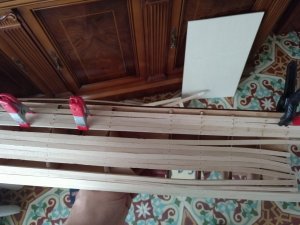

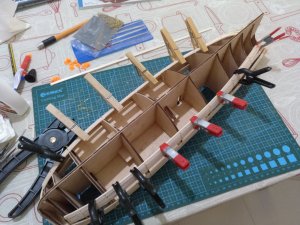

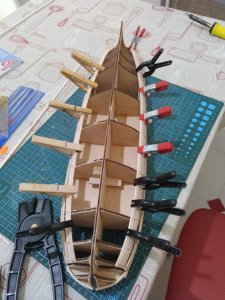

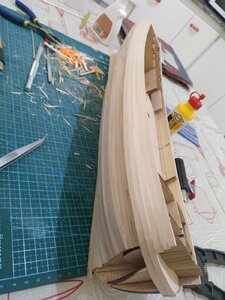

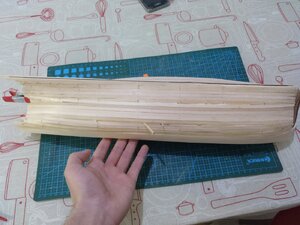

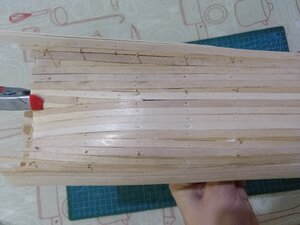

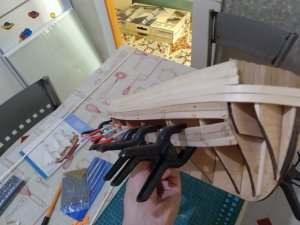

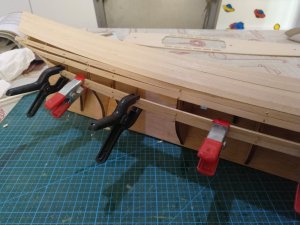

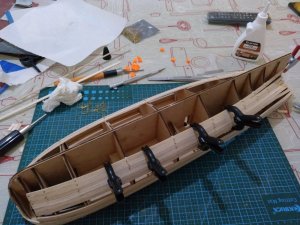

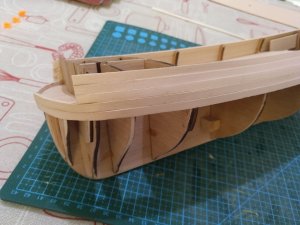

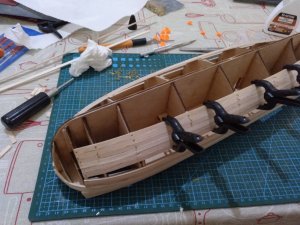

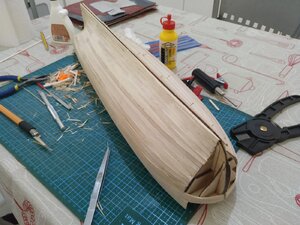

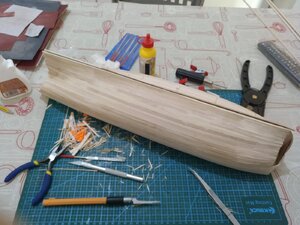

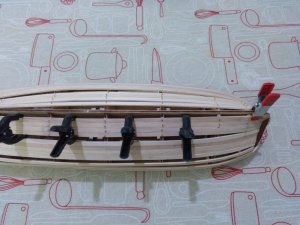

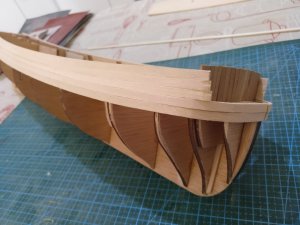

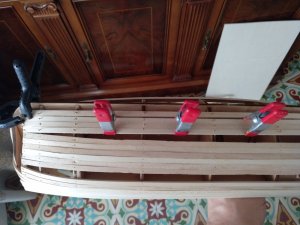

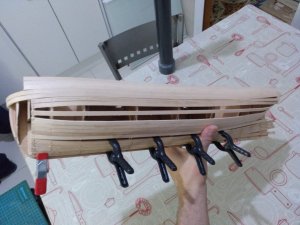

Now I have started planking the hull. Here is the thing with Constructo. Constructo's kits do not come with double planking (which I like because, in my opinion, it is easier although some experts or purists may disagree). So the kits come with 2x5mm Sapelly strips. I have already made other Constructo kit (Carmen) and I planked the hull with these strips. In my opinion, they are really strong to bend even though they were soaked in water and then heated to keep the shape. So this is what I really dislike about Constructo's kits. Some new models (this one too) indeed includes enough 0.6x5mm Sapelly strips to plank the hull again, after planking it with the thicker strips. I really appreciate this but as I said, these thick strips are very difficult to work with (or maybe it is me, maybe I don't have enough patience!). Anyway, with this kit, I decided to buy 2x5mm Tilo strips because these are much easier to bend and another advantage is that you don't have the pressure to make the hull perfect on the first try because then you are going to re plank it with the final Sapelly ones. So this is what I did! I bought some Tilo strips from a local shop (quite cheap) and started planking the hull with them.

Here are the pictures.


IMG_20200504_132659_121.jpgIMG_20200504_200418_238.jpgIMG_20200504_200426_595.jpgIMG_20200504_200438_959.jpgIMG_20200504_200445_793.jpg

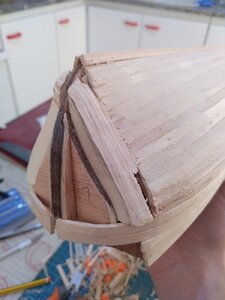

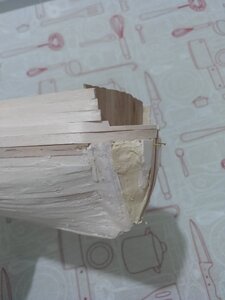

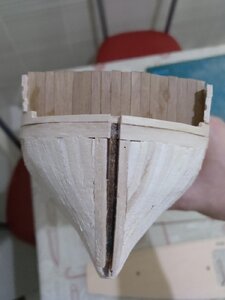

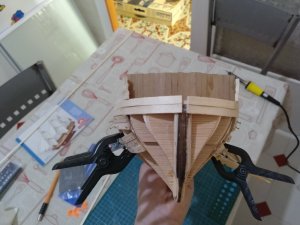

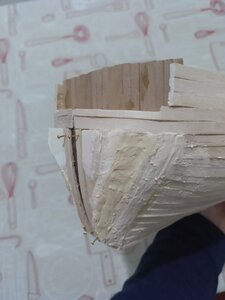

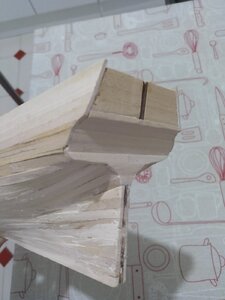

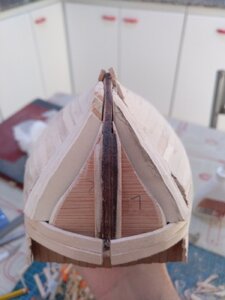

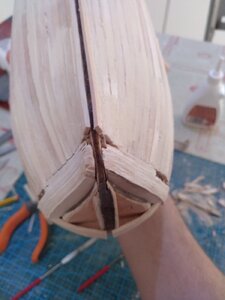

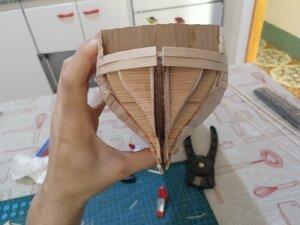

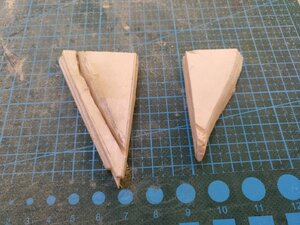

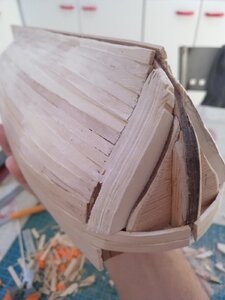

As this ship has a very curved "nose" I also decided to glue wood planks (I will show them) and then sand them to fit into place. And then plank the entire hull with the thin Sapelly strips. I wanted to try this because I saw some kits do this, although these kits included the wood pre-cut.

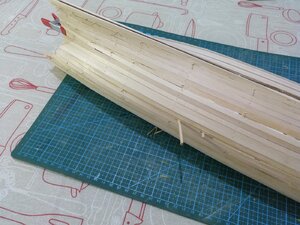

As you can see there are some gaps. I am first gluing the "complete and straight" ones and then I will fill the gaps cutting and sanding the strips to place, which is a more time-consuming work.



I really like this planking method because, as you can clearly see, I made some mistakes (some planks are a little bit too bent or curved...) So this way, I can make little mistakes because then I will do a great filling and sanding work to make it almost perfect and then, after this, plank it again perfectly with the easy-to-work thin Sapelly strips. They are included in the kit! They must be used!!! hehehehe.

IMG_20200506_125724_088.jpgIMG_20200506_205448_562.jpgIMG_20200506_205525_403.jpgIMG_20200506_205533_590.jpg

I am really satisfied with the result (not finished though) and I am really happy that I am able to put a lot of hours of work on this beautiful ship.


Attachments

  • IMG_20200505_200234_288.jpg
    266.8 KB · Views: 0
Joined
Aug 9, 2019
Messages
31
Points
58

Location
Almazora, Spain
Hello everyone!

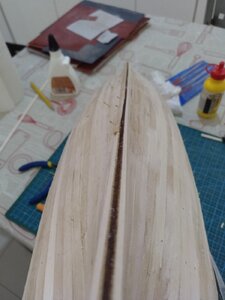

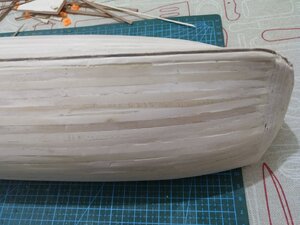

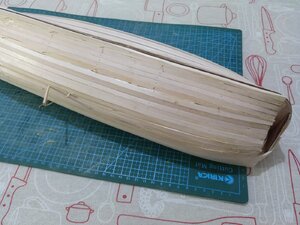

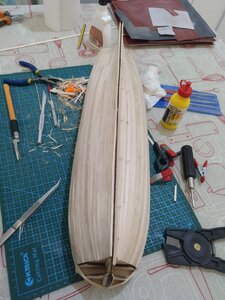

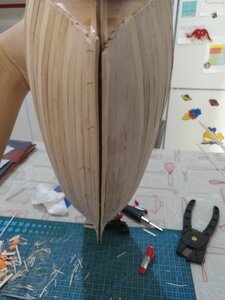

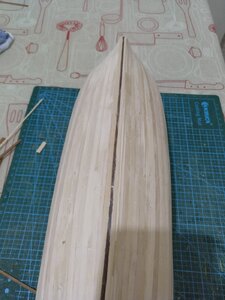

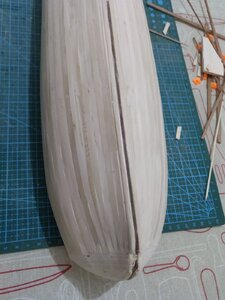

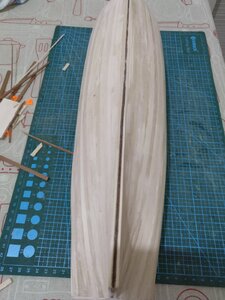

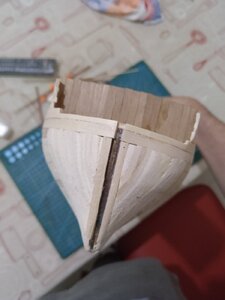

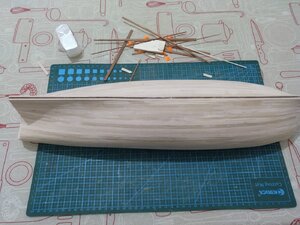

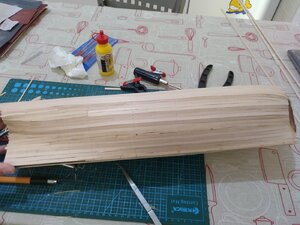

Some advances have been made and now the first hull planking is complete (well almost)! I still have to sand down the wooden planks that are going to form the bow. But as you can see I made some progress.

IMG_20200508_204746_125.jpgIMG_20200508_204750_091.jpgIMG_20200508_204758_548.jpgIMG_20200508_204819_481.jpgIMG_20200510_123440_679.jpgIMG_20200510_123444_384.jpgIMG_20200510_123603_551.jpgIMG_20200510_123619_898.jpgIMG_20200511_185817_178.jpgIMG_20200511_185842_603.jpgIMG_20200511_185845_507.jpgIMG_20200511_185852_549.jpgIMG_20200511_185859_233.jpgIMG_20200511_191550_281.jpgIMG_20200511_191552_650.jpgIMG_20200511_191555_131.jpgIMG_20200511_191558_606.jpg


Attachments

  • IMG_20200510_123453_883.jpg
    262 KB · Views: 2
  • IMG_20200510_123457_084.jpg
    297.3 KB · Views: 2
  • IMG_20200510_123501_602.jpg
    273.2 KB · Views: 2
  • IMG_20200510_123522_922.jpg
    251.4 KB · Views: 2
  • IMG_20200510_123552_005.jpg
    159 KB · Views: 2
  • IMG_20200510_123632_563.jpg
    172.2 KB · Views: 3
Joined
Aug 9, 2019
Messages
31
Points
58

Location
Almazora, Spain
Hello!

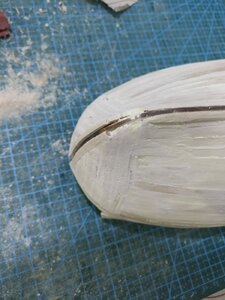

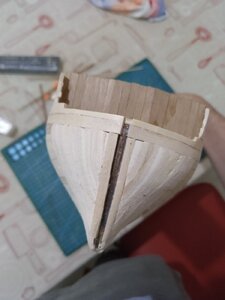

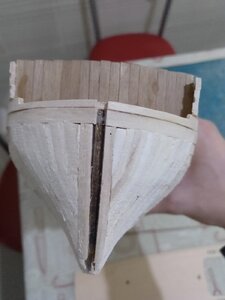

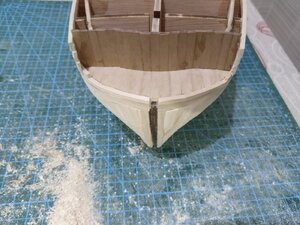

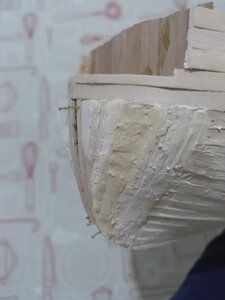

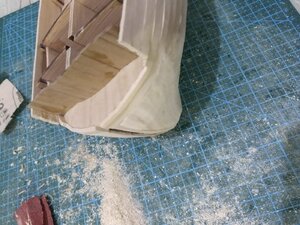

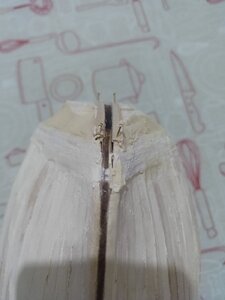

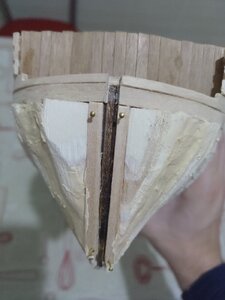

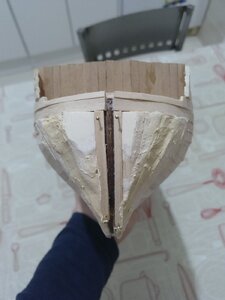

I have finished sanding the wood parts in the bow and now it is smooth and ready. I also sanded all the hull ready to plank it this time with sapelly strips. Here you can see it.

IMG_20200514_202338_273.jpgIMG_20200514_202352_655.jpgIMG_20200514_202404_500.jpgIMG_20200514_202420_632.jpg

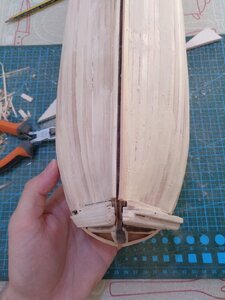

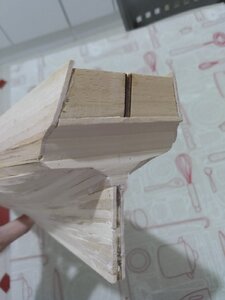

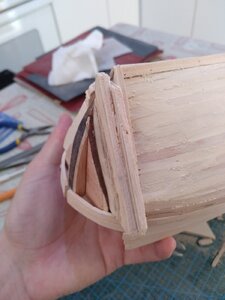

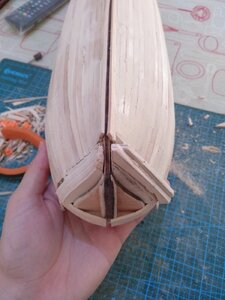

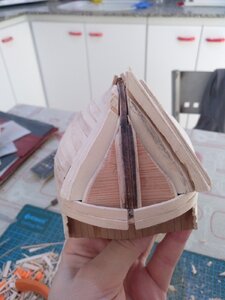

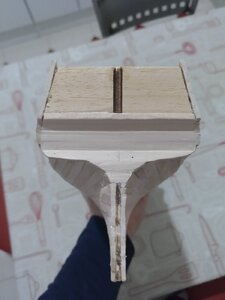

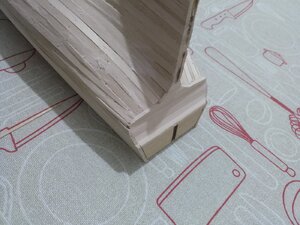

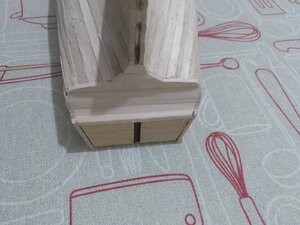

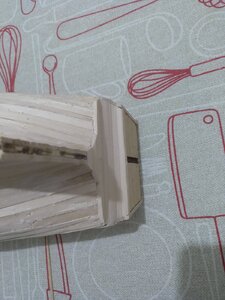

I also planked the stern.

IMG_20200514_202428_326.jpgIMG_20200514_202434_048.jpgIMG_20200514_202501_282.jpgIMG_20200515_195534_781.jpgIMG_20200515_195538_015.jpgIMG_20200515_195551_915.jpgIMG_20200515_195601_381.jpgIMG_20200517_203139_453.jpgIMG_20200517_203200_143.jpgIMG_20200517_203216_905.jpg


Attachments

  • IMG_20200514_202408_025.jpg
    125.9 KB · Views: 0
  • IMG_20200514_202411_133.jpg
    141.5 KB · Views: 0
  • IMG_20200514_202437_867.jpg
    233.1 KB · Views: 1
  • IMG_20200514_202441_177.jpg
    264.3 KB · Views: 0
  • IMG_20200514_202457_867.jpg
    135.8 KB · Views: 1
  • IMG_20200515_195604_623.jpg
    313.7 KB · Views: 0
  • IMG_20200515_195617_455.jpg
    164.4 KB · Views: 0
  • IMG_20200517_203143_378.jpg
    119.8 KB · Views: 0
  • IMG_20200517_203204_981.jpg
    197.5 KB · Views: 0
  • IMG_20200517_203219_635.jpg
    200.1 KB · Views: 1
  • IMG_20200517_203223_253.jpg
    205.5 KB · Views: 1
Joined
Aug 9, 2019
Messages
31
Points
58

Location
Almazora, Spain

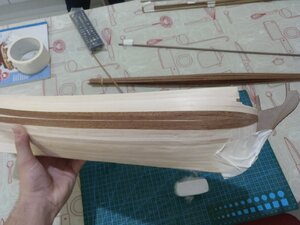

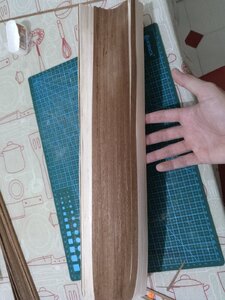

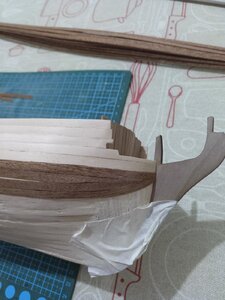

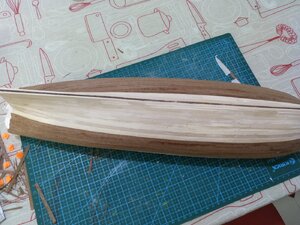

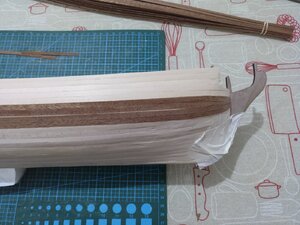

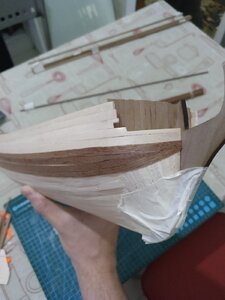

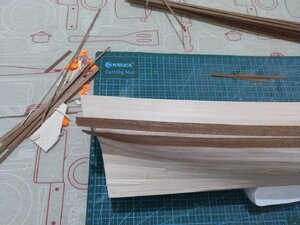

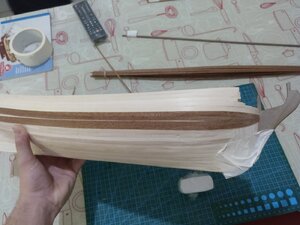

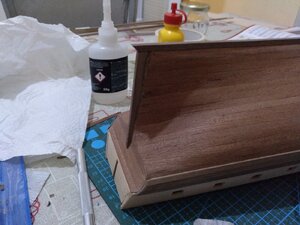

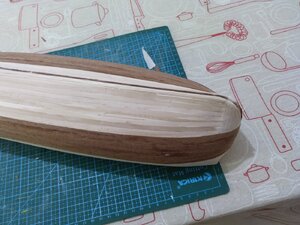

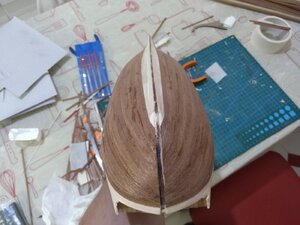

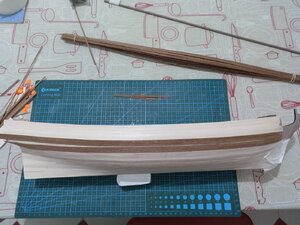

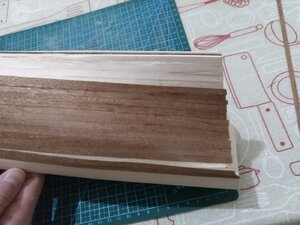

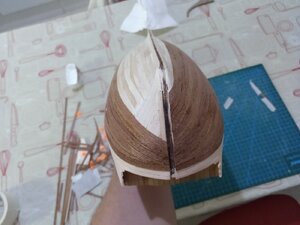

Here I started planking the hull with the Sapelly strips. I also put the stern with tape to know where the strips should go. Once I finish I will glue it.

IMG_20200518_204615_649.jpgIMG_20200518_204621_742.jpgIMG_20200518_204632_926.jpgIMG_20200518_204636_059.jpgIMG_20200518_204639_451.jpgIMG_20200518_204654_691.jpgIMG_20200518_204707_061.jpg


Attachments

  • IMG_20200518_204618_616.jpg
    151.6 KB · Views: 1
  • IMG_20200518_204621_742.jpg
    159.3 KB · Views: 1
  • IMG_20200518_204710_712.jpg
    164.9 KB · Views: 0
  • IMG_20200518_204632_926.jpg
    319.1 KB · Views: 0
  • IMG_20200518_204636_059.jpg
    260.5 KB · Views: 0
  • IMG_20200518_204639_451.jpg
    267.9 KB · Views: 1
  • IMG_20200518_204654_691.jpg
    202.3 KB · Views: 0
Joined
Aug 9, 2019
Messages
31
Points
58

Location
Almazora, Spain

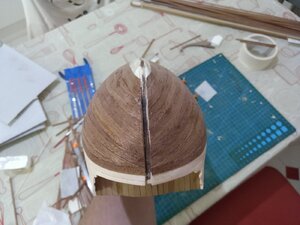

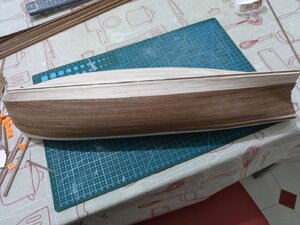

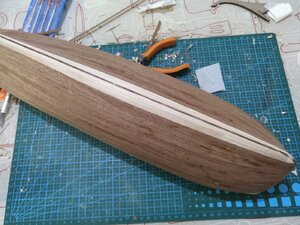

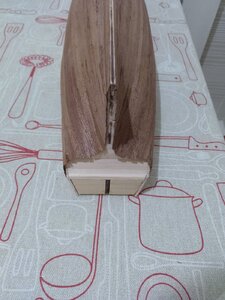

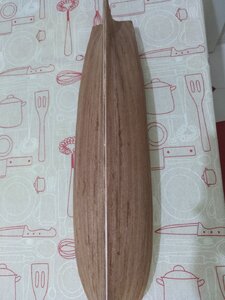

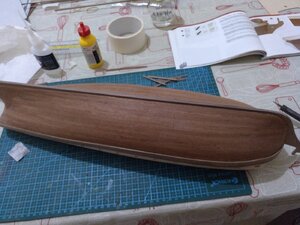

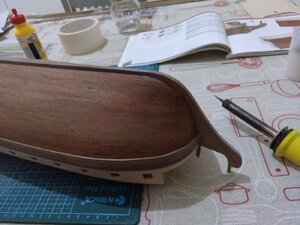

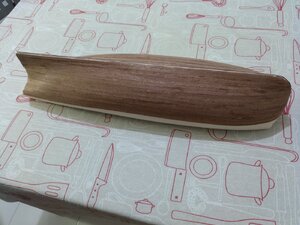

Hello everyone. It has been a while and a lot of progress has been made. I have completely planked the hull with the Sapelly strips.

Here are some photos of the progress.

IMG_20200525_203204_052.jpgIMG_20200525_203217_798.jpgIMG_20200525_203223_747.jpgIMG_20200527_204945_995.jpgIMG_20200527_204953_623.jpgIMG_20200527_205012_151.jpgIMG_20200528_204358_622.jpgIMG_20200528_204417_980.jpgIMG_20200531_212609_227.jpgIMG_20200531_212623_606.jpgIMG_20200531_212636_955.jpg


Attachments

  • IMG_20200528_204414_605.jpg
    182.6 KB · Views: 1
Joined
Aug 9, 2019
Messages
31
Points
58

Location
Almazora, Spain

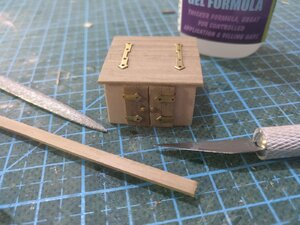

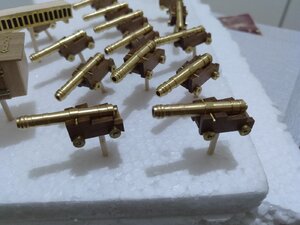

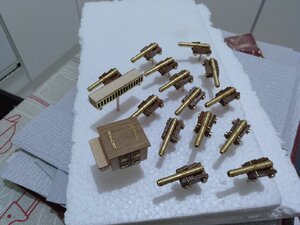

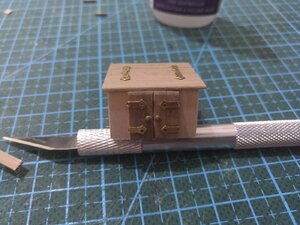

At the same time, I started making various decorations that go on the deck for example this cabin. Also the cannons.

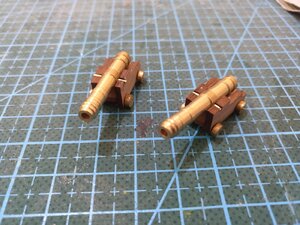

I made the gun carriages and then added the canons and the brass wheels. Then I varnished the canons that go in the gunports. I didn't go into much detail as these aren't going to be very visible.



Attachments

  • IMG_20200610_201538_550.jpg
    390.1 KB · Views: 0
Joined
Aug 9, 2019
Messages
31
Points
58

Location
Almazora, Spain

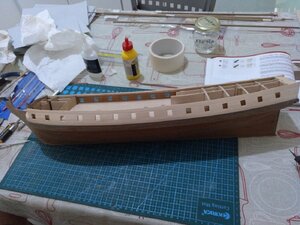

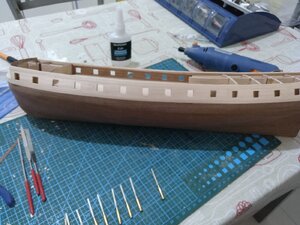

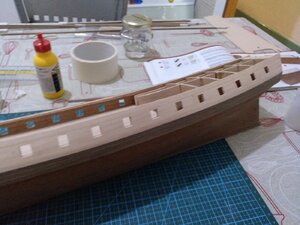

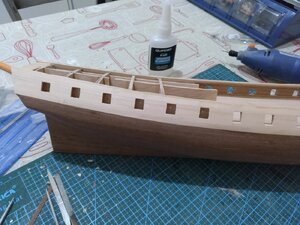

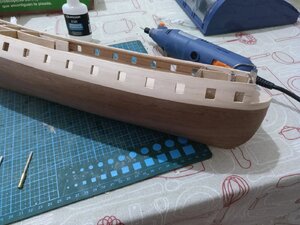

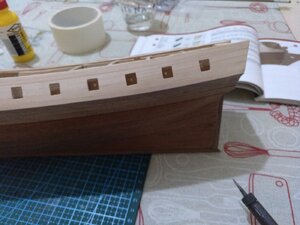

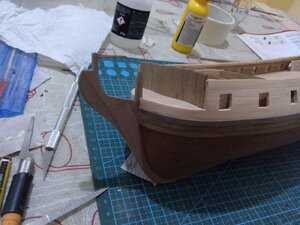

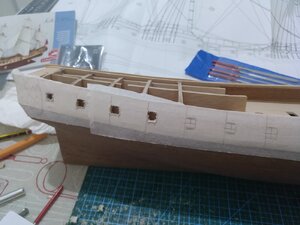

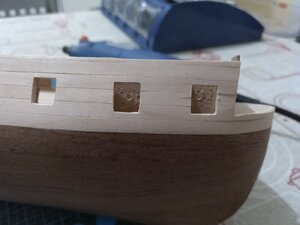

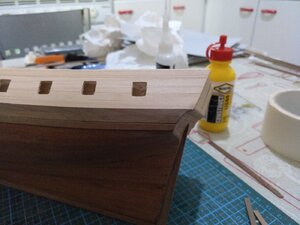

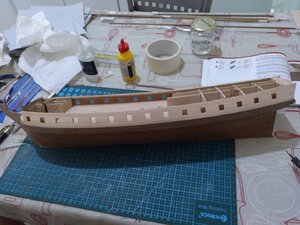

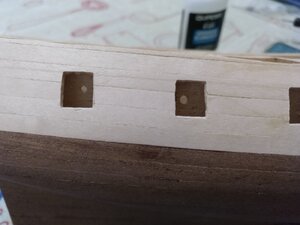

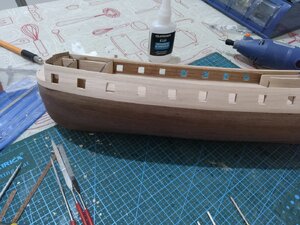

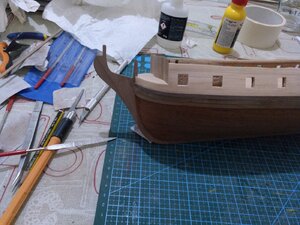

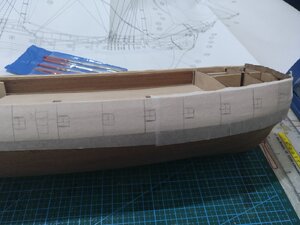

Here you can see that I drilled all the gunports. 15 on each side. Pretty easy task but has to be made carefully. The most tedious part is sanding them to be a perfect rectangle.

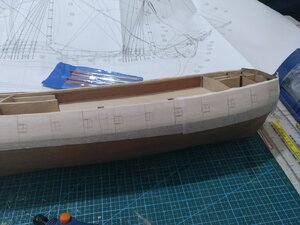

Here you can see the process. I used painters' tape to draw where each one should go, then I drilled them and with the Exacto knife I cut the hole, and with the file I sanded it to make a perfect rectangle.

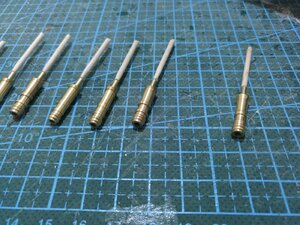

Once I did this, I drilled holes to hold the small cannons that don't have carriages.

IMG_20200604_200227_348.jpgIMG_20200604_200234_462.jpgIMG_20200604_200231_640.jpgIMG_20200610_201431_092.jpgIMG_20200610_201440_581.jpgIMG_20200610_201455_622.jpgIMG_20200610_201512_101.jpgIMG_20200610_201516_263.jpg


Attachments

  • IMG_20200610_201446_922.jpg
    154.9 KB · Views: 0
Joined
Aug 9, 2019
Messages
31
Points
58

Location
Almazora, Spain

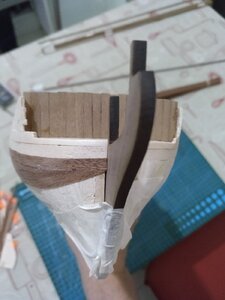

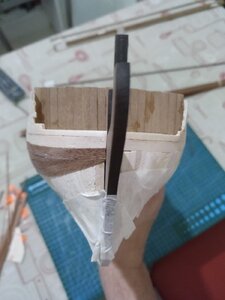

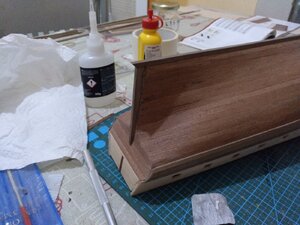

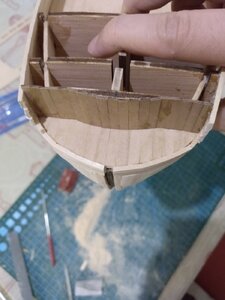

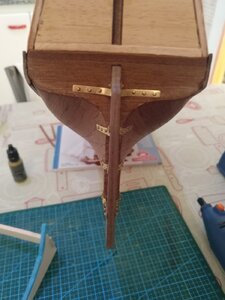

I am now closer to finish the hull. I have glued the stern, the sternpost and I have cut and glued the keel. I had to sand down the sternpost a little.

After this, I also glued 3 whales on each side of the ship. I thought they were too many as they were 4cm width, but now I have placed them, it looks great.

IMG_20200611_194212_864.jpgIMG_20200611_194219_081.jpgIMG_20200611_194248_834.jpgIMG_20200611_194312_544.jpgIMG_20200611_194315_685.jpgIMG_20200611_194325_150.jpgIMG_20200611_194353_045.jpgIMG_20200611_194241_424.jpg

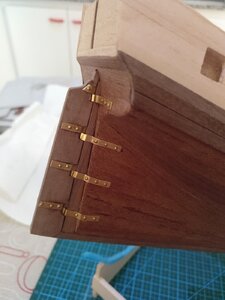

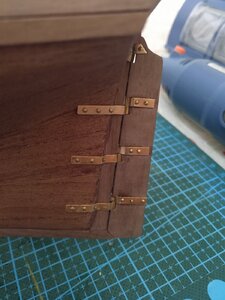

The next and almost last step is to make and put the rudder blade. I think that with this, I would have finished the hull and I could start populating the lower deck with the canons and so on, and also the upper deck.


Attachments

  • IMG_20200611_194234_474.jpg
    194.4 KB · Views: 0
  • IMG_20200611_194240_104.jpg
    254.6 KB · Views: 0
  • IMG_20200611_194329_460.jpg
    231.8 KB · Views: 0
Joined
Aug 9, 2019
Messages
31
Points
58

Location
Almazora, Spain

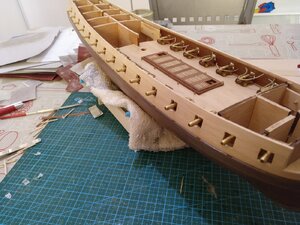

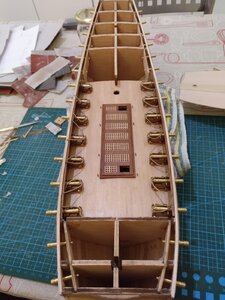

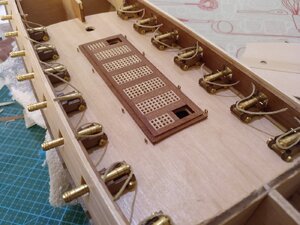

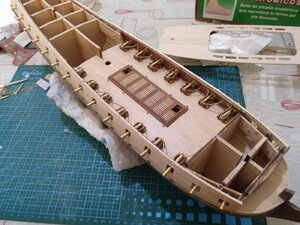

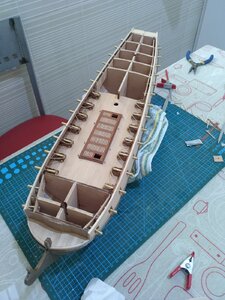

After this, I started gluing all the cannons on the lower deck. I also went a bit further and added some thread to simulate the ropes that hold the cannons in place in real life. This is something Constructo doesn't say in their instructions but I recently saw it in a build log and I liked the idea so I tried it and the result is pretty neat.

I have also glued the "false" cannons.

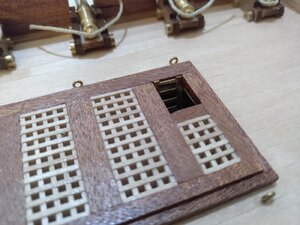

I still have to glue the thread to the walls of the gunports. I also have glued the grating and I made some holes to glue eye bolts in order to attach some rope to hold the lifeboat which still needs to be painted and mounted in place.

Also, if you look closely at the gratings you can see two little pairs of stairs. I really like this kind of detail. They are made of brass and cut to length.

IMG_20200618_131622_217.jpgIMG_20200618_131656_413.jpgIMG_20200618_131706_415.jpgIMG_20200618_131722_659.jpgIMG_20200618_131925_257.jpgIMG_20200618_132038_097.jpg


Uwek

Administrator
Staff member
Administrator
Joined
Dec 25, 2017
Messages
17,277
Points
938

Location
Vienna, Austria
Hello everyone. In this thread, I am going to attempt to document the building of my latest model La Flore by Constructo. I bought this kit last year although I really hadn't had the time to build it until now, during the lockdown I have plenty of time and I work on it about 5 hours a day!

I won't be writing many of the parts' names and forgive me if I make any mistake as English is not my first language and I don't even know some of the parts' names in Spanish!

I am open to all the advice you can give me so come on!!

I hope you like it!!!

View attachment 149402


First some photos of the contents of the box.

View attachment 149403


View attachment 149404

View attachment 149406View attachment 149407

View attachment 149408


I had some issues with the "black" thread because as you can clearly see it is GREEN! I emailed Constructo but they didn't help me. They said sometimes this happens when the black colour is "lighter" than normal. I have been searching to buy a new thread and I think I have found some. As this is going to be used towards the end, at the moment it doesn't really bother me. Apart from this, everything is on the box well packed and in good condition. Constructo has good quality.

View attachment 149410


Here I started with the false keel.

View attachment 149411View attachment 149413
View attachment 149415
View attachment 149418

Here I put some wood strips to hold the cannons on each side of the ship. I really liked this ship because of the gun line on each side.

View attachment 149419View attachment 149420View attachment 149421
View attachment 149422View attachment 149423

Then I glued the two lower decks. The prow deck and the waist deck. After this, I sanded the pins and started to plank both decks.

View attachment 149424View attachment 149425View attachment 149427View attachment 149428View attachment 149429
Hallo Alexis alias @Alexisgm97
we wish you all the BEST and a HAPPY BIRTHDAY
Birthday-Cake
How is your wrok on the La Flore going? Are you still working on this project?

Joined
Aug 9, 2019
Messages
31
Points
58

Location
Almazora, Spain
Hallo Alexis alias @Alexisgm97
we wish you all the BEST and a HAPPY BIRTHDAY
Birthday-Cake
How is your wrok on the La Flore going? Are you still working on this project?
Hello!

Many thanks!!!

Well I am sorry to say that I don't have all the time I would like to put into the Flore, I am going slow but I am still making progress, I will have to look for some free time to keep updating the log, I promise!

Have a good day,

Alexis.
