L'Artésien 1764 - 64 Kanonen-Schiff in 1:48 nach Plänen von Jacques Fichant

Cpt.Barbossa said:
Hallo zusammen!

Vielen Dank für das Lob!

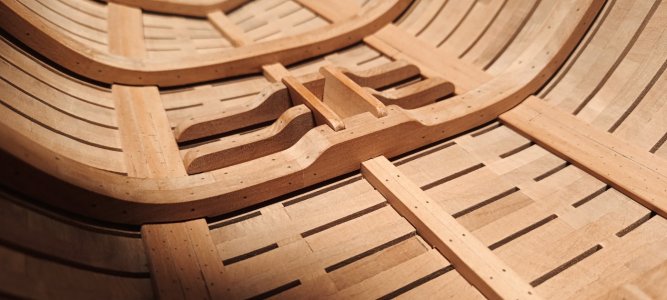

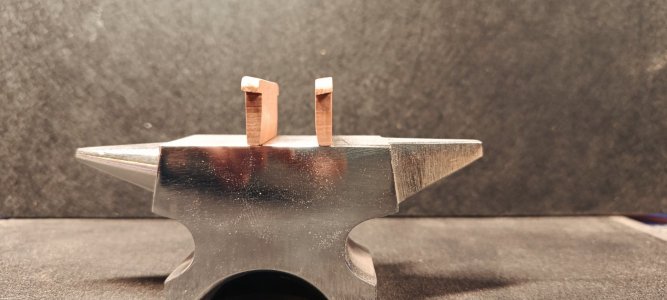

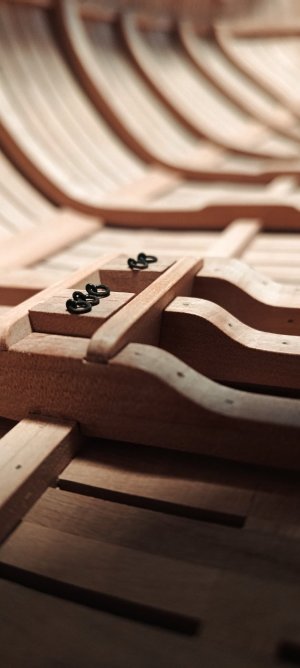

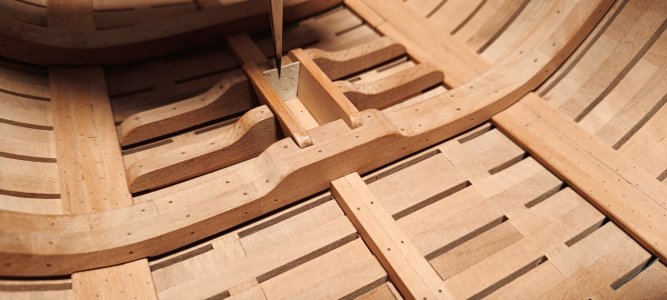

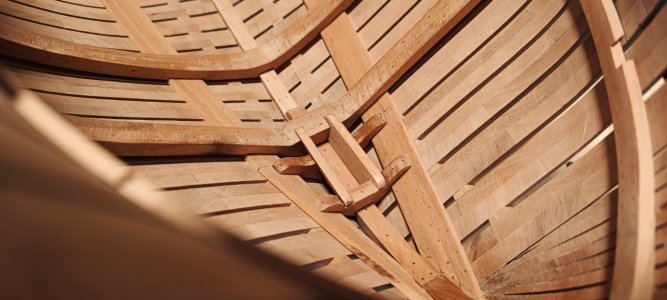

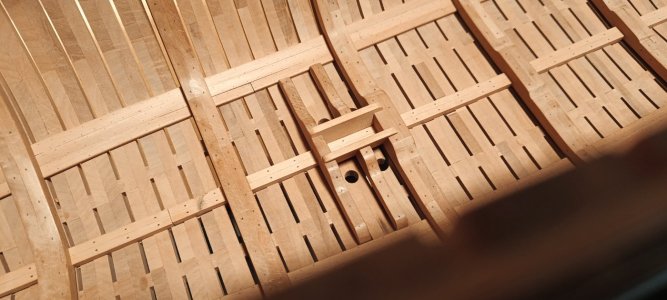

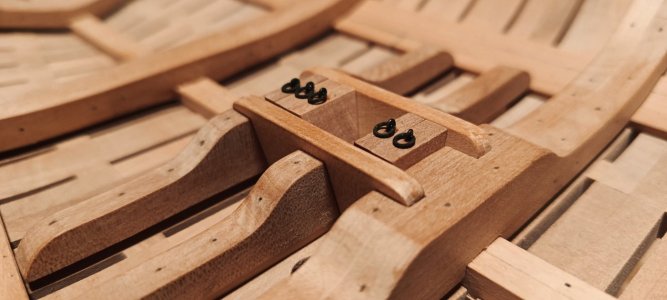

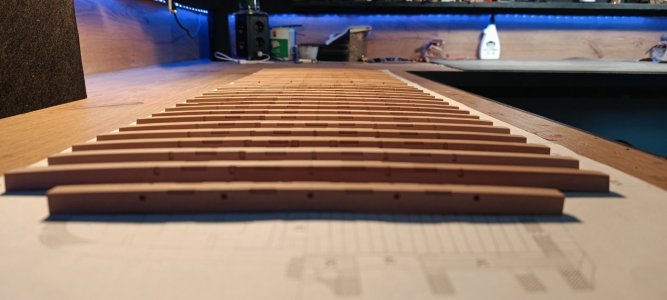

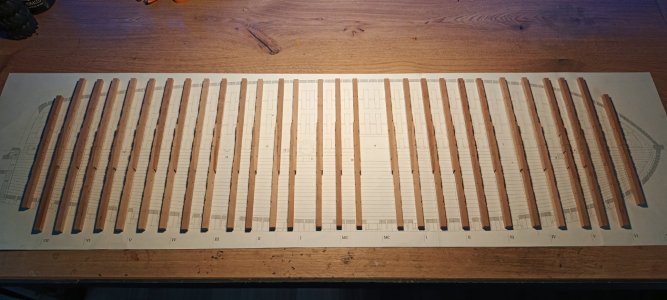

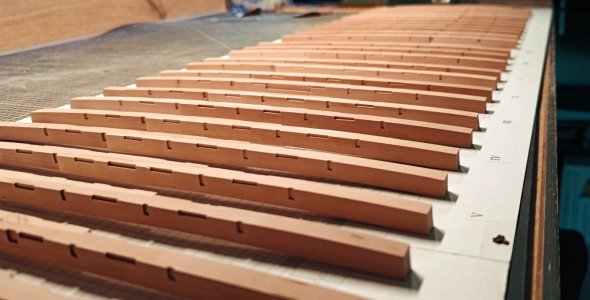

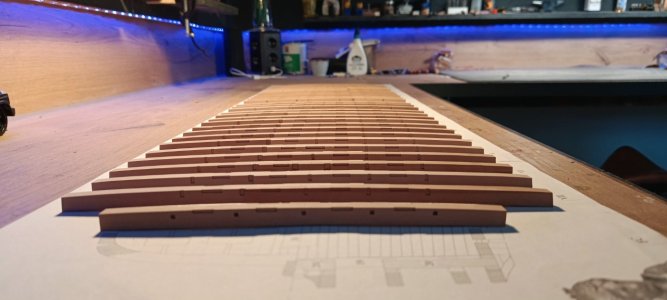

Während ich an den Hauptspanten arbeitete, fertigte ich gleichzeitig die neun katzenkopfförmigen Knie an. Prinzipiell werden diese genauso konstruiert und angepasst wie die Spanten des Schiffes. Das genaue Nagelmuster war aus den Plänen nicht ganz ersichtlich; die seitliche Nagelung fehlte vollständig. Daher orientierte ich mich weitgehend an Boudiots Buch über das 74-Kanonen-Schiff.

View attachment 611581

View attachment 611582

View attachment 611583

View attachment 611584

View attachment 611585

View attachment 611586

View attachment 611611

View attachment 611612

View attachment 611587

View attachment 611588

View attachment 611589

View attachment 611590

View attachment 611591

View attachment 611592

View attachment 611593

View attachment 611594

View attachment 611595

View attachment 611596

Grüße
Andreas
Click to expand...
very nice and accurate work!!
well done Andreas

Cpt.Barbossa said:
Hallo zusammen!

Vielen Dank für das Lob!

Während ich an den Hauptspanten arbeitete, fertigte ich gleichzeitig die neun katzenkopfförmigen Knie an. Prinzipiell werden diese genauso konstruiert und angepasst wie die Spanten des Schiffes. Das genaue Nagelmuster war aus den Plänen nicht ganz ersichtlich; die seitliche Nagelung fehlte vollständig. Daher orientierte ich mich weitgehend an Boudiots Buch über das 74-Kanonen-Schiff.

View attachment 611581

View attachment 611582

View attachment 611583

View attachment 611584

View attachment 611585

View attachment 611586

View attachment 611611

View attachment 611612

View attachment 611587

View attachment 611588

View attachment 611589

View attachment 611590

View attachment 611591

View attachment 611592

View attachment 611593

View attachment 611594

View attachment 611595

View attachment 611596

Grüße
Andreas
Click to expand...
Hi Andreas

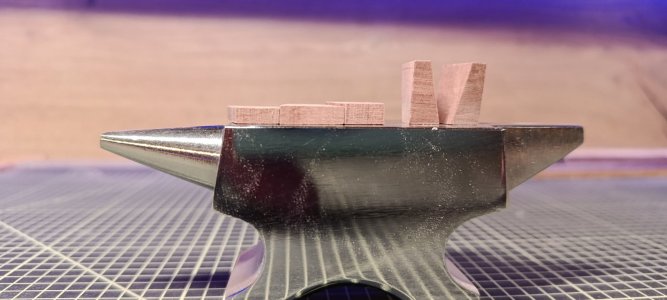

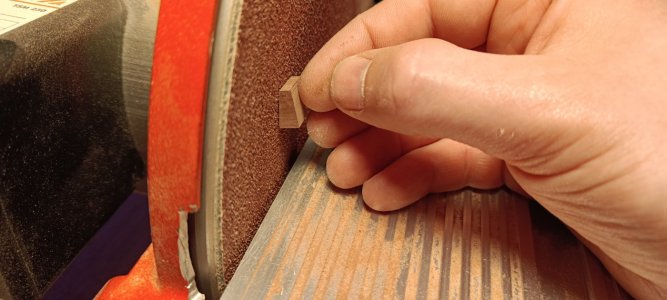

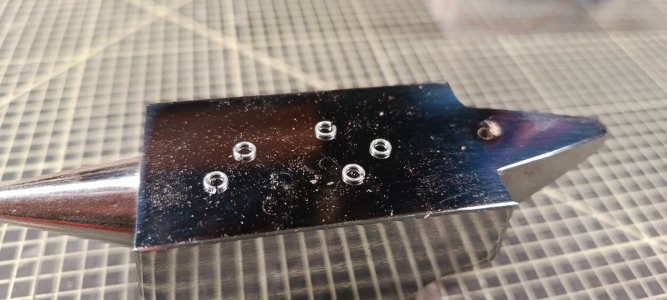

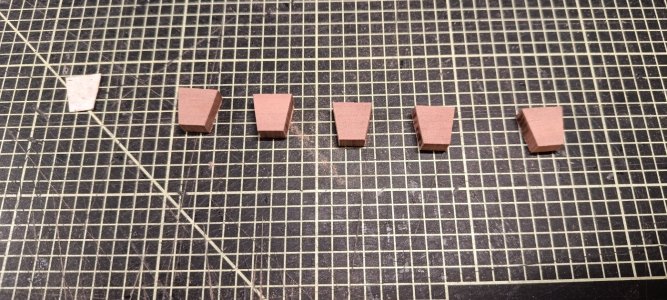

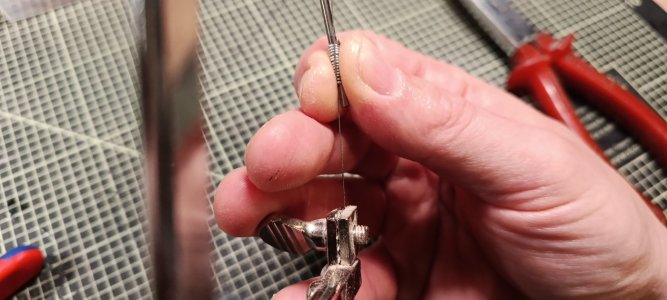

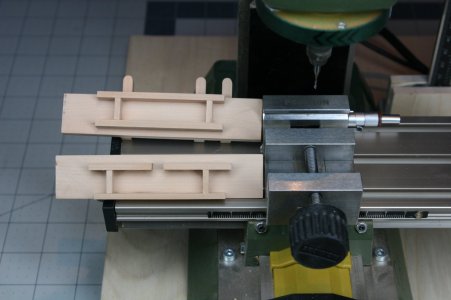

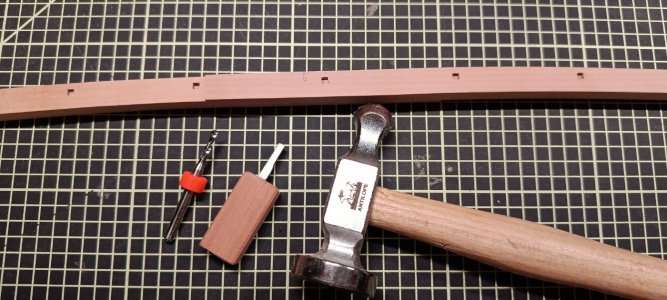

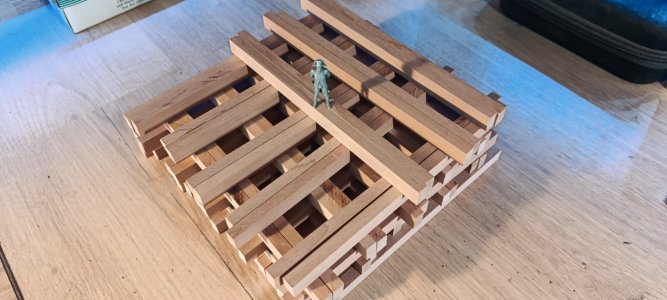

That’s an excellent idea for the tool made to create square pegs! The photo with the captain standing atop the ship's frame commands respect.Gold StarGold StarGold StarGold StarGold StarOkayBeer
Grusse

Cpt.Barbossa said:

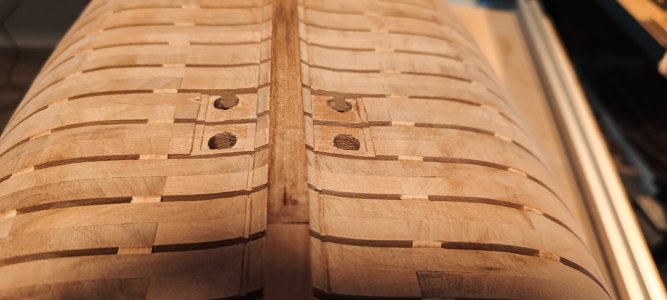

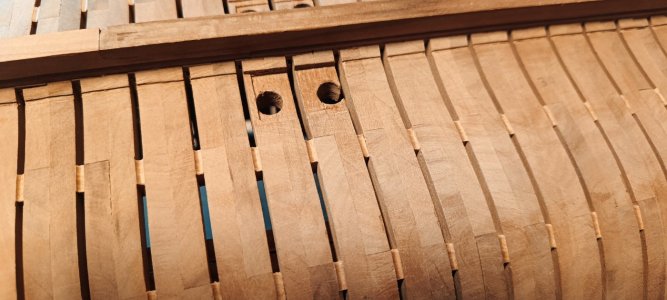

Genau richtig. Ich bohre das Loch und fülle es mit dem abgebildeten Wachs. Es braucht etwa eine Minute zum Trocknen. Dann kratze ich das überschüssige Material vorsichtig ab und bearbeite die Stelle noch einmal mit Stahlwolle. Zum Schluss wird das Holz mit einem Polieraufsatz für einen Dremel poliert.
Click to expand...
Hallo Andeas,

Kannst Du den Hersteller, bzw den Bezugslink zu deinem „Kitt“ bitte nennen?

Many thanks for your kind words and interest! I’m really pleased :)

Here is the link to the wood repair putty: (https://amzn.eu/d/0hKyZEKj).

For finer filling work like this, I also recommend using the small applicator tips designed for adhesives, so you can apply precise, tiny amounts.


Hello Frank!

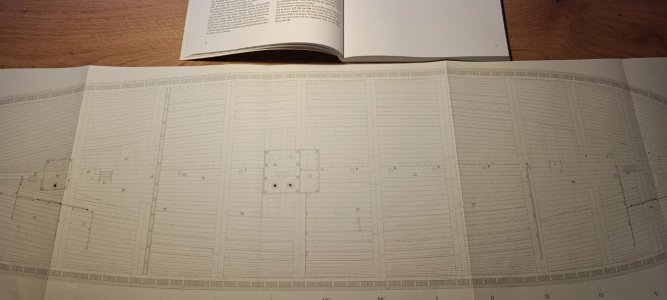

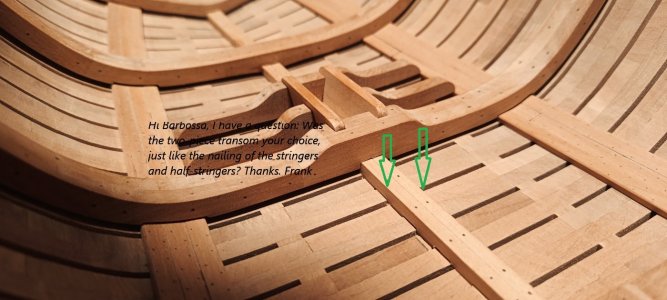

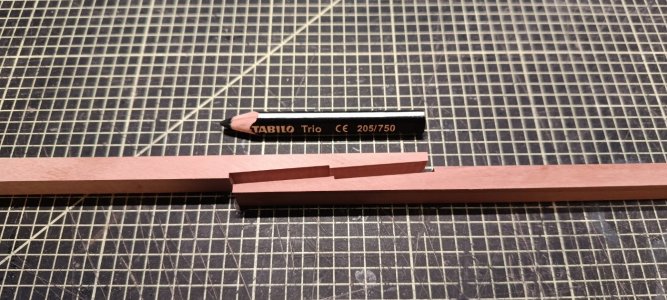

The two-part keelson was taken from the plans. I based the nailing pattern for the riders roughly on Boudiot's 74-gun ship, as this wasn't shown in the plans. I hope I understood your question correctly.

Cpt.Barbossa said:
Hello Frank!

The two-part keelson was taken from the plans. I based the nailing pattern for the riders roughly on Boudiot's 74-gun ship, as this wasn't shown in the plans. I hope I understood your question correctly.
Click to expand...
Hi Barbossa, Yes, thanks for replying. The two-piece paramezzale is new to me—I'm not convinced. Frank

I also found out why the Artésien has a two-part counter-keel. Maybe there’s something about it in the monograph.

Last edited:

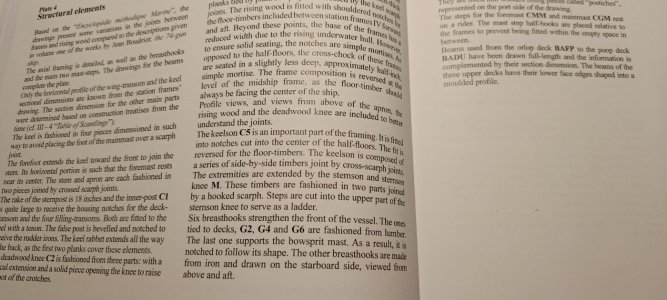

Thanks for the message, Frank. But why was the counter-keel made in two parts? The monograph mentions that it is two-piece. But why? :)

Cpt.Barbossa said:
Thanks for the message, Frank. But why was the counter-keel made in two parts? The monograph mentions that it is two-piece. But why? :)
Click to expand...
Cpt.Barbossa said:
Thanks for the message, Frank. But why was the counter-keel made in two parts? The monograph mentions that it is two-piece. But why? :)
Click to expand...
Could you send me a few pictures from the monograph, just out of curiosity? Frank

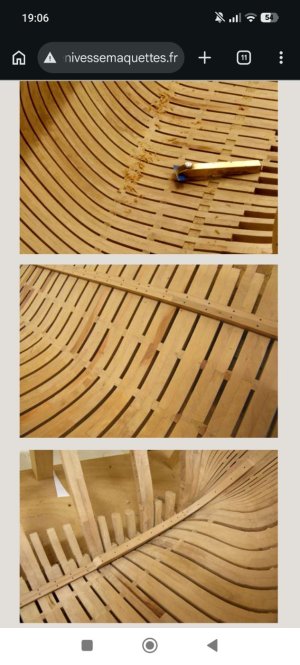

It looks like Frank is right in his assumption that the counter-keel does not consist of two parts lengthwise. Two other build logs also show it this way. I recall following Gérard Genevesse’s approach here. I don’t know why he depicted the counter-keel in two parts. Many thanks for the clarification, Frank.

Regards
Andreas

Cpt.Barbossa said:
It looks like Frank is right in his assumption that the counter-keel does not consist of two parts lengthwise. Two other build logs also show it this way. I recall following Gérard Genevesse’s approach here. I don’t know why he depicted the counter-keel in two parts. Many thanks for the clarification, Frank.

Regards
Andreas
Click to expand...
Thank you again for your analysis; my comments are intended, in a sense, to help those who aren't familiar with axial carpentry. Frank
