Lemke-LeGrand 1:8 Mercedes-Benz 300SLR Uhlenhaut Coupé GullWing

Joined
Jun 19, 2020
Messages
7,369
Points
838

Location
Woudrichem, Netherlands

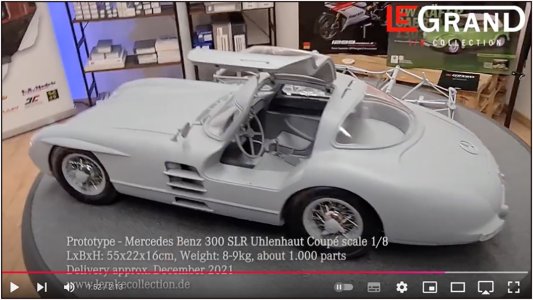

In Februari 2021, Lemke-LeGrand came up with this photo of the development of a 1:8 scale model of the Mercedes-Benz 300 SLR Uhlenhaut Coupé:
001 LeGrand Proto.jpg
It's a still from their Video: --> LeGrand 300 SLR Uhlenhaut Coupé <--
There expected delivery: December 2021.

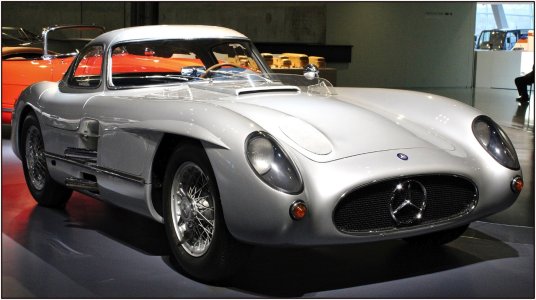

The model is based on this historic Mercedes: --> MB 300 SLR Uhlenhaut Coupé <--
006 300 SLR.jpg
Only two were built: 'der Blaue' (the Blue) and 'der Rote' (the Red)
For those interested, the link to the --> MB Archief <--

Lemke-LeGrand didn't make the expected delivery in December 2021.
From that point on, I continued to monitor the development.

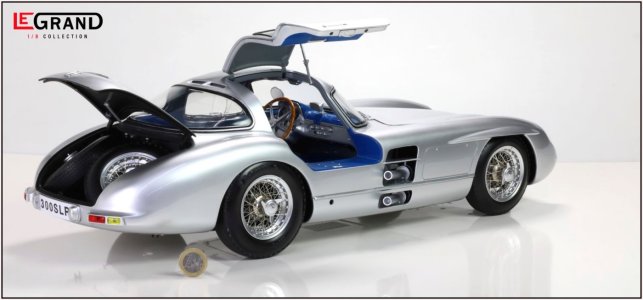

Deliveries didn't begin until the spring of 2024, with the first "der Blaue" with a blue interior.
—> LeGrand 'der Blaue' <—
002 LeGrand LE102.jpg

The expectation was that the "der Rote" would be delivered in the fall of 2024, but this was repeatedly postponed because they wanted to fix some shortcomings and update the manual.
But now, deliveries of the second version, the "der Rote" with the red interior, have begun.

There are some minor detail differences between the two.
On the "der Blaue" (Blauer Blue), the fuel filler opening is through the rear window, while on the "der Rote" it's located under the tailgate.
The "der Blauwe" has a rectangular mirror, while the "der Rote" has a round one.

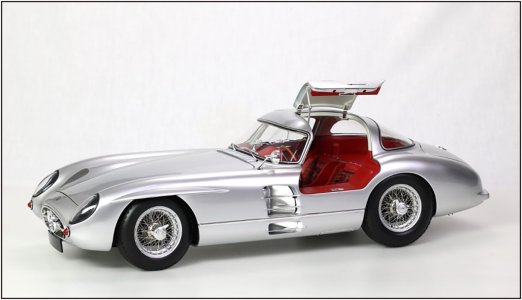

003 LeGrand LE105.jpg

This is what the Lemke-LeGrand website states:
=================================================
Art. LE105
LEGRAND Mercedes-Benz 300 SLR “Uhlenhaut Coupé” 1/8 kit – “The Red One”

The original: Daimler-Benz developed this coupé version of the 300 SLR racing sports car for the 1956 season. It was designed under the supervision of Rudolf Uhlenhaut, then head of the MB racing car department. The nickname “Uhlenhaut Coupé” is a reminder of this today. However, it was never used in racing because Mercedes Benz withdrew from motorsport after the end of the 1955 season. The MB 300 SLR is one of the most spectacular and expensive super sports cars ever built and was already way ahead of its time.

Mercedes-Benz auctioned the original vehicle with the red interior (No.008/55) at the Mercedes-Benz Museum / Stuttgart in May 2022 in a spectacular auction for the record price of 135 million euros to establish the “Mercedes-Benz Fund”.
https://media.mercedes-benz.be/de/d...gruendung-des-mercedes-benz-fund-versteigert/
– Cylinder 8
– Displacement 2982 cm³
– Power 302 hp (222 kW) at 7500 rpm
– Top speed 290 km/h
– Production period 1955
– Number of units produced 2

The kit: LEGRAND 1/8 kits are made from high-quality materials. The body of the model, which weighs around 7 kg, is made of die-cast metal and is already painted. The kit of more than 900 parts is easy to assemble and contains parts made of various materials such as metal, rubber, textiles and high-quality plastic. Most components are screwed and plugged in. If there are only a few parts, we recommend gluing with a model making adhesive. The steering and suspension are functional and the doors and flaps can also be opened prototypically. The model pictures show hand samples. Series production may differ in details.
– Kit contains more than 900 parts
– Dimensions LxWxH mm: 550 x 210 x 160
– Weight: approx. 7 kg
– Easy to assemble, many screwed components
– Incl. Screw box
– Metal body, ready-painted
– With Eberspächer silencer (optional)
– License note: Mercedes-Benz and the design of the enclosed product are subject to intellectual property owned by Daimler AG. They are used by LEMKE Collection GmbH under license.
=================================================

And why an Eberspächer silencer was made for the car?
004 LeGrand Eben.jpg
--> This Sound <--wasn't allowed for a while now either. It's a clip from a longer video.

The kit is priced "seriously." But thanks to my pre-order, I'm considerably lower than that.

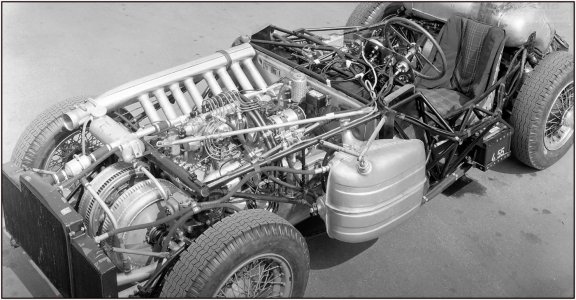

In terms of quality, this kit is supposedly even better than Pocher's. I'll see if this intermediate stage can be realized:
005 300 SLR.jpg
Yesterday I received the message that the parcel service would deliver the package this afternoon.
Hopefully, I can give a first impression of the kit soon.
Regards, Peter

Last edited:
The package driver carried a large box on his shoulder:
007 Package.jpg

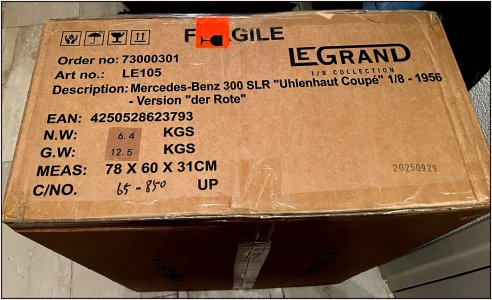

Weighing quite a bit:
008 Package.jpg

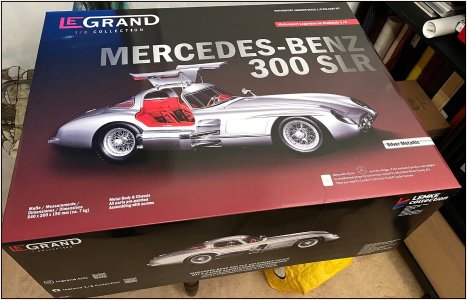

Stripped of its sturdy packaging, this box emerged:
009 Box.jpg

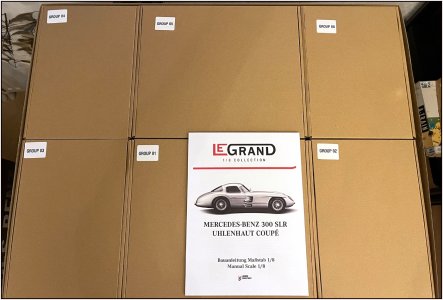

The building instructions: 117 pages, divided into 6 groups with 106 clearly illustrated building steps.
010 Groups.jpg

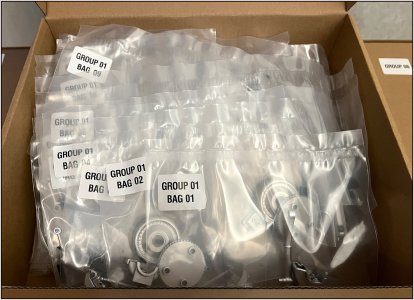

Neatly packaged parts in the group boxes:
011 Bags.jpg

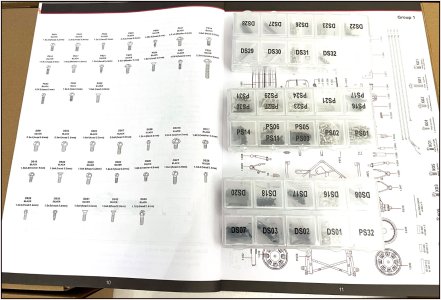

With 36 different types of bolts:
012 Bolts.jpg

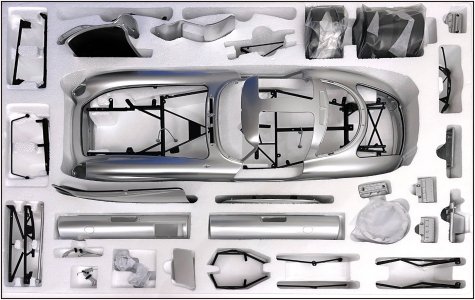

With very securely packaged metal parts:
013 Metal Parts.jpg
Besides building the Balder, I'll be busy with this one for a while. From what I've seen, it's already very detailed. Let's see what other details I can add.
Regards, Peter

Wow! Looks like you’re stocked up for a whole year of fun — maybe several! Now I’m wondering… are there functional motors for this model at that scale? I mean, if everything else is working already, why not the engines too? Might as well go full Frankenstein on the model!

Wow! Looks like you’re stocked up for a whole year of fun — maybe several! Now I’m wondering… are there functional motors for this model at that scale? I mean, if everything else is working already, why not the engines too? Might as well go full Frankenstein on the model!
For sure I will have fun for ‘some time’ with this build, Jim. I am a builder of static model and have nothing with RC.
For sure @François can design and print a ‘working’ engine for this model. But as well as the Ducati's a look at the detailed outside of the engine is enough for me.
Regards, Peter

For sure I will have fun for ‘some time’ with this build, Jim. I am a builder of static model and have nothing with RC.
For sure @François can design and print a ‘working’ engine for this model. But as well as the Ducati's a look at the detailed outside of the engine is enough for me.
Regards, Peter
Agreed, a working static model seems like a waste of effort in my opinion. It’s meant to be displayed, not played with. That would only encourage people to touch it…no thanks! I always tell people to look with their eyes, not their hands! ROTF

Agreed, a working static model seems like a waste of effort in my opinion. It’s meant to be displayed, not played with. That would only encourage people to touch it…no thanks! I always tell people to look with their eyes, not their hands! ROTF
…though having a working engine doesn’t automatically make it an RC model. The engine could be turned ON while the car was displayed in the cover. This model is designed with working doors, a boot, and a bonnet. ;)

…though having a working engine doesn’t automatically make it an RC model. The engine could be turned ON while the car was displayed in the cover. This model is designed with working doors, a boot, and a bonnet. ;)
Yes…my Porsche 917 has working doors and a rear hatch that lifts up, and a front hood for access to brake reservoirs, etc. that is removable. However, I do not ever touch these or let anyone else because it’s in a case. So functionality that is mostly useless unless you want to display it with the doors open and the hatch up, in which case I need a larger display! ;)

When I start building a special model, I always want to know more about the background.
W196S:

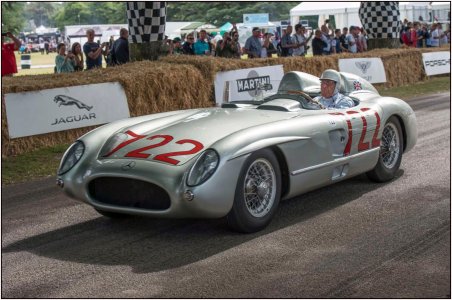

The "Uhlenhout Coupé" is based on the W196S, the open racing car that Mercedes-Benz entered in the Formula One Championship in 1954 and 1955:
014 W196S.jpg
A nice YouTube video about the W196S and some famous people:
The Uhlenhout Coupé is based on this W196S. Rudolf Uhlenhout wanted to offer drivers an alternative for endurance races with a closed coupé.
The first build was "der Blauwe" (the Blue), chassis number 196.110-00007/55.
The second was "der Rote" (the Red), chassis number 196.110-00008/55.

However, neither Coupé ever competed in a race. In 1955, a test car crashed. There's a whole Wikipedia page about it:
The driver and 82 spectators were killed.
The special Elektron body material posed additional problems. They tried to extinguish it with water, but that only worsened the fire. It has a high magnesium content.

Both Coupés were converted for legal road use, specifically for long-distance testing and to allow the press to drive them and gain an impression of the Mercedes-Benz technology. This led to the development of the Ebenspacher muffler.
Regards, Peter

Last edited:
I started working on getting a first impression of the manual and parts, so I could also write a short review for this kit.

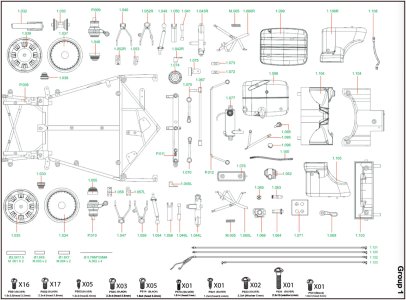

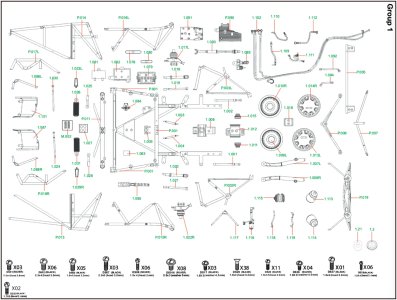

The first two pages provide an overview of all the parts and bolts required for building Group 1:
015 Group 1-1.jpg
Source: the link on the Lemke-LeGrand website, but also via the QR code shown later in the manual.
016 Group 1-2.jpg

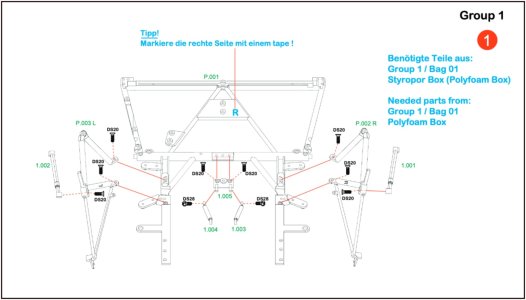

Group 1, step 1:
017 Group 1 Step 1.jpg

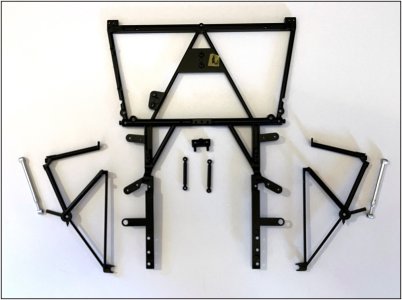

Also collected the parts for this review:
018 Group 1 Step 1.jpg

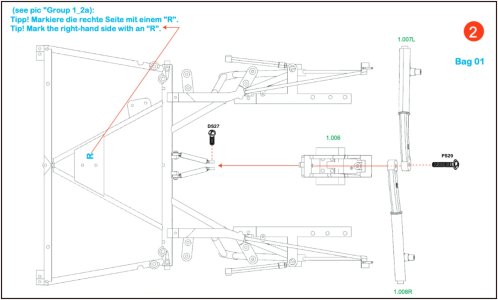

Group 1, step 2:
019 Group 1 Step 2.jpg

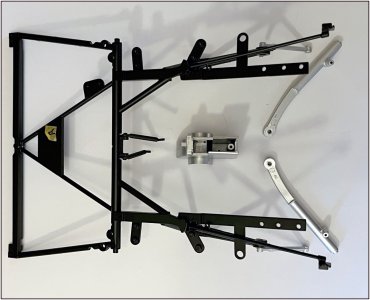

Assembled step 1 with the parts from step 2:
020 Group 1 Step 2.jpg
P.S.: Here, the parts are upside down, the parts marked 'R' and 'L' can be confusing.

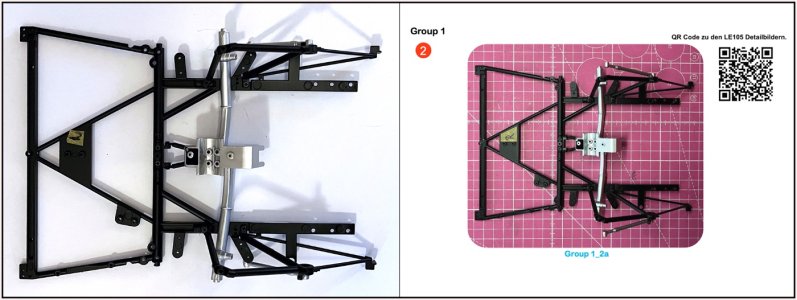

You can then compare the result with a photo in the manual:
021 Group 1 Step 1+2.jpg
There you'll also find the QR code that leads directly to the Lemke-LeGrand iCloud website, where you'll find all the photos of all the steps and the digital manual.

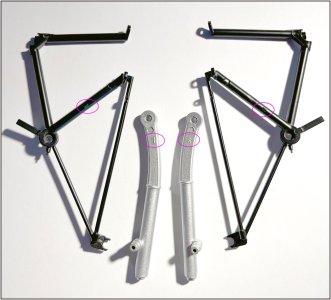

Some parts are mirror-image identical. You could interchange them. However, the parts have small 'L' and 'R' markings:
022 Marks.jpg

All in all, it's a bit clearer than the Pocher kits. The bolt fit is also better. You need less force with sufficient friction. You don't have to worry about the bolt breaking, and you don't need to pre-tap the holes.
So far, all metal parts, except for the silver-colored rectangular block. It's no longer in a cast frame but has already been removed, and I can't find where it was attached.
Regards, Peter
