Proxxon MF 70 | Upgrade Tools Jigs Workspace | Making: grating ladder stair skylight pin carriage pump windlass winch mast yard

[serikoff]

In this thread, I'll be showing the following:

1. Machine upgrades and improvements (Z-axis bearings, electronic ruler, lighting etc.)
2. Consumables I'll be using (milling cutters, drills, burrs) and jigs I'll be creating for the job.
3. Workspace and storage (designing a box and a stand-drawer).
4. Machine operation and making: gratings, ladders, stairs, skylights, pins, carriage pumps, windlass, winch, masts, yards, etc.

N.B. information will appear as I implement this.

There's a large thread on the forum that might be useful for you too - Can you get the most...
I highly recommend watching it! It's full of useful information.
Thanks to @Jimsky there are also several tutorials: Making: gratings | cannon trucks | Pawl Rim | calibration.

In this thread, I want to collect everything I'm planning to do with my Proxxon MF 70 so the information doesn't get lost in the numerous pages of build reviews.
I hope you find it useful.



[serikoff]

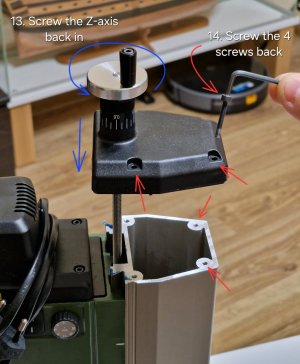

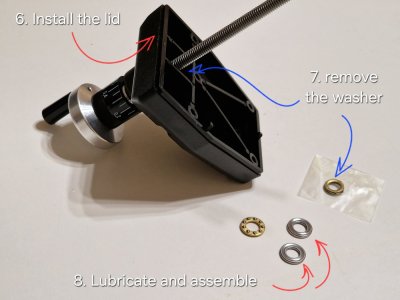

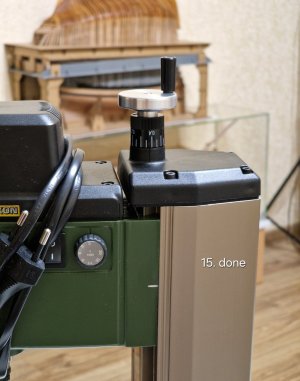

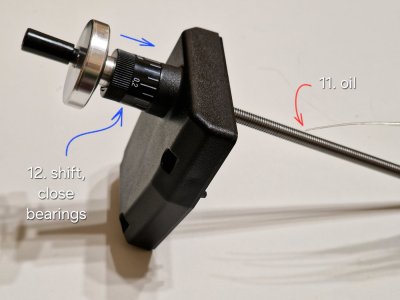

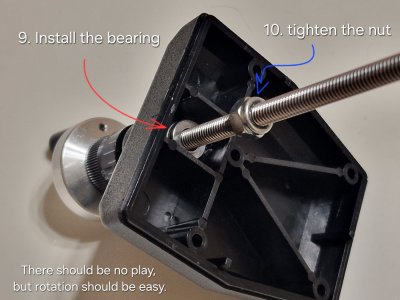

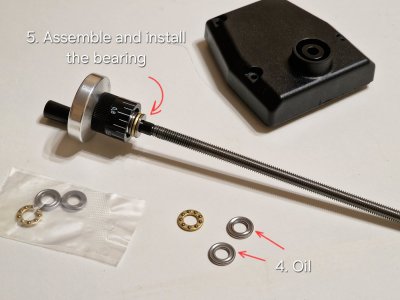

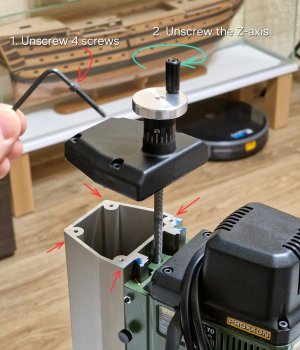

And first of all, I'll show you step-by-step instructions on how to install bearings on the Z axis,
which is the first and most important improvement to this machine!

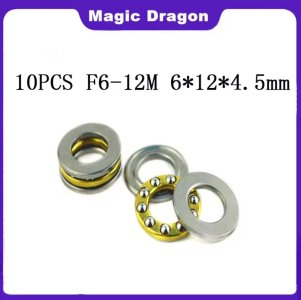

These bearings can be ordered on AliExpress using this link.
It's important to find the exact size.

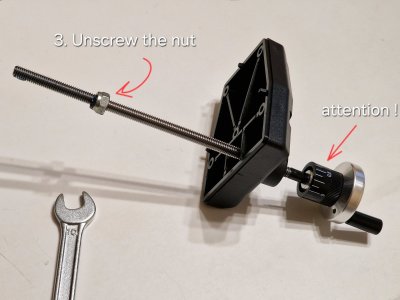

Be careful not to move the cylinder with the scale; there's a locking device there that could pop off and get lost! This will need to be done at the end.

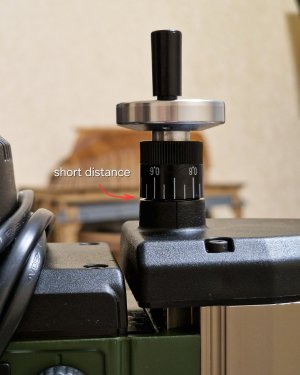

To avoid any friction at all, you can slightly raise the scale cylinder (but this is not necessary; if the scale is very dirty, you can cover the bearings from dust).



[serikoff]

I recently designed and ordered a Workspace for my machine.
It's a simple cabinet with a protective storage box.

I'll show you the finished product when it's ready.
I will also indicate all the dimensions and sizes to create something similar.
