Seizing and serving line size

Brewbrarian

Well-Known Member
Joined
Jul 9, 2019
Messages
72
Points
78

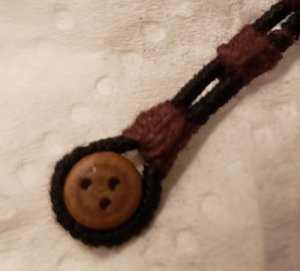

20191008_233021.jpgSo I am beginning my first trials of standing rigging on my first build (1:57 Black Prince). I have made several sizes of rope using the spreadsheet by Danny Vadas. I've been experimenting with seizing deadeyes and serving my stays/shrouds (or the first trial of them).

But I am wondering if I am using the right size thread for serving and seizing. Of course, size depends on scale, but can someone give me advice on gauging these. I was thinking in terms of comparing to other lines for size reference--as I have the Lees rigging book and Danny's spreadsheet gives me a good sense of the range. E.g. Is the serving line closer to the main ratlines in size or, say the main shroud lanyards--or something else altogether?

Any advice would be greatly appreciated.


Donnie

Systems Administrator
Staff member
Systems Administrator
Joined
Aug 21, 2011
Messages
2,392
Points
428

Location
Madison, MS
It seems to me that I used the same size as the ratline rigging line to use for seizing and serving. on a 1:80 or so, this equates to about .15mm and .80mm combination. I used on my Panart Felipe .15mm on all seizing and serving. the main thing is contrast of sizes. What I see in the picture is all of it is a little too thick perhaps. A little difficult from the picture.

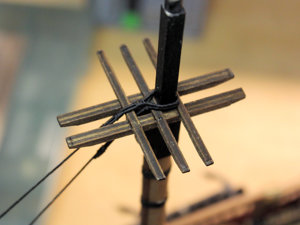

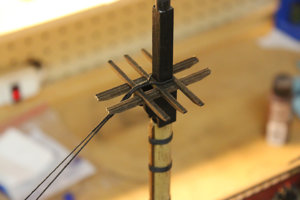

This is what I did as an example.

Last edited:

Brewbrarian

Well-Known Member
Joined
Jul 9, 2019
Messages
72
Points
78

It seems to me that I used the same size as the ratline rigging line to use for seizing and serving. on a 1:80 or so, this equates to about .15mm and .80mm combination. I used on my Panart Felipe .15mm on all seizing and serving. the main thing is contrast of sizes.
Thanks, Donnie. Very helpful


danielsje

Well-Known Member
Joined
Sep 9, 2017
Messages
33
Points
68

I have found that the "eye" can be very accurate...if it looks off it probably is. In most scales of 1/48 to 1/75 regular sewing thread works well for seizing...looks right! Try it...my apologies to those who want things exactly right!
Jim
