The Norske Love" by Noël Luc Build log
- Thread starter Noël Luc
- Start date
- Watchers 32
-
- Tags
- billing boats norske lowe
Best of luck on your surgery, hopefully you can resume finishing her soon. Looking great!
Beautiful work, and good luck on the surgery.
Hello, thank you all for the best wishes for a successful outcome of my surgery! I have a cast for 12 days now. Then physiotherapy and exercises for the hand and fingers!
If the pain I had turns out to be gone by then, everything will be fine. If the pain isn't gone by then, I will have to go under the knife again and a tendon in the wrist will be removed;
we'll see!
If the pain I had turns out to be gone by then, everything will be fine. If the pain isn't gone by then, I will have to go under the knife again and a tendon in the wrist will be removed;
we'll see!
Best wishes for a full recovery, Noel!
Good morning Noel. I happy to hear your surgery went well. Good luck with your recovery. Your NL is looking very impressive so far - nice! Cheers Grant
Two questions for the Norske Løve builders!
Question 1: A "Rigging Overview" is provided on page 29 of the manual. The numbers F70, F71, F72, and F73 refer to the thicknesses of the ropes used. Does anyone know which rope thickness corresponds to which F-number?
Question 2: At the top of the drawing of the forward mast on page 23 of the manual, a block F64/2 must be installed for L8. The parts list only mentions a block F64/1. Should two ropes pass through it or just one? This is not clearly visible in the drawing! What is the difference between F64/1 and F64/2? Which block should be installed?
Thanks in advance to anyone who can help me!!
Question 1: A "Rigging Overview" is provided on page 29 of the manual. The numbers F70, F71, F72, and F73 refer to the thicknesses of the ropes used. Does anyone know which rope thickness corresponds to which F-number?
Question 2: At the top of the drawing of the forward mast on page 23 of the manual, a block F64/2 must be installed for L8. The parts list only mentions a block F64/1. Should two ropes pass through it or just one? This is not clearly visible in the drawing! What is the difference between F64/1 and F64/2? Which block should be installed?
Thanks in advance to anyone who can help me!!

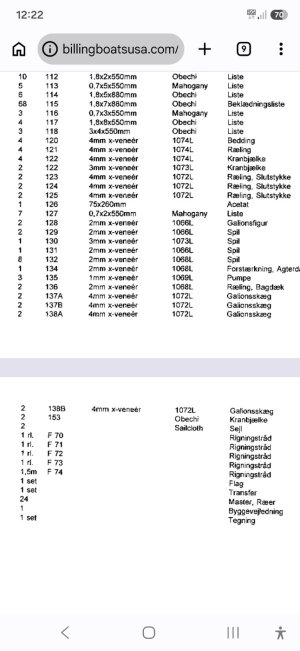

You should have a 1.5-meter length of rope—that’s the F74.
If that is the thickest rope, then it stands to reason that the lower the F-number, the thinner the rope becomes.
If that is the thickest rope, then it stands to reason that the lower the F-number, the thinner the rope becomes.
Hi Noël
According to one of our hobby dealers in Sweden, it looks like this:
F70 = Ø 0,2mm
F71 = Ø 0,5mm
F72 = Ø 0,8mm
F73 = Ø 1,2mm
F74 = Ø 2,0mm
// Krister
Last edited:
Thanks Backer64 and Krister_L for your answers! Do you perhaps also have an idea for a solution to the second question?
Thanks Backer64 and Krister_L for your answers! Do you perhaps also have an idea for a solution to the second question?
Does one also have to take a specific rope color into account with this numbering of the ropes?
Not really.
Standing rigging is normally black.
Running rigging is light brown/ochre.
(I never build this model)
Hi again Noël
I checked a bit deeper and I think it's a misprint in the manual. As you say there is only one item F64/1 in the part list and when I count the ones I have, it's about 180 plus pcs.
I think the one that is mentioned as F64/2 should be F223 instead.

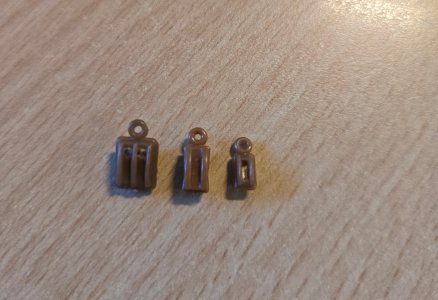

Look at the picture below: From left to right I believe it is F223, F222 and F64/1
Last edited:
Hey Krister_L, I think you're right! F64/1 is a 5mm block; a double 5mm block cannot be found in the kit! Looking at the drawing, it seems to be a double block. L8 has 2 lines running from Ra no. 2 on page 28 of the manual through the double block to the deck. So, two lines. The only double blocks in the kit are F223!
Thanks for helping look for a solution!!!

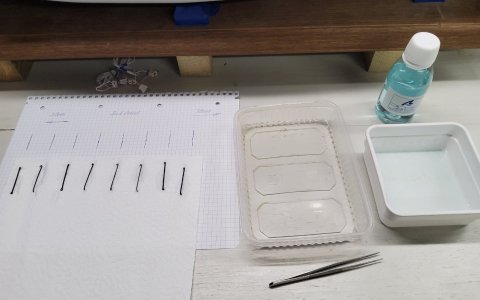

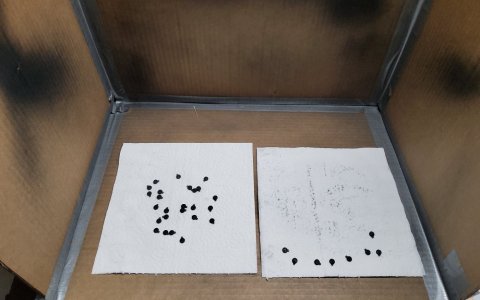

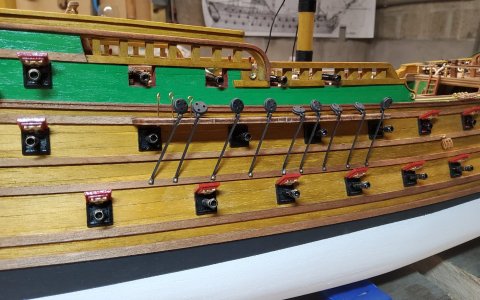

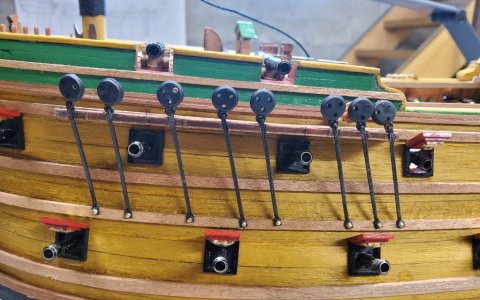

Hello everyone! After my surgery, I started preparing the rigging. I began by painting a number of deadyes black. Next, I placed the copper connections from the deadyes to the hull in acid to blacken them as well, and then I varnished them!

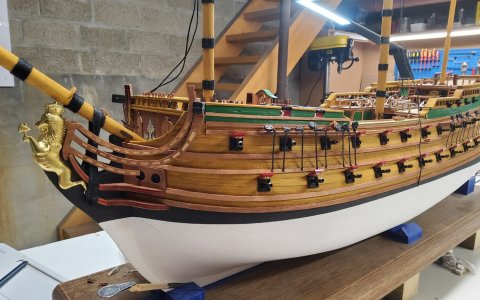

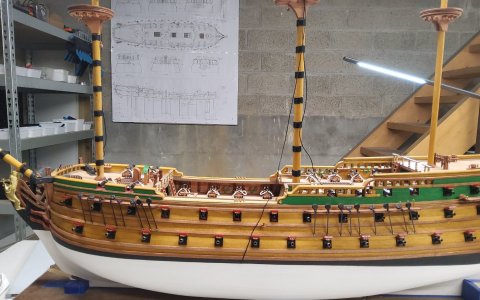

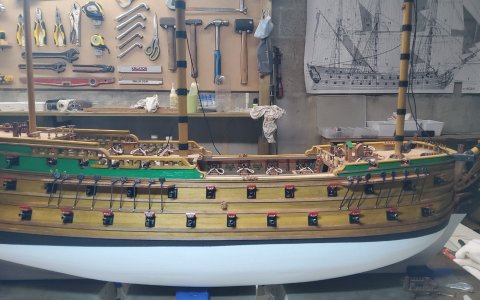

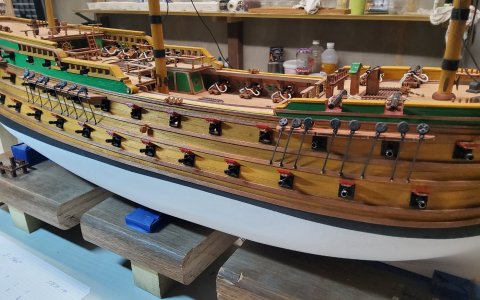

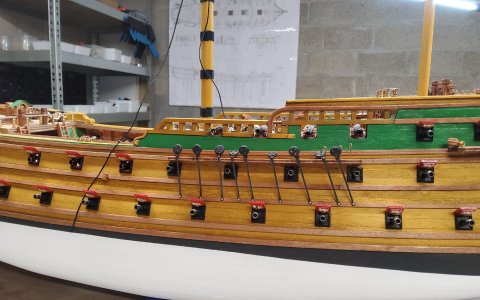

After that, I mounted everything for the forward and middle masts on both sides of the ship. It turned out better than expected and already gives the boat a bit more character. (See photos)
After that, I mounted everything for the forward and middle masts on both sides of the ship. It turned out better than expected and already gives the boat a bit more character. (See photos)
