I haven't really been posting much here lately. The reason is that for the past several months my good friend Mike Shanks and I have been working on creating a model of one of the most famous ships in the history of the Coast Guard as well as exploration. For those of you who are not familiar with this fine old ship let me introduce you to her with a brief history.
REVENUE CUTTER BEAR


download (6).png


I purchased the plans from the Smithsonian back in 1985 and have been sitting on them ever since. The reason I bought the plans in the first place is the “Admiral”, being a semi-professional genealogist, had an ancestor who served aboard this fine ship, at one point in his sailing career.
This ship is one of the most famous ships in the history of exploration, as well as the “pride” of the early Coast Guard. She is the USCG Revenue Cutter Bear! Built and launched in 1874, in Dundee, Scotland, by Alexander Stephens and Sons, Ltd. Of Greenock, Scotland. Her original owner of record was W. Grieve and Sons. She was purpose built for the sealing trade. She was 198.5 feet in length with a 30 foot beam and a draft of 18.8 feet. Her displacement was 703 tons. Rigged as a barkentine, the ship was also equipped with a 300 ihp compound steam engine. Her hull was planked with 6” thick oak, covered with 4” thick Australian ironwood, and the bow was strengthened with steel plate to help her cut through the ice found in the seal hunting grounds. After a brief career hunting seals, she was purchased by the U.S. Govt. in 1884. The original name of the ship was simply the “Bear”, but upon her acquisition by the govt. she was given the title of USRC Bear. Shortly after the purchase of the Bear, she was sent on a relief expedition to the Arctic to relieve the Greely Expedition who had been trapped there for almost 4 years without any re-supply. The whole story of the ill-fated expedition is too long to go into here, suffice it to say that it was a disaster, resulting in insanity, threats of mutiny, and cannibalism. Only 6 men survived the ordeal.

The Bear served as a revenue cutter in the U.S. Revenue Marine from 1885 to 1894, and the U.S. Revenue Cutter Service from 1894 to 1915. She also served in the U.S. Coast Guard from 1915 to 1926. Throughout the years she made the seasonal trek each May from her port in Oakland, California, to sail north to the waters of the Territory of Alaska for the 5 month season, cruising 10,000 nautical miles (12,000 mi.) on the Bering Sea Patrol, where she looked out for seal poachers, shipwrecked whalers, and illicit trade with the Alaskan natives, among other duties.
One captain of the Bear, Michael “Hell Roaring Mike” Healy, was the first African-American commissioned officer in U.S. history, and during Healy’s and the Bear’s 1891 Bering Sea Patrol, the following was accomplished:

* Secured witnesses for a murder trial
* Ferried reindeer
* transported a USGS survey team
* carried lumber and supplies for school construction in
remote areas
* delivered teachers to their remote assignments
* delivered mail for the USPS
* enforced federal laws
* provided medical support to the native populations
* conducted search and rescue operations.

In 1896 Healy was relieved of command after 10 grueling years on the sea patrol. He would later be re-instated, and served on other cutters before retiring in 1903.

In 1897, eight whaling ships became trapped in the ice near Point Barrow, Alaska, and for the second time in her career, the Bear would support an heroic rescue operation. The Bear took on supplies and sailed north from Port Townsend, Washington. This would be the largest of several rescues of American whalers undertaken by the Bear during the heyday of Arctic whaling.

To lead the so-called Overland Relief Expedition, the Bears captain, Francis Tuttle tasked a team of 6 men, with driving a herd of reindeer to the whaling ships. In late March of 1898, after over 3 months and 1500 miles, the rescue party arrived at Point Barrow, delivering the much needed supplies to the starving whalers with no loss of human life.

Gold had been discovered in Canada’s Klondike in 1896 bringing with it thousands of prospectors, miners and their followers to Alaska’s coastal towns. This rapid in-flux of people brought with it the need for law enforcement, medical services and humanitarian relief. The Bear, and other cutters, provided these services.

The Bear also provided relief in San Francisco after the earthquake of 1906 devastated the area. During this time the officers and crew of the Bear worked with the U.S. Army units stationed there under the command of General Adolphus Greely, the same man rescued by the Bear years earlier.

By the mid 1920’s the Bear had served Alaska for over 40 years and over 30 Bearing Sea patrols. In 1927, President Calvin Cooledge signed the Bear over to the City of Oakland to become a historic museum ship. But that’s not the end of her story.
After her retirement from the Coast Guard and a brief career as a museum ship the Bear was acquired by Admiral Richard Byrd to be used as one of his two ships for his first Antarctic expedition. He acquired the ship for a grand total of $1050.00. During the first expedition Byrd founded the well-known research base at Little America. He returned home in 1930 and used the Bear on his second expedition in 1933. Describing his trusted ice-ship, Byrd claimed: “There was a joy and spirit to the Bear’s attack… She was built for the ice… She could lower her head and bore in. Therein lay the merit of the honorable and ancient Bear.”
In the late 1930’s Byrd was placed in charge of the United Stated Antarctic Service and in 1939 once again used the Bear to reach his base in Little America. Prior to the trip the Bear was refitted. Her barkentine rig was changed in order to place an airplane on her deck and her new diesel engine no longer required the tall stack of the old coal-
burning power plant. By 1941, with war looming on the horizon, the Bear returned to the US bringing the personnel from the Arctic bases home with her.

Upon her return the Navy cut down the masts to support radio gear, added modern armament and equipped the ship to carry an amphibious aircraft. As a part of the Greenland Patrol, the Bear cruised Greenland’s waters and, in October 1941, brought home the German Trawler "Buskoe", the first enemy vessel captured by the US in WWII.
In May 1944, the Navy decommissioned the Bear for the last time. Bear remained in surplus until 1948 even though its timbers were still sound. Buyers from Halifax, NS purchased the Bear hoping to use the cutter in the sealing trade once again, but that trade was on its way out and as a result the Bear remained in Halifax for years before her owners finally sold her to a Philadelphia restaurant developer for use as a floating eatery. In March 1963 a seagoing tug started taking the old cutter to her new home. During the trip, heavy seas developed and at a point about 200 miles off the Massachusetts coast the Bear parted the tug’s cable. The snapping of the cable caused her fore-mast to shear off, which punctured her hull and she sank beneath the waves at 9:10 am on March 19, 1963 at the venerable old age of 89 years.



Citations: Wikipedia, US Coast Guard “Compass”, and Haze Grey. Org.

Joined
Aug 16, 2019
Messages
591
Points
308

Location
North Carolina,United States

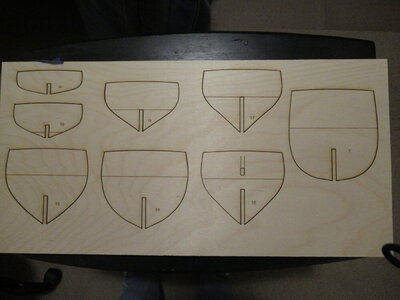

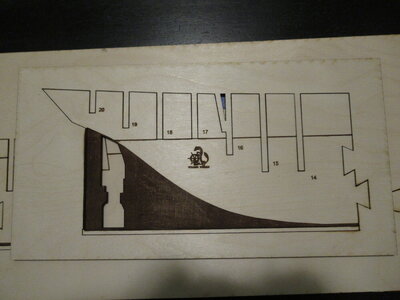

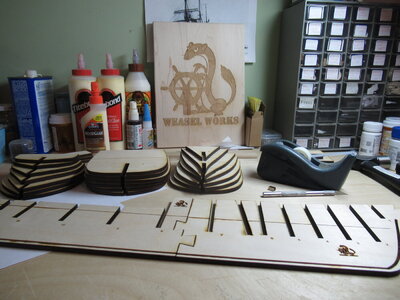

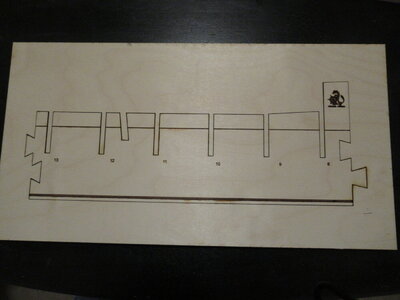

Ok, now that we have that out of the way let me show you the pile of parts that I have to start this historic build. Mike and I settled on building the Bear in 1:64 as it seemed to be the best scale for a ship of this size. Even so the hull length from stem to stern is 39" long, and with the bow-sprit attached she stretches out to nearly 4'. Here are the bulkhead formers

One of the things you will notice right off the bat is that all these parts are laser cut and etched with engineered precicion. All these parts are cut from 1/4" Baltic Birch 5 ply plywood. No cheap 3 ply stuff for this ship.

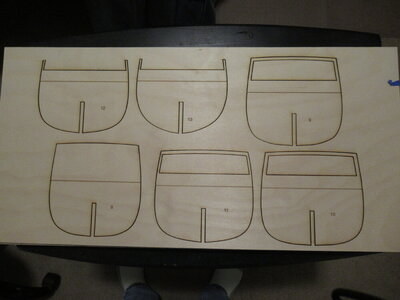

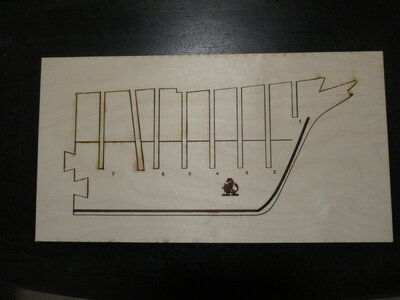

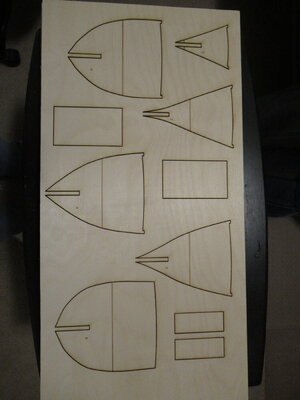

Next, the bulkheads.

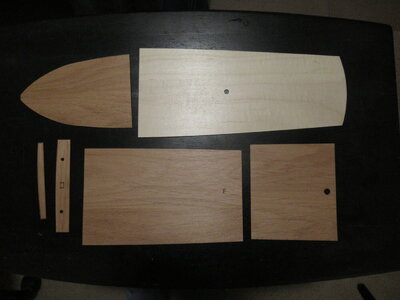

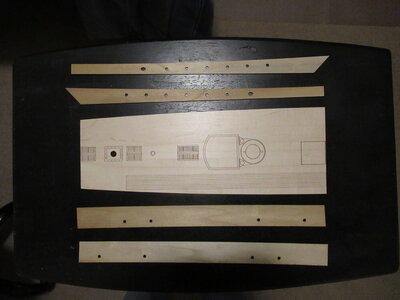

Finally here are the decks and sides all cut from 1/16 birch ply.

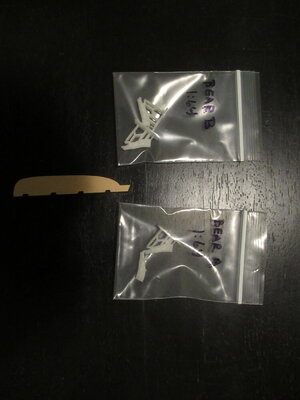

And last, but certainly not least, is the rudder and the 3D printed figure head.


You will notice that there are several figure heads in the picture. There are actually 2 different designs, but at this scale it's a little hard to see; but believe me the difference is there. Once painted and weathered they will look great.

So stay tuned, there's lots more coming.

Joined
Aug 16, 2019
Messages
591
Points
308

Location
North Carolina,United States

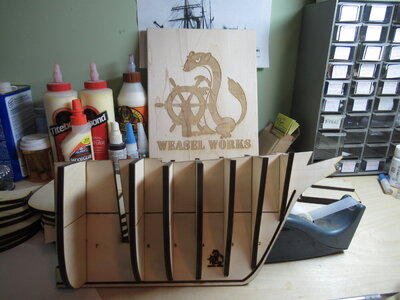

I removed all the parts for the hull from the sheets and am ready to start the assembly.
Due to the tight tolerances at which these parts were cut I took a 1" x 1/4" piece of basswood about 1 foot long and glued a piece of 80 grit sandpaper to it for sanding out the slots in both the bulkheads and false keel, making the fit easier. After cleaning the slots a little tapping with the hammer is still necessary to set them in place, making sure the water lines on both the keel and bulkheads are in alignment.

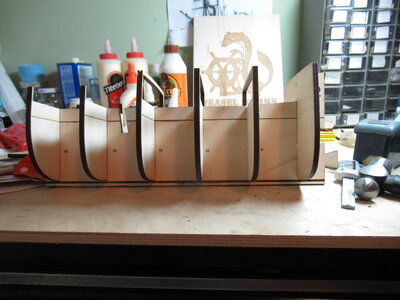

Bow section completed. A little thin CA is all that's needed to ensure that nothing will ever go astray.


You will notice that I am progressing in what might be considered a "backwards" manner here, but it was decided that due to the tight bulkhead fit and the length of the hull assembling the three sections individually and then connecting the pieces would be the best way to go. Also notice something else you don't see everyday...pre-cut rabits.

Joined
Aug 16, 2019
Messages
591
Points
308

Location
North Carolina,United States
Yes Doc, she will be painted. The Bear was white above the waterline and red below according to all the info I have been able to get my hands on. The decks were teak with white lead caulking so that will be part of the challenge (heeheehee). Have a solution for that too, but I'm not ready to discuss it at this time. Just going to have to keep an eye on things here...lol

Joined
Jan 9, 2013
Messages
3,915
Points
588

Location
CONWAY SPRINGS, KS
THANK YOU ALL WEASELS, SOS MEMBERS YOU HAVE NOT SEEN IT ALL LET YOUR MOUTHS WATER FOR WHAT IS COMMING, A BIG, BIG, SHOUT OUT TO MY DEAR FRIEND MENTOR TEACHER MIKE SHANKS JUST BRIALINT WORK AND YOU GUYS HAVE NOT SEEN WHAT IS COMING, THANKS JIM J, MIKE, KRIS AND ALL WEASELS, WEASELS ARE MEA BOY JUST LOOK AT HIM LOVE MEAN, LOL,LOL. GOD BLESS STAY SAFE ALL DON


Uwek

Administrator
Staff member
Administrator
Joined
Dec 25, 2017
Messages
17,160
Points
938

Location
Vienna, Austria
This will be a very interesting project, so I will follow your work with big interest.
Many Thanks for starting this building log

Joined
Aug 16, 2019
Messages
591
Points
308

Location
North Carolina,United States
Thanks Uwek. This is truly a very interesting project. And for those out there who don't like ships unless they have guns, let me assure you that the Bear does have guns. She was armed with 2 Dahlgren cannons on the aft deck. MystRacing has designed some very fine barrels for them and Mike has 3D printed them, while I made some photo-etched detail parts to complete them. Should look real nice on deck.


Joined
Aug 16, 2019
Messages
591
Points
308

Location
North Carolina,United States
Ok guys. I'm going to throw out a question for all of you just to see if anybody has any better ideas than I have to solve a problem. The problem is with the decking, and as I mentioed earlier I think I have a solution but I'm not going to divulge it at this time to see what you might come up with. The decking on this ship is teak with lead caulking and is 3 1/2 " wide. Now at 1/64th scale that would mean that the planks themselves would be less than 2mm wide. Then there is the matter of the caulking. Remember, this is being built as a SCALE model, not an opproximation. I want to keep the decking at scale. Any suggestions?
