POF L'Amarante Corvette de 12 canons 1744 1:36 (Ancre Monograph- Gérard Delacroix) By Shota

[marsalv]

Hi Shota,
the holes for the anchor lines should be drilled parallel to the hull axis, not perpendicular to the planking. This topic was discussed here:

Discussion générale - Page 19

merci Bernard je vais plus approfondir ses sites a+ jm

5500.forumactif.org



[shota70]

Hi Shota,
the holes for the anchor lines should be drilled parallel to the hull axis, not perpendicular to the planking. This topic was discussed here:

Discussion générale - Page 19

merci Bernard je vais plus approfondir ses sites a+ jm

5500.forumactif.org

thank you very much my dear friend marsalv, for your guidance
Indeed, this is what I actually did, after observing and studying your excellent work and construction logs, by Gympie65 and Tobias. Along with a look at the monograph's plans



[Albert Mary]

Good evening dear friends
In The last two days I took a short break from working on the bow decks This time
I have been focused on preparing the rope openings in the bow of the ship as well as the black blocks in the bow.
These blocks are part of the rope openings as well as the decorations in the bow.
I would like to emphasize that the work was carried out with the help of an electric wire saw, sanders, a Dremel, and manual work with sanders. I would also like to mention that the decoration of the bow, made of poplar wood, is the initial decoration prepared for simulation purposes.
I am attaching pictures of the process and the interim result,
good night to all of us
View attachment 582437View attachment 582438View attachment 582439View attachment 582440View attachment 582441View attachment 582442View attachment 582443View attachment 582444View attachment 582447View attachment 582448View attachment 582449

Wow, Shota. Maybe one of the best thing ever seen on SOS so far. You definitely reached highest rank of modelism by that .



[shota70]

good afternoon my dear friend
The beakhead parts are ready, with the rope opening parts ready, to be installed in later stages
I understand that final adjustments will be required when assembling/
gluing to the bow, but for now it sits well.



[Magic Mike]

good afternoon my dear friend
The beakhead parts are ready, with the rope opening parts ready, to be installed in later stages
I understand that final adjustments will be required when assembling/
gluing to the bow, but for now it sits well.View attachment 583516View attachment 583517View attachment 583518
View attachment 583506View attachment 583507View attachment 583508View attachment 583509View attachment 583510View attachment 583511

Shota, once again your work is masterful. Excellent bow assembly! Magic Mike



[Iterum]

Hello Shota,

Thank you very much for sharing this querry of interesting solutions. I will participate very much from your work on my own small humble trial

to build in 1/48 - I am at the very beginning of my journey with this nice Corvette of 1722 in bookbinder's cardboard of 1mm thickness.

Best wishes from Berlin Card Yard,

Chris



[KMSvideo]

Úžasná práca. Radosť sledovať.



[shota70]

Good evening dear friends
In the Last week I went back to work on the decks in the bow.
I installed the crossbeams for the middle deck, placed the deck on it and the boundary wall (both without glueing).
I will let the pictures speak for themselves.
Good night



[Mirek]

Witaj
Zdjęcia przemówiły , piękna praca Shoto. Pozdrawiam Mirek



[Maarten]

Great work Shota,
Looking forward to see her in October in Hamburg. If you are able take her with you



[GrantTyler]

Good morning Shota. Very interesting viewing. I love the cut outs of the hull and the patterned ones on deck and bulkhead. Cheers Grant



[Iterum]

Great job, Shota!
Are you going to add stones or barrels for balast?



[shota70]

Witaj
Zdjęcia przemówiły , piękna praca Shoto. Pozdrawiam Mirek

Great work Shota,
Looking forward to see her in October in Hamburg. If you are able take her with you

Good morning Shota. Very interesting viewing. I love the cut outs of the hull and the patterned ones on deck and bulkhead. Cheers Grant

Great job, Shota!
Are you going to add stones or barrels for balast?
View attachment 584936

My dear friends
Thank you all very much for the support, compliments and words of encouragement, it strengthens me in these difficult days.
Working on the ship gives me peace and satisfaction.
Regarding the question of the stones, I have not yet decided, I would be happy if you attach a picture of where they are placed and I will decide.
Also, I doubt if I will be able to get the model in its entirety to Hamburg, given the high flight costs, I promise to bring parts as I was at the conference in Evian. Finally, thank you all for the likes and smiles



[shota70]

Good evening dear friends

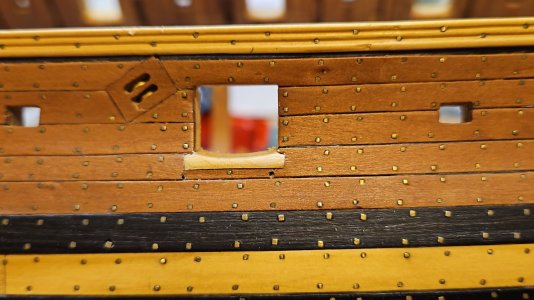

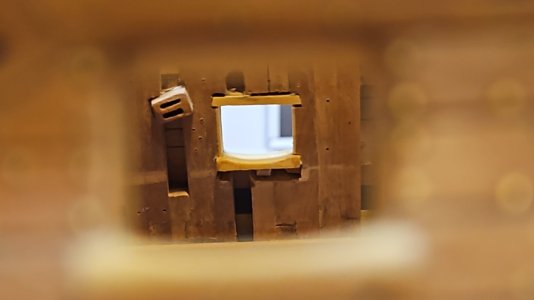

First I corrected the installation angles of the bottom plates of all the gun ports.

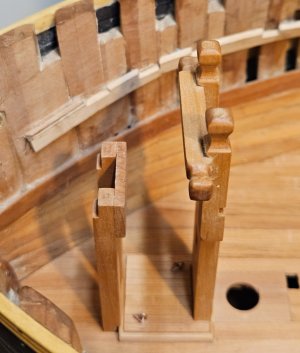

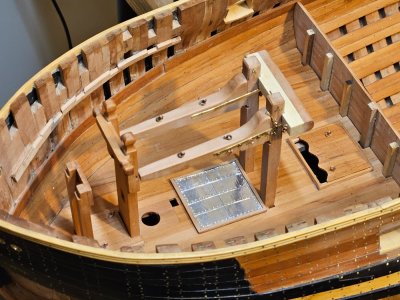

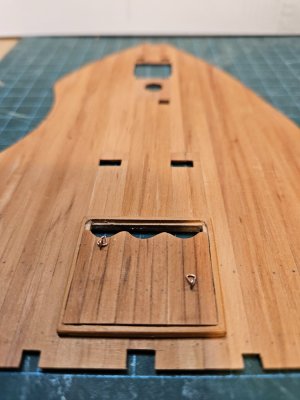

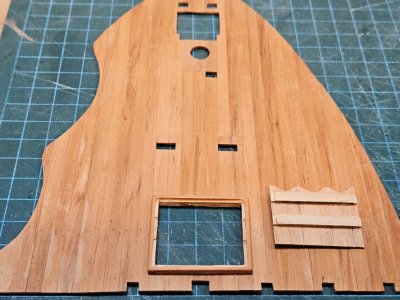

In the last few days I have taken another small step forward in preparing the parts that make up the decks in the bow.

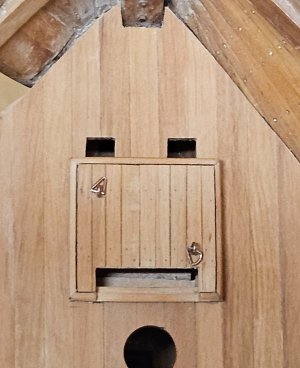

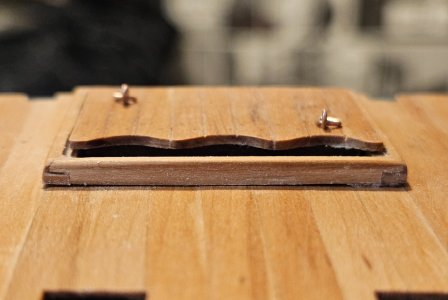

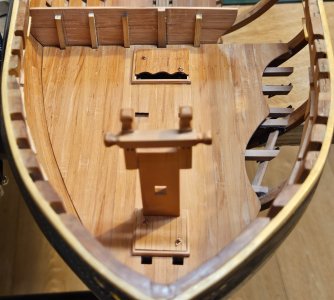

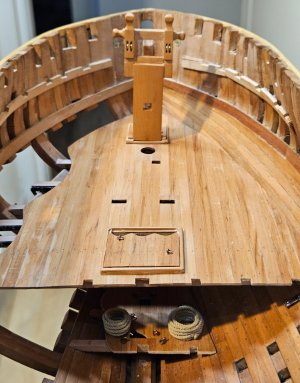

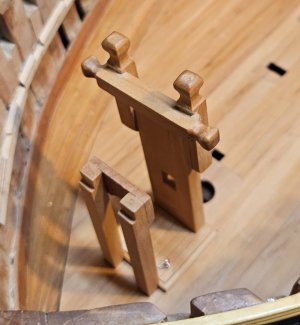

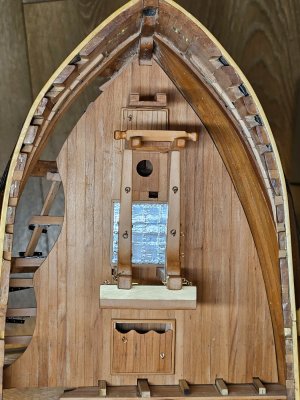

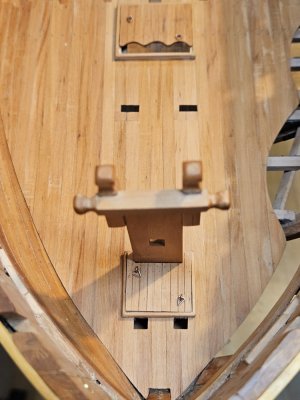

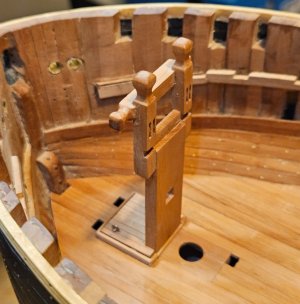

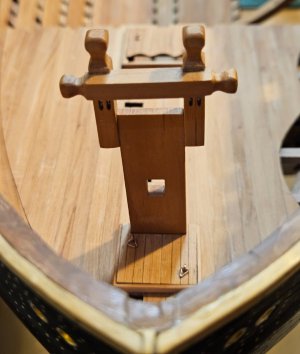

With the help and guidance of our dear friend marsalv, I understood how to build the entrances on the middle deck and they were installed with the rest of the parts.
In the coming days I will continue to finish assembling the remaining parts and their adjustments and synchronization with the upper deck in the bow.

I will let you be impressed by the pictures, good night.



[Peter Voogt]

Good evening dear friends
First I corrected the installation angles of the bottom plates of all the gun ports.
View attachment 586705View attachment 586706
In the last few days I have taken another small step forward in preparing the parts that make up the decks in the bow.
With the help and guidance of our dear friend marsalv, I understood how to build the entrances on the middle deck and they were installed with the rest of the parts.
In the coming days I will continue to finish assembling the remaining parts and their adjustments and synchronization with the upper deck in the bow.
View attachment 586690View attachment 586691View attachment 586692View attachment 586693View attachment 586694View attachment 586695View attachment 586696View attachment 586697View attachment 586698View attachment 586699View attachment 586700View attachment 586701View attachment 586702View attachment 586703View attachment 586704
I will let you be impressed by the pictures, good night.

Nice work, Shota. It’s becoming a full deck! Always nice to come to this stage of building up.
Regards, Peter



[GrantTyler]

Good evening dear friends
First I corrected the installation angles of the bottom plates of all the gun ports.
View attachment 586705View attachment 586706
In the last few days I have taken another small step forward in preparing the parts that make up the decks in the bow.
With the help and guidance of our dear friend marsalv, I understood how to build the entrances on the middle deck and they were installed with the rest of the parts.
In the coming days I will continue to finish assembling the remaining parts and their adjustments and synchronization with the upper deck in the bow.
View attachment 586690View attachment 586691View attachment 586692View attachment 586693View attachment 586694View attachment 586695View attachment 586696View attachment 586697View attachment 586698View attachment 586699View attachment 586700View attachment 586701View attachment 586702View attachment 586703View attachment 586704
I will let you be impressed by the pictures, good night.

Good morning Shota. What a cool model. You are owning it and I love all the detail and your artistic licence. Kudos. Cheers Grant



[Mirek]

Witaj
Super Shoto możesz być z siebie dumny. Pozdrawiam Mirek



[BradNSW]

The accuracy, detail and finish of your deck furniture is inspiring!

The beautiful lines of your cut-outs are very artistic and give great insight into your construction techniques!

Thanks for the wonderful photos!!!



[shota70]

The accuracy, detail and finish of your deck furniture is inspiring!

The beautiful lines of your cut-outs are very artistic and give great insight into your construction techniques!

Thanks for the wonderful photos!!!

Witaj
Super Shoto możesz być z siebie dumny. Pozdrawiam Mirek

Good morning Shota. What a cool model. You are owning it and I love all the detail and your artistic licence. Kudos. Cheers Grant

Nice work, Shota. It’s becoming a full deck! Always nice to come to this stage of building up.
Regards, Peter

my dear friends, thank you very much for your kind words and compliments, I Appreciate it very much



[shota70]

Hello dear friends
I would like to thank you for the likes, smiles, and words of support throughout the construction process.

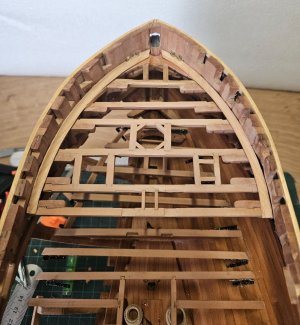

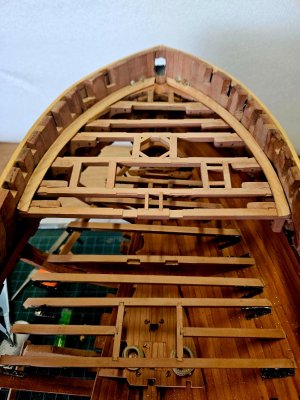

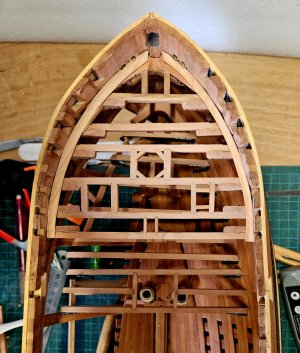

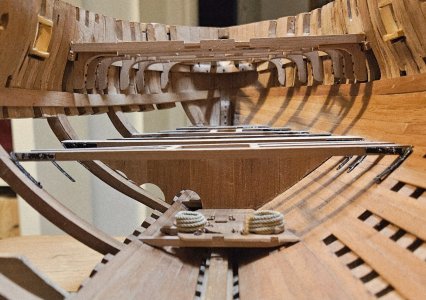

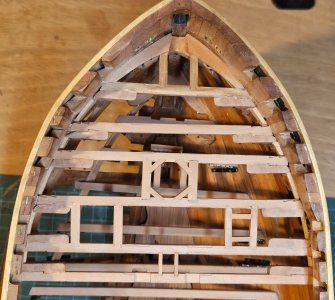

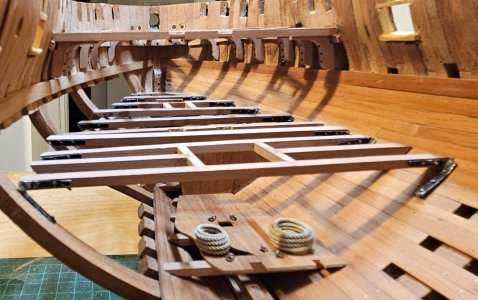

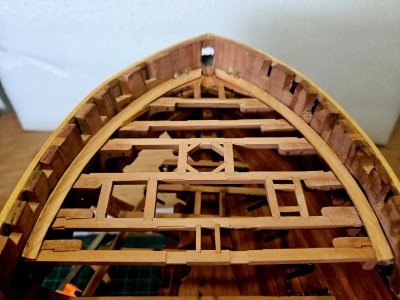

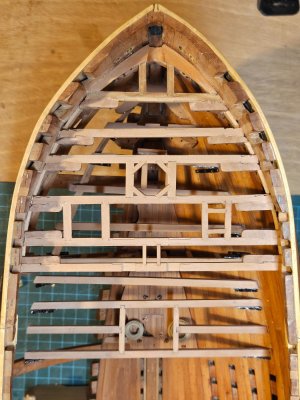

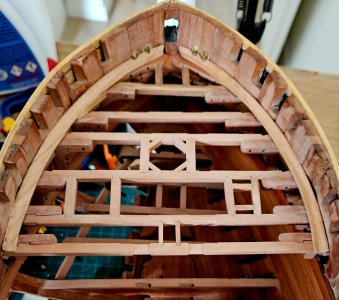

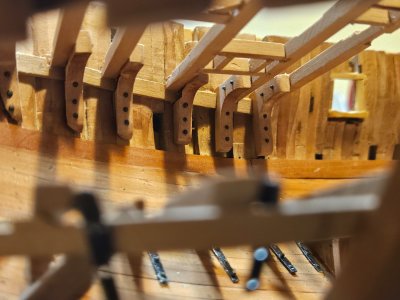

In the last few days I have installed the cross beams of the upper deck at the bow, including the support knees as well as the concave panels that enclose the deck.
Forgive me for my poor photography skills, which sometimes give the illusion of lack of parallelism or curvature.
