Thanks, Maarten. A different set-up then most of the models with masts and sails.
That is 'Wishful thinking' ........If you continue like this she will be finished for Hamburg
Regards, Peter
-
Win a Free Custom Engraved Brass Coin!!!
As a way to introduce our brass coins to the community, we will raffle off a free coin during the month of August. Follow link ABOVE for instructions for entering. -
SUBSCRIBE TO SHIPS IN SCALE TODAY!
The beloved Ships in Scale Magazine is back and charting a new course for 2026!
Discover new skills, new techniques, and new inspirations in every issue.
NOTE THAT OUR NEXT ISSUE WILL BE MARCH/APRIL 2026
BALDER, Vlaardingen Herring Lugger from 1912, scratch build scale 1:50 Plate-On-Frame
- Thread starter Peter Voogt
- Start date
- Watchers 66
Regards, Peter

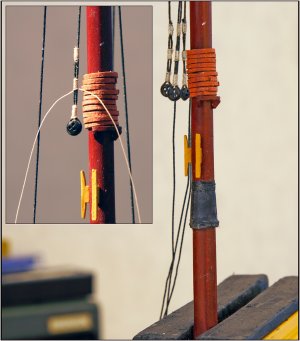

Thanks, Dom. Just 'only the rigging and the sails' ......... The advantage of rigging is that you do it rope by rope. In a order that is logical ............
Regards, Peter
Thanks, Grant. You also a Happy Easter.
Regards, Peter
There was just one thing left to do on the hull: the draft markings. The Balder only has these at the front.

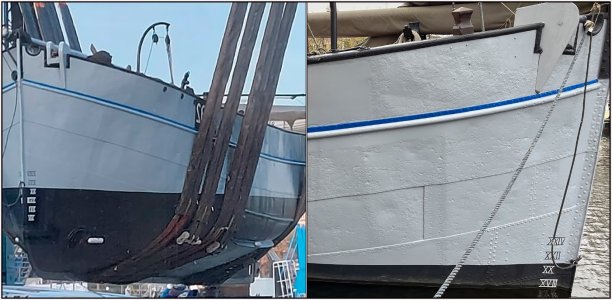

When in the water, only 2 markings are visible above and below the waterline:
But fortunately, a volunteer still had a photo of when she was taken out of the water for inspection the last time. So, 4 markings below the waterline.
Get to work with thinly cut tape:
Yak ......But that is much too coarse.

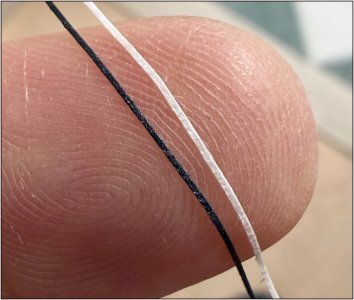

Using a new scalpel blade that I sharpened on a strop, I cut it as thin as possible:
The white one is the old thickness, the blackened one is the new one.

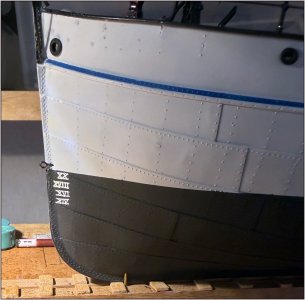

With this as the result:
Mmmmmm ....... Slightly more acceptable, but still too coarse in my opinion. From a distance it's still okay, but with grazing light and macro ......
Started drawing in Photoshop and grabbed the sheet for waterslide decals. That required some serious thinking and reasoning about what was going wrong.
Because the white ink didn't transfer to the transparent versions. A quick test with a black frame and white letters showed that the white letters were masked out in the black.
So, in 2 steps:
-the black letter above the waterline on transparent decal.
-the white letters with a black frame on white decal.

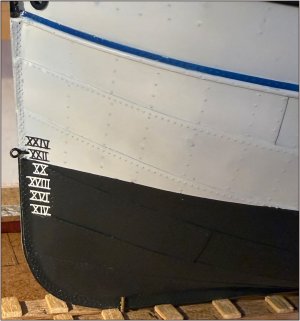

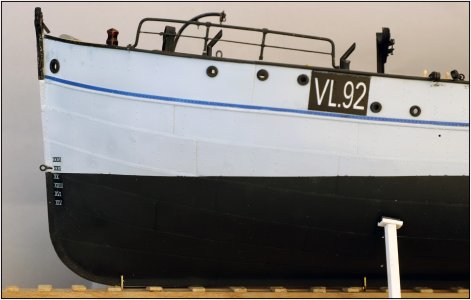

The result after cutting and pasting. The decal is a slightly different black than the hull, and from a certain angle, a glare is also visible. Once it is completely dry, I will touch up the black paint on the hull a bit.
Regards, Peter
When in the water, only 2 markings are visible above and below the waterline:
But fortunately, a volunteer still had a photo of when she was taken out of the water for inspection the last time. So, 4 markings below the waterline.
Get to work with thinly cut tape:
Yak ......But that is much too coarse.
Using a new scalpel blade that I sharpened on a strop, I cut it as thin as possible:
The white one is the old thickness, the blackened one is the new one.
With this as the result:
Mmmmmm ....... Slightly more acceptable, but still too coarse in my opinion. From a distance it's still okay, but with grazing light and macro ......
Started drawing in Photoshop and grabbed the sheet for waterslide decals. That required some serious thinking and reasoning about what was going wrong.
Because the white ink didn't transfer to the transparent versions. A quick test with a black frame and white letters showed that the white letters were masked out in the black.
So, in 2 steps:
-the black letter above the waterline on transparent decal.
-the white letters with a black frame on white decal.
The result after cutting and pasting. The decal is a slightly different black than the hull, and from a certain angle, a glare is also visible. Once it is completely dry, I will touch up the black paint on the hull a bit.
Regards, Peter
