Build Log: Endurance - Occre - by Bill Hime

Joined
Dec 21, 2021
Messages
51
Points
88

Location
Woodland Park, Colorado
This is the first ship I'm actually going to finish! There's been multiple attempts to start builds in the past. They never came to fruition. But now life has provided the time -

So here we go, I'm really excited about this ship. I read the story in Nat'l Geographic when I was a kid. After -The Endurance was forever instilled in my mind. It was exciting to see that somebody put out a model of this historic vessel.

That's it! picture uploads tomorrow!


Uwek

Administrator
Staff member
Administrator
Joined
Dec 25, 2017
Messages
23,409
Points
1,038

Location
Vienna, Austria
Hallo Bill,
First of all a warm welcome here on board of our forum.
I am looking forward and will follow your log on regular basis .....

Joined
Dec 8, 2019
Messages
611
Points
353

Location
Virginia Beach, VA.
Bill
I'm following you also with great interest. My build is 75% complete and it's been fun. I've been using photos from a couple of Endurance books and the OcCre video on YouTube to help with construction. Be happy to answer any questions you might have as you start your build.
Good luck
Charlie

Joined
Dec 21, 2021
Messages
51
Points
88

Location
Woodland Park, Colorado
Thanks everyone for the welcome and interest!

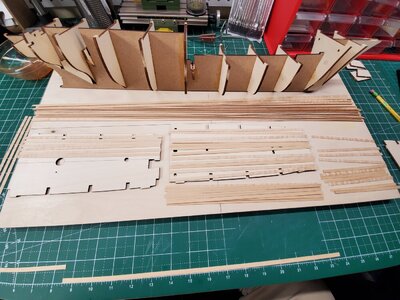

I just completed the hall frame a couple of days ago. I've been cutting decking and looking at glue options. I'll be doing some practice glue-ups using Hide glue, contact cement, veneer glue and Titebond 3. I'll do a post specifically for the comparison.

First thing I'll say about this kit is everything has fit well. All the plywood pieces were cut cleanly and were flat.

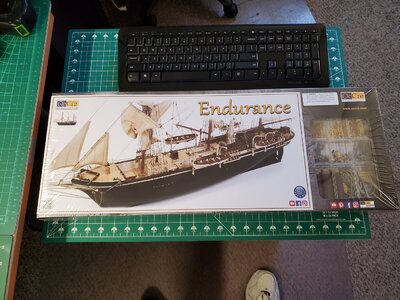

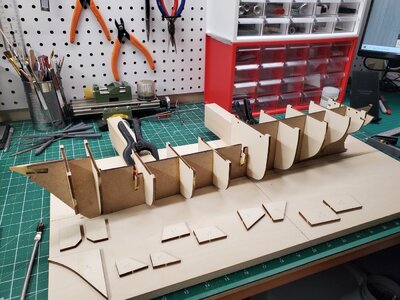

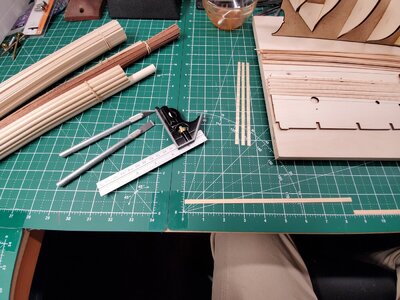

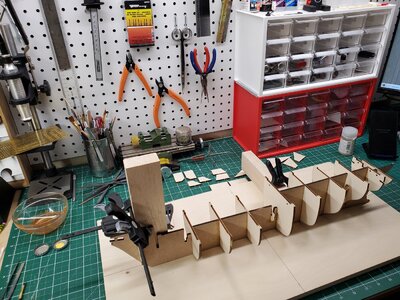

Photos of basic start;
20211216_100055.jpg20211223_012359.jpg20211223_191857.jpg20211227_175902.jpg20211227_175914.jpg20211216_100055.jpg20211223_012359.jpg20211223_191857.jpg20211227_175902.jpg20211227_175914.jpg

Joined
Dec 21, 2021
Messages
51
Points
88

Location
Woodland Park, Colorado
Hope this post finds everyone well!

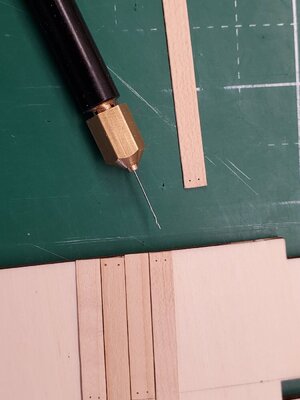

Starting the decking today. I've spent some time researching other approaches to simulating decking details i.e. treenails vs no treenails, individual planks vs simulating plank runs.

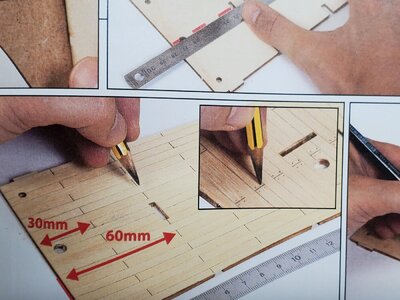

The Occre instructions demonstrate single planks running the length of the deck with the treenails and individual planks drawn on with a pencil then sealed. I wanted to find an acceptable approach that would simulate individual planks with treenails and be within reason from a scale approach.

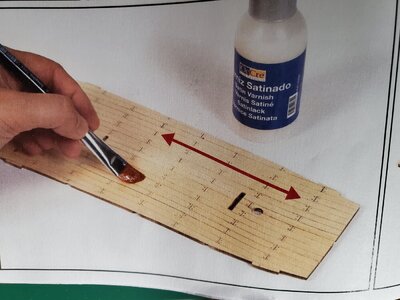

I'll post a pic from the instructions then some pics of my answer to decking application

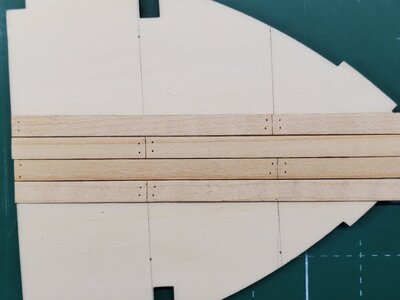

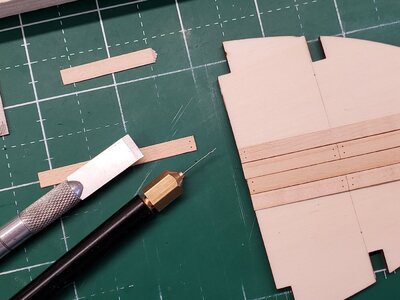

Below is the approach I will be using..


Heinrich

Staff member
Bluenose Moderator
Joined
Jan 9, 2020
Messages
7,715
Points
838

I am very glad to see that you started this log Bill. This is a ship with a fascinating history and the Occre kit looks to be a very good one. I will be following as you go along.

Joined
Dec 21, 2021
Messages
51
Points
88

Location
Woodland Park, Colorado
Thank you Heinrich! And thank you Lou, I'm going to take my time with this build and pay special attention to detail.

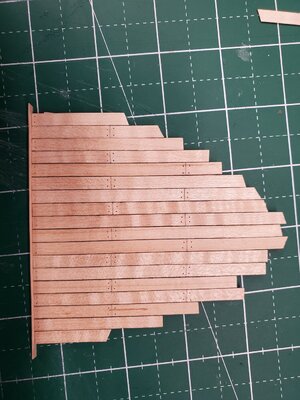

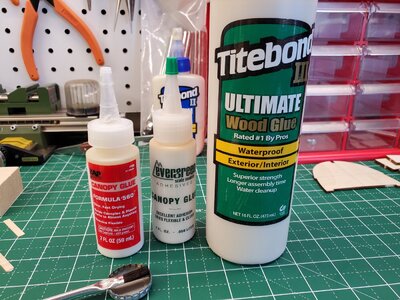

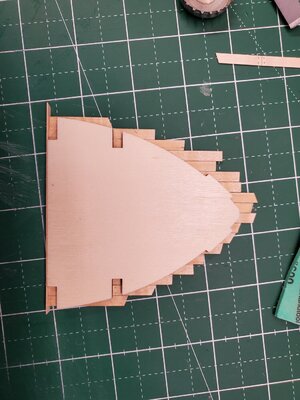

I've been working on decking last couple of days. I have the bow deck completed. Now I need to trim the edges to shape then apply rub-on Polyurethane. For those interested in what type of glue I used I used Titebond III - it has a 30min setup time, but after 10mins I was able to readily handle the parts. Another glue I used is more for temporally applying pieces that would later be removed - I used Canopy Glue which dries clear, holds parts snug but with pressure is easy to separate the part from the work.

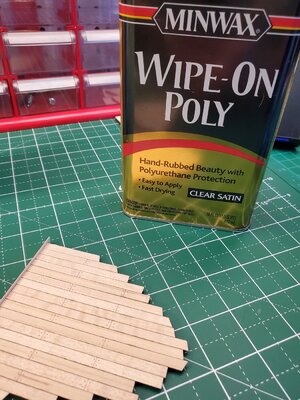

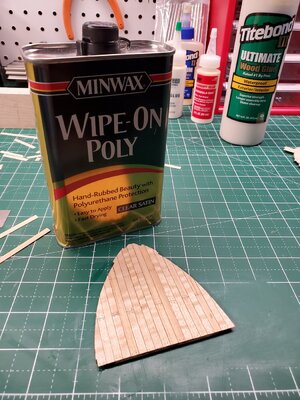

Here's a few pics of the deck, glue and poly I'm going to apply today;

Joined
Dec 21, 2021
Messages
51
Points
88

Location
Woodland Park, Colorado

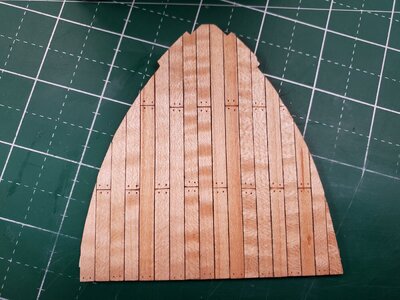

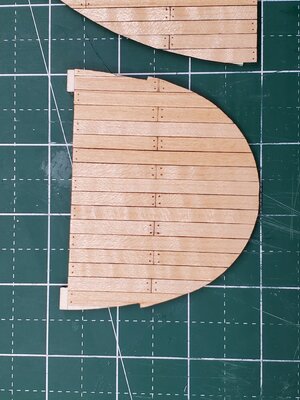

Trimmed off the edges of the bow deck and applied the 1st coat of rubbed on polyurethane Clear Satin. Tomorrow I'll hit it with some 1200 grit paper and rub in a finish coat of the above mentioned polyurethane. Then on to the main decks!!!


I can't tell you how happy I am with this result!!!

Last edited:
Joined
Dec 29, 2019
Messages
520
Points
308

That looks great Bill! Is that maple on the deck? Nice figure on those planks! I like using maple on decks….

Joined
Dec 21, 2021
Messages
51
Points
88

Location
Woodland Park, Colorado

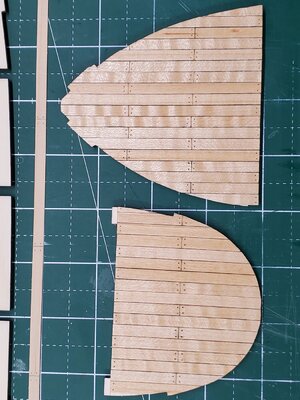

Hope this post finds everyone well! Just finished the stern deck. This is a Satin finished - I'm thinking of mixing in a little semi-gloss, not sure yet. While I'm contemplating that I'm starting to 2 main decks tonight.


I have the next 3 days off, hope to get all the decks completed and installed!

Joined
Dec 29, 2019
Messages
520
Points
308

Bill, I think they are perfect the way they are now, but you’re there live and seeing everything….. decks look good man! Be good to see them in place.

Joined
Dec 21, 2021
Messages
51
Points
88

Location
Woodland Park, Colorado
Bill, I think they are perfect the way they are now, but you’re there live and seeing everything….. decks look good man! Be good to see them in place.

Thanks Lou! I agree. I made my mind up since I posted this that glossed surfaces can get out of hand quickly and detracted from details you want people to see.
