I need a link, please! Must buy those...
High Speed Miro Drills
- Thread starter Andy from Kenosha
- Start date
- Watchers 21
...found them but they out of stock...
HI JIM, I GOGGLED IT AND FOUND AN EBAY SITE JUST ORDERED A SET, $22.00 INCL SHIPPING, SORRY DO NOT KNOW HOW TO GIVE LINKS. GOD BLESS STAY SAFE ALL DON
Thanks, Don.Anyone interested here is the link
AK-Interactive Drill Bits (0.4mm - 1.3mm) | eBay
Find many great new & used options and get the best deals for AK-Interactive Drill Bits (0.4mm - 1.3mm) at the best online prices at eBay! Free shipping for many products!
www.ebay.com
As these are carbide drills, be aware of the brittle nature covered in previous posts.Thanks, Don.Anyone interested here is the link
AK-Interactive Drill Bits (0.4mm - 1.3mm) | eBay
Find many great new & used options and get the best deals for AK-Interactive Drill Bits (0.4mm - 1.3mm) at the best online prices at eBay! Free shipping for many products!www.ebay.com
The suggestion to flatten the angle of the drill bit cutting edge is also good for drilling plastic without cracking out the back of the hole...... And my hat is off to any one who can sharpen a bit smaller than 1mm!
Ed
Ed
One thing I found If you are drilling into an 2mm substance, you only need 2.5mm of drill length coming out of the chuck.
- Joined
- Feb 14, 2021
- Messages
- 36
- Points
- 58
Thanks All... for the Info on the in and out of Drilling.
- Joined
- Dec 24, 2019
- Messages
- 169
- Points
- 113
Proxxon specific

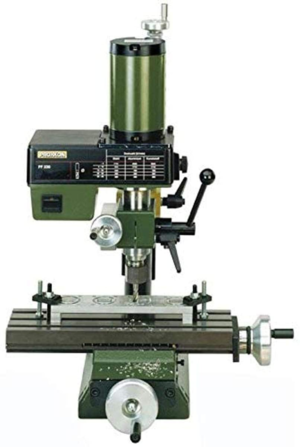

Proxxon PF230
can drill and mill
- Joined
- Nov 16, 2018
- Messages
- 145
- Points
- 88
That looks great! But it appears to be out of my price range of affordability (ouch).
Andy, what are the tasks you will need to do?
- Joined
- Nov 16, 2018
- Messages
- 145
- Points
- 88
- Joined
- Nov 16, 2018
- Messages
- 145
- Points
- 88
I will be drilling in very thin brass, and of course wood in regards to ship modeling--not very big stuff (as far as I can see at this point anyway).
...in regards to the ship modeling - give very broad tasks in relation to drilling. If you need to drill small holes on the deck for an eyebolt, it is one drilling task. If you need to drill holes for pintles in the rudder it is a completely different drilling task. Both tasks can be achieved with a small pin-wise or spiral push drill.
Amazon.com: Mini Micro Spiral Hand Manual Push Drill Chuck Twist Pin Vise Bit Jewelry Tool : Tools & Home Improvement
Buy Mini Micro Spiral Hand Manual Push Drill Chuck Twist Pin Vise Bit Jewelry Tool: Drill Drivers - Amazon.com ✓ FREE DELIVERY possible on eligible purchases
www.amazon.com
Amazon.com: Pin Vise Hand Drill Bits(20PCS), Micro Mini Twist Drill Bits Set with Precision Hand Pin Vise Rotary Tools for Wood, Jewelry, Plastic etc (0.6-3.0mm): Home Improvement
Amazon.com: Pin Vise Hand Drill Bits(20PCS), Micro Mini Twist Drill Bits Set with Precision Hand Pin Vise Rotary Tools for Wood, Jewelry, Plastic etc (0.6-3.0mm): Home Improvement
www.amazon.com
However, on the gugeon\pintle you need the holes inline, this will be a bit harder to make specifically drilling in the brass. You start drilling by hand to make a nice start, they use your cordless rotary tool (you have) to continue drilling at a very small speed with not too much force until you have done.
- Joined
- Nov 16, 2018
- Messages
- 145
- Points
- 88
Thank you so much--I own and have used a pin-vise, and I wish I thought to use it instead of my power drill. Perhaps there would not have been a problem.
What were the results from using the power drill? Broken bit? Too large of a hole? Both can be repaired. The resultant bore can be plugged, then a new hole re-drilled. There are solutions....
- Joined
- Nov 16, 2018
- Messages
- 145
- Points
- 88
Actually I used a wrong description--it's a Utool rotary tool and they (4 of them) were micro drills. I was trying to drill holes through a 0.6mm thick piece of brass (the drills can go through metal, that's why I assume I did something wrong to break them). From this forum I learned that a drill press or tool stand with my rotary tool attached to it is a better choice with less (not total) probability of breakage.

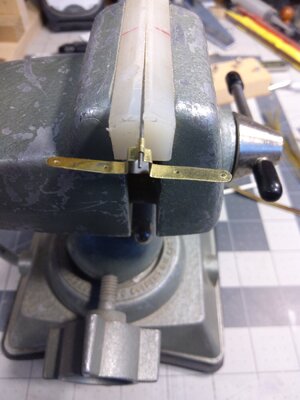

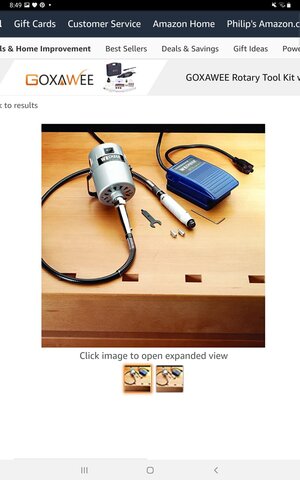

A press allows you to drill pepindicularly thereby not side loading a drill. But too much pressure will also cause the bit to deflect and break. For brass, consider using a punch (I use a Starrett spring-loaded punch w/carbide tip) to set the hole locations before drilling. Then I use a rotary tool (WeCheer - similar to Foredom) with hand pressure to drill through brass. Having a sharp bit helps. I haven't broken a bit as yet. I have a drill press if I need it.
