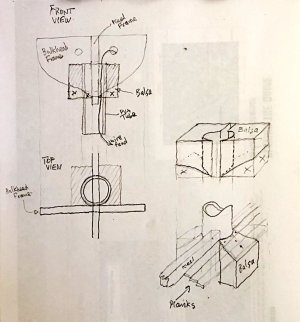

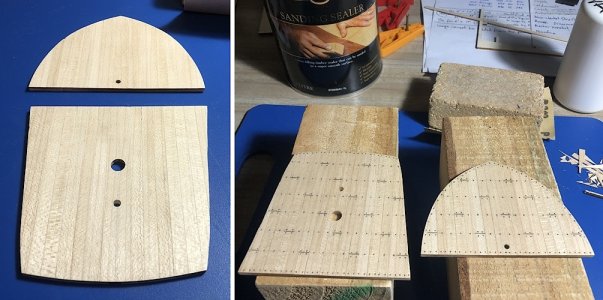

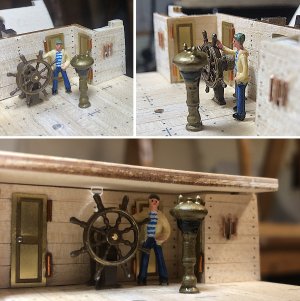

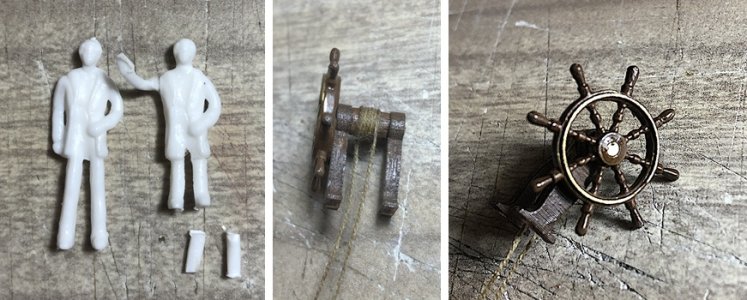

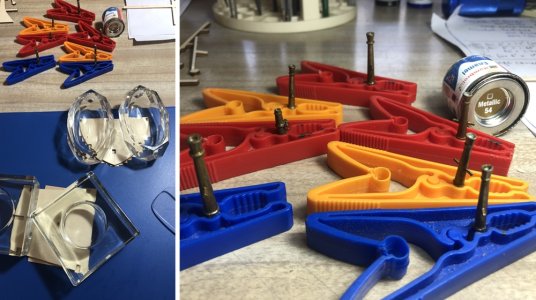

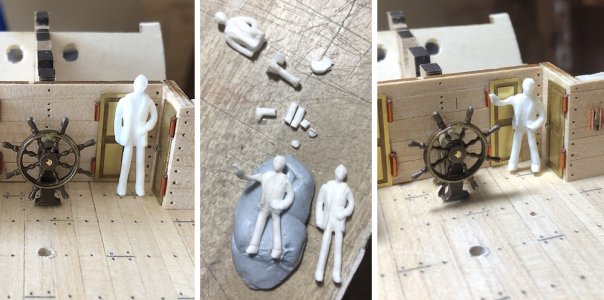

HMS Beagle 1/60

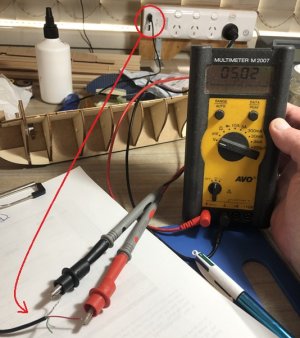

To light my model, I decided to use LEDs and a common DC voltage source (5Volts) from a USB charging socket. I stripped a USB cable to find and check which coloured wire carried the 5V. It's the red wire.

HMS-Beagle Build 27a.jpg

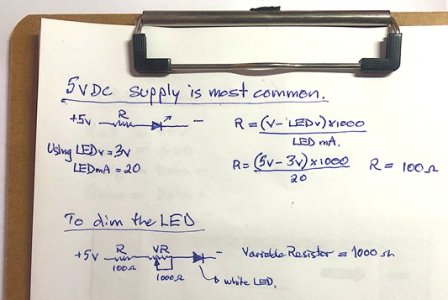

The LEDs I am using have a 3V drop and use 20 milliamps (mA). The following formula calculates the load resistor value to use to drop the 5v to the required 3V at 20mA. It turns out to be 100 ohms. To dim the LED I decided to use a variable resistor up to 10x the load resistor (i.e., 1k ohms), which worked well in my past 'aged' projects.
HMS-Beagle Build 27.jpg

To my surprise, I discovered that LEDs are much brighter these days! I needed to increase the resistor values by 10 times to get a reasonable dimming effect.
Now the R=1k ohms and VR=10k ohms.
HMS-Beagle Build 27b.jpg

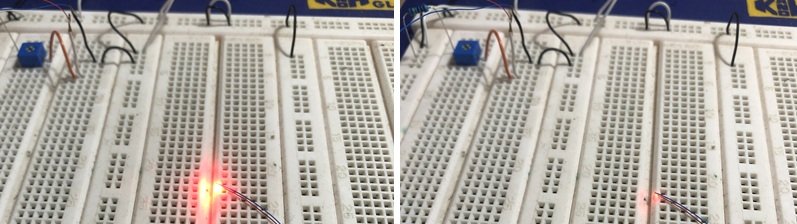

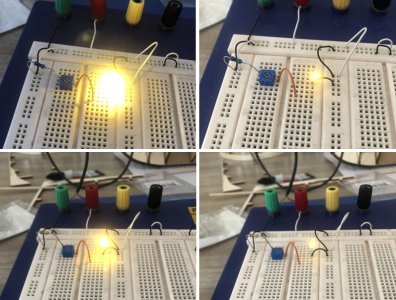

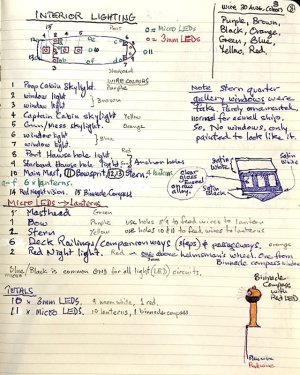

I tested both the red and warm white-colored micro LEDs and chose a different value for R (see above, post #101). The value for RV is 10k ohms.
Here, R = 150 ohms. It's the right degree of maximum brightness from my point of view.

Red LED
HMS-Beagle Build 28.jpg
