HMS GRANADO 1:48 scale PoF CAF Model by Keith

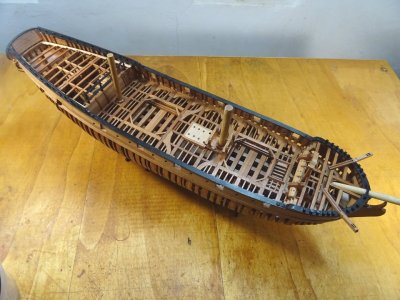

I have now managed to complete the stern section, inside and out, with the decorated gallery and windows. This was a job i was putting off for a long time as i will admit it scared me a bit. I made a bit of a dog's breakfast with the windows, but the rest, I think turned out OK. This has now closed off the hull, so next will be the 2 mortar assemblies

















Keef said:
The top rails are now complete with the addition of the quarter deck (I don´t know what you´d call it) and all the outer hull planking given the Clou treatment. I like it, I think it looks OK

View attachment 495627

View attachment 495628

View attachment 495629

View attachment 495630

View attachment 495631

View attachment 495632

View attachment 495633

View attachment 495634

View attachment 495635

View attachment 495636

View attachment 495637

View attachment 495638

View attachment 495639

View attachment 495640
Click to expand...
Sooo good! Congrats, it's a true masterpiece!

Hi all. I began work on the 2 mortars, 13 inch ad 10 inch howitzer. Sorry for the quality of the photos. These were taken over the course of a few days in the hope l could show the stages involved in the making of the housing, blackening of the metal parts and mounting of the mortar barrel. When l came to process the photos to include on my build log they were all completely out of focus due to a problem with the camera. l have put them all through Photoshop to try and sharpen the images as much as possible and hope they are presentable enough to be able to get an idea of the finished result of the 13 inch mortar

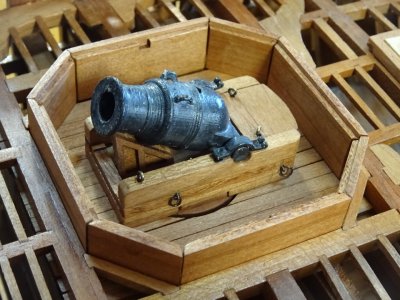

WIP with the main armament of the Granado, the 13'' Mortar ans 10'' Howitzer. So far the mortar is now in place and the housing around it has been constructed. A template is provided to help with making the octagon shaped side panels, very difficult it would have been without it. Each of the 8 walls have sanding marks lasered on at the corners which have to be shaped to get the correct angles for the joints. The mortar is shown in it's travelling position, with the inner panels removed, ready to fire (once turned 90 degrees, or the mast will be no more). I may show the howitzer with hatch covers in place, have'nt decided yet












I see the "sanding lines" on a previous post. Did you sand the mating angle or set up a jig to saw that mating surface?

Either way, you results look great!

Keef said:
WIP with the main armament of the Granado, the 13'' Mortar ans 10'' Howitzer. So far the mortar is now in place and the housing around it has been constructed. A template is provided to help with making the octagon shaped side panels, very difficult it would have been without it. Each of the 8 walls have sanding marks lasered on at the corners which have to be shaped to get the correct angles for the joints. The mortar is shown in it's travelling position, with the inner panels removed, ready to fire (once turned 90 degrees, or the mast will be no more). I may show the howitzer with hatch covers in place, have'nt decided yet

View attachment 498930

View attachment 498931

View attachment 498932

View attachment 498933

View attachment 498934

View attachment 498935

View attachment 498936

View attachment 498937

View attachment 498938

View attachment 498939

View attachment 498940
Click to expand...
Good morning Keith. Wonderful progress. Cheers Grant

BradNSW said:
I see the "sanding lines" on a previous post. Did you sand the mating angle or set up a jig to saw that mating surface?

Either way, you results look great!
Click to expand...
Hi Brad. Thank you for your comment. I carefully sanded the corners with my hand held spindle sander

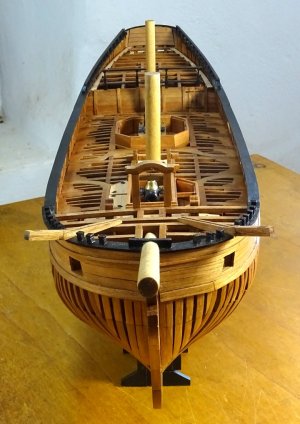

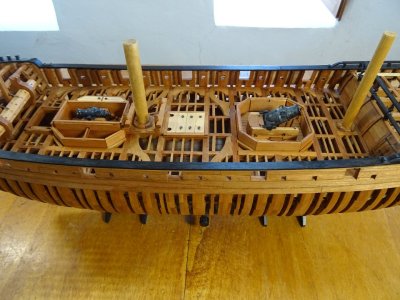

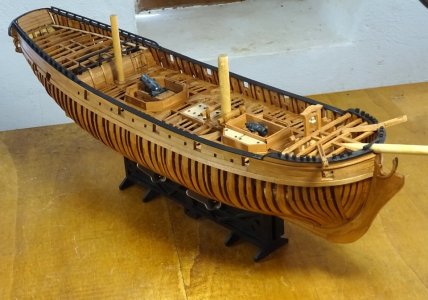

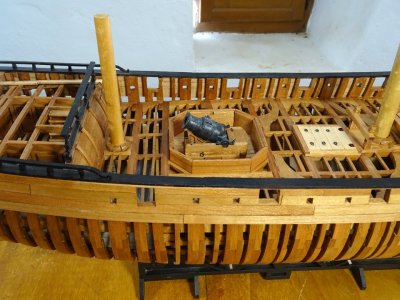

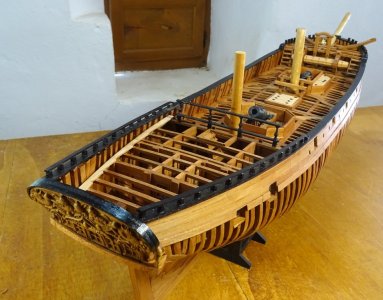

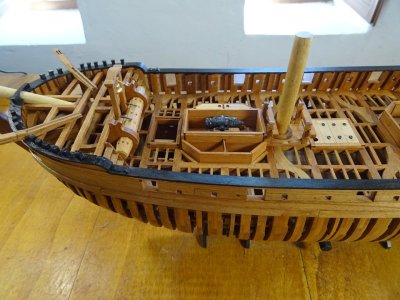

The 10 inch howitzer with it's housing is now also complete and fitted. I had also hoped to show one of the 2 covers over the top of the howitzer housing but, even with the gun barrel fully horizontal, it would fit over the top with the gun in place. So that's it as far as the heavy armament is concerned. The 10 defensive 4 pounder guns and the swivel guns will be constructed and added later


















Keef said:
The 10 inch howitzer with it's housing is now also complete and fitted. I had also hoped to show one of the 2 covers over the top of the howitzer housing but, even with the gun barrel fully horizontal, it would fit over the top with the gun in place. So that's it as far as the heavy armament is concerned. The 10 defensive 4 pounder guns and the swivel guns will be constructed and added later

View attachment 500353

View attachment 500354

View attachment 500355

View attachment 500356

View attachment 500357

View attachment 500358

View attachment 500359

View attachment 500360

View attachment 500361

View attachment 500362

View attachment 500363

View attachment 500364

View attachment 500365

View attachment 500366

View attachment 500367

View attachment 500368

View attachment 500370
Click to expand...
I can only wonder what kind of thumping those mortar's gave the ships frame!
