HMS Revenge 1577 by Amati , Victory Models [COMPLETED BUILD]

Joined
Feb 8, 2021
Messages
465
Points
323

Location
Victoria Australia
....some hints from my experience

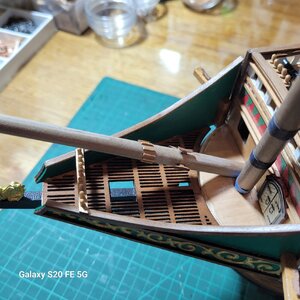

1. When fitting part 222 grating to part 50 forecastle deck, you need to use the one example of 222 which has a rectangular hole cut in it. The allows the samson post inside the forecastle to be reached for rigging. No way of knowing unless you happen to notice on the complete plan view towards the end of the book. First photo shows this.




2. The aft edges of parts 21 need about 3mm of thickness added to meet the topsides nicely.

3. When gluing the decorations on the last long section at the wale is awkward to handle so I cut it in half so I could use four piecs rather than 2 and that was easier...not a major thing but the paper does get a bit awkward when wet.


4. First serious issue....Bowsprit plans. ..(what follows is entiely my opinion and I could be completely off the mark..!)

(a) Plan 4 shows a representation of the bowsprit going into the hull...this is indicative only and the bowsprit cannot stop in midair where shown...it is drawn as 85mm into the hull from the deck surface when it needs to be 128mm to find its stopping point..

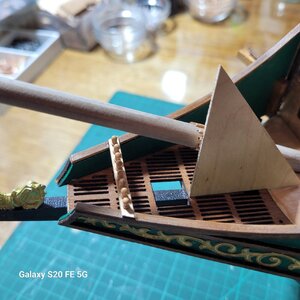

(b) the adjacent plan dawings for the bowsprit on plan 8 are not correct. If you make the bowsprit to the overall size specified and then fit the chocks and cleats where drawn the gammonning chocks will not be above the gammon slot in the prow, and the horn cleats will be underneath the forecastle. It is a moot point what is wrong...but you need to plan the bowsprit build and install yourself using the only two pieces of predetermined data you have....first the limit of the bowsprit insertion which is 128mm from where it first emerges from below the focsle, and second where the gammoning slot is in the prow. Put a small square upight on the bow grating at the gammon hole and mark the position of the gammon on your bowsprit.

(c) Then just put all the other horn cleats and stopper cleats approximately where the drawings show ignoring the fact that the plan view and side view have some in quite different locations.

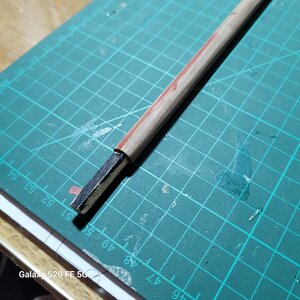

I had precut my bowsprit to length and given all the above it was now too short so I added a bit to the internal end giving it the correct "hidden" depth of 128mm.




Ugly huh..? but hidden


I hope I havent somehow missed something crucial and set people off on a wild goose chase because I find it very surprising to come to these conclusions... if I am right then it is the first time I have found a significant issue with Amati plans.
In the end I have my gammonning cleats above the gammon slot, and the horn cleats out where they can be used.... so I am happy with my end point just a bit nervous about how I got there.

PS...now that I have finished the bowsprit and the gammoning I can confirm my notes above...the plans are not right here... do your work with the gammon slot as your datum



5. Rigging the main foreyard haul. It rigs to a violin block ( see P6 of log) and to a samson post below the forecastle ( see point 1. picture of this post). It would save a lot of grief if you rigged this part of the yard haul between the violin block and the samson post before planking the foredeck. It can be done later as per plan 15 but it is very difficult and completely avoidable....The exact length is unimportant so rigging it very early is fine.

6 . Forecastle guns...the plans/instructions (I forget which) have you place the two forecastle guns in the second opening back from the front bulkhead . This ends up being behind a shroud...all other guns are good. Just position the focsl guns in the third opening not the second and it is pr=erfectly between the sets of shroudfs.

Last edited:
planking the lower deck with hatches set in. They are completely invisible when the upper decks go on so a bit pointless in a way but I guess you know that it is there






See above the square hatch places cut out. This is a PITA and completly unnecessary..actually makes it harder. You place neatly fitting grates into the squares which you cannot see through anyway and which fit very neatly...so leaving the planking inside the holes to layer with a thin coat of glue for the grate is not only easier, it works better. I cut these ones out..but not the next ones.

Last edited:
Great - you jumped already in the next project - I will follow your log and look forward

Have prepared and installed the foredeck. Note for others following...the foredeck is a challenge to bend into place. It is not that you will break the ply foredeck, it is the stress you put on the tops of bulkheads 3 and 4 both of which I fractured...but have repaired by spacing them with 3A and 4A and rubber bands with Weldbond at their break points. The install problem is avoidable once you work out the problem... there is a recess each side inside bulkhead tops 3 and 4 to accpet 3A and 4A further down the track. The deck gets stuck on the lower edge of these slots when you are installing it and once you realise this and ease it over the edge you are home free. Too late for me alas..!


Hi John. It is good to see you embark on the Revenge. I really like the lines of this ship and I will follow along with big interest.

Most of the main deck framing done and trued up. It comes out pretty close..just a small 1mm packing strip on the aftmost beam to make it flat. Ladder also done... if ever they hold a ladder building contest leave me out.

No more progress or reports for three weeks as I am going on a driving tour around Tasmania, haven't been for many years and it is just a magic place. Just not that many people and probably a bit like what the mainland was like 100 years ago. Great wine and food.


Thanks for the contact Jim...will go and bookmark your log to keep track of it.
John

Last edited:
Have been building and planking the stern platforms. Slight differences betwen the instructions and the parts here and I had to pack out the trailing edge of transom brackets ( part 21) about 3mm to get the rear wall (part 118) to sit flush with the corners. Not a significant thing but you get used to the parts fitting pretty much perfectly.



TIP...... Add about 3mm of thickness to the trailing edge of both parts 21 and the side panels (50 and 51) will meet stern window panel ( 118 ) neatly. They overlap a little out of the box.

Last edited:
