Looking great and uniform.

Just think at this rate in a few months you will be rigging all those deadeyes!

And I look forward to it



[GrantTyler]

And I look forward to it

.....and there is plenty to look forward to... . Lovely progress Gilbert, as always. Cheers Grant



[Gilbertm]

.....and there is plenty to look forward to... . Lovely progress Gilbert, as always. Cheers Grant

thanks Grant



[Kurt Konrath]

And I look forward to it

And you say this with a profile photo of a straight face and smile!



[Gilbertm]

Hello friends

First thing I did this week was to install the hull decoraction. For the top rail, I used a thrid party rail rather than the brass rails provided in the kit. FOr the second (black) and third (ochre) rail, I used the kit provided profiles.




I then started to install the chainplates and struggled a lot connecting them to the channels (starboard side). It turns out that either the black stripe on the hull was too low or the channel was too high (which I don't believe) but in the end the third element of the chainplate that attaches to the deadeye and strop was too short by 1 or 2 mm. So I used 0.7mm brass wire to make this part a little bit longer and I soldered the wire, In the end the result is OK




I also installed the poop deck barricade together with the buckets.




Let's now move to the chainplates on the port side ...



[dockattner]

And another lovely day in Provence...



[Gilbertm]

And another lovely day in Provence...

indeed



[GrantTyler]

Hello friends

First thing I did this week was to install the hull decoraction. For the top rail, I used a thrid party rail rather than the brass rails provided in the kit. FOr the second (black) and third (ochre) rail, I used the kit provided profiles.

View attachment 616669
View attachment 616670

I then started to install the chainplates and struggled a lot connecting them to the channels (starboard side). It turns out that either the black stripe on the hull was too low or the channel was too high (which I don't believe) but in the end the third element of the chainplate that attaches to the deadeye and strop was too short by 1 or 2 mm. So I used 0.7mm brass wire to make this part a little bit longer and I soldered the wire, In the end the result is OK

View attachment 616665View attachment 616666View attachment 616667
View attachment 616671

I also installed the poop deck barricade together with the buckets.

View attachment 616672
View attachment 616673View attachment 616674

Let's now move to the chainplates on the port side ...

Lovely, lovely Gilbert !



[Gilbertm]

Lovely, lovely Gilbert !

Thanks Grant



[Gilbertm]

Hello friends

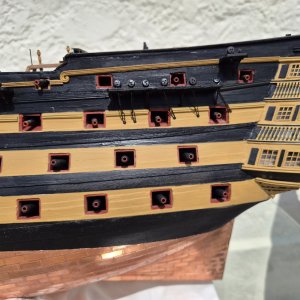

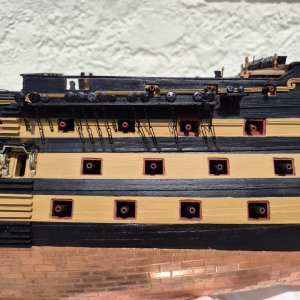

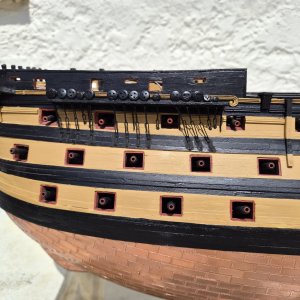

After having struggled installing the chainplates on the starboard side, making the same on the port side was quite easy and without any issue. I should definitely start by doing the second side before the first one
At the same time, I installed the lower gun deck and middle gun deck cannons on the port side. I made a small jig for this in order to insure the cannons were correctly centered

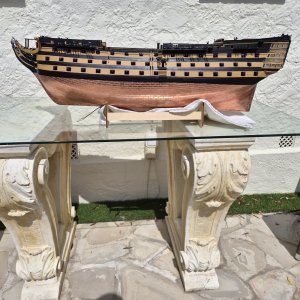

Pictures below



At the same time, I also changed the color of the top rail using the same yellow ochre as the hull bands.

Next will be to insert the cannons on the starboard side and to start installing the gun port doors

Cheers
