La Toulonnaise 1823 - French schooner - Billing Boats 1:50

[Uwek]

I thought about adding some extra masts for more sail power.

This is a quick mockup of what to expect, so the extra centre holes I made are covered, of course the furniture will all be squared off and installed correctly when the time comes.

The extra holes down the sides with metal rings I have no idea in real life what they are for but they are supposed to be there, perhaps someone more knowledgeable can assist.

View attachment 467748View attachment 467749

View attachment 467750
In the image above you can see the same deck holes down the sides.

I found f.e. this model showing these holes with some deepenings with a hugh ball at the "anchor cable" - very interesting detail

"La Toulonnaise" (1823) - Lot 398

Toutes les informations sur le lot

www.debaecque.fr



[Uwek]

I found f.e. this model showing these holes with some deepenings with a hugh ball at the "anchor cable" - very interesting detail

View attachment 469121

"La Toulonnaise" (1823) - Lot 398

Toutes les informations sur le lot

www.debaecque.fr

Sorry - no this ball is the deck opening (forgot the correct term already) for the anchor cable
the other visible holes are for something else - maybe scuppers..... I would need the drawings......



[NOVICHOK]

These are windows for lighting. I think so.



[Richie]

Sorry - no this ball is the deck opening (forgot the correct term already) for the anchor cable
the other visible holes are for something else - maybe scuppers..... I would need the drawings......

Thank you for the link, I hadn't seen that model.
This is my deck plans and confirming 2 extra holes to be added later for the anchor chains, I have already made the dome covers for those holes.



[Richie]

These are windows for lighting. I think so.

The only think I can think of is either fresh air vents, or as you say to let in some light but having holes to let in water doesn't make sense, pehaps in the real ship they aren't open holes at all.



[NOVICHOK]

Of course these holes are closed. The windows are glass. Here, near the mast, you can see such a window.



[Marquinius]

Can the be lights? Like flat portholes? Looking at the image I seem to see something like that.



[Marquinius]

Ah. Same thought. Good oh!



[Richie]

With the ship being over 200 years old I think they would be just a glass window to light below deck rather than some sort of light for the deck.
I might look at adding some clear plastic rod cut to fit in the holes for F66 in the deck plan above to finish it off, something like these.



Unless there is another alternative not yet considered.



[Uwek]

Maybe our member @Jeff W knows more about these details
As I know he has the old monograph of the French Association of Friends of Naval Museums

La Toulonnaise 1823 - French schooner Artesania Latina 1:70 by Jeff W



[Uwek]

Here you can find some good photos of the model in the maritime museum, which are maybe helpful

Goélette La Toulonnaise 1823 [Corel & AAMM 1/75°] de parellum - Page 6

Bonjour Laurent, je t'ai répondu en MP. Amicalement Patrick

www.laroyale-modelisme.net



[Uwek]

Ha - I found something

Take a look here in this book review

Book review - Book Review: "MODELES HISTORIQUES au musée de la marine - Volume 2"

Book Review: MODELES HISTORIQUES au musée de la marine - Volume 2 by Jean Boudriot The book has 288 pages on the collections of the Museum of the Navy. 359 color photographs. Format 24 * 31 cm Only available in French language – price actual via ancre 95 Euro...

shipsofscale.com

There we can find 18 photos of the museum model - I will take a more detailed look in short time



[Richie]

You are awesome Uwek, thank you for the extra info.



[Richie]

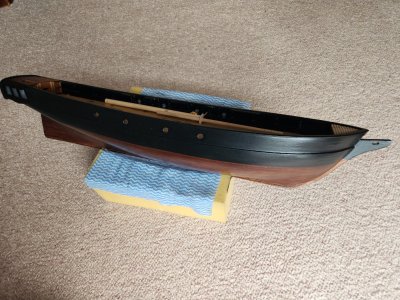

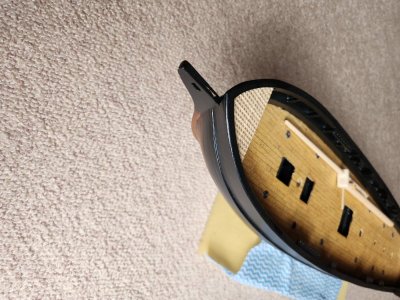

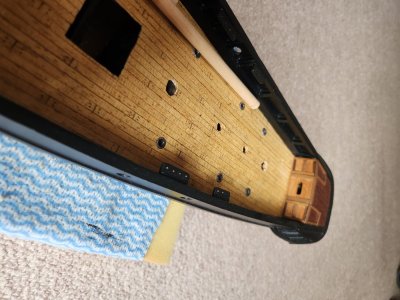

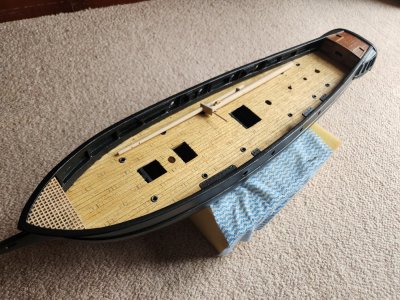

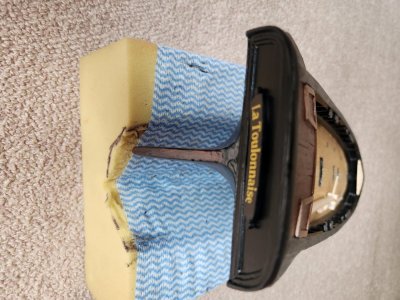

A small update to the stern section, it's been slow fiddly progress to get some resemblance of what it should look like.
