Lowell Grand Banks Dory, First Ever Build

Hot water works well. What I find also helpful is to rub some regular windex (that has ammonia) on it and let it soak in for a few minutes. I find the ammonia really helps with the flexibility of the wood.

Rob

Rob444 said:
Hot water works well. What I find also helpful is to rub some regular Windex (that has ammonia) on it and let it soak in for a few minutes. I find the ammonia really helps with the flexibility of the wood.

Rob
Click to expand...
Ok, thanks for that. Since the "Boss" is going out today I will snitch some of her Windex, and heat water in her kitchen, which she is overly protective of, and get on with it.
Thank you for the tips Rob444. Successfully bent the 3 3/4 railings, using Windex and hot water' and had it done before the "Boss" returned! Waiting for it to dry.




Last edited:

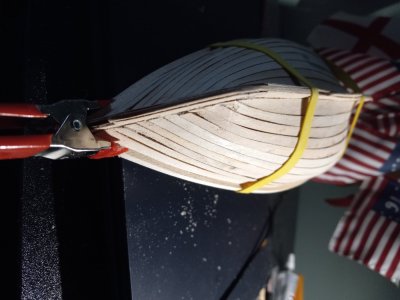

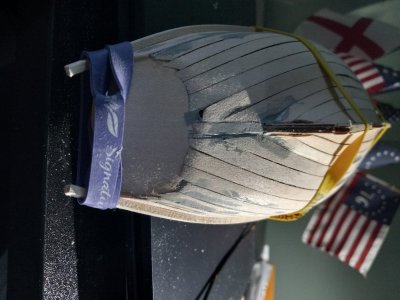

first two pictures shoe railing bent to shape but not glued yet.

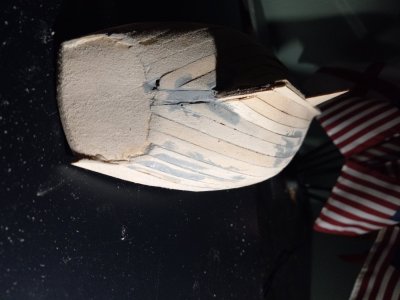

Last pic shows the messed up stern. I sawed the planks at the stern fron the deck to the keels, messing them up. I think some filler will correct this error.
Deck shot with rails bent and glued on

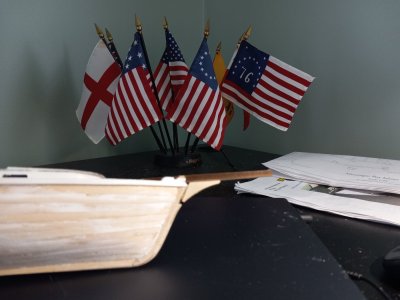

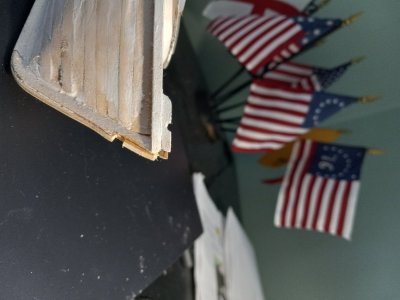

Super structure done, needs sanding, using Model Light white filler on deck cabin and hull planking. Questions, when using the filler do you put it on dry from the container or put it on wet? I put it on dry, and it will need a second coat of filler, do you just sand and recover? Once done and sanded, do you seal it prior to painting?
On a second note, disaster was averted when I caught my son headed into the bathroom with the lobster smack, he wanted to see if it would float!!! I sounded just like my own father..."Son, what's WRONGGGG with you". Something I had promised I would never say to my own son because Dad was always asking me the same thing. (I hated that!)




Last edited:
I think one of the mistakes I made was in not soaking the planks long enough in boiling water. If I had more patience I think they would have gone on better.
I fooled around with the wood filler and found it too dry, adding water and stirring was much better and a lot easier to work. Have to get some fine sandpaper for final prep prior to painting. What grade sand paper for final sanding prior to painting?

Last edited:
Looking ahead, what would be a good project for a newbie who has done Mid Wests trio for beginners, not a warship and about 24 inches at least in length? Sczle of about 1/12? And not overly complicated?

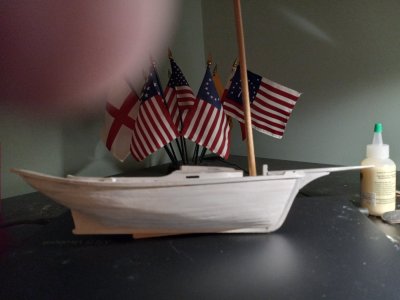

I messed up the beak. I had some rubber contCt cement spilled on it ans tried scraping it off with my Exacto. I took too much off so the beak didn,t align properly. Glued some scrap balsa on it to build the stem back up, we'll see if that works. I added filler at first with my fingers, need to put it on with a spatula, will have to add more filler , I also failed to mix enough water. After the beak repair is finished, I willredo the filler. Two more newbie mistakes!

Last edited:
11320 Titanic said:
I messed up the beak. I had some rubber contCt cement spilled on it ans tried scraping it off with my Exacto. I took too much off so the beak didn,t align properly. Glued some scrap balsa on it to build the stem back up, we'll see if that works. I added filler at first with my fingers, need to put it on with a spatula, will have to add more filler , I also failed to mix enough water. After the beak repair is finished, I willredo the filler. Two more newbie mistakes!
View attachment 553832
Click to expand...
With the filler, I find using several light "coats" letting the previous coat dry seems to work better than just putting on a single thick layer.

Rob444 said:
With the filler, I find using several light "coats" letting the previous coat dry seems to work better than just putting on a single thick layer.
Click to expand...
Right on, too impatient sometimes. The beak is glue in, the bow sprit is next, at least tie will fir properly.


Last edited:
ChefEd said:
A few years into my retirement I have decided to attempt wooden ship model building. My first foray is the Model Expo Lowell Grand Banks Dory.

I know my skill set would make the three-piece bottom fairly simple. However, as it is my first build I took the easy way out and chose the one-piece bottom.
View attachment 530240

I measured and marked out the cleats, and chamfered the edges before cutting them, requiring only chamfering the ends when placing them.
View attachment 530241

Following the guide I prepared and installed the stem and transom. Then set the bottom curve.
View attachment 530242
View attachment 530243

I encountered an issue (my own) with the frames. They assembled all right. Getting them into the jig, and having them set at 90 degrees was the first issue. After sanding the inside of the slots, where needed, I placed each from and support. I found I needed to file opposite top and bottom long edges to get the frames to align at 90 degrees.
View attachment 530244

Now, my next issue with the frames. In a number of builds there were comments about the fragility of some wood pieces due to the angle of the grain to the piece. I found that out the hard way. Attempting to be as careful and gentle as possible I had two frames break from the rubber band pressure. For one frame the broken piece landed in the middle of the workspace. The second broken piece disappeared into the ether. [Update: When cleaning up after this build, before starting the Norwegian Pram, I found the errant piece on a window sill. Oof.] Using the template I was able to manufacture the missing piece. Unfortunately, I miscalculated and the piece was a tad short. When the bottom was laid out over the frames there was a gap of a few millimeters. I filled the gap with a piece of scrap from a piece sheet that was the right thickness. Glued that in place, and sanded to shape. What I learned from this particular occurrence is in the future, put the template on a piece of carboard or dense foam and use pins to wedge the pieces in place while mapping out the 'missing' section.
View attachment 530247

Forming and attaching the garboard planks presented a minor problem. While soaking the port plank I used a metal weight to hold under the water. Oops. The metal left a stain, Hoping paint will correct that error. While working the starboard plank, sanding down to the laser printed sanding mark, the edge split and separated along much of the the mark. Apparently I put too much lateral pressure on the edge while cleaning them up. using diluted PVA glue I filled the gap and clamped the piece in place.
View attachment 530248View attachment 530249

So, to this point I have the port garboard plank glued in place, and the starboard garboard plank bent. While bending the starboard plank the plank split at the guide line, again. Re-glued and clamped. Will attempt to glue into place later today.
View attachment 530250

Has been quite enjoyable, a real test of patience (waiting for the next step).

Cheers
Click to expand...
I believe I spent as much time repairing and replacing as I did building. Still ended up with a decent model, and I created some new words.

Billy O said:
I believe I spent as much time repairing and replacing as I did building. Still ended up with a decent model, and I created some new words.
Click to expand...
Same here,I'm on the Chesapeake Bay Lobster Smack. and it seems like repairing goofs and breaks takes longer than the build. My wife charges me a dollar for every cuss word too.

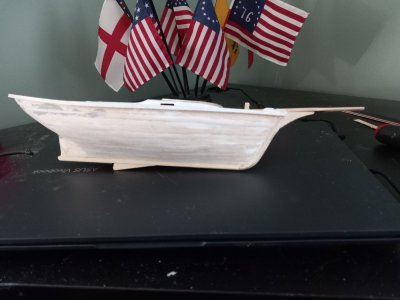

I think the beak will be presentable after painting. I have tried differing glues, and have come to the conclusion that yellow PVA is best for these20251102_082439.jpg models. Most of the problems started when I broke the stern frame work, that repair was a royal pain and I am not sure everything lined up
properly afterwards. I also think that the planking was not allowed enough time to become flexible enough in hot water, and I used the hottest water I could get from the tap, but now wish I had used boiling water instead. I used glues I had on hand instead of purchasing PVA, that resulted in set up times, clampimg issues and holding issues. I went to my local hoppy shop and purchased a bottle Evergreen yellow wood glue, enough for several more kits! and it works great!

ChefEd said:
Continued on with the build, occupied with other things slowed down posting.

I added in the side cleats and the false stem.
View attachment 533396
View attachment 533397
After installing the false stem, and seeing how poorly it looked, I realized I used the wrong piece of wood. I will be building this kit again, so won't make that mistake again. Just new ones.

Next up, I trimmed the cleats and false stem, and added the seat risers. I was a bit too zealous and trimmed the stem and false stem right down to the strakes.
View attachment 533398

Next up were adding the bands, and sanding down the tops of the bands and the sheer strakes.

I trimmed down the frames to make way for the gunwales.
View attachment 533399
I need a new ruler or new eyes. I trimmed down an 1/8" but it still seemed too much.

[I don't have a pic of the gunwales and breast hook being installed.]

Next up was a light sanding and priming for painting.
View attachment 533400
Boy, did all of my sins get revealed. After sanding it looked good and felt good. After priming it was like a well established 5 o'clock shadow.
View attachment 533401

More sanding. Even after using 220 on the hull the paint job still looked bad.

I ended up applying three coats, sanding lightly between coats.

First Coat
View attachment 533402

Third Coat. Cap rails show their first coat.
View attachment 533403

After three coats of paint, and fitting and trimming, the cap rails are installed. Beckets soon followed.
View attachment 533404

I whittled and shaped a single oar. One seemed enough to be representative.

It was at this point I worked on the tholes. Instead of sanding, I drew the wood through a draw plate. I could only go so far before the wood was too thin and brittle to pass through the last hole that would have made them fully round. At this size one needs to get really close up to see that they are not 'fully' round.

I sanded the thwarts, and decided to use the ModelExpo Wood Conditioner before painting the oar and thwarts with the ModelExpo Natural Stain. Much to my dismay it was NOT stain, but paint to look like natural wood. After conditioning I lightly sanded. I applied a coat of Natural Stain, and lightly sanded again, followed by another coat of paint and sanding.
View attachment 533405

All of my thwarts are a bit short. I probably had my frames too wide.
View attachment 533406

The final finish of the boat is not too hideous. One one hand the hull looks like it has years paint added. On the other, it shows my insufficient sanding.
View attachment 533407

Even though I am my own worst critic, I am happy with the outcome, as it is my first ever wood model.

I have purchased a second copy of the Dory, to make, and earn store credit for future purchases. Seeing where I made mistakes, and where I can improve, I expect the second version to be greatly improved over this one.

I will certainly go with the three piece bottom, beveling the longitudinal edges a bit, both sides, to make sure you can see the three planks, once painted. Right now the bottom looks like it was made with plywood.

I am planning on attaching the frame templates to a piece of foam board. I will then use pins to align the frame pieces with the templates, to ensure proper alignment, instead of eyeballing like I did this time.

The final big piece I need to improve on is sanding. Any tips out there would be greatly appreciated.

Cheers
Click to expand...
I think the paint blocks great, if you could figure out how to get some paint peeling here and there it would be spot on! Nice job!
