Already started this build but thought the nitty gritty bits are still worth sharing.
Gone through the basic rib build and suddenly thought my experience and trials might help others.
Starting with a few pics, will see the response of others. Didn’t want to gate crash other threads.
Starting with a few pics, will see the response of others. Didn’t want to gate crash other threads.

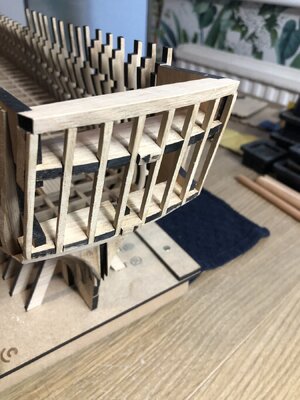

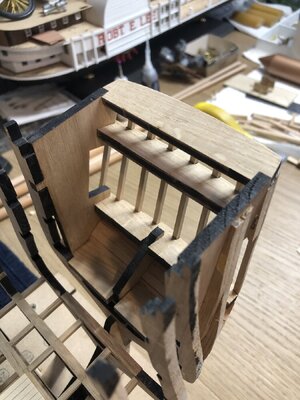

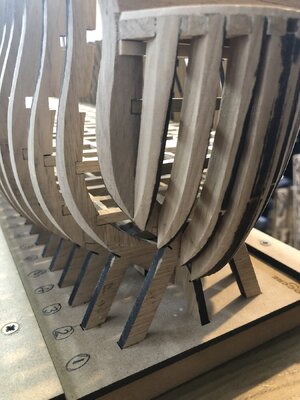

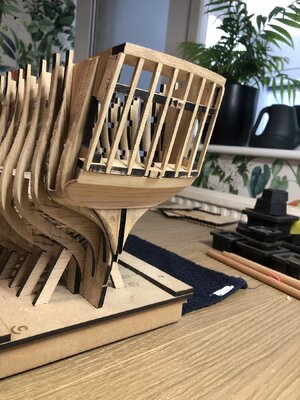

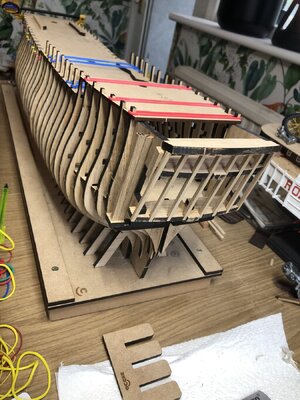

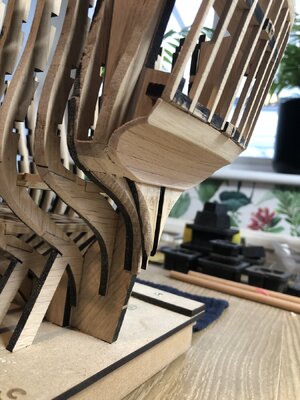

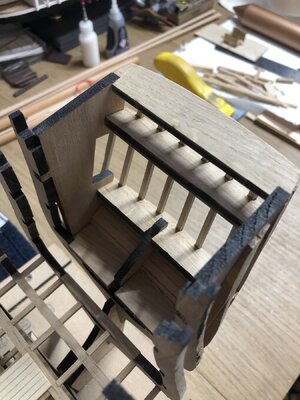

Some earlier sections

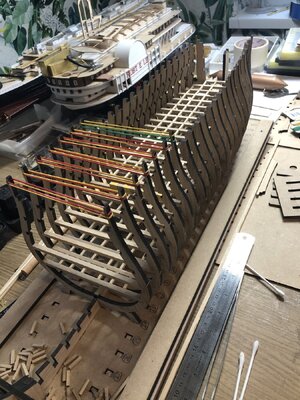

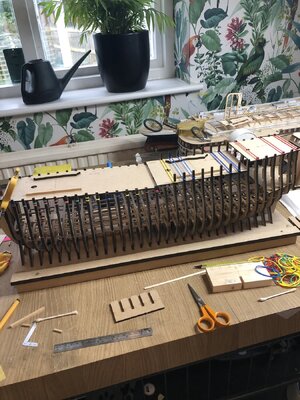

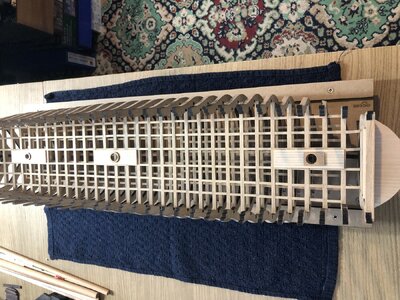

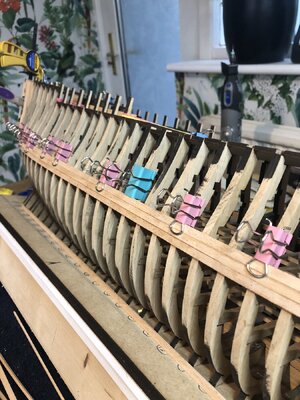

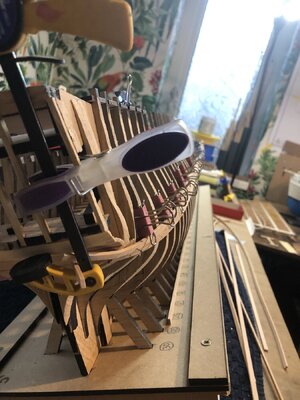

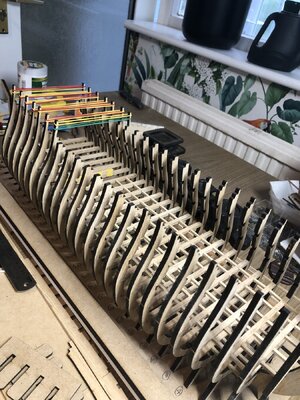

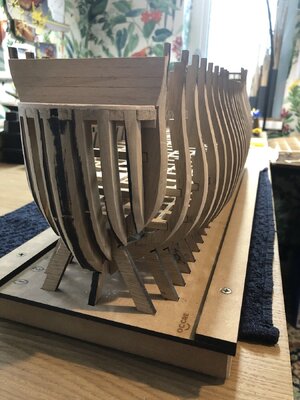

Catching up with a few more. All sanded now , really hard work but looking very stable and all the ribs very much in line. So much sanding but it’s looking good for planking.

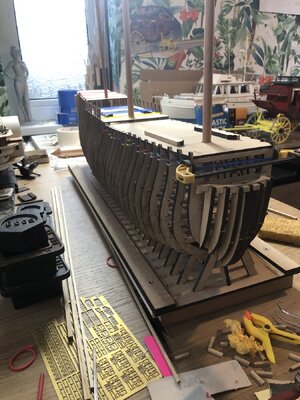

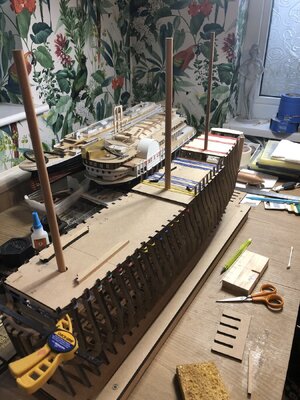

The next stage!
The next stage!
One piece of huge advice on this build is never force the floor timbers into the ribs. Cut them pre done whilst on the 1:1 scale plans and use elastic bands to pinch them together as you build. We are talking mini millimetres here at this stage. It can throw the top ends so splayed, hard to correct later. Use the top jigs all the time. Hope I’m not going on but to me this bit was crucial to the ease of build and sanding.
Love the Robert E Lee, Titanic, stagecoach and other models in the background too. Looking great.
Many thanks Davydd . Can’t seem to concentrate on just one model . I like to switch between a few
Question?
Is the supplied 5x2mm beech ok for the hull planking or is 5x1.5mm lime a better option .
Seems that beech is not that common or am I mistaken.
Not too sure , being a novice on ships.
Is the supplied 5x2mm beech ok for the hull planking or is 5x1.5mm lime a better option .
Seems that beech is not that common or am I mistaken.
Not too sure , being a novice on ships.
No problem mate. They look great and your Victory is coming on a treat. Nicely sanded and looking very straight. I know what you mean about not working on just one. If I had the space I would probably work on two or three. There is always a stage in a build where you need to take a break. The Bismarck is probably the furthest I have got in a POF build in one go and I am trying to ' change my evil ways' as Carlos Santana so wisely counselled in song many moons ago. That way maybeI won't get too spread out and never finish anything. Cheers Davydd
- Joined
- Apr 26, 2021
- Messages
- 22
- Points
- 58
Looking good - The box for this kit is in my workshop but have been distracted with a commission for a Norfolk Wherry - scratch build with not a lot of plans - and one book says they originally built them to fit the wood they could find so it is literally a mini version of how it would have been done in 18?? - helps that I have some oak of that vintage from another job.

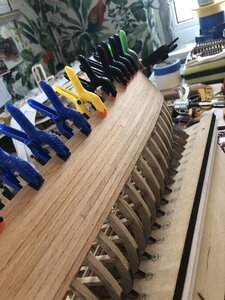

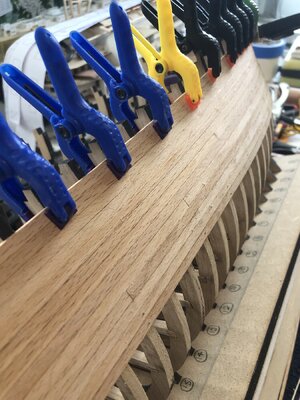

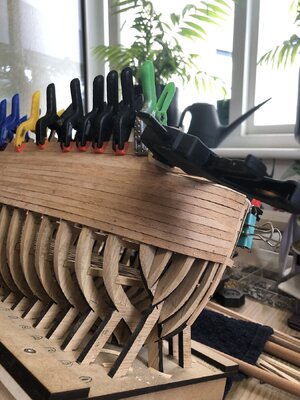

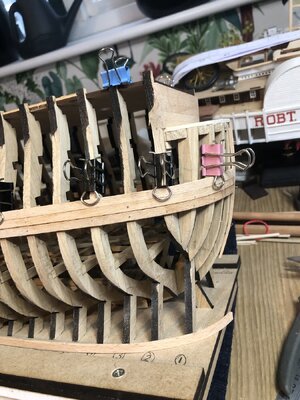

Planking of the hull begins. Soaking and heat bending. These first three rows are the tightest bends especially at the stern.
These planks are relatively thick - is the kit single planked and these are the wales?
Good job
Good job

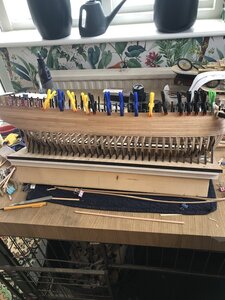

5x2 beech. Single planked, quite thick to bend but I think I’m getting there.
With a bit of sanding, I think should look okay. Very pleased with it all so far.
With a bit of sanding, I think should look okay. Very pleased with it all so far.
very accurate planking job - you are on a good way
I'll take a chair and sit aside
Many thanks Uwek. Always appreciate a compliment
Many thanks.
- Joined
- Apr 26, 2021
- Messages
- 22
- Points
- 58
Neilm - looking good - the box is sitting waiting to open for this project. I am heading to HMS Victory in Portsmouth on Friday if you want any particular photos - no promises - can try?
Wow! Many thanks for your consideration. I’m still a newcomer to this shipbuilding , just enjoy yourself and post your photos here for everyone to enjoy. It’s all so overwhelming at the moment but I am loving every second of this build.
Thank you again
Thank you again
What happened here ? Is it me or anyone knows.
