POF L'Amarante Corvette de 12 canons 1744 1:36 (Ancre Monograph- Gérard Delacroix) By Shota

Good evening dear friends :)

First of all I would like to thank you all for all your support!! :cool:

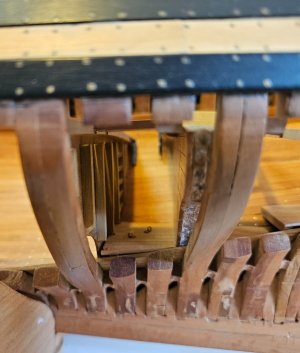

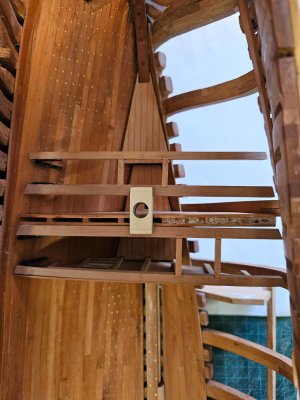

During the weekend I created the fireproof partition adjacent to the safety shaft on the lower deck of the stern.

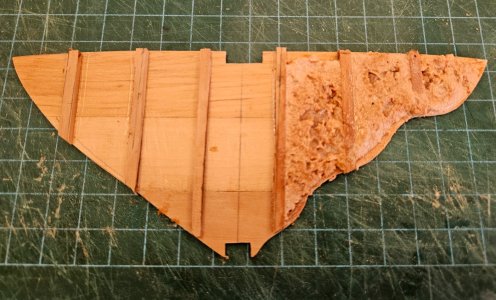

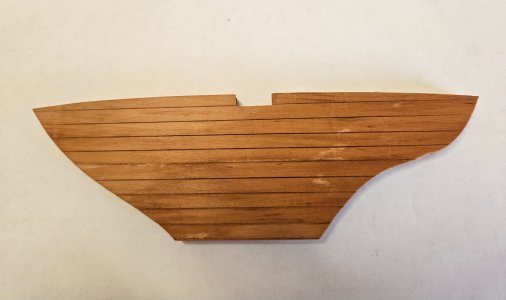

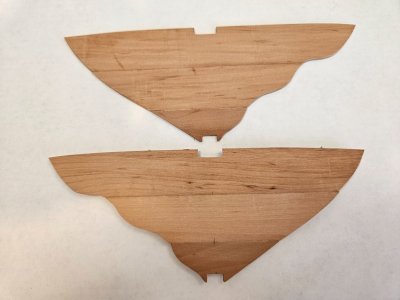

The partition, unlike the others, is made of two walls connected to longitudinal beams, with half of the space between the walls filled with small stones.
I filled the space with a mixture of sawdust, glue and salt crystals that simulate small rocks.

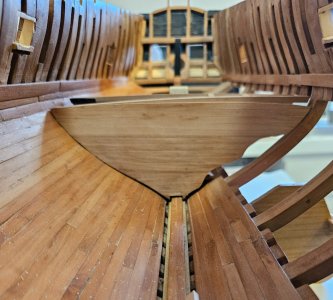

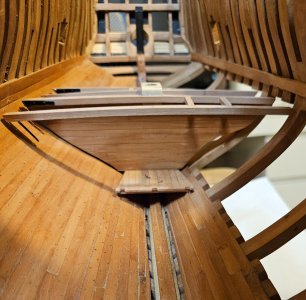

As you can see, the deck is slowly taking shape. Take a look at the pictures for yourself, I hope you like it, I did.
I would like to emphasize that the parts are placed without final fixation.

I wish everyone a pleasant and enjoyable weekend
20260515_174926.jpg20260515_174942.jpg20260515_180255.jpg20260516_143847.jpg20260516_143854.jpg20260516_144015.jpg20260516_144321.jpg20260516_145625.jpg20260516_145635.jpg20260516_145707.jpg20260516_145648.jpg20260516_150510.jpg20260516_145826.jpg20260516_145715.jpg20260516_150544.jpg

shota70 said:
Good evening dear friends :)

First of all I would like to thank you all for all your support!! :cool:

During the weekend I created the fireproof partition adjacent to the safety shaft on the lower deck of the stern.
The partition, unlike the others, is made of two walls connected to longitudinal beams, with half of the space between the walls filled with small stones.
I filled the space with a mixture of sawdust, glue and salt crystals that simulate small rocks.
As you can see, the deck is slowly taking shape. Take a look at the pictures for yourself, I hope you like it, I did.
I would like to emphasize that the parts are placed without final fixation.

I wish everyone a pleasant and enjoyable weekend
View attachment 603399View attachment 603400View attachment 603401View attachment 603402View attachment 603403View attachment 603404View attachment 603405View attachment 603406View attachment 603407View attachment 603408View attachment 603409View attachment 603410View attachment 603411View attachment 603412View attachment 603413
Click to expand...
Safety first, alsi in the ancient days! Nice work, Shota.
Regards, Peter

shota70 said:
Good evening dear friends :)

First of all I would like to thank you all for all your support!! :cool:

During the weekend I created the fireproof partition adjacent to the safety shaft on the lower deck of the stern.
The partition, unlike the others, is made of two walls connected to longitudinal beams, with half of the space between the walls filled with small stones.
I filled the space with a mixture of sawdust, glue and salt crystals that simulate small rocks.
As you can see, the deck is slowly taking shape. Take a look at the pictures for yourself, I hope you like it, I did.
I would like to emphasize that the parts are placed without final fixation.

I wish everyone a pleasant and enjoyable weekend
View attachment 603399View attachment 603400View attachment 603401View attachment 603402View attachment 603403View attachment 603404View attachment 603405View attachment 603406View attachment 603407View attachment 603408View attachment 603409View attachment 603410View attachment 603411View attachment 603412View attachment 603413
Click to expand...
Hi Shota70, what sets your models apart from the others is the attention to detail. Well done. Frank

Frank48 said:
Hi Shota70, what sets your models apart from the others is the attention to detail. Well done. Frank
Click to expand...
Dear Frank
my dear friend, thank you very much for your kind words and compliments, I'm doing great effort to get As accurate and beautiful results as possible

Good evening, dear friends on this journey

First of all I would like to thank you all for all your support!!

In the last two weeks I have made significant progress,
I have finished preparing all the parts that make up the middle deck in the stern.

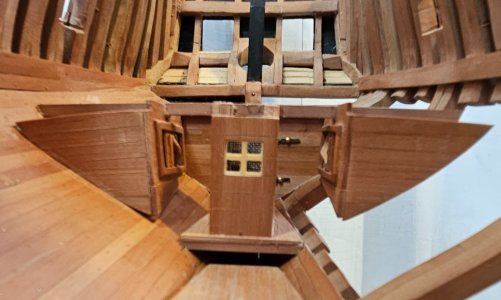

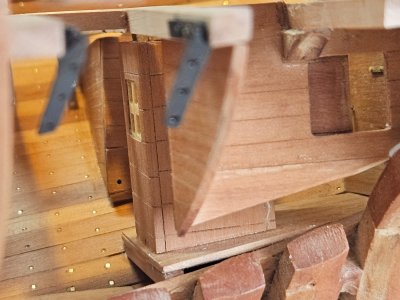

First I will address the creation of the side cabin halves located on both sides of the safety shaft.

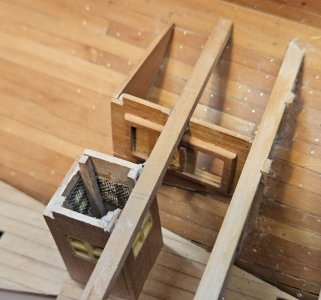

The rooms are zipped from a quarter of a transverse wall supported by the outline of the ship's side and from a longitudinal wall inside which is a window located on a rail.

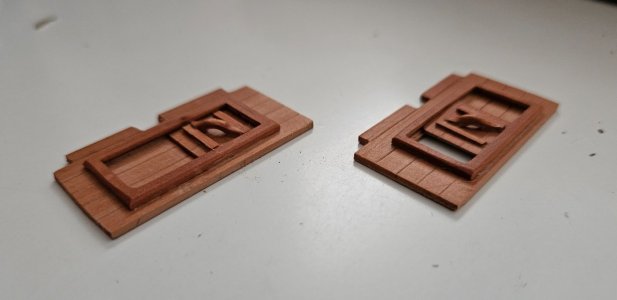

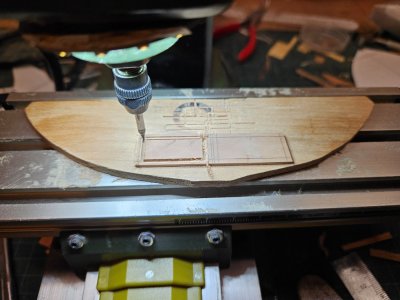

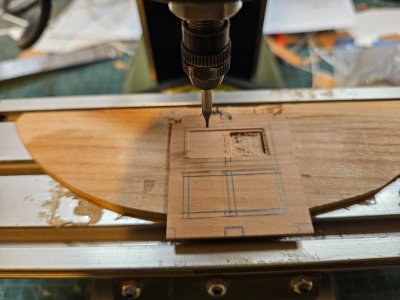

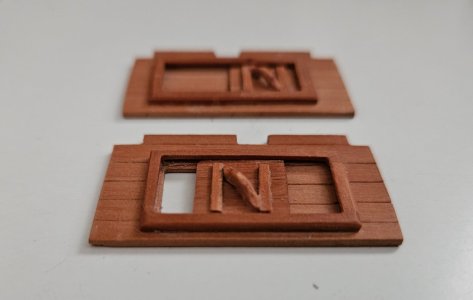

In the photos I have attached you can see how I created the window and its frame. First I created the outer frame and inside it a step and in the wall , I created a matching rectangular frame which together allows movement to the window.

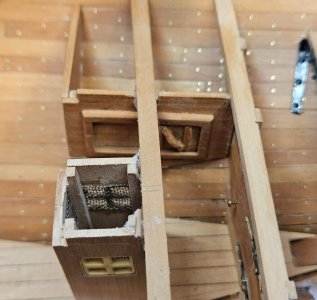

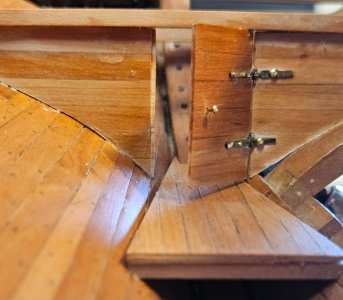

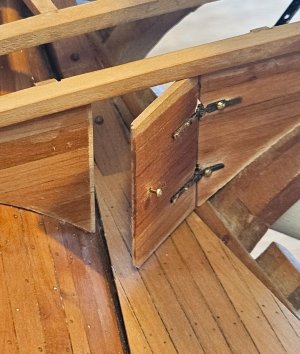

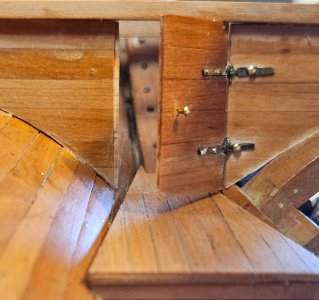

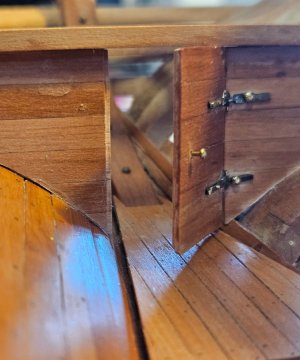

Finally I created the rearmost partition that includes a door. Here too I cut a step in the door and the lintel so that the closure will be in a uniform line.

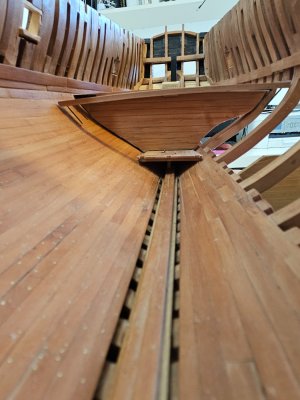

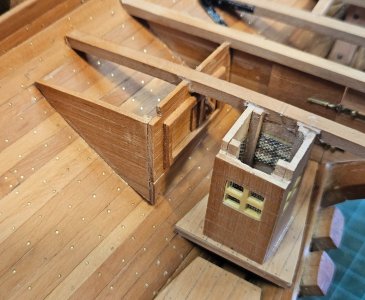

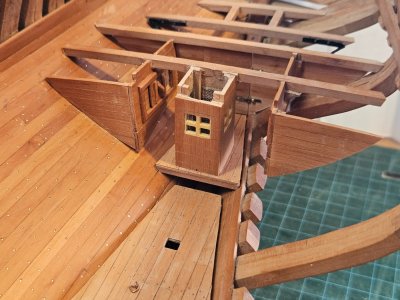

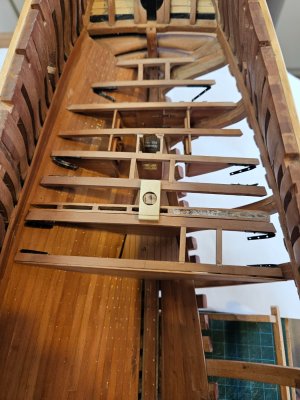

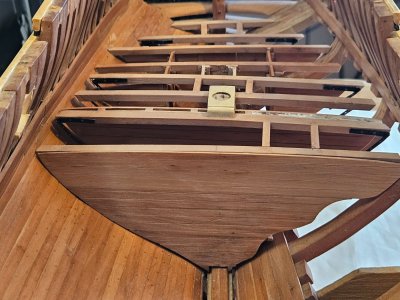

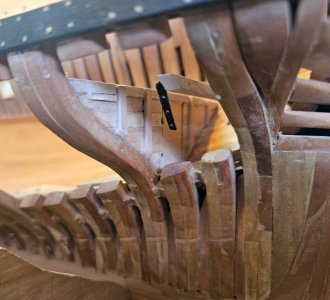

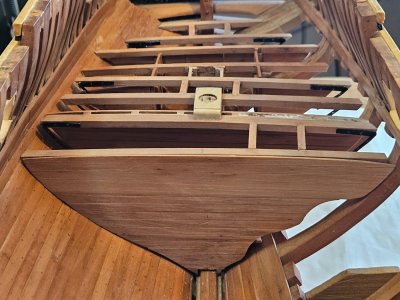

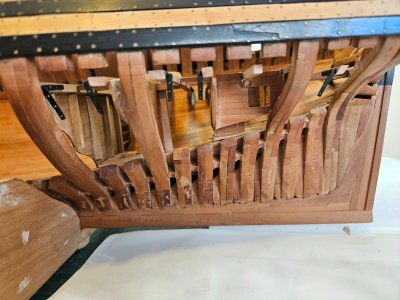

Today I installed the side cabin permanently and also placed all the ribs and partitions that were prepared in the last month, and overall they all create a harmony that matches the plans.
I would like to emphasize that the final accuracy will be achieved with the permanent gluing and that the photographer is not the most talented.
In the meantime, I wish everyone a pleasant and enjoyable weekend.
20260517_202029.jpg20260518_202807.jpg20260519_064633.jpg20260519_064643.jpg20260519_064741.jpg20260522_134949.jpg20260522_135017.jpg20260522_135034.jpg20260522_135623.jpg20260522_135809.jpg20260522_135813.jpg20260522_135820.jpg20260522_140642.jpg20260523_152054.jpg20260523_152102.jpg20260523_152111.jpg20260523_152211.jpg20260523_182437.jpg20260523_182449.jpg20260523_182535.jpg20260523_182620.jpg20260523_182622.jpg20260523_182657.jpg20260523_182817.jpg20260523_182855.jpg

shota70 said:
Good evening, dear friends on this journey

First of all I would like to thank you all for all your support!!

In the last two weeks I have made significant progress,
I have finished preparing all the parts that make up the middle deck in the stern.

First I will address the creation of the side cabin halves located on both sides of the safety shaft.
The rooms are zipped from a quarter of a transverse wall supported by the outline of the ship's side and from a longitudinal wall inside which is a window located on a rail.
In the photos I have attached you can see how I created the window and its frame. First I created the outer frame and inside it a step and in the wall , I created a matching rectangular frame which together allows movement to the window.
Finally I created the rearmost partition that includes a door. Here too I cut a step in the door and the lintel so that the closure will be in a uniform line.
Today I installed the side cabin permanently and also placed all the ribs and partitions that were prepared in the last month, and overall they all create a harmony that matches the plans.
I would like to emphasize that the final accuracy will be achieved with the permanent gluing and that the photographer is not the most talented.
In the meantime, I wish everyone a pleasant and enjoyable weekend.
View attachment 606355View attachment 606356View attachment 606357View attachment 606358View attachment 606359View attachment 606360View attachment 606361View attachment 606362View attachment 606363View attachment 606364View attachment 606365View attachment 606366View attachment 606367View attachment 606368View attachment 606369View attachment 606370View attachment 606371View attachment 606372View attachment 606373View attachment 606374View attachment 606375View attachment 606376View attachment 606377View attachment 606378View attachment 606379
Click to expand...
Again a nice job, Shota. And I do love doors with ‘working’ hinges.
Regards, Peter

shota70 said:
Good evening dear friends :)

First of all I would like to thank you all for all your support!! :cool:

During the weekend I created the fireproof partition adjacent to the safety shaft on the lower deck of the stern.
The partition, unlike the others, is made of two walls connected to longitudinal beams, with half of the space between the walls filled with small stones.
I filled the space with a mixture of sawdust, glue and salt crystals that simulate small rocks.
As you can see, the deck is slowly taking shape. Take a look at the pictures for yourself, I hope you like it, I did.
I would like to emphasize that the parts are placed without final fixation.

I wish everyone a pleasant and enjoyable weekend
View attachment 603399View attachment 603400View attachment 603401View attachment 603402View attachment 603403View attachment 603404View attachment 603405View attachment 603406View attachment 603407View attachment 603408View attachment 603409View attachment 603410View attachment 603411View attachment 603412View attachment 603413
Click to expand...
This is very interesting. So they had made fire compartments. Great to see how you made the ship according to reality. Also love the details. Compliments!

GrantTyler said:
Good morning Shota. I have said it before however definitely worth repeating. You are putting so much detail into this model-wonderful. Wonderful. Cheers Grant
Click to expand...
Cpt.Barbossa said:
A labor of love, Shota. I am really enjoying following your build log.

Regards
Andreas
Click to expand...
Robberdebop said:
This is very interesting. So they had made fire compartments. Great to see how you made the ship according to reality. Also love the details. Compliments!
Click to expand...
Peter Voogt said:
Again a nice job, Shota. And I do love doors with ‘working’ hinges.
Regards, Peter
Click to expand...
Mirek said:
Witaj
Robi wrażenie Shoto baw się dalej i bądź bezpieczny . Pozdrawiam Mirek
Click to expand...
Corsair said:
Wonderful job !
Click to expand...
My dear friends
thank you very much for your kind words and compliments, I'm trying to do my best
