Georgian Navy in the Beakhead Bulkhead Era - a survey of plans

[DAWarden-(Jaager)]

This will be a review of some of the plans 1719-1776 with a focus on their being used for scratch POF.

This survey is intended to explore and celebrate the naval architecture aspect. Any historical significance is incidental.

The quality and suitability of the designs is also incidental.

Primary reference:
British Warships in the Age of Sail 1714-1792 - Rif Winfield - Seaforth Publishing - 2007



[DAWarden-(Jaager)]

Royal George 100 1715
O 06
L 15
171' 9" x 139' 7" x 49' 3" x 19.5' 1800bm

Commissioned 1741
No noteworthy activity
BU 1767

The plan is ZAZ0046




There are models of the ship



As an example of what can be done with the plan I will display what I did with it.
This is my midship framing plan and instructions.



The station frame shape



A midship station layer shape


A station layer shape where the bevel gets interesting


A page of timber patterns



[DAWarden-(Jaager)]

Royal William 100 1719
O 14
L 19
175' 4" x 142' 7" x 50' 3.5" c 20' 1" 1918 bm

Never commissioned as a first rate. It was laid up until 1756 when reduced to 84.

Design based on the 1719 Establishments
R&S 31"

Sister ship

Britannia
O 16
L 19
Commissioned 1734
No noteworthy activity
BU 1749

The plan is ZAZ0140



Other plans
ZAZ0118
ZAZ0119
ZAZ0141
ZAZ0142
ZAZ6876

Models of the ship



This is my midship framing plan and instructions.



The midship station frame shape



A station layer shape



A station layer shape where the bevel gets interesting



A page of timber patterns



[DAWarden-(Jaager)]

Prince George 90 1723
O 19
L 23
164' x 132' 2" x 47.5' x 18' 10" 1577 bm

Battle of Finisterre
Reduced to 80 1755
Burned at sea 1758 with loss of 2/3rds of crew.


Design Establishments 1719
Sister ship

Union 90 1726 BU 1749
Namur 90 1729 reduced to 74 1745 wrecked 1749 with loss of crew
Neptune 90 1730 reduced to 74 1749 renamed Torbay
Marlborough 90 1732 reduced to 80 1753 sprung leaks and foundered 1762

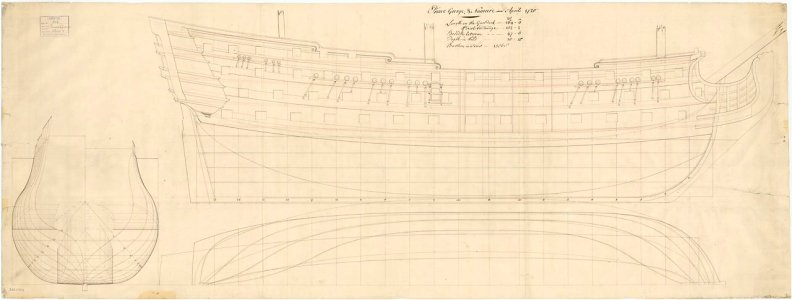

The plan is ZAZ0352


Other plans

ZAZ0434
ZAZ0489
ZAZ0490
ZAZ0491

Models of the ship
None found

Stations 8'
R&S 31"
Floors 14"

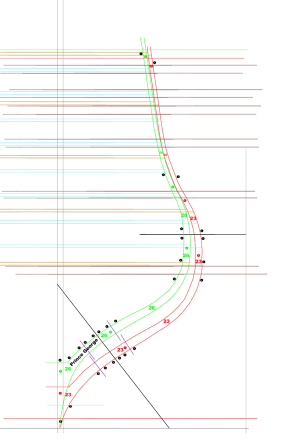

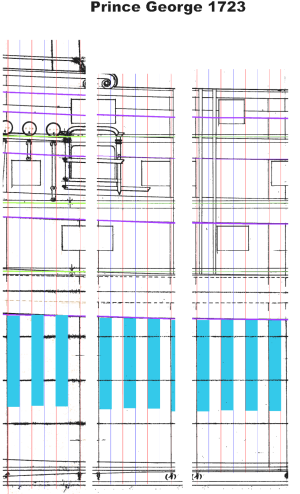

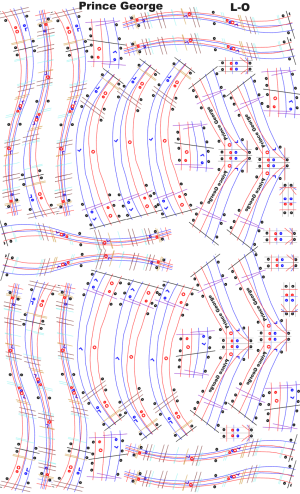

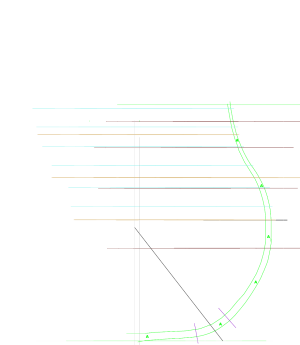

This is my midship framing plan and instructions and lofting steps
