Hohenzollernmodell 1660-1670 Scale 1/21

Fabulous work Peter and great to see your model on SoS.With regard to treating your shrouds,I know Alexey Banarov uses a mix of 500ml of Turpentine and 500ml of Paraffin to an apple size lump of Bitumen to produce the mix he applies to his rigging.This may dry faster than your version but I am not sure it will create the full on tarred look you are after.

Kind Regards

Nigel

WOW - looking very good.
One question: how can you access this area for your work? Is the deck / roof movable, so you can work from the top?

Hi all,
many thanks for your comments and likes, @Uwek Everything is only placed together, nothing is firmly fixed yet. That is also why there is still some misalignment here and there.

Peter

Hi everyone, it's now high time for another update!

Looking closely you can see here that the foremost pair of shrouds were covered with a protective leather sleeve, the arrows point to this sleeve's upper and bottom edges . This was to protect the shrouds against damage from the sails constantly rubbing against them.



Here's a close-up, you can even see the stitches.

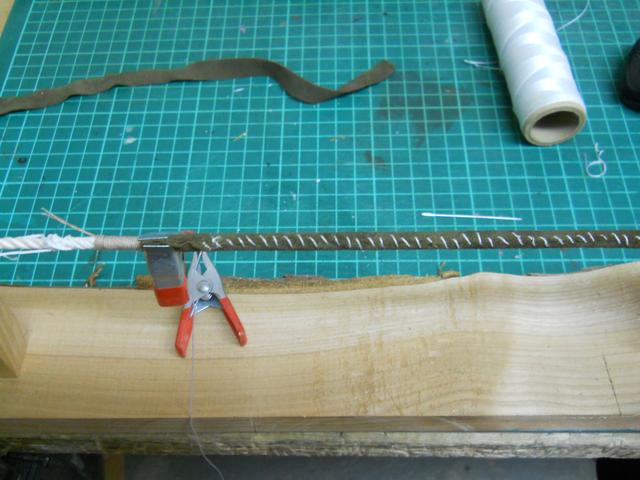

Here I rigged a piece of shroud between two wooden blocks to sew a leather sleeve around them. Not what I'd call tidy stitches but this is only a test-run.



Here the shroud with the sleeve rigged up on the model.



In the meantime I continued working on knees and riders on the lower gun-deck, you can see them here on hull sides. In all there were some 40 of these on this deck. In the distance you can see the partitioning to the Konstapelkammer (the powder-room) und in front of that the large capstan.

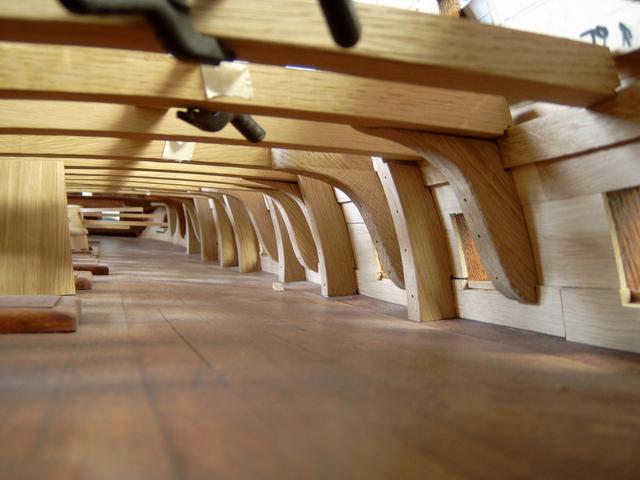

Knees and riders on the port-side are completed. You can make out drill-holes for iron bolts. To the left is the chimney of the galley-stove.

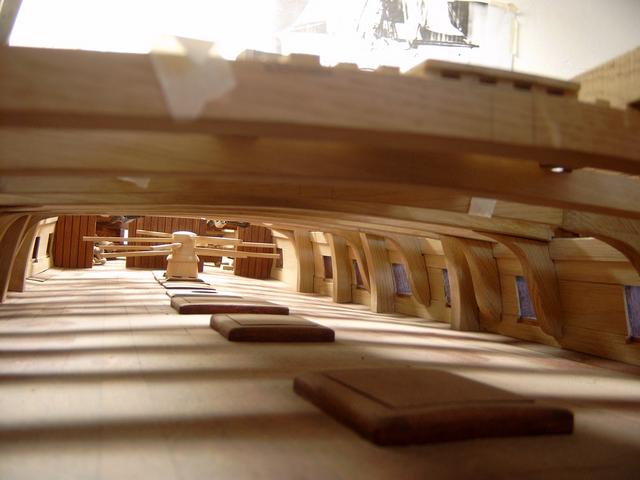

Here I'm preparing cardboard templates for a sandpit. It is said that before battle the decks were wetted and covered with sand to make them less slippery from the amount of blood on deck. Sand was also obviously used to put out fires.

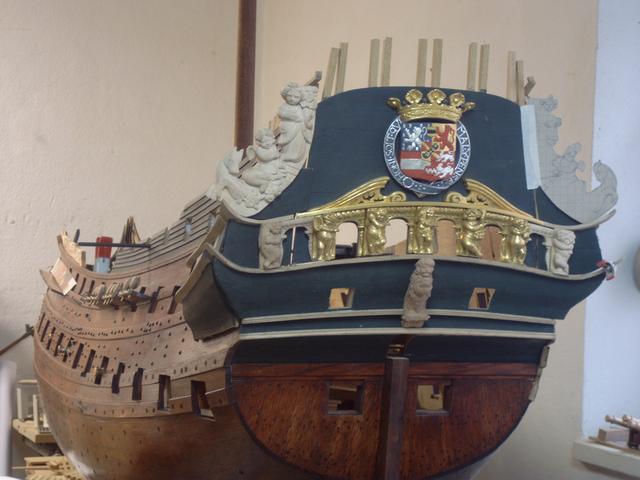

The sculptor has been busy too and has yet again excelled himself.



A close-up view of the new sculpture

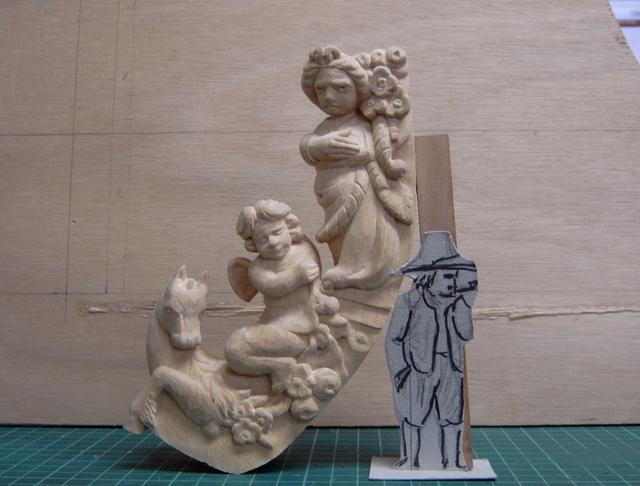

Here with Mr. Scale standing next to the sculpture for comparison. In reality this wooden sculpture would have been some 3,5 meters high! Amazing!



Thanks for dropping in! :)

Peter

Hallo Peter,
Yes it was really time for an update - would like to see your work much more often....

Very good progress, I know, that you have an eye for all the details, which most of us are not thinking about (f.e. the leather protection) - WOW
and great carving - Thumbs-Up Thumbs-Up Thumbs-Up

Hallo Peter,
great summary of the original model, the history and details of the model, your intention and your built - Great film
- Now a lot of members will see your model with a different eye..... Many Thanks

This is a view looking through the second port-side lower deck gunport. The foremast can be seen to the left, the large object dominating the image is the riding-bitt to which the anchor cables are secured while the ship is under way. The thick cable at the top is the messenger. This is an endless circular rope which runs from the bow then aft to the mizzen mast then back to the bow. When it is not in use (like in this image) it is hung up onto the deck-beams, when in use it would be released from the deck-beams and laid out onto the deck. The lower thick cable is one of the anchor cables. Two stoppers can be seen, one is lying on the deck to the left, the other is standing upright in front of the riding-bitt. Both have come lose throughout the centuries they should be lashed onto the anchor cable, securing it to prevent an anchor from dropping to ocean floor (dragging its cable behind) and getting lost should an anchor come lose in heavy weather or in battle.



This is a starboard side view through a lower deck gun-port, looking at the mainmast. The messenger can also be seen here, hung up onto the deck-beams.

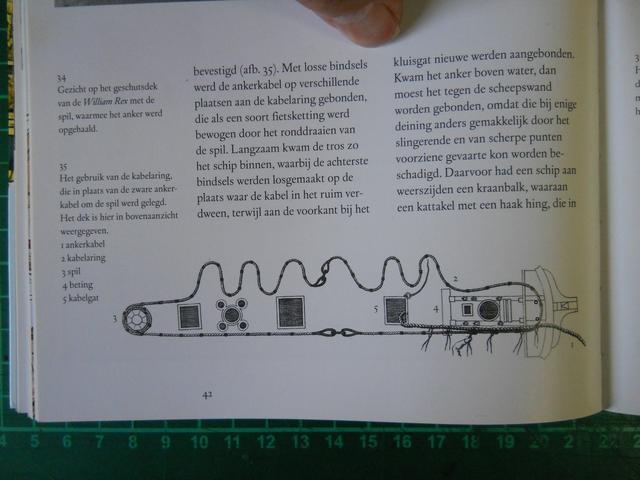

This is how the messenger works. At "3" the messenger is passed several times around the capstan while at the bow (far right) it passes two rollers. When rotating the capstan the messenger follows the rotation, tight on the starboard side (bottom) and lose on the port (top). The anchor-cable can be seen being hauled in at "1". Just as it passes through the hawse-hole it is lashed sideways onto the messenger with "nippers" and is pulled inwards. once the first nipper reaches the cable-locker it is removed and lashed to the cable again at the hawse-hole, thus moving it from the last in line to the first. This is an endless process until the anchor is raised and stowed.



Here's one of my stoppers. The model would require two of these on the port- and five on the starboard- side.



Which stopper-knot the Dutch used in the seventeenth century is not known but it looks a great deal like the Mattew-Walker so I decided to use that one.

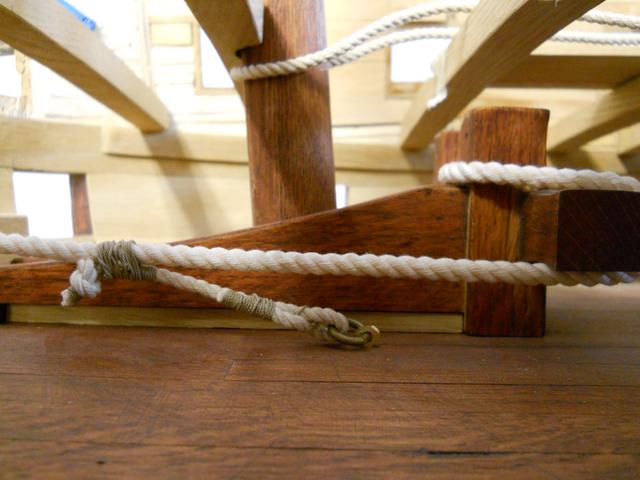

Here the anchor-cable is secured to the deck by a stopper. At least two of the were required for each cable, three for larger anchors.



This picture was taken last week, work on the messenger is progressing well. Contemporary sources call the wrappings "Mouses" - not mice! As all contemporary illustrations show the messenger made of two long cables I decided to do this too, so these two cables are lashed together with eye-splices.



A close-up view of a mouse

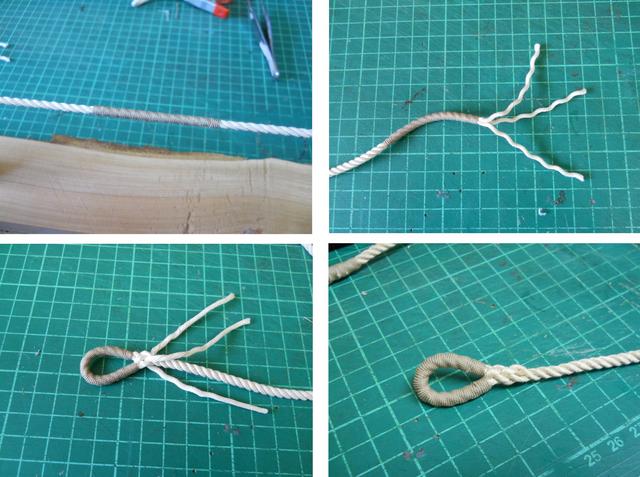

The process of splicing an eye

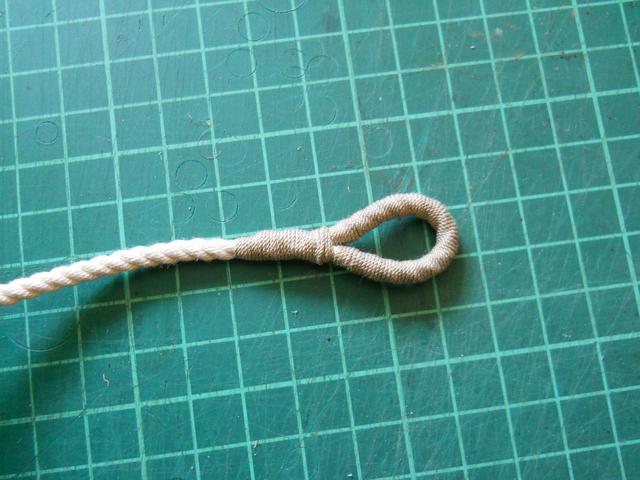

The finished and served eye-splice



Here two messenger eye-splices are lashed together.



And here the finished messenger ready for tarring

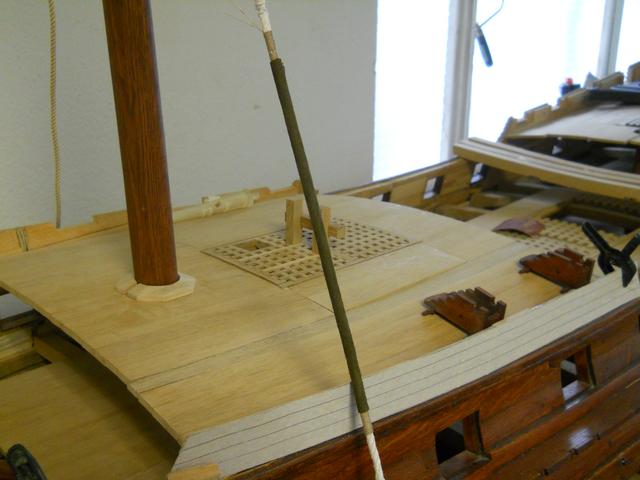

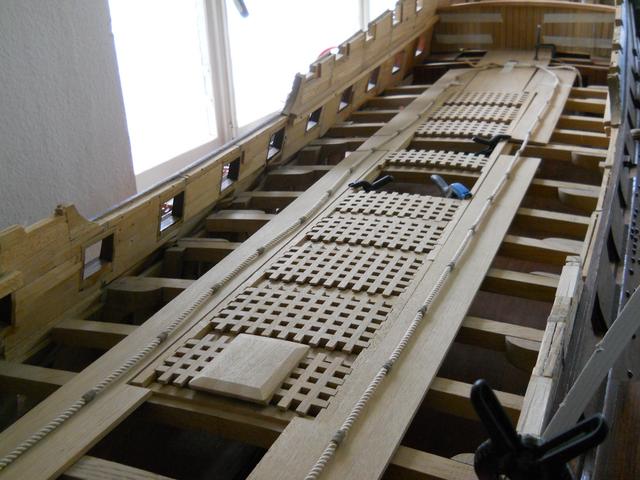

The following images show the messenger on my model hung up onto the deck-beams.









Peter

Hallo Peter,
did you make some more progress on your model?
Would be very interesting to see ....

Yes, there has been some progress in the past weeks. I've been meaning to post an update for a while now. I am currently in England enjoying a weeks holiday with my family. Will be back on Friday and will be happy to update the thread after my return.
