Hohenzollernmodell 1660-1670 Scale 1/21

Olympic1911

Well-Known Member
Joined
Sep 23, 2018
Messages
40
Points
143

Your shrouds are looking very realistic......would be interesting to see, how you do it and which kind of material you use.....
BTW: your carving is looking great
Thanks Uwe,

The mainmast shrouds were made by a friend in Bavaria (Alexander from the German Forum), they are 4mm in Diameter:



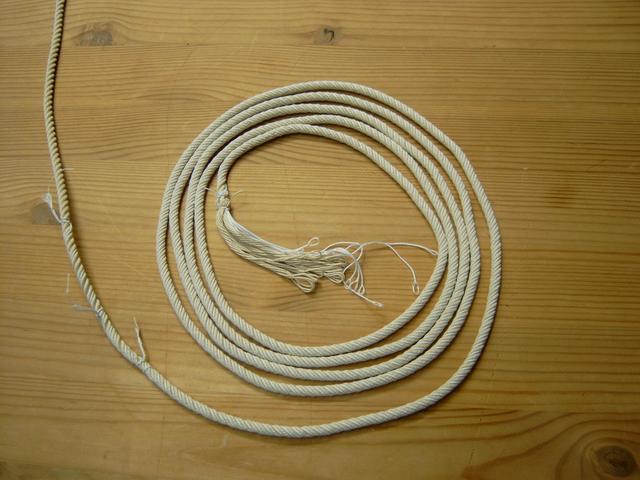

I worm and serve them myself:







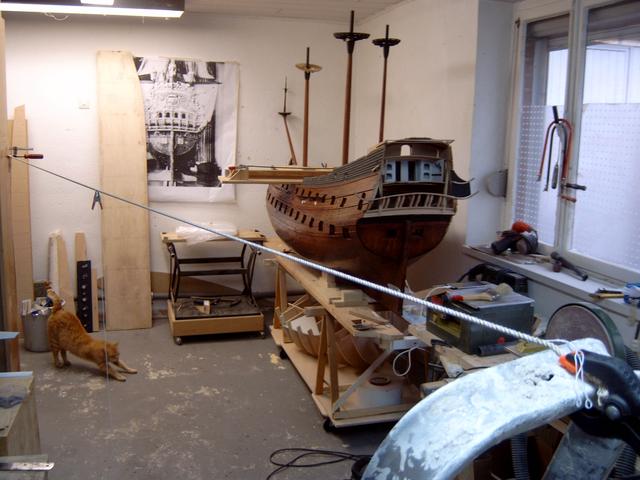

Here are the items required for tarring:



The White bucket to the left contains the tar, the can in the centre Turpentine oil(NOT to be confused with Terpentin-Ersatz as it is completely different) which is used for diluting the tar, the small bottle to the right is the siccative, a drying agent.

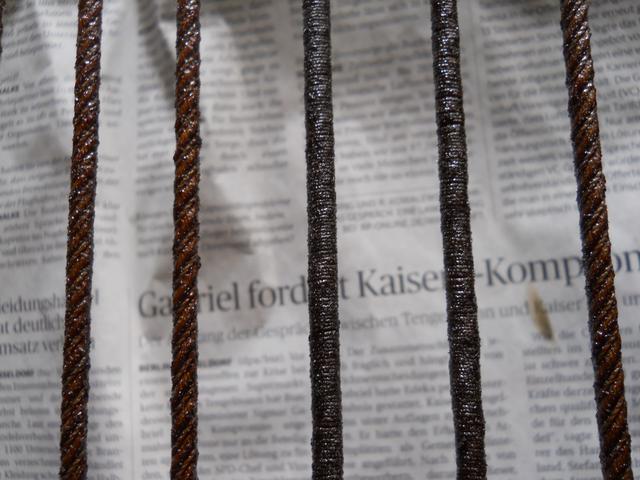

This is after the first layer was applied:



Hopefully in a few months the shrouds will be dry. :)

Regards
Peter


Olympic1911

Well-Known Member
Joined
Sep 23, 2018
Messages
40
Points
143

Thanks everyone for your comment and likes! :) Over the Christmas Holidays I decided to tackle the quarter galleries yet again. This is the third attempt the other two, last year and the year before, failed abysmally. Anyway, in March I experimented with the counter strips, got these out again during the Holidays and after checking, noticed that I could actually use them.

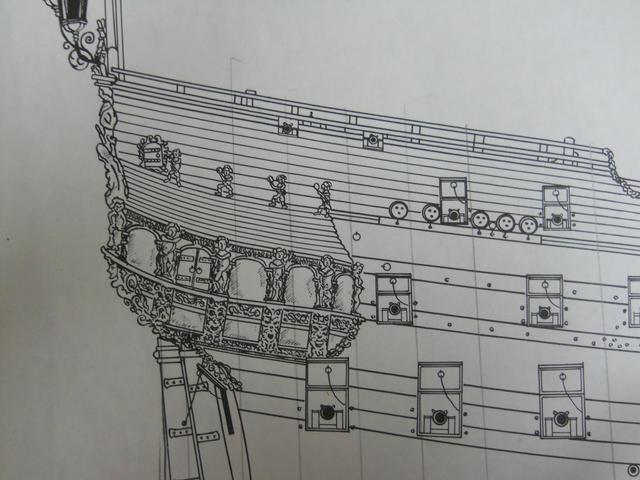

Here are the plans that I have:

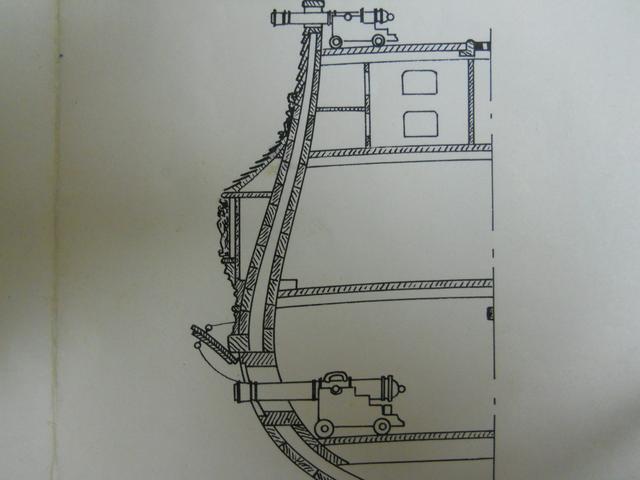

The side view doesn't look all that bad, apart from the false windows being too large. But the sectional view is fundamentally incorrect. The side-walls of the quarter galleries shouldn't be completely vertical, they actually followed the hull's tumblehome.

I built up the shape using card templates:



And then used the templates to produce the wooden framing inside the Gallery. Here's the complete framing of the port quarter gallery:



The roof was then built up using thin wooden strips:

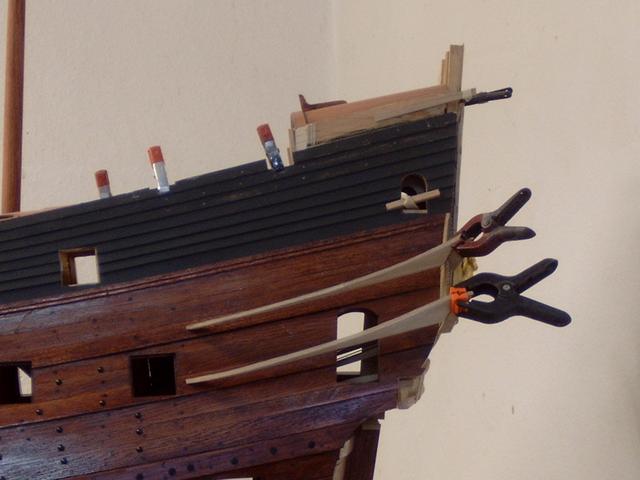

The nearly completed port-side quarter gallery after the roof had received the first layer of paint:



After the numerous attemts in cutting out and shaping the counter strips, I became a real pro! :). I did the two for the starboard side yesterday and they turned out beautifully:



The card templates here are the same that were used for the port-side gallery.

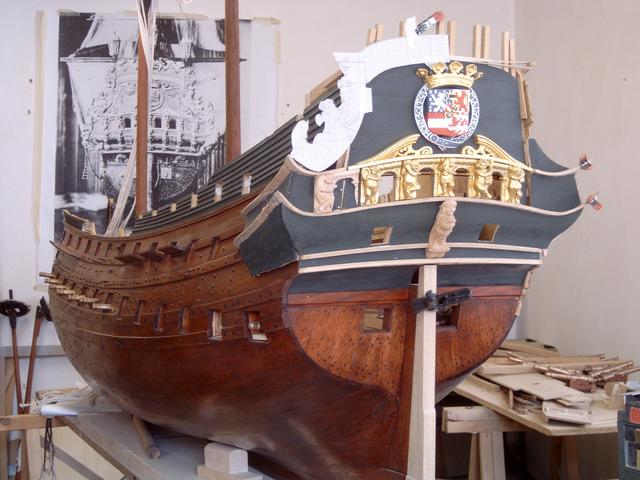

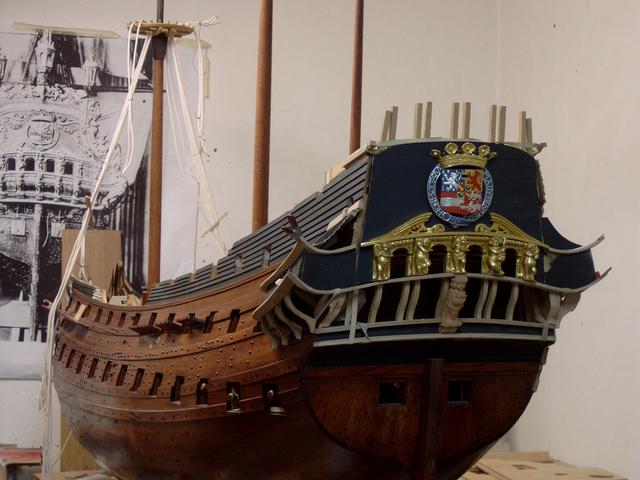

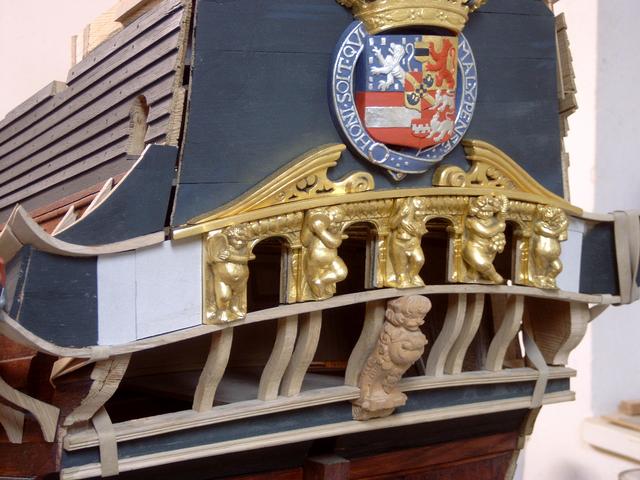

The stern of my Hohenzollernmodel replica gradually taking shape:



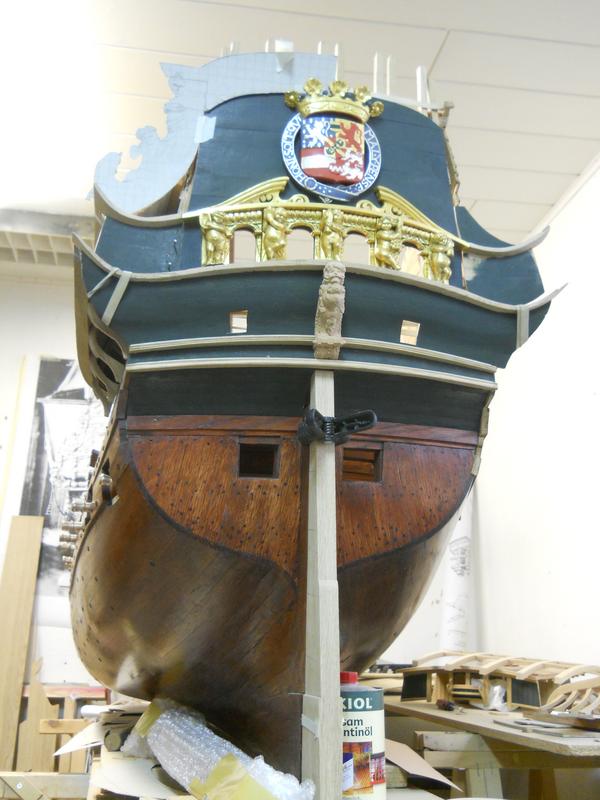

Regards
Peter


Olympic1911

Well-Known Member
Joined
Sep 23, 2018
Messages
40
Points
143

Thanks Uwe and the others for your likes! :)

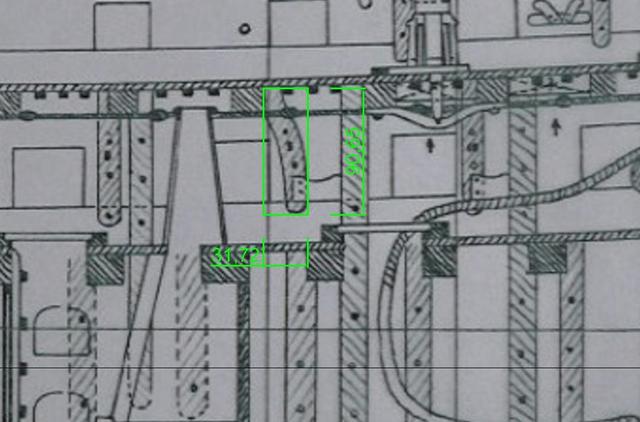

There have been heated debates on the German Forum about taking measurements from photographs. One user even went as far as saying that photographs are completely useless for modelmakers. My experience has shown it can be done, provided the photo lends itself for measurement taking, that means it has to be a plan view. There will always be a minimum of distortion towards the edges as every photograph is a perspective view. Obviously the measurements taken cannot be accurate to the fraction of an Inch but they will give me some sort of hint as to the dimensions of things. What I do is I import the Image into my CAD-drawing Programme.



The Picture has to be scaled up full size. In this instance the windows helped which have already been made so I took their dimesions the scale up the Image. Then I draw a grid over the Image at 10/10mm. Using this grid, which I have also drawn onto cardboard sheet I can transfer the piece required onto the cardboard square by square.

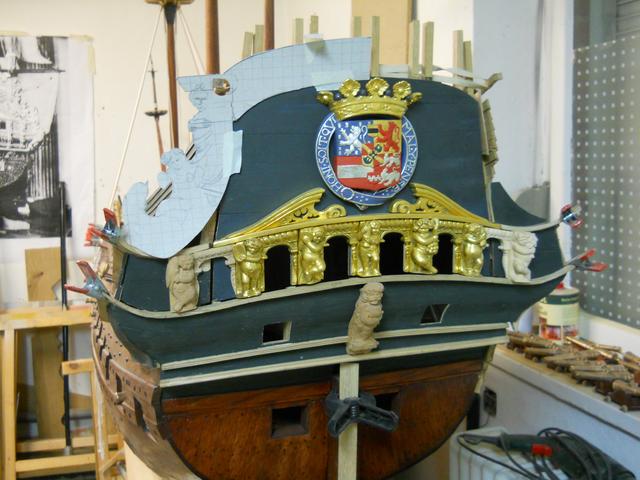

Here the Card template is being test fitted to the Stern.



It fits perfectly!



Regards
Peter

Last edited:

Uwek

Admin
Staff member
Administrative
Blandford Group Build
Joined
Dec 25, 2017
Messages
6,865
Points
728

Location
Vienna, Austria
In my opinion s your way to transfer measures is accurate as possible - many thanks for showing us this way.
If we do not have other data - photos are the only way and will give a reasonable result


Olympic1911

Well-Known Member
Joined
Sep 23, 2018
Messages
40
Points
143

In the past weeks planking the hull inside was completed so I started adding structural items such as knees and riders. In this drawing knees are highlighted in blue und riders in green. The knees transfer the heavy loads from the deck-beams to the hull. The riders were beams up to 6 meters long that helped stiffen out the hull.





Some knees were angled to avoid blocking gunports. To make an angled knee I need a wooden block in the maximum width of the Piece.

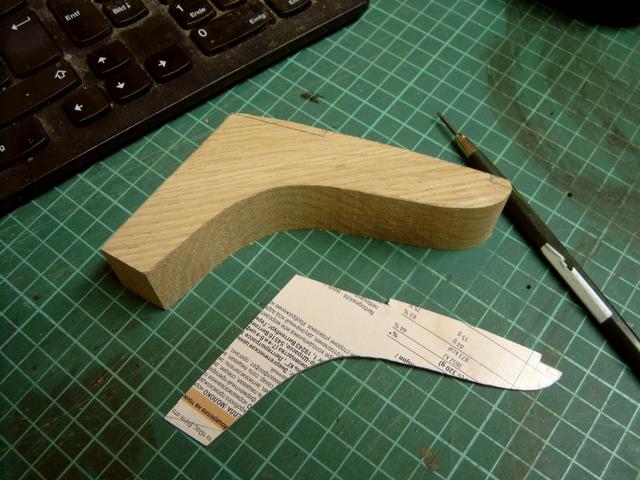

After the knee's outline was marked using a card template the piece was sawn out.



Then the angled sides were sawn out.



Here's the finished piece...



...and here attached to the deck-beam.



Here for comparison "Mr. Scale" next to a knee. No power operated tools in the seventeenth cenrtury. Everythibng was sawn and hewn by hand. A knee like this would weigh up to 100kilogramms.

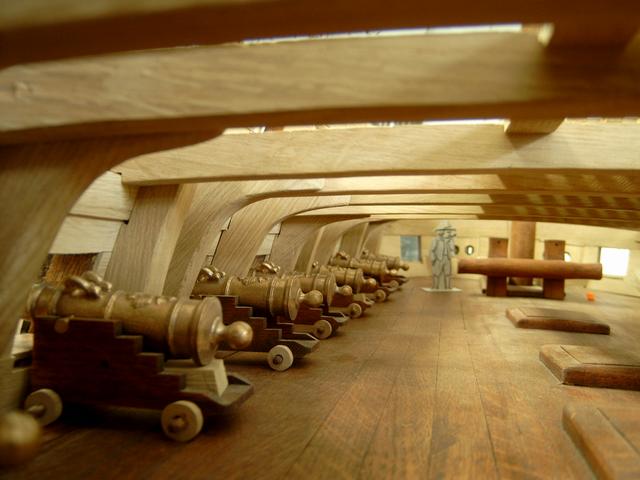

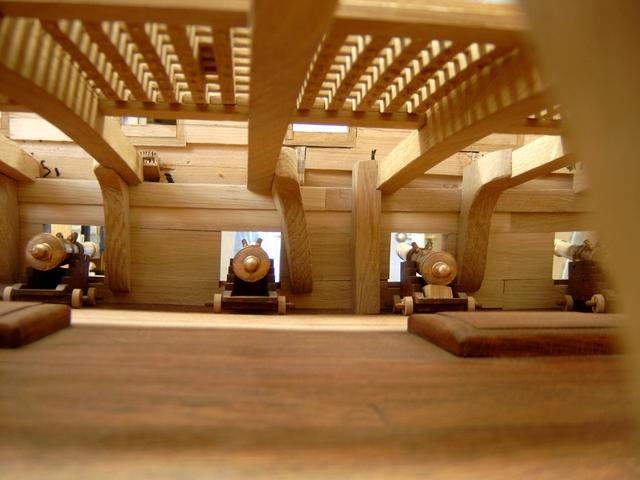

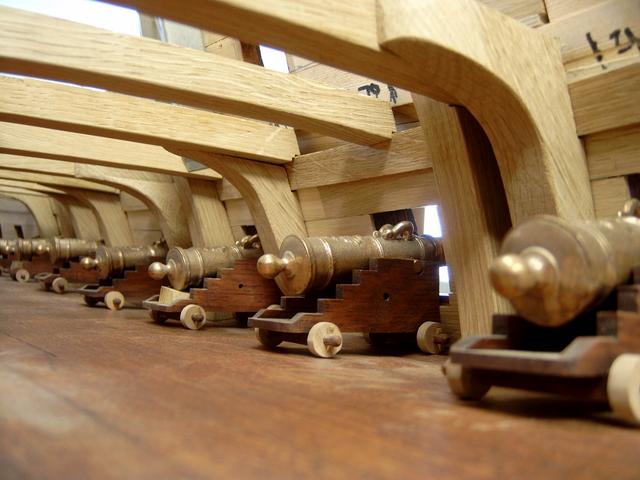

This is what the lower gundeck of a seventeenth century Dutch man-o-war looked like. The noise in battle must have been deafening. "Mr. Scale" can be seen in the Background.



Here you see the effect daylight has on gold-leaf:



Peter

Last edited:

Uwek

Admin
Staff member
Administrative
Blandford Group Build
Joined
Dec 25, 2017
Messages
6,865
Points
728

Location
Vienna, Austria
Hallo Peter,

I am a little bit disappointed, that the grain of the wood is not completely following the form of your knee, so it can take over more forces and will not brake ;););)

DSCN01661.jpg DSCN01651.jpg
From maritime museum in Hamburg
https://shipsofscale.com/sosforums/threads/international-maritime-museum-hamburg-imm-germany-14-posts.2538/


Off course a joke - it is looking very very good, very accurate and precise work - and many thanks for sharing with us the different working steps, which makes it much easier to follow and understand the final result - Great looking model


Olympic1911

Well-Known Member
Joined
Sep 23, 2018
Messages
40
Points
143

I showed you recently how I worm and serve the shrouds and what they looked like after receiving the first treatments with tar. After about two months they had dried so far that I could handle them without getting my hands messy. So they were plunged in tar again. Here's what they look like now:







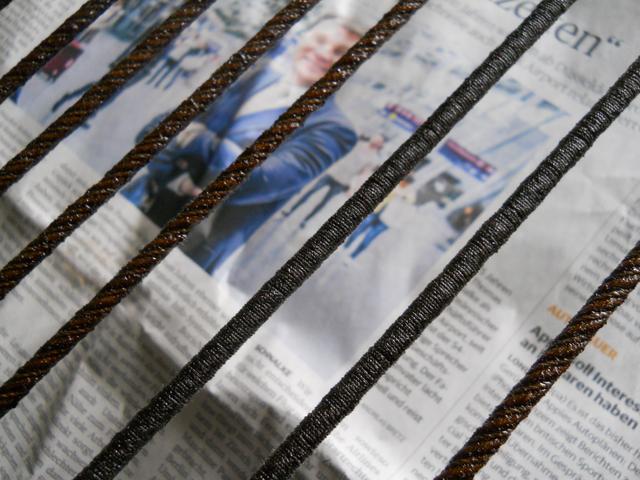

I am hoping to have at least one of the lower masts rigged by late summer, let's see if this works out. Before the shrouds are applied the winding tackles have to be added first. Here a foremast winding tackle has been wormed and served:



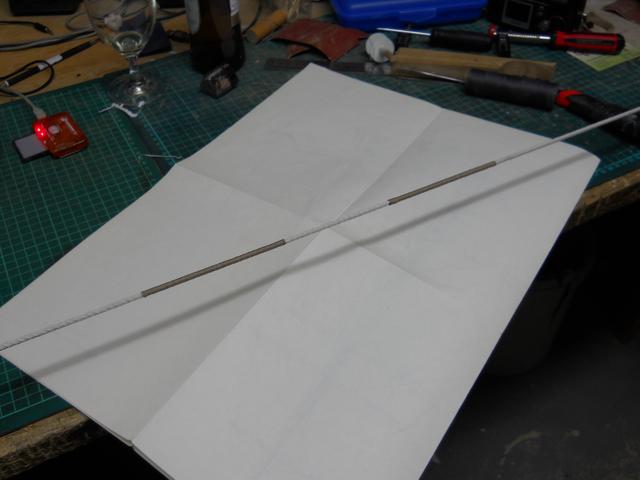

The space in the middle that hasn't been served is where the tackle will be wrapped around the mast-head. Here are the finally finished wnding tackles:



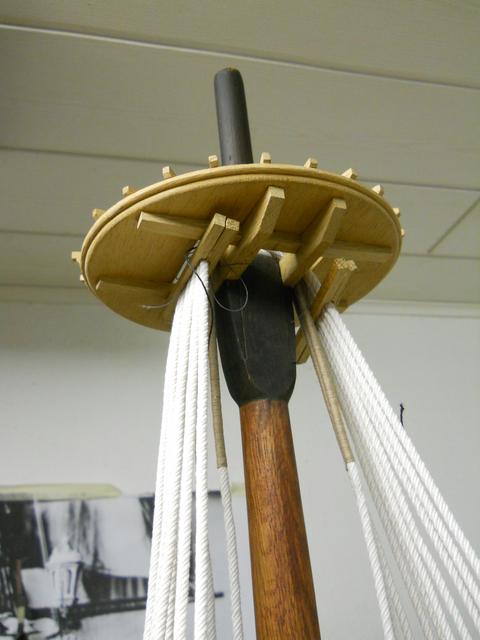

Peter


Olympic1911

Well-Known Member
Joined
Sep 23, 2018
Messages
40
Points
143

In the past days I completed preparing the foremast shrouds for tarring. These shrouds are now fully wormed and served:







I use 2.5mm brass rod for the metal fittings for deadeyes. Bending these is by no means easy. Heat is applied by a blow-lamp which makes forming the metal-work easier.















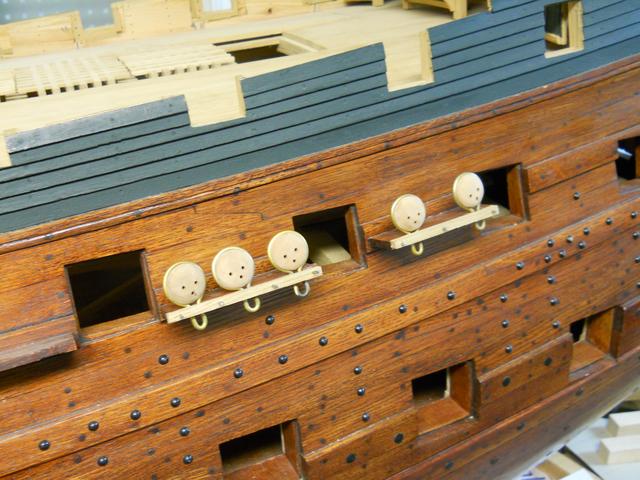

The sculptor has been busy too, two further figures received today:



Here to the far right:





Regards
Peter
