Le Saint Philippe 1693 after Jean-Claude Lemineur (Ancre) in scale 1:48

.​
To those of you who know what you are doing...

Excellent! :) (this is why I decided to enter... :))

The heavy construction of this particular deck and in this specific spot seems unnecessary and even harmful. It could be seen as a classic case of overkill on the part of the modern reconstruction designer. Neither the knees nor the ledges are needed here.

.​

Those plans are utterly confusing. Have you asked the question on the French forum? Gerard Delacroix may be able to help you here.

.​


Excellent! :) (this is why I decided to enter... :))

The heavy construction of this particular deck and in this specific spot seems unnecessary and even harmful. It could be seen as a classic case of overkill on the part of the modern reconstruction designer. Neither the knees nor the ledges are needed here.

.​
Indeed. All of these elements disappear on the quarterdeck (and poop deck).

But if they were to be included (yes, I know...) what is being shown with regard to the horizontal knees vs. the ledges on the drawings?

.​

But if they were to be included (yes, I know...) what is being shown with regard to the horizontal knees vs. the ledges on the drawings?

Well, since I see you’re determined to stick to the reconstruction plan after all...

The upper surfaces of the beams and ledges must be flush, so the ledges need to be extended slightly so that they can be mortised a few inches into those wretched lodging knees, which I don’t think were even used in French shipbuilding at that time. One can take some English sample for more detailed guidance :) .

.​

Well, since I see you’re determined to stick to the reconstruction plan after all...
I have not come to any conclusions about what I will or will not do here, Waldemar. Without disparaging your expertise in any way - you can't sneeze on this forum without getting yucky stuff on an expert, to that end I prefer to allow the final decision to hang for a bit.

And I thank you very much for your explanation of what is drawn: the ledges are morticed into the upper surface of the knees. In English practice I believe these knees were flush with the top of the beams. Is that correct?

.​
In English practice I believe these knees were flush with the top of the beams. Is that correct?

That’s how they’re usually modeled, but in reality it wasn’t really necessary — and perhaps even inadvisable —, and besides, such perfect leveling would require much more work and produce a lot of waste from a component that’s expensive and becoming increasingly difficult to obtain over time.

I’m curious to see what you ultimately decide for your model, and I assure you that I won’t judge your choice.

.​

Paul,

Confusing drawings to be sure.

Regarding your first question (why the knees become horizontal at this point): It appears the cannon ports on the deck above, stop. Therefore, no need for beefy vertical knees supporting the heavy weight of cannons. Also, like you said, it keeps them out of what are likely more formal living space?

The horizontal knees appear flush with both top/bottom of the beams, at the outer bulkhead.

The ledges are let into these knees (top photo). Can't explain why this joint is not shown in the bottom photo???? I look forward to how you resolve this apparent discrepancy in the last drawing.

.​


That’s how they’re usually modeled, but in reality it wasn’t really necessary — and perhaps even inadvisable —, and besides, such perfect leveling would require much more work and produce a lot of waste from a component that’s expensive and becoming increasingly difficult to obtain over time.

I’m curious to see what you ultimately decide for your model, and I assure you that I won’t judge your choice.

.​
Thank you kindly, Waldemar.

One more observation, the plan view shows the ledges being supported by 4 possibly 6 longitudinal short beams between each major (1-6) floor beams. This would be adequate for support of the ledges without any mortise into the horizontal knee if in my opinion these ledges were only to keep the decking stiffer (by keeping the longitudinal deck boards from moving vertically next to each other). Your plans as I see them do not show any mortise into the knees.

Paul,

Confusing drawings to be sure.

Regarding your first question (why the knees become horizontal at this point): It appears the cannon ports on the deck above, stop. Therefore, no need for beefy vertical knees supporting the heavy weight of cannons. Also, like you said, it keeps them out of what are likely more formal living space?

The horizontal knees appear flush with both top/bottom of the beams, at the outer bulkhead.

The ledges are let into these knees (top photo). Can't explain why this joint is not shown in the bottom photo???? I look forward to how you resolve this apparent discrepancy in the last drawing.
You have it right, Brad. Mr. Lemineur shows hanging knees forward of this location - there is a whole row of guns running to the bow - but only one gun aft of the mizzen mast.

One more observation, the plan view shows the ledges being supported by 4 possibly 6 longitudinal short beams between each major (1-6) floor beams. This would be adequate for support of the ledges without any mortise into the horizontal knee if in my opinion these ledges were only to keep the decking stiffer (by keeping the longitudinal deck boards from moving vertically next to each other). Your plans as I see them do not show any mortise into the knees.
Thanks for your thoughts here, Daniel.

.​

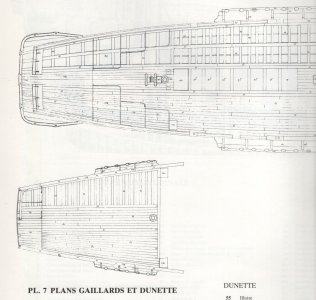

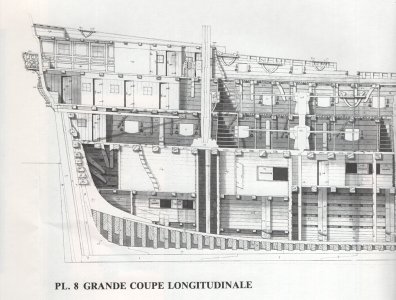

French written sources from the late 17th century clearly indicate that great care was taken to ensure the lightness of the upperworks where it was possible, by using lighter wood and a lighter construction; these sources even include specific lists of scantlings, the number of components, and the types of wood recommended for warships of each type. A good example is a slightly later plan of a structural nature, from the third or fourth decade of the 18th century. The arrangement of the deck elements immediately reveals where the artillery was located and where it was not. For comparison, and other details, such as scantlings, a longitudinal section has been also included below.



.​
