Last year I started the project Montañes. Montañes is one of OcCre's largest ship model kits. The vessel was a Spanish 74-gun, 3rd-rate Ship of the Line that saw action at Trafalgar.

It is a 1/70 scale and measures 1250 mm overall lenght, 470 mm width and 895 mm height.

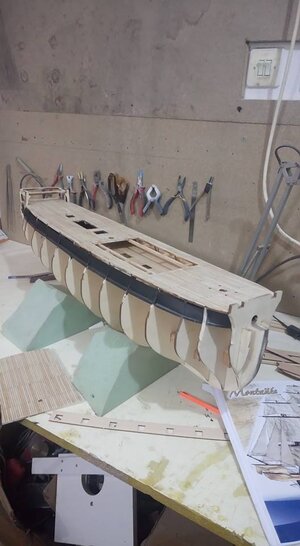

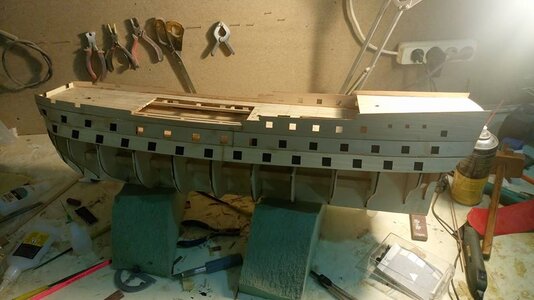

I'm now about to finish the hull, including hull and deck fittings.

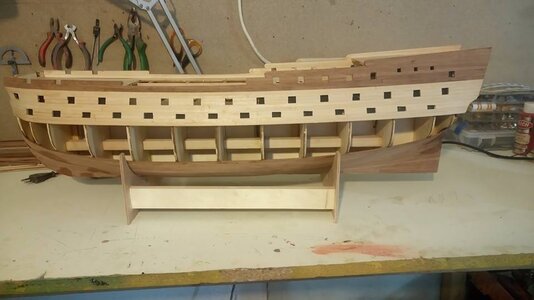

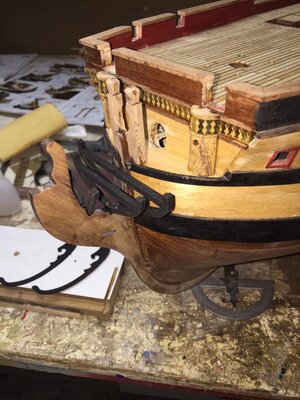

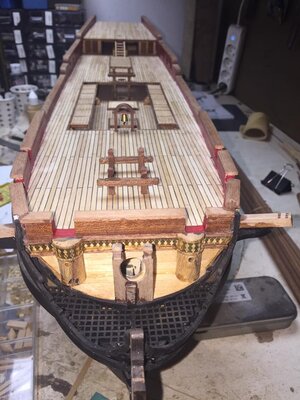

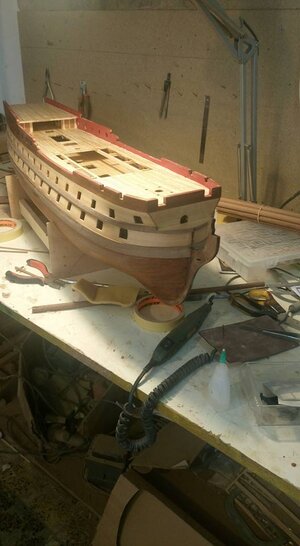

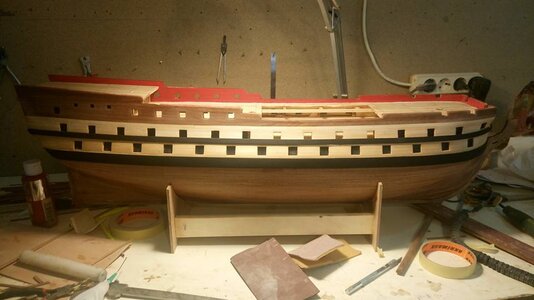

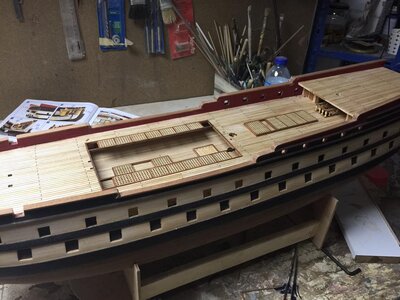

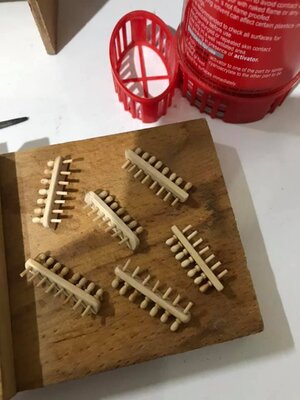

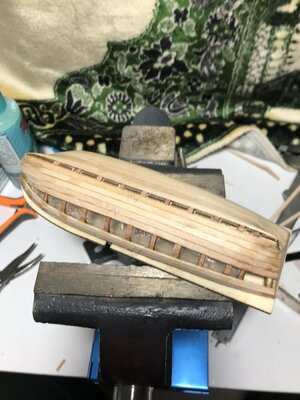

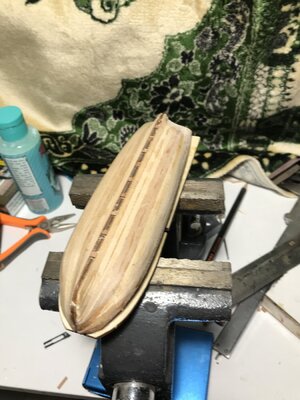

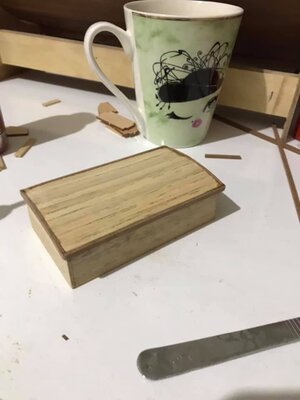

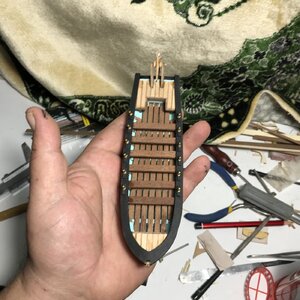

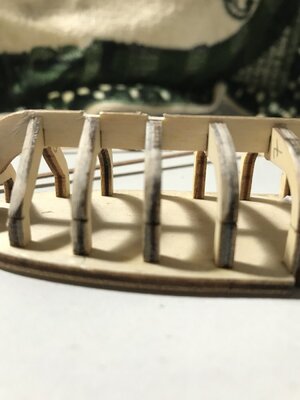

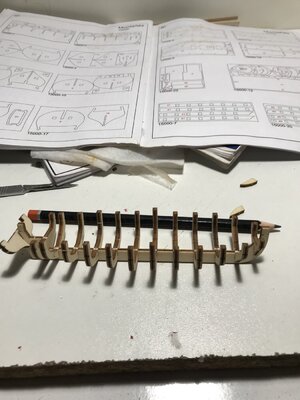

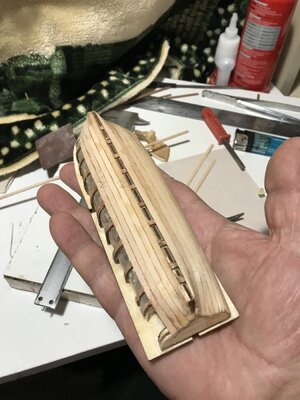

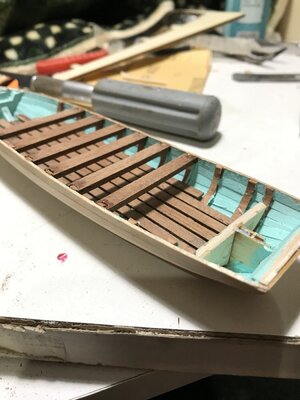

I want to share some photos what I did so far.

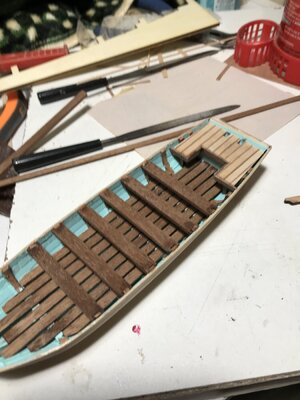

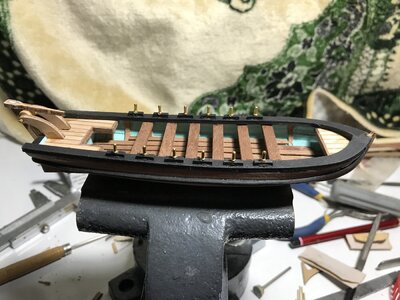

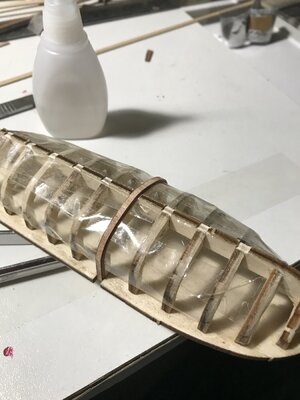

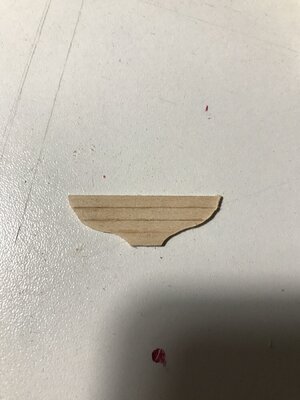

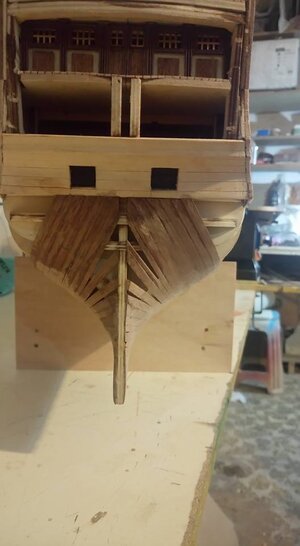

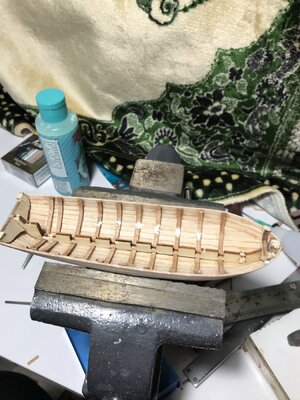

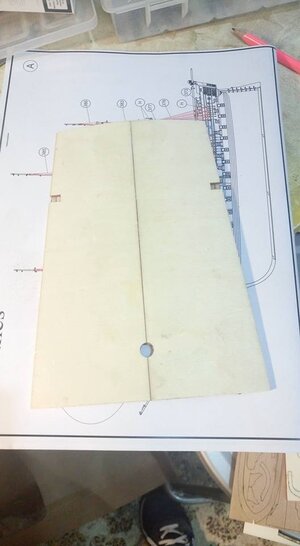

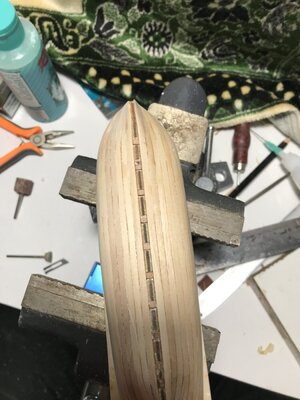

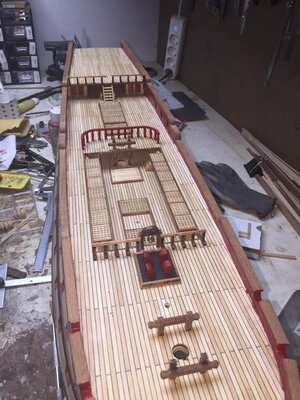

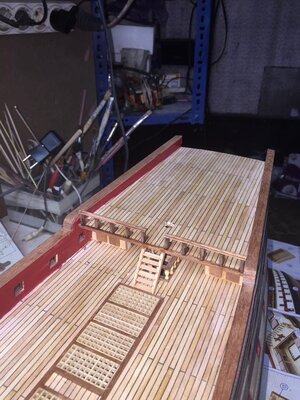

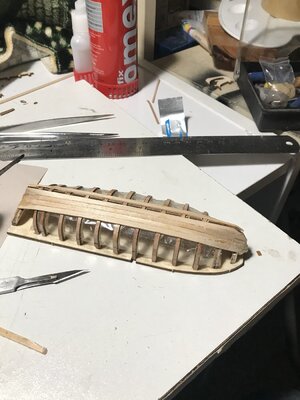

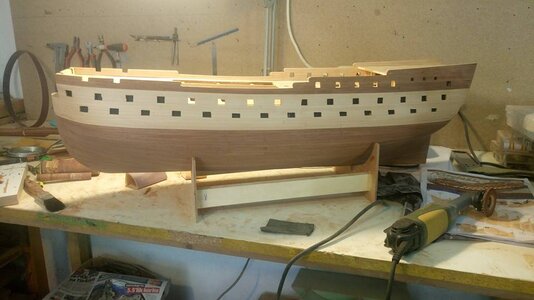

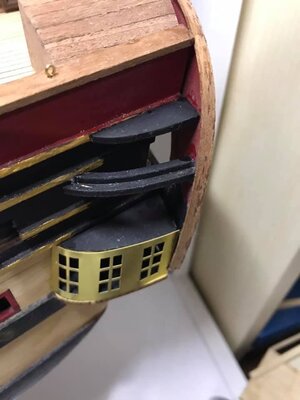

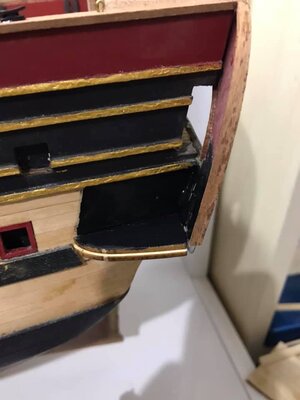

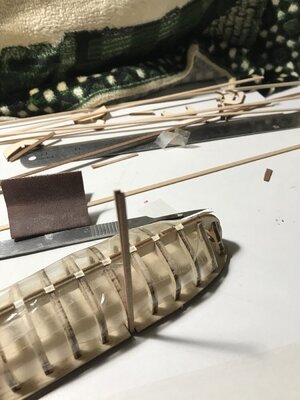

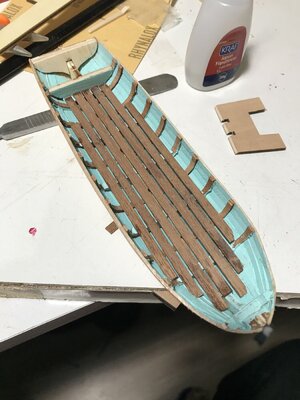

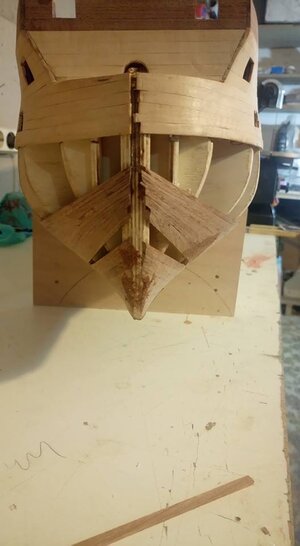

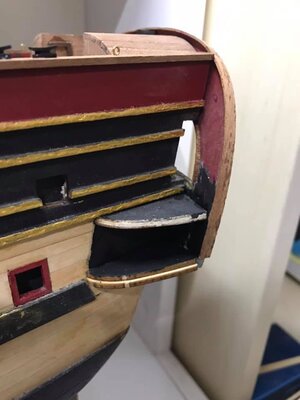

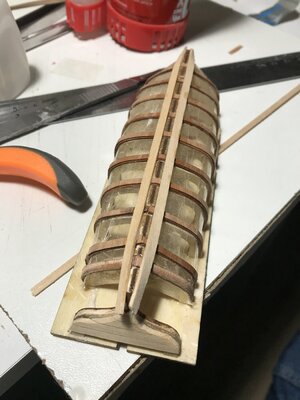

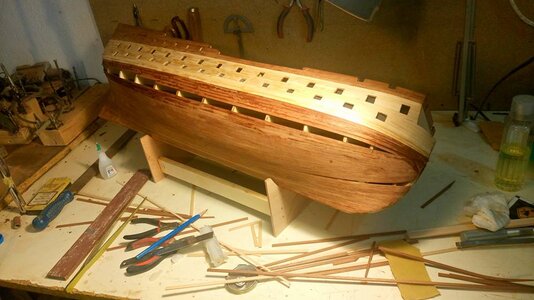

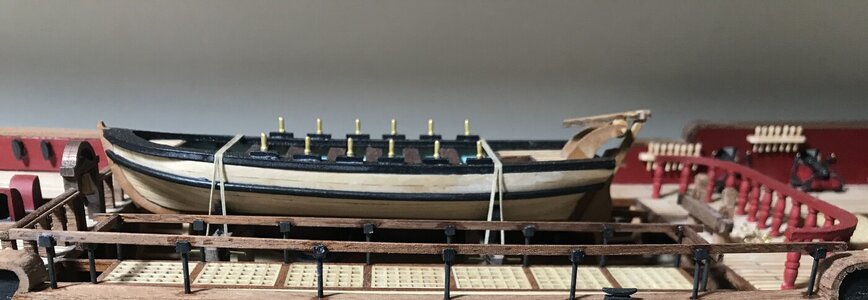

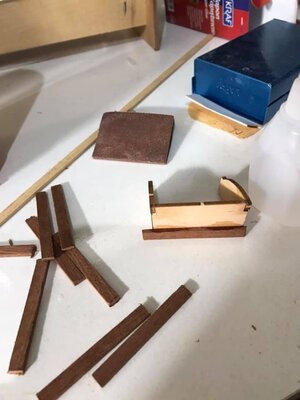

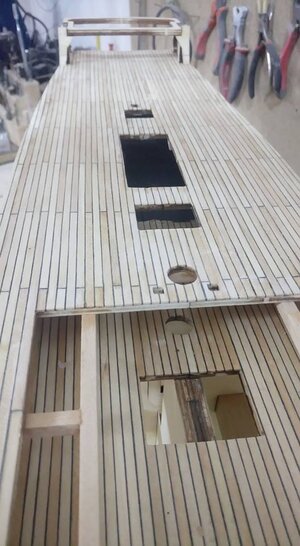

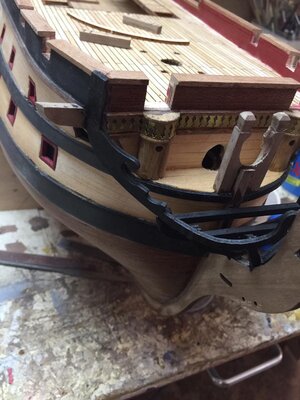

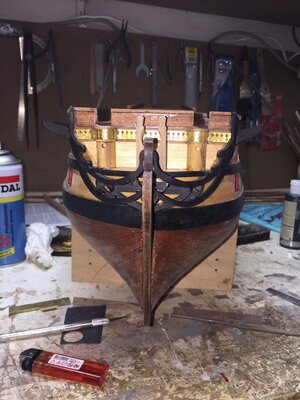

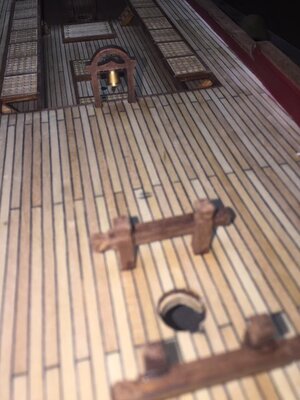

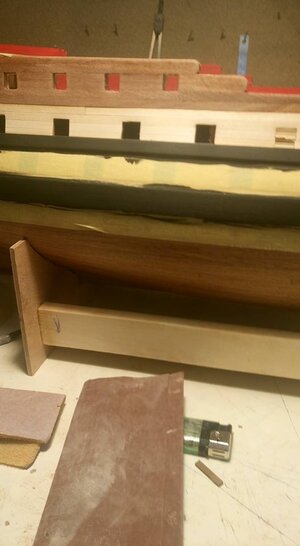

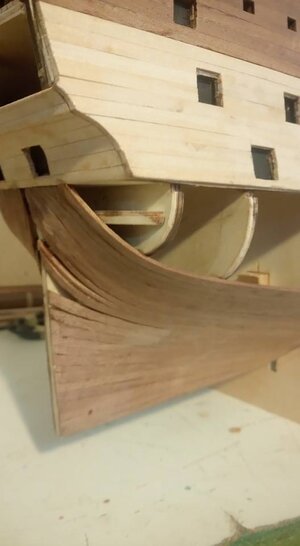

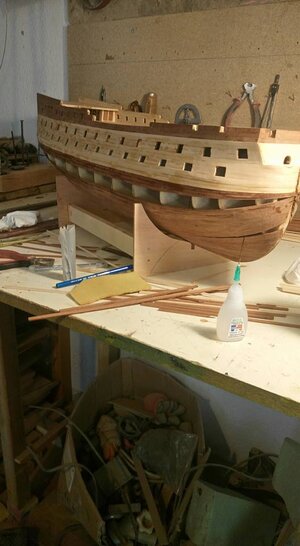

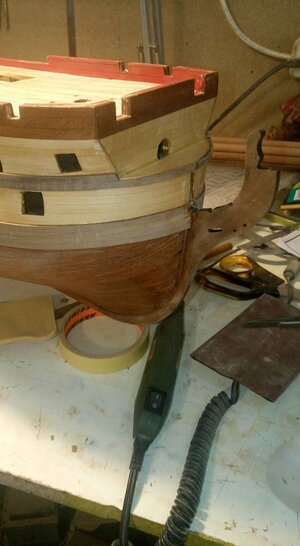

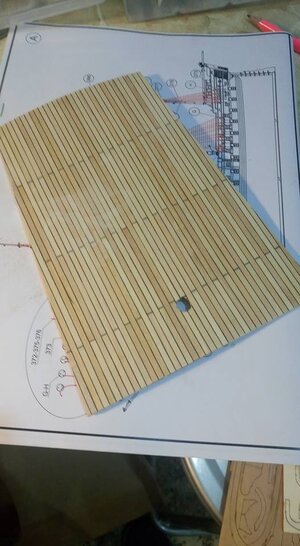

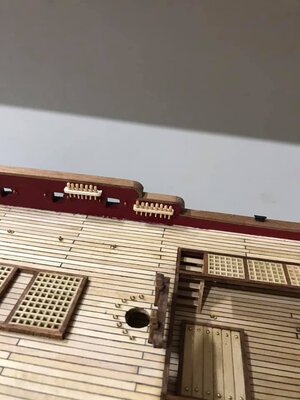

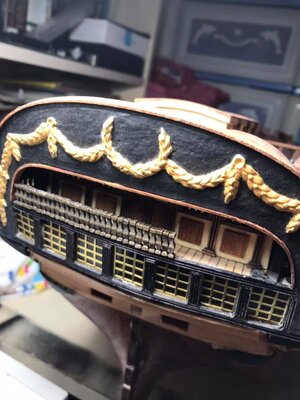

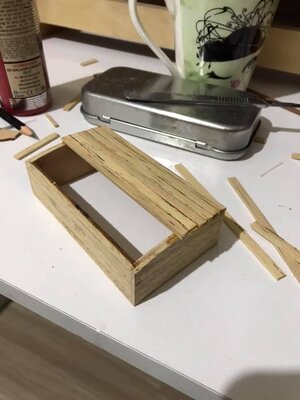

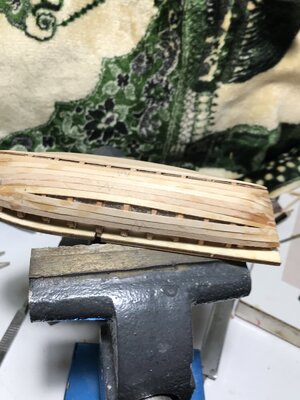

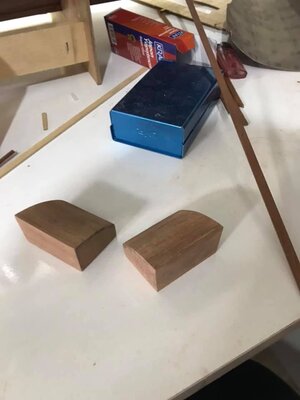

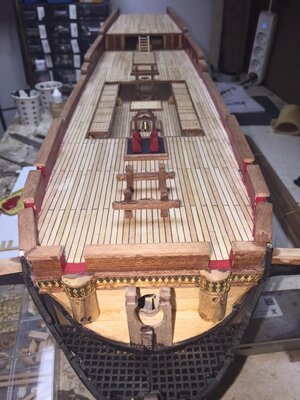

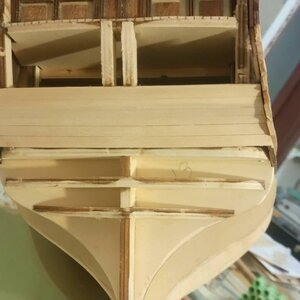

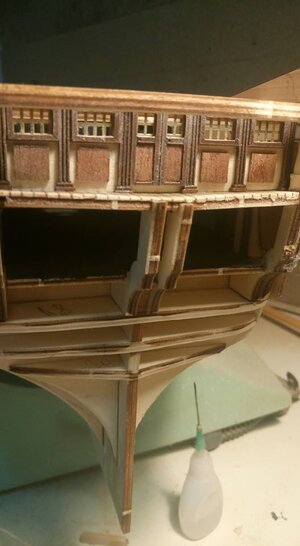

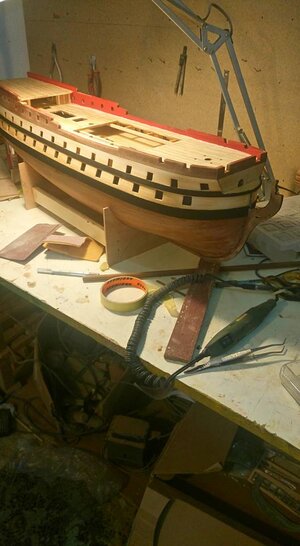

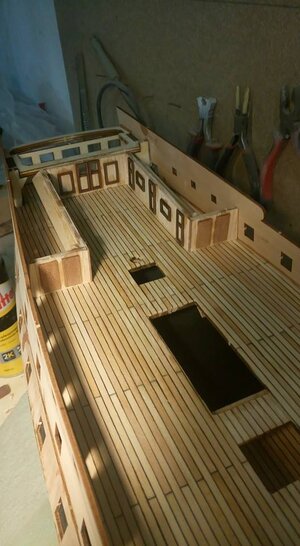

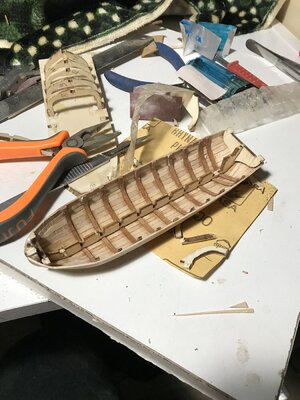

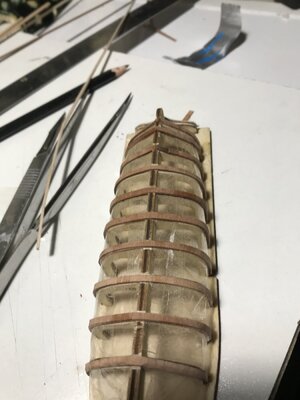

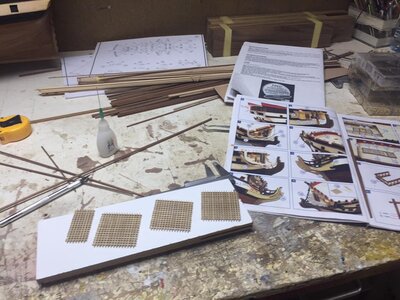

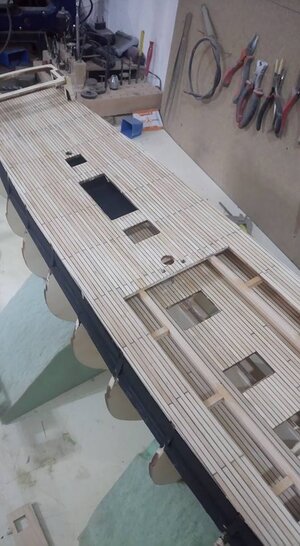

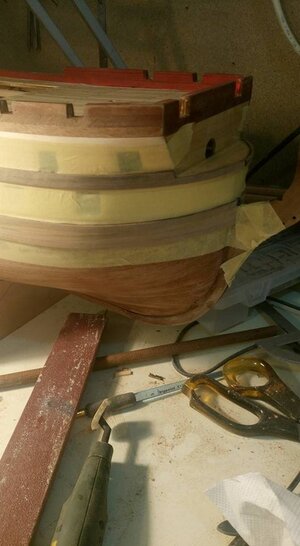

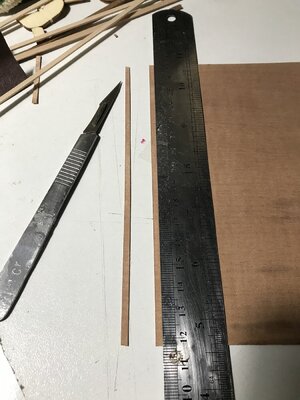

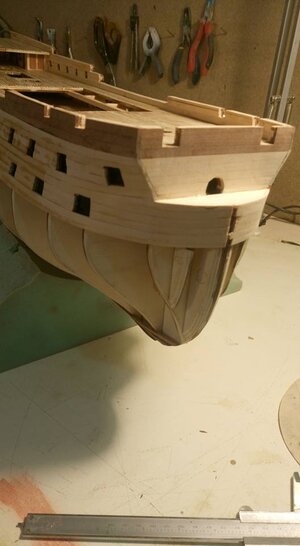

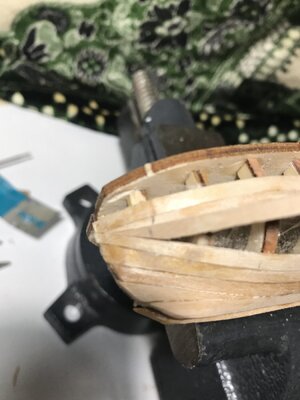

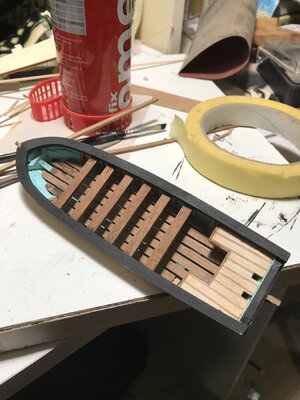

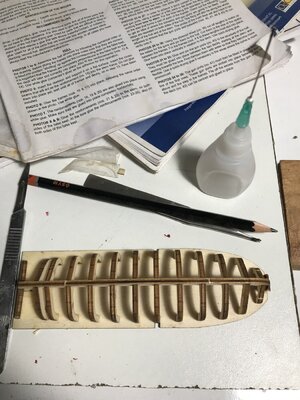

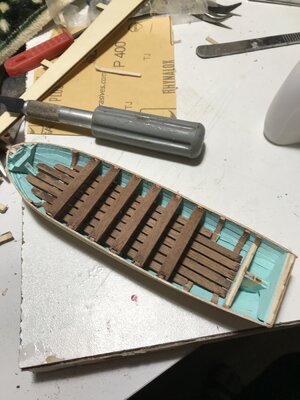

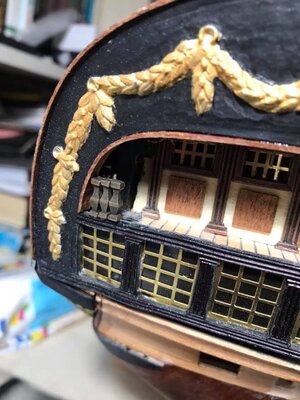

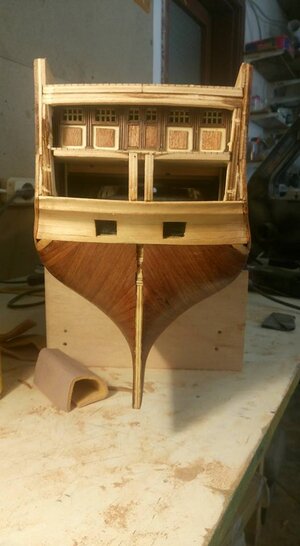

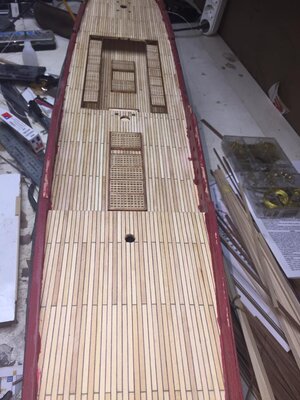

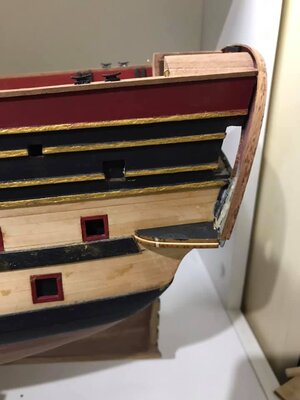

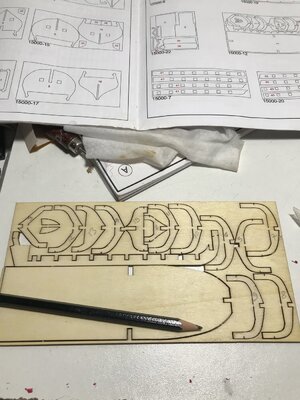

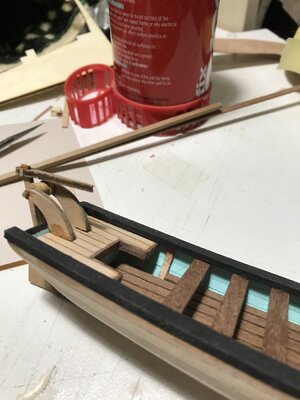

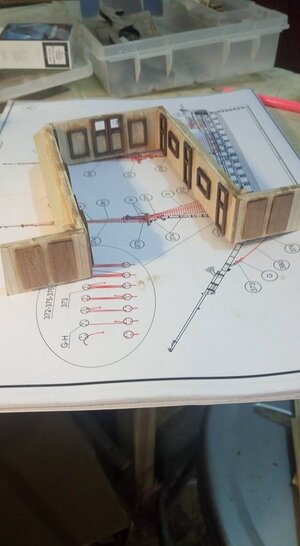

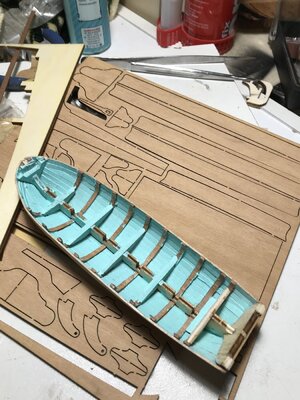

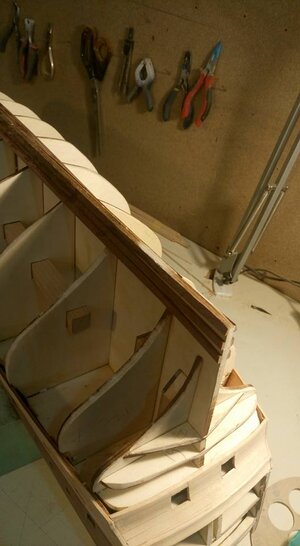

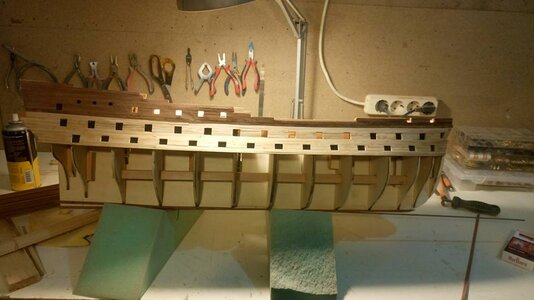

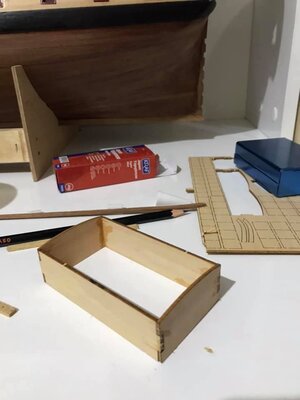

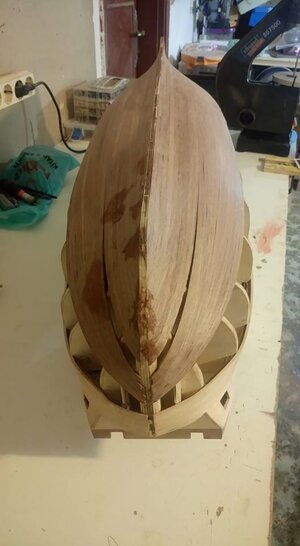

Here they are : 1.jpg2.jpg3.jpg4.jpg5.jpg6.jpg7.jpg18813703_1804425853200824_4866408622199836813_n.jpg18814280_1804425896534153_4807775390881832653_n.jpg18881716_1804426079867468_5394310297244399844_n.jpg18952547_1808866906090052_7687049136349311684_n.jpg


Uwek

Administrator
Staff member
Administrator
Joined
Dec 25, 2017
Messages
17,280
Points
938

Location
Vienna, Austria
Yes - please keep updating - very interesting to see this first rate growing

Joined
Nov 29, 2020
Messages
59
Points
113

Location
Westminster, Colorado
Bilal,

Got your message about gluing the lower deck cannons sooner rather then later. Good advice, I reviewed the plans and I can see that you'd need to reach in pretty far to get them glued in.

So - before I put on those grates and ladders I'll get those cannons in place. Thanks for the advice

Scott

Joined
Dec 18, 2020
Messages
210
Points
213

Location
Turkey
Bilal,

Got your message about gluing the lower deck cannons sooner rather then later. Good advice, I reviewed the plans and I can see that you'd need to reach in pretty far to get them glued in.

So - before I put on those grates and ladders I'll get those cannons in place. Thanks for the advice

Scott
You're wellcome Scottola. :)

Joined
Dec 18, 2020
Messages
210
Points
213

Location
Turkey
Making gunports :

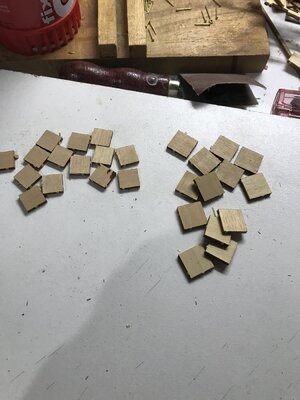

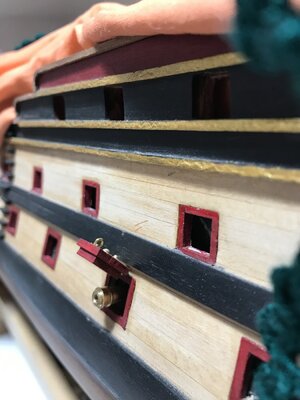

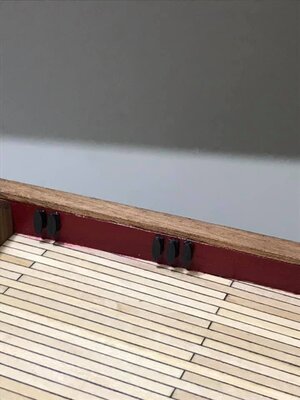

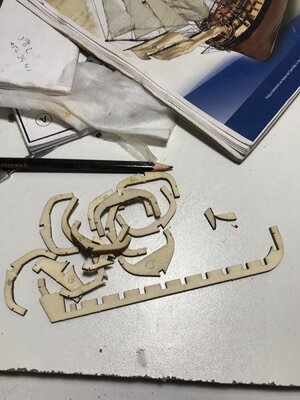

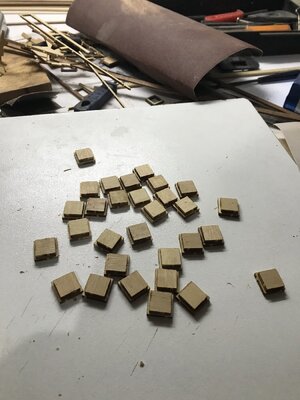

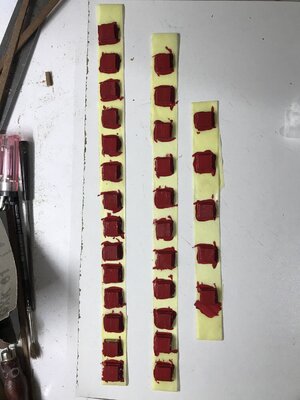

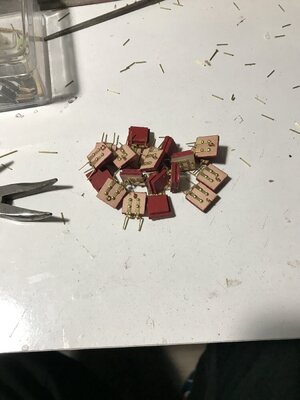

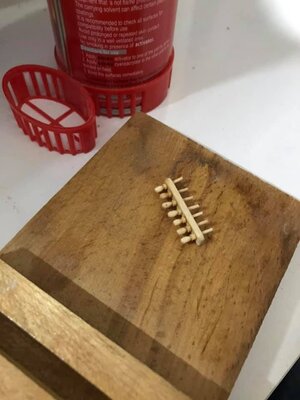

I used supplied parts to make gun ports. Simply glue the two parts each other and then paint them red.1.JPG2.JPG3.JPG

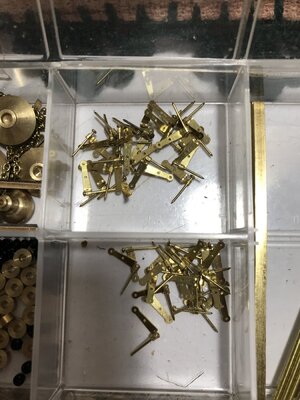

Nexy step is to bend the hinges.

Bending the port hinges a little bit harder.

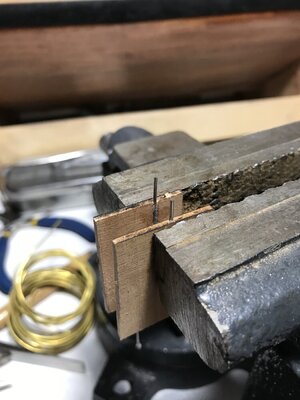

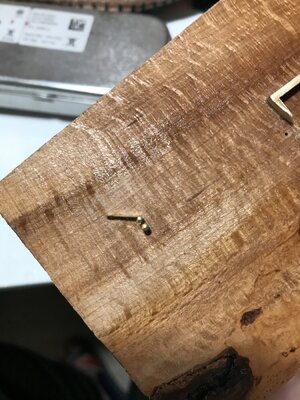

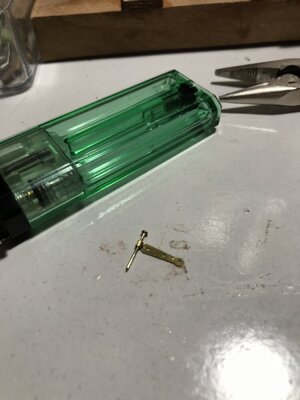

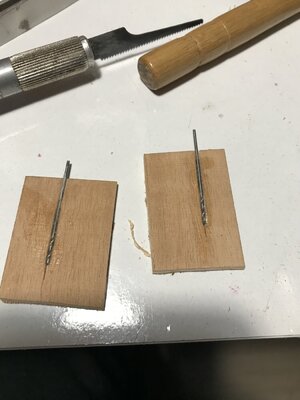

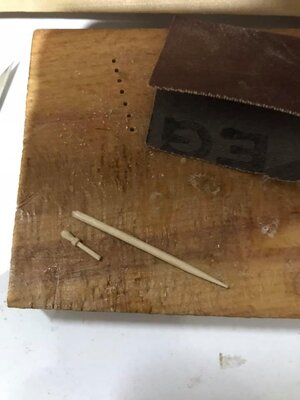

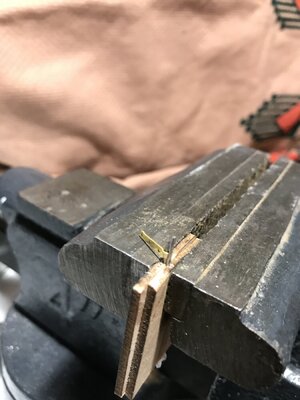

I sacrifice two of my 1 mm drill bits as shown in the pictures.

And did thes process in two steps.


After bending, ports and hinges ready to be assembly.

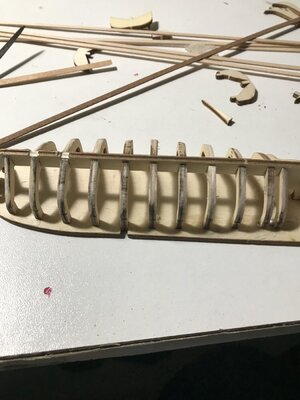

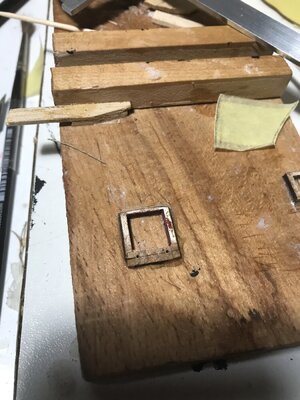

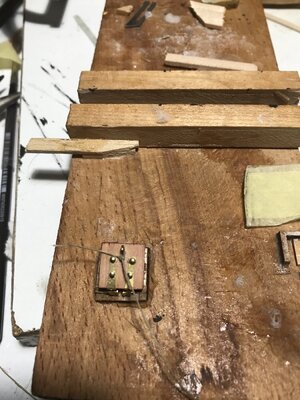

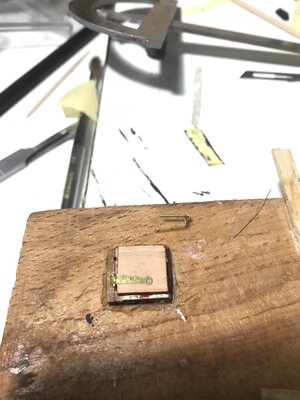

For this process I prepared a template in order to assemble all the ports the same :


And assembled all 28 gun ports in the same way. :

And the result :


Joined
Dec 18, 2020
Messages
210
Points
213

Location
Turkey

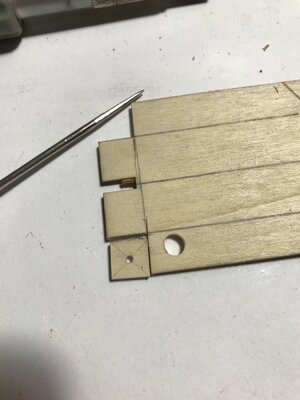

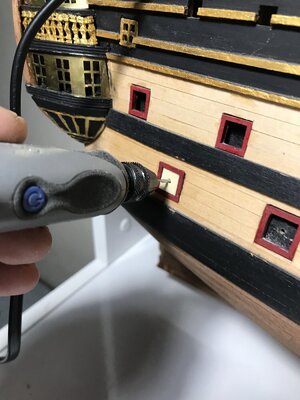

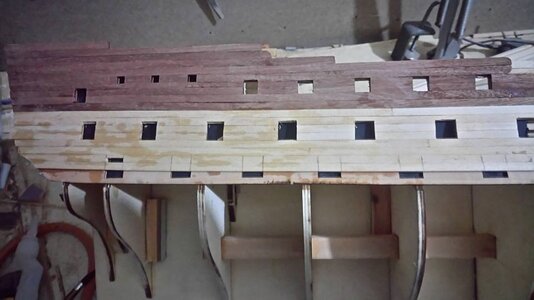

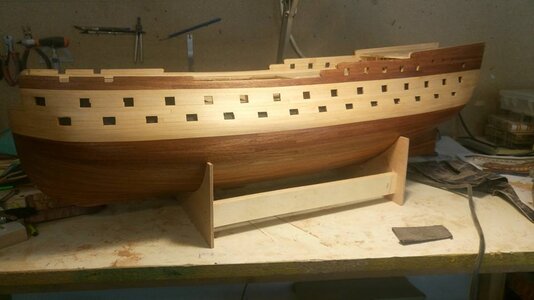

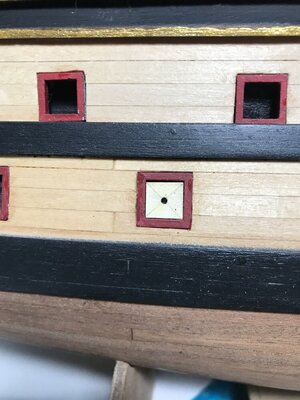

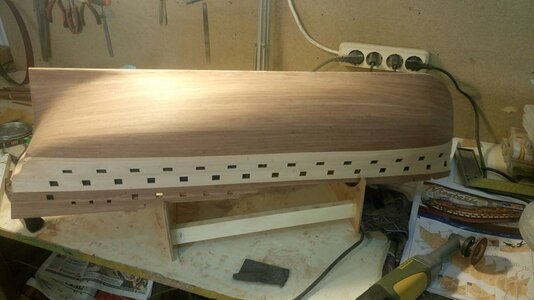

To drill the port holes I made two templates as the same way. I made two because port hole dimensions differ between upper deck and lower deckIMG_2612.JPG

And drilling process :


Then I blackened the guns with brass black solution. Result is much better than brass coloured guns. They are not glued now. I'll gule them after glueing the gun ports.

Joined
Dec 18, 2020
Messages
210
Points
213

Location
Turkey

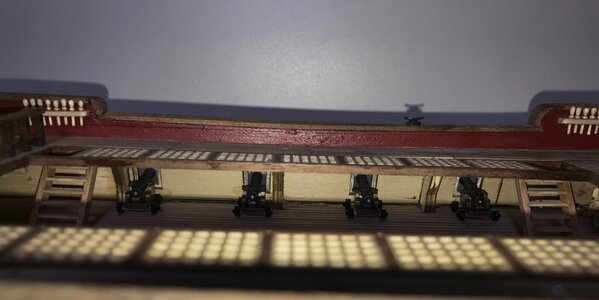

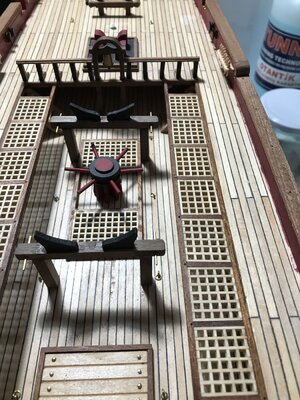

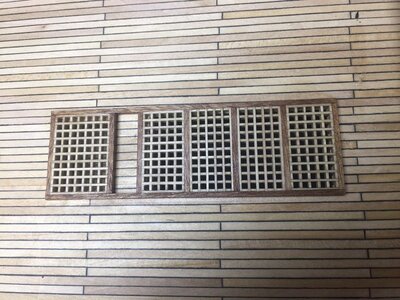

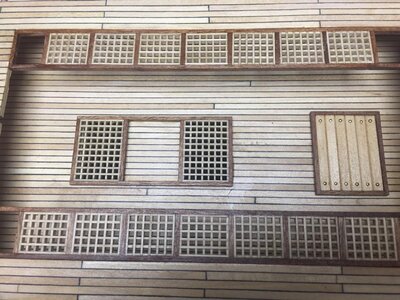

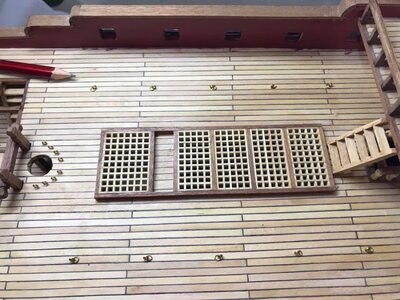

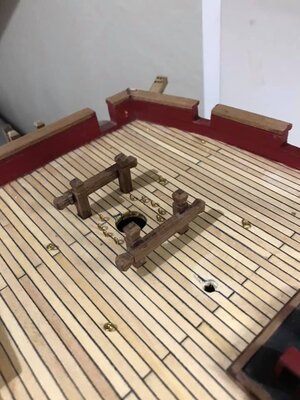

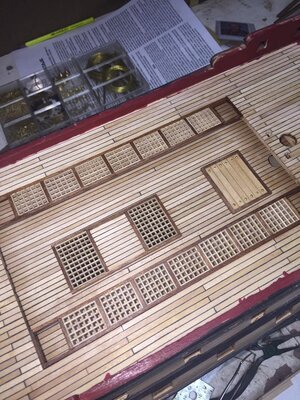

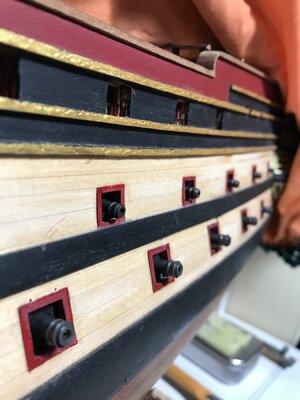

Assembling 8 guns on lower is a little bit challenging because of gratings and ladders. I wish I glued the guns before ladders and gratings. I took almost 2 hours just gluing then in their places in order not to harm the lower deck with quick drying glue. I used supplied metal gun carriages on lower deck. But I can say that they're not good. I'll use my own carriages on upper deckIMG_2731.JPG

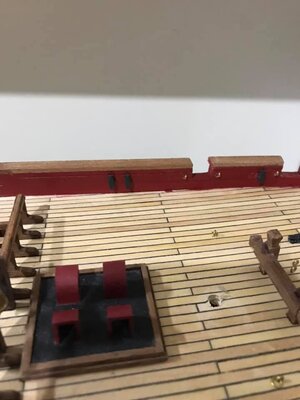

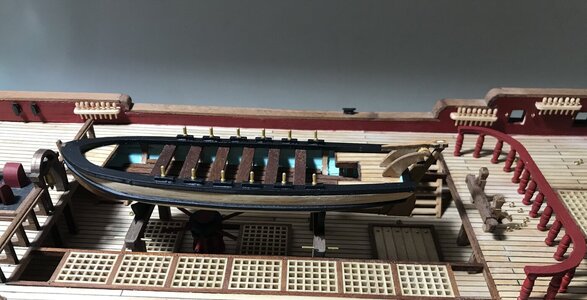

And handrails glued.
