Awesome work. I haven’t tried any abstract work yet, but I’d like to. Only so much time, right? One of my favorite artists, John Regis Tuska, who with his wife were frequent guests I. My home, had “Non Basta, Una Vita!” painted on his studio wall: “Not enough, one life!
I am also running out of walls, but my wife tells to keep them coming.

Joined
Sep 12, 2021
Messages
38
Points
48

The Oberursel Radial is a fascinating subject! I still find it quite interesting that the cylinders rotated with the prop..
You did a great job on the model..

Joined
Jul 2, 2020
Messages
3,109
Points
588

Location
Eugene, Oregon

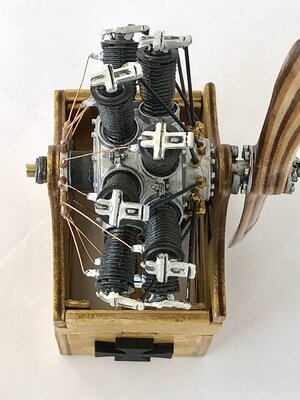

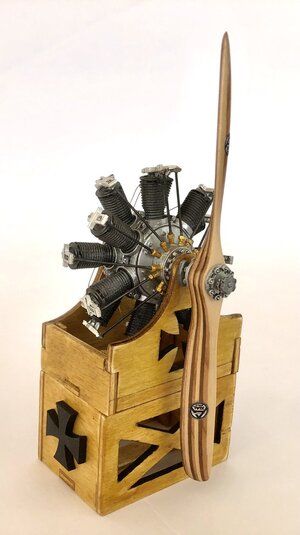

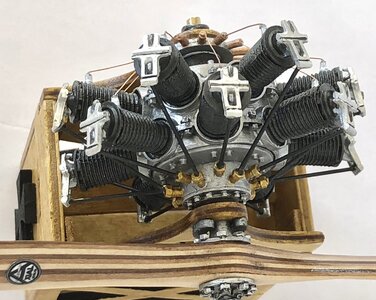

As you can see here, the propeller can’t be turned because the base is not high enough.
If you want it to rotate the building manual said that you should move the engine to the edge of a desk or table and rotate the engine with the Propeller in place.
Sorry, this is not a good advice because if you let go, the weight of the engine could make it fall forward and destroy your model,

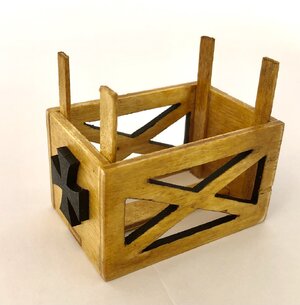

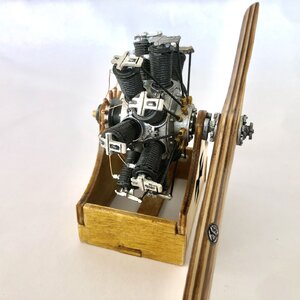

View attachment 256057So, I made it in a way that the engine could be rotated as well as the propeller.
This is great to see things not as hulls and sails but looks back to what moved aviation forward. Very nice work on the prop and your finish. The metal components all came together and look like it could fire up!
How was the engine mounted to a firewall? Rich (P T-2)

Joined
Dec 26, 2019
Messages
798
Points
353

Location
Miami
Last edited:
Joined
Jul 2, 2020
Messages
3,109
Points
588

Location
Eugene, Oregon

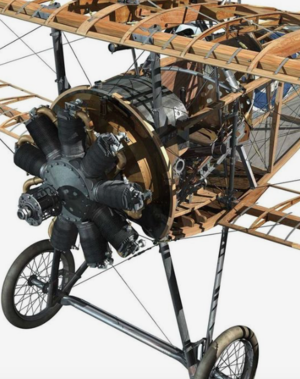

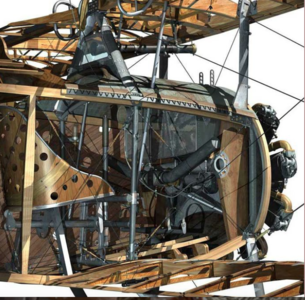

This is what I find out from one of our models, the MA1030 Sopwith Camel:
https://modelexpo-online.com/Model-...ANE-WOOD-METAL-MODEL-KIT-116-SCALE_p_678.html

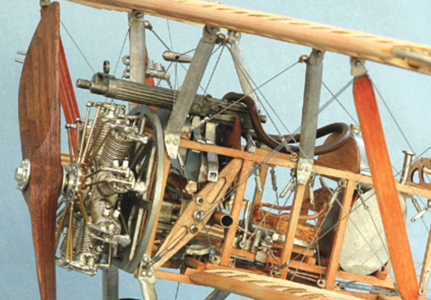

You might find interesting photos here for the attachment of the engines to the firewall/frame.

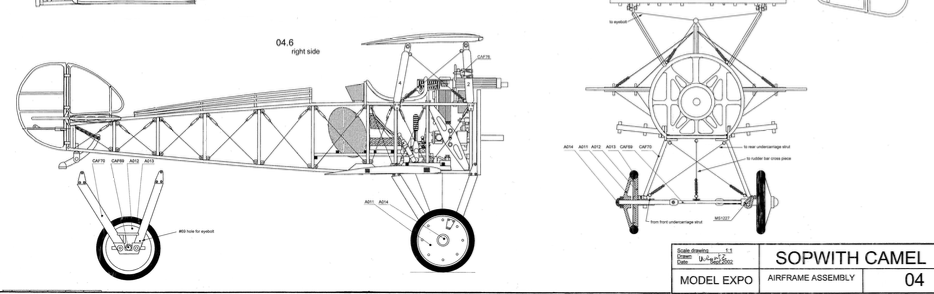

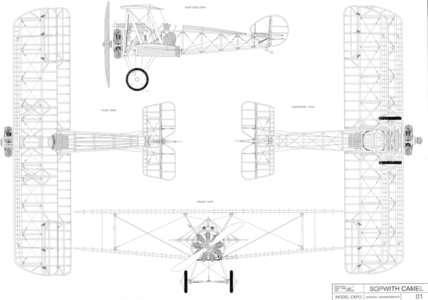

I'm also including parts of our plans where it shows that detail.
View attachment 256225View attachment 256226View attachment 256227View attachment 256228View attachment 256230View attachment 256231
Those drawing and photos of the model will take my old eyes and brain some time to figure out the actual connections of the engine to the firewall. I am confident that you have it all securely in hand so that the entire plane takes off and not just the engine with a spinning prop and cylinders!!!! :) Rich (PT-2)

Joined
Jul 10, 2021
Messages
123
Points
78

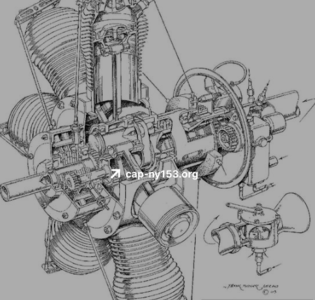

Don't quote me but I believe the crankshaft bolted to the firewall/frame.
Just think in reverse, prop is attached to the block and crank to the frame. What always confused me is how they kept the oil in the crankcase. You'd think it would spin up the cylinders and get beat to foam.

Joined
Dec 26, 2019
Messages
798
Points
353

Location
Miami
Wow, excellent question.
I will wait for some aviation enthusiasts to respond it.
That question makes me feel like my son when he asked me for the first time what was the sky blue.
I feel like my son.
