Today's problem....

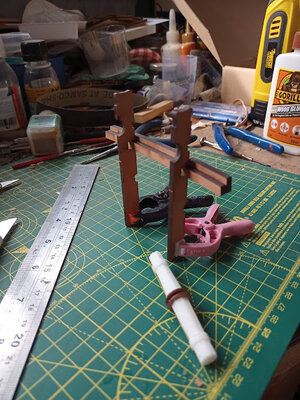

Due to the fun and games with my foredeck and supports and my decision to increase the galley deck, I've moved on to assembling and trial fitting of the windlass supports to make sure it all goes together OK and It looks like I won't have any problems.

However there looks to be a problem with the cut out in the windlass supports X10 and part M1b. The cut out in X10 for M1B is about 5.5mm deep but M1b is cut from a 4mm sheet leaving an ugly gap:





I know it's not catastrophic (there are lots of things we could do to hide this) but I think Victor and Co need to alter the laser cutting app for future kits.
Unless, of course, there is another reason for the gap????
Tom



[Modelship Dockyard]

Hi there was such a issue on the first few kits, we changed that later on, you can cut a slot there and things should be fine.



[Tom of all trades]

Hi there was such a issue on the first few kits, we changed that later on, you can cut a slot there and things should be fine.
View attachment 334868

OK. Unlucky me getting an early kit.



[Modelship Dockyard]

OK. Unlucky me getting an early kit.

We changed the design of the beam but forgot to cut that part off from the support, we later realised it, sorry for this.
But yeah if you cut the slot for a bit it should be fine.



[Tom of all trades]

We changed the design of the beam but forgot to cut that part off from the support, we later realised it, sorry for this.
But yeah if you cut the slot for a bit it should be fine.

No problem.



[albertmary]

Despite this mess, I just purchased my own kit... . Modellers are quite a strange tribe... .



[Tom of all trades]

Despite this mess, I just purchased my own kit... . Modellers are a quite strange tribe... .

So true!

You'll enjoy the challenge and I'm sure the end results will compensate for any frustrations and head scratching.



[Tom of all trades]

Hit another problem...

Step 45 shows only the 2 supplied carlings (M9) between these beams but there are 2 extra cut outs in parts M4a and M5c - shown here by the red dots suggesting there should be 3 carlings.

Victor, can you help please?



[Uwek]

Hit another problem...

Step 45 shows only the 2 supplied carlings (M9) between these beams but there are 2 extra cut outs in parts M4a and M5c - shown here by the red dots suggesting there should be 3 carlings.

Victor, can you help please?

View attachment 335460

Maybe you show us your beams with a photo?
It seems, that the sandwich was not correct build.
Taking a look at the construction photos we can see, that the outer beam segment for forming the recesses is not correct.
The beams you show in the skecth are forming the fore and aft main beam next to the main hatch



[Tom of all trades]

Maybe you show us your beams with a photo?
It seems, that the sandwich was not correct build.
Taking a look at the construction photos we can see, that the outer beam segment for forming the recesses is not correct.
The beams you show in the skecth are forming the fore and aft main beam next to the main hatch
View attachment 335473

This is how mine looks Uwek. Just like your photo but with an extra recess in the middle where your arrow points to:



[albertmary]

Judging by the pic above (Hayling Hoy Monography by Antscherl) the longitudinal beam partin' the main hatch in two halves doesn't require that extra recess at all. I'm seriously considering to buy this book in advance just to prevent all these crabs...



[zoly99sask]

View attachment 335517
Judging by the pic above (Hayling Hoy Monography by Antscherl) the longitudinal beam partin' the main hatch in two halves doesn't require that extra recess at all. I'm seriously considering to buy this book in advance just to prevent all these grabs...

Just be aware that the kit is not based on the book



[Jimsky]

Just be aware that the kit is not based on the book

...correct, but there are still ways to bash the kit!



[zoly99sask]

...correct, but there are still ways to bash the kit!

Yes ,can be



[Tom of all trades]

View attachment 335517
Judging by the pic above (Hayling Hoy Monography by Antscherl) the longitudinal beam partin' the main hatch in two halves doesn't require that extra recess at all. I'm seriously considering to buy this book in advance just to prevent all these grabs...

Thanks for this Albertmary, it's lead me to uncover lots more info about this ship and it also means that I'll be able to build the hatch the way it's done in this photo. Yes. kit bashing is about to begin in earnest!!!!



[albertmary]

Just be aware that the kit is not based on the book

Not a good news, but it still remains an huge bargain at that price. My job improving it.



[zoly99sask]

Not a good news, but it still remains an huge bargain at that price. My job improving it.

It is still a Hoy,cannot be huge differences,you need to apply scratch building and improvise



[albertmary]

It is still a Hoy,cannot be huge differences,you need to apply scratch building and improvise

That's for sure!



[colin100]

Thanks for this Albertmary, it's lead me to uncover lots more info about this ship and it also means that I'll be able to build the hatch the way it's done in this photo. Yes. kit bashing is about to begin in earnest!!!!

Hi Tom, seems you are the BETA tester, thanks for that. LOL. I have slowed considerably, but just about to finish the hull, than god. Looking forward to getting on to the fitting out. I hope that Victor is going to issue a set of instructions to reflect the items discussed recently.

Incidentally, although I am watching this ( and other other posts) I dont seem to be getting email alerts anymore, any ideas any one.

Again, thank you Tom for keeping the faith.



[Tom of all trades]

Hi Tom, seems you are the BETA tester, thanks for that. LOL. I have slowed considerably, but just about to finish the hull, than god. Looking forward to getting on to the fitting out. I hope that Victor is going to issue a set of instructions to reflect the items discussed recently.

Incidentally, although I am watching this ( and other other posts) I dont seem to be getting email alerts anymore, any ideas any one.

Again, thank you Tom for keeping the faith.

Hi Colin yes, Victor and Co have gone a bit quiet recently, perhaps they'll be back soon. I love the 'BETA tester' label .

Here's the next problem:
The knees are incorrectly labeled on the PDF. M14 is the aft knee while M15 is the forward knee.



I nearly started reshaping M14 when fitting it because I thought my build was slightly wonky - then I realised the error. So I thought I'd mention it.

Tom
