Bluenose by Liebre


After several failed attempts to attach the Futtocks (I think that's what those rods are called, correct me if this is not the case) made of brass, which resulted in some damage, I let everything rest for a while.

The brass parts with the rods gave too much tension.

Last few days there was an oven in the workshop due to the summer weather, and paint spraying was parked for a while.

I thought again about how to solve this differently (sometimes it helps to leave it alone for a while until the Eureka moment comes)

The damage suffered has been removed and the Futtocks reattached (I call it the redo show nowadays)

I had to make the mast band a little wider and update everything again.

I will do the other mast in the same way.

Looking again at the "failed" brass parts, this gave me an idea to use the smaller one for Jumbo jib stay bail on the deck near the bowsprit.

I did not find the solution of the supplied plans an acceptable solution,the deck is still easily accessible so let's see what else needs to be done and can be done.

Regards Henk



Last edited:
Henk Liebre said:
Looking again at the "failed" brass parts, this gave me an idea to use the smaller one for Jumbo jib stay bail on the deck near the bowsprit.

I did not find the solution of the supplied plans an acceptable solution,the deck is still easily accessible so let's see what else needs to be done and can be done.
Click to expand...

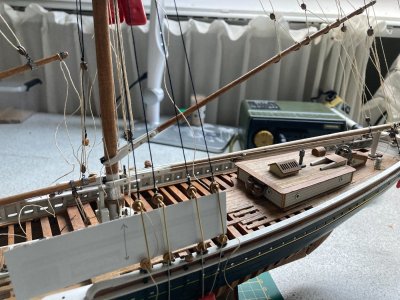

Thinking back, I was very late addressing this detail and I had to drill the holes in the deck with the bowsprit in place. That was the easy part. What really gave me a full sized headache was to install the bail. I attached the two hooks to the bail (having provided two hooks to the bail as well, not conforming to the MS plans) and fiddled as long as was needed to get the hooks into the pre-drilled holes. It took me forever...

Henk Liebre said:
View attachment 465349

After several failed attempts to attach the Futtocks (I think that's what those rods are called, correct me if this is not the case) made of brass, which resulted in some damage, I let everything rest for a while.

The brass parts with the rods gave too much tension.

Last few days there was an oven in the workshop due to the summer weather, and paint spraying was parked for a while.

I thought again about how to solve this differently (sometimes it helps to leave it alone for a while until the Eureka moment comes)

The damage suffered has been removed and the Futtocks reattached (I call it the redo show nowadays)

I had to make the mast band a little wider and update everything again.

I will do the other mast in the same way.

Looking again at the "failed" brass parts, this gave me an idea to use the smaller one for Jumbo jib stay bail on the deck near the bowsprit.

I did not find the solution of the supplied plans an acceptable solution,the deck is still easily accessible so let's see what else needs to be done and can be done.

Regards Henk

View attachment 465341

View attachment 465343
Click to expand...
Nice to see that you restarted the build of your BN, Henk. Like Johan wrote, a lot of fiddling to get the bail in place. I fitted 2 eyepins to the eyes of the bail.
Regards, Peter

Henk,

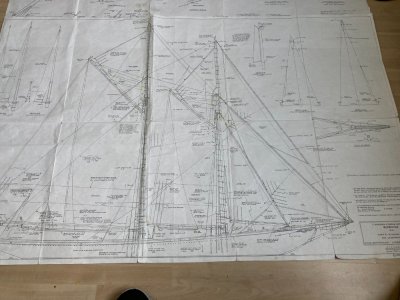

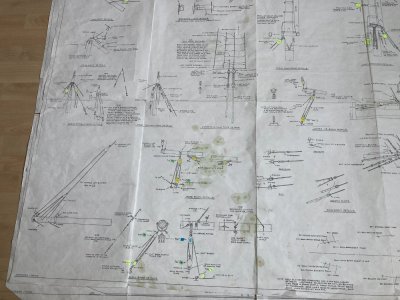

Your model looks terrific and the attention to detail is great!. Hard to tell from the first photo in post #262 but are the blocks externally stropped with rope? The drawing you posted in #262 shows internally stropped blocks as is appropriate. Internally stropped block are available with at least one aftermarket supplier but it is in the USA. Making them on your own is relatively easy, albeit a little time consuming. Then again, hobbies have no time schedules :)
Single, double, and triple homemade internally stropped blocks resting on a 120 year old real double one.

AllanKP69 said:
Your model looks terrific and the attention to detail is great
Click to expand...
Hello Allan,

Thanks for the compliment, and for sharing the photo.

Lots of inspiration and learned a lot from my other Dutch BN builders here on this forum.

Today I looked back where I left off and looked up stuff to pick things up again.

To my shame I only saw your message today, I have been busy with other things lately and not always new messages come through to my email.

Blocks, rigging etc. is not “My cup of tea” as they call it.

I have no technical background and am not familiar with ship terms and have never built a ship with rigging before.

I had not come across the terms double and single stropped blocks before and just looked this up.

To answer your question.

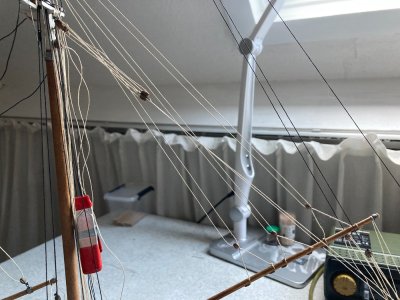

Attached are the strops on the blocks as they are now.

Given the scale, my 50 Cents chosen solution.

BTW, based on the photo, I am curious, are you currently building a ship?


Regards
Henk


Henk Liebre said:
BTW, based on the photo, I am curious, are you currently building a ship?
Click to expand...
Hello Henk,
Yes I am working on a model at this time but the blocks in the photo I posted above were for a schooner model and my current project is for Litchfield (50) 1695. As the model is probably about half complete I started a retro build log on her recently here at SoS if you are interested in checking it out.
https://shipsofscale.com/sosforums/threads/hms-litchfield-48-1695-1-64-scale.15460/
Allan

Last edited:
Henk Liebre said:
Hello Allan,

Thanks for the compliment, and for sharing the photo.

Lots of inspiration and learned a lot from my other Dutch BN builders here on this forum.

Today I looked back where I left off and looked up stuff to pick things up again.

To my shame I only saw your message today, I have been busy with other things lately and not always new messages come through to my email.

Blocks, rigging etc. is not “My cup of tea” as they call it.

I have no technical background and am not familiar with ship terms and have never built a ship with rigging before.

I had not come across the terms double and single stropped blocks before and just looked this up.

To answer your question.

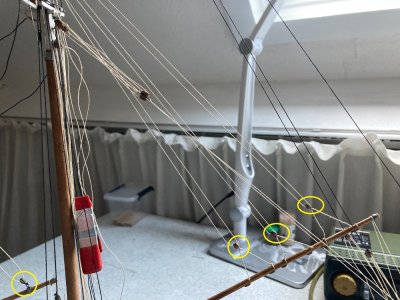

Attached are the strops on the blocks as they are now.

Given the scale, my 50 Cents chosen solution.

BTW, based on the photo, I am curious, are you currently building a ship?


Regards
Henk

View attachment 477312
Click to expand...
Hey Henk, I think we have/had a fellowmember who was mentioning internally stopped blocks. Since our Bluenoses have block sizes, ranging from approximately 2,5mm to 6mm, I didn't even bother. Way too small for my sausage resembling appendages, sometimes being referred to as fingers, plus I think one should be a watchmaker to accomplish selfmade internally stropped blocks.
