L´Amarante 1:36 POF

[marsalv]

Thank you guys .

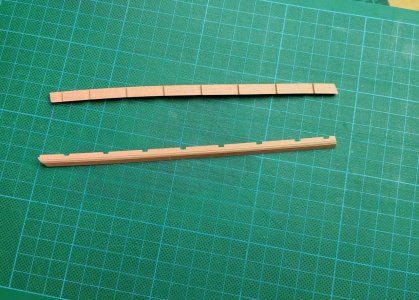

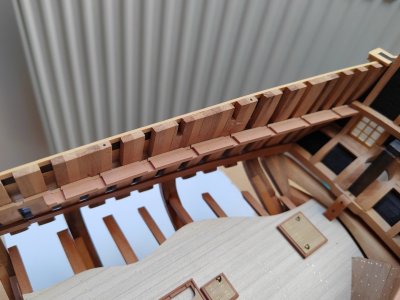

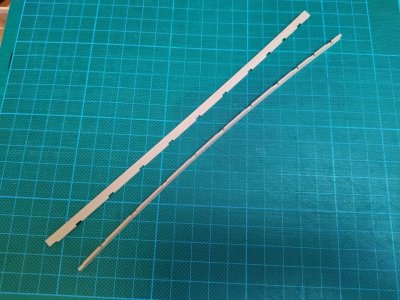

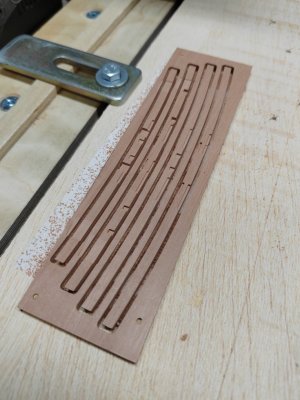

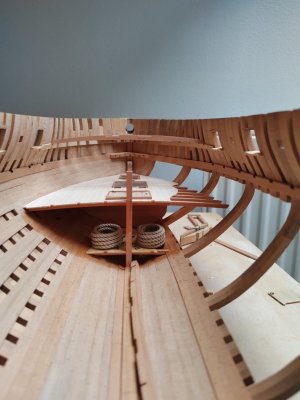

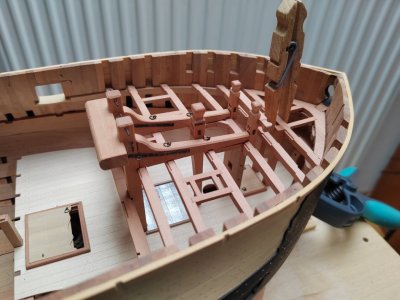

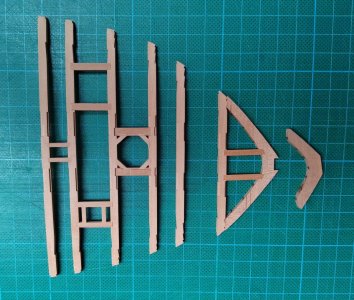

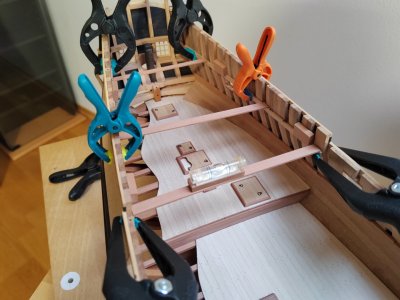

I continue with front deck - deck clamps, deck beams.



[shota70]

Thank you guys .
I continue with front deck - deck clamps, deck beams.

View attachment 554306

View attachment 554307

View attachment 554308

View attachment 554309

View attachment 554310

View attachment 554311

View attachment 554312

View attachment 554313

View attachment 554314

View attachment 554315

View attachment 554316

beautiful work, very clean and accurate, well done



[dockattner]

Hello. I see that much of this was done via CNC - impressive design skills on display!

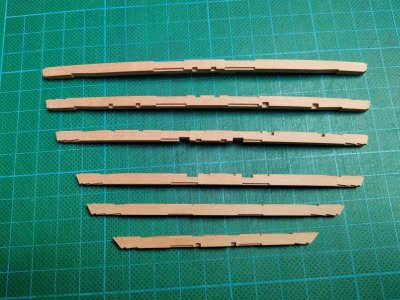

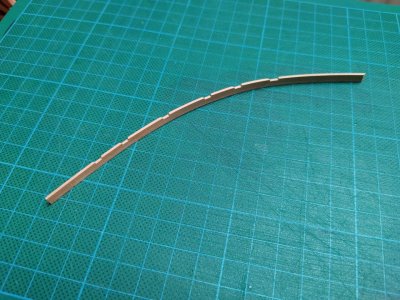

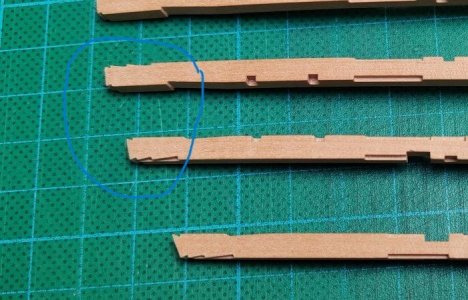

But, if I might, I have a question about these details:



Do I understand that these notches were completed with an ordinary desktop mill without computer guidance? That is, they were cut 'by hand' turning the wheels on the milling table? Or?

Thanks for addressing my curiosity.



[marsalv]

Hi Paul,

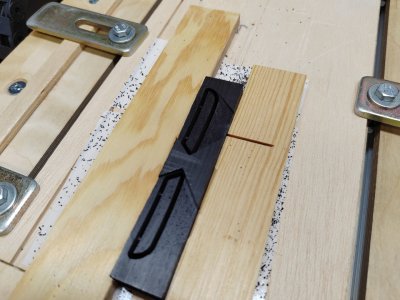

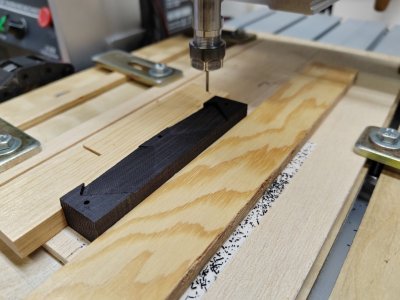

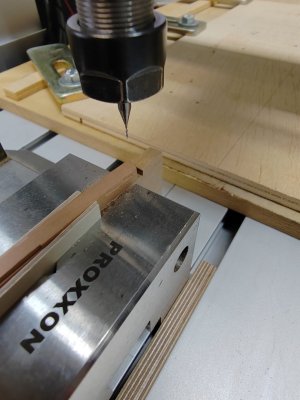

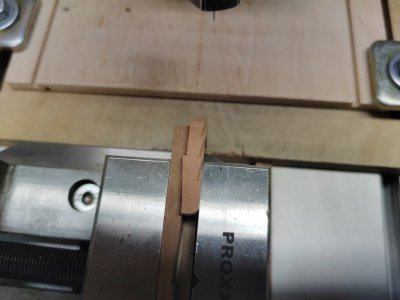

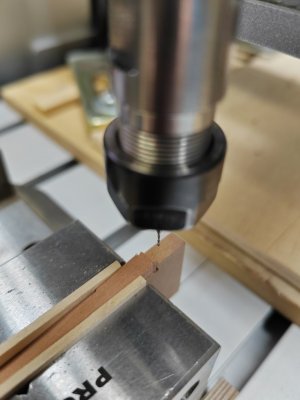

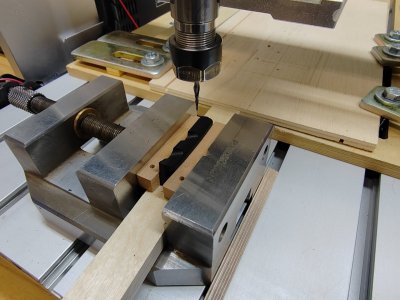

these notches are completely made on CNC. The deck beam is placed in a special fixture (as seen in the photos) and the CNC milling machine makes the notches according to the program (for each dashboard separately).



[dockattner]

Hi Paul,
these notches are completely made on CNC. The deck beam is placed in a special fixture (as seen in the photos) and the CNC milling machine makes the notches according to the program (for each dashboard separately).

Thank you for answering me.



[marsalv]

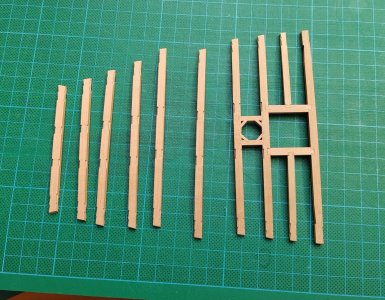

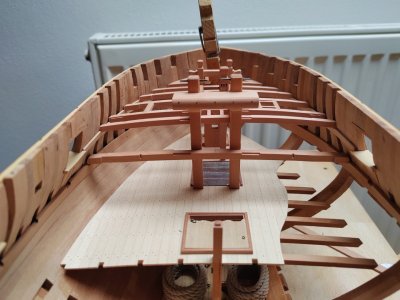

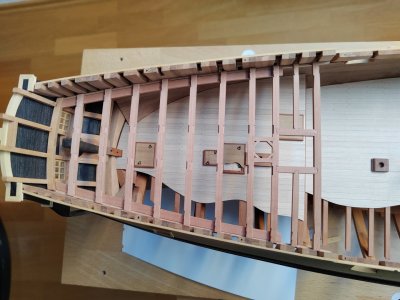

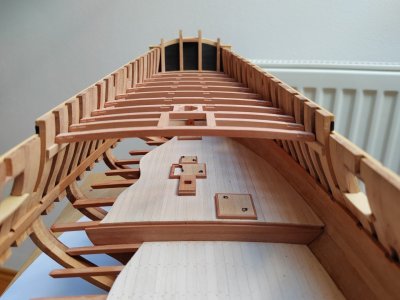

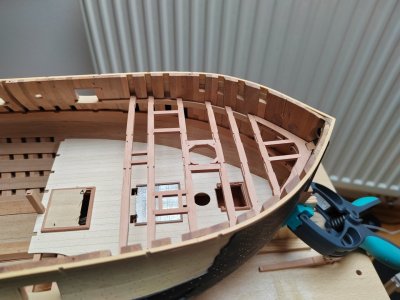

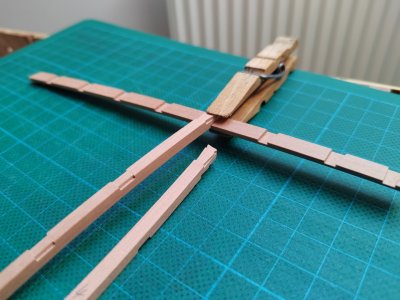

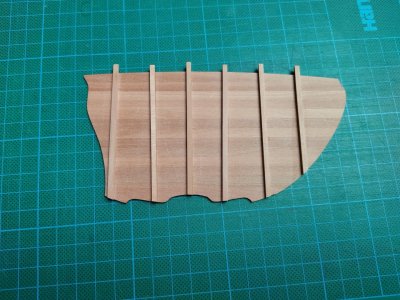

I continue to prepare the deck beams for the aft upper deck in the same way.



[marsalv]

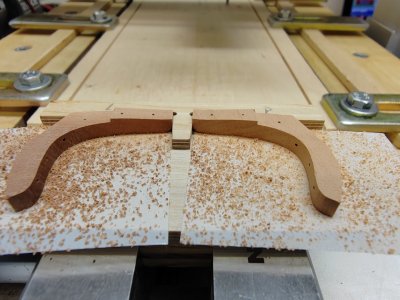

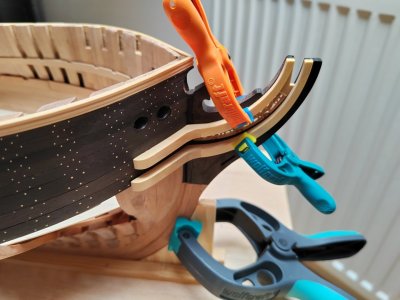

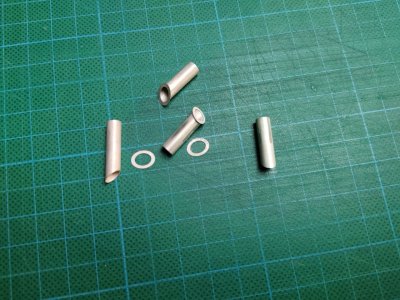

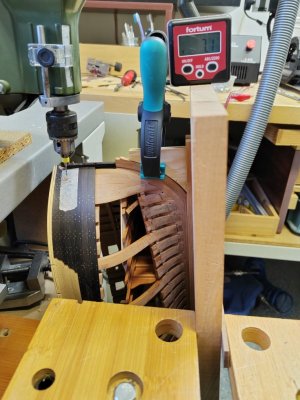

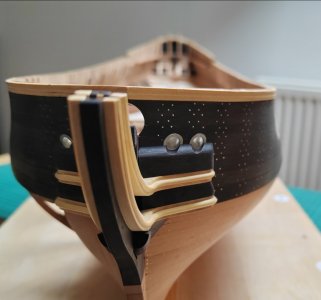

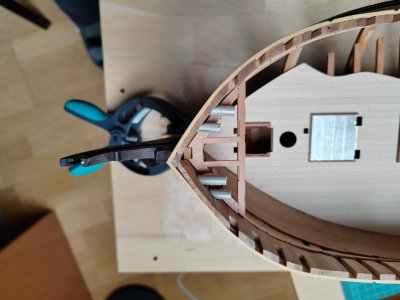

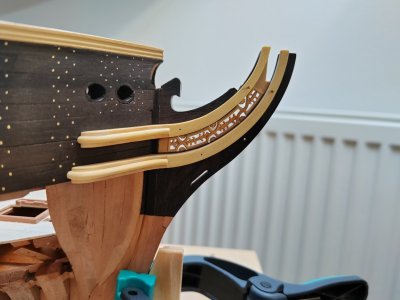

I continue on the bow - hawse holes and cheeks of the head.



[dockattner]

Amazing what can be accomplished by someone comfortable with CNC design and manufacturing. Brilliant!



[kuba91nt]

I don't understand how anyone can cheat like that while building a ship.
MARSALV! CALM DOWN, don't do this to me.
LIE LIE LIE...

What you're doing is amazing.



[marsalv]

Thanks for the positive responses. It looks simple like this, but I spend a lot of time at the computer figuring out how to make a specific part as simply and best as possible.

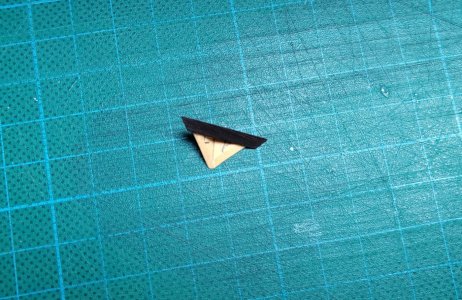

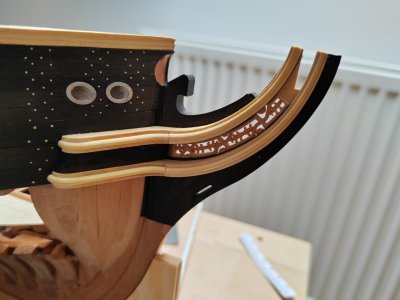

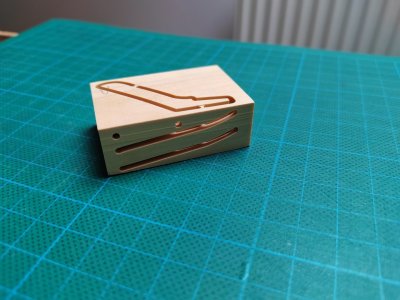

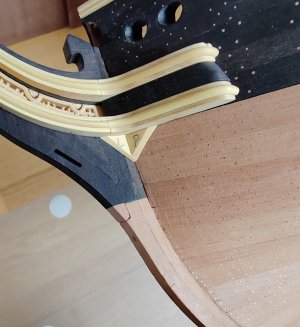

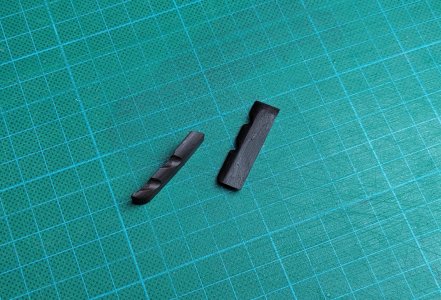

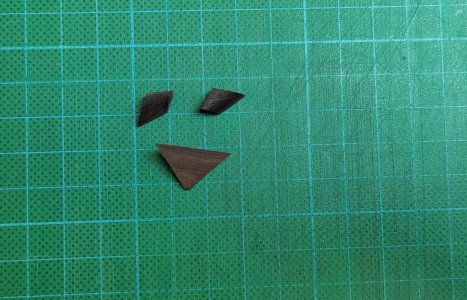

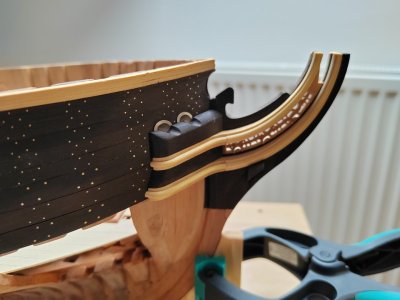

Added a few details on the bow - bolster, gammonig "pillow" and wash-piece.



[Peter Voogt]

Thanks for the positive responses. It looks simple like this, but I spend a lot of time at the computer figuring out how to make a specific part as simply and best as possible.
Added a few details on the bow - bolster, gammonig "pillow" and wash-piece.

View attachment 562833

View attachment 562834

View attachment 562835

View attachment 562836

View attachment 562837

View attachment 562838

View attachment 562839

View attachment 562840

View attachment 562841

Very very nice fitted parts! All your preliminary work on the computer will pay off double.
Regards, Peter



[Tobias]

Hi Vladimir,

as always, absolutely impeccable work. I'd also like to congratulate you on the pictures in the Ancre calendar.



[KMSvideo]

Aj ja sa pripájam ku gratulácii k fotografiám v kalendári Ancre.Metal na prvom mieste



[shota70]

Dear Vladimir,

as usual, absolutely magnificent work



[kuba91nt]

July is indeed beautiful on this calendar. Congratulations.



[Marquinius]

Absolutely beautifully made. Top notch!



[marsalv]

Thank you guys for all these encouraging words. I must say that I am very pleasantly surprised by the opportunity to publish my models in the Ancre calendar and it is a great honor for me.



[marsalv]

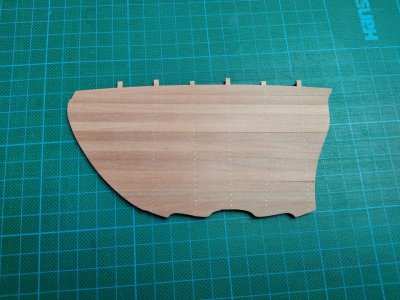

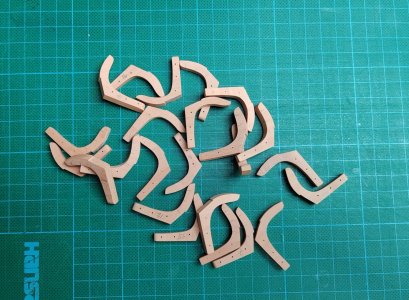

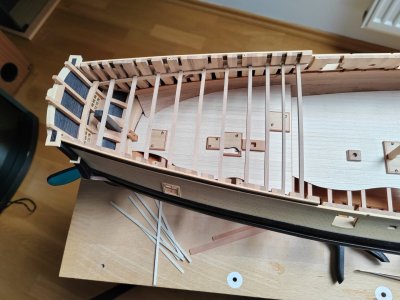

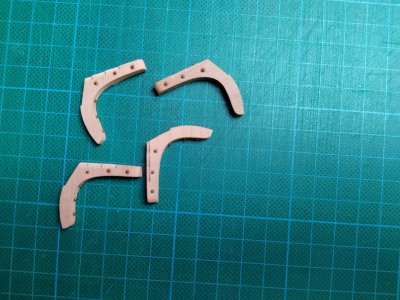

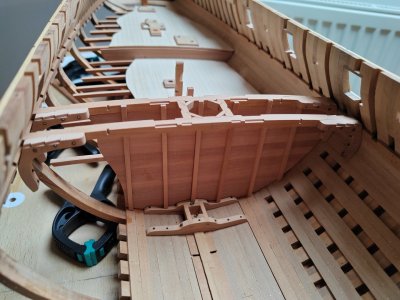

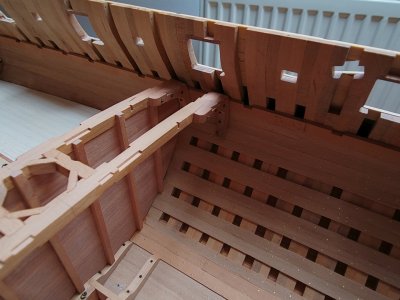

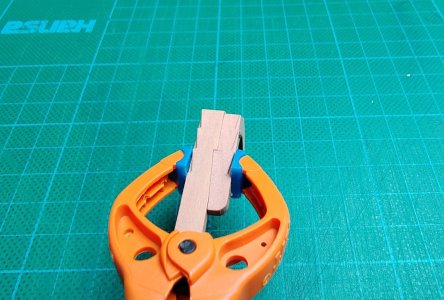

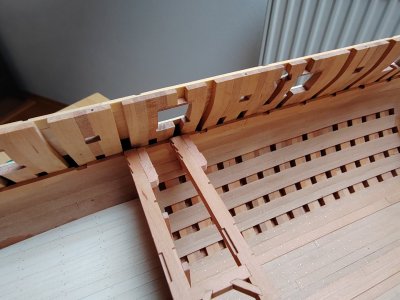

I moved inside the hull. I made wooden knees and gradually started attaching individual deck beams, bulkheads and other internal structures.



[kuba91nt]

Just beautifull.
Are these those model railroad nails you mentioned once?



[marsalv]

Yes, there are the French ones.
