Just found the correct info at the translation of the manual

YUANQING BLUENOSE - Heinrich

I am wondering how to copy and past these into a Word doc or other format for placing in the instructions book???? Can you send it out as a pdf file for our download and printing? There is a lot of time and work here that I don't want to lose as I am a visual/reader learner and a computer...

shipsofscale.com

I did not realize before, that the deck of the Bluenose had a step in the height with a visble deck beam (I hope that Bluenose and Bluenose II are in this detail similar)



[marter1229]

Thanks Uwe!
You are not bugging me at all. Your suggestions are a great value to me.
The more eyes on the project the better.



[marter1229]

Just found the correct info at the translation of the manual
View attachment 210825

YUANQING BLUENOSE - Heinrich

I am wondering how to copy and past these into a Word doc or other format for placing in the instructions book???? Can you send it out as a pdf file for our download and printing? There is a lot of time and work here that I don't want to lose as I am a visual/reader learner and a computer...

shipsofscale.com

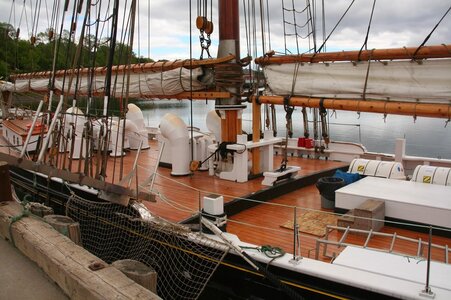

I did not realize before, that the deck of the Bluenose had a step in the height with a visble deck beam (I hope that Bluenose and Bluenose II are in this detail similar)
View attachment 210826

That is a great photo, I am going to save it.



[marter1229]

I am preparing the deck houses to help with alignment!

A suggestion by UWE



[marter1229]

Things are lining up pretty good



[Dean62]

Things are lining up pretty goodView attachment 211183

Good job!



[marter1229]

This part really makes me nervous. No turning back from this, so hope it is close.



[DonRobinson]

looking good Terry, are those planks tight up against the stem post or is that just a shadow I'm seeing?



[marter1229]

It is tight against the stem post, but forgot to sand the char off first.



[Heinrich]

The fit looks good and it seems that the planks butt up against one another very nicely. Well done Terry!



[marter1229]

Question to Group!
What would the cross section of the rudder look like? Square, rounded, round corners?

Looking for something to do while glue dries.



[Jimsky]

What would the cross section of the rudder look like? Square, rounded, round corners?

it well depends where and how you want to make a cut. Check out this image



[marter1229]

Cross cut at about 12.
The hinges are square, so I assume that part is flat.



[Dean62]

Picture of BN rudder...



[Jimsky]

The hinges are square, so I assume that part is flat.

Good guess, but no. I couldn't find the images on-line, so hope you don't mind I show the rudder from my model.



[marter1229]

Perfect

thank you



[marter1229]

A couple of planks have been added.



[Peter Voogt]

Hi Terry,
A special chapter in the building proces. A lot of items comes together. Looking forward to see it over the overall length.
Regards, Peter



[DonRobinson]

Your planking is looking good Terry



[marter1229]

Got Clamps!
