Yes, indeed, I am very familiar with Tom Lauria's videos. I watched them very often to inspire me ...
He masters the technique perfectly, while I'm just testing for the moment! :confused:


Ekis

Well-Known Member
Joined
Aug 14, 2018
Messages
173
Points
93

Location
France

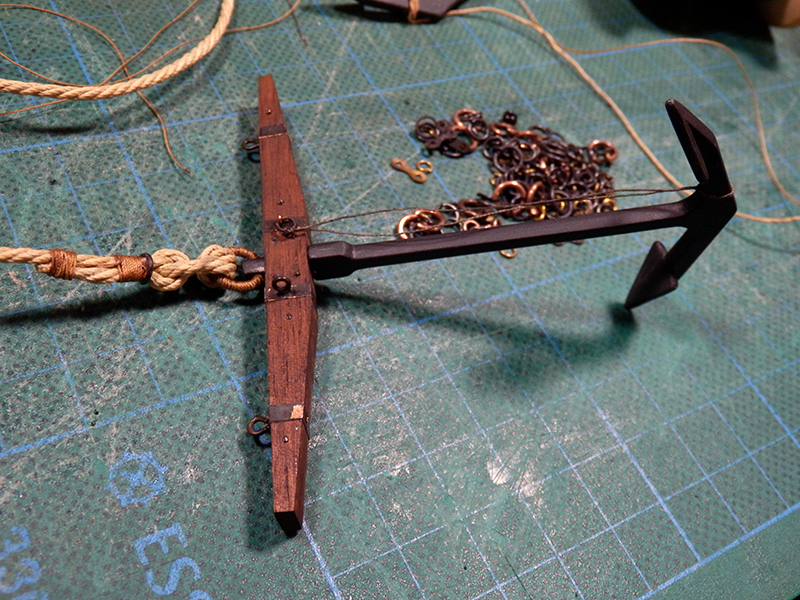

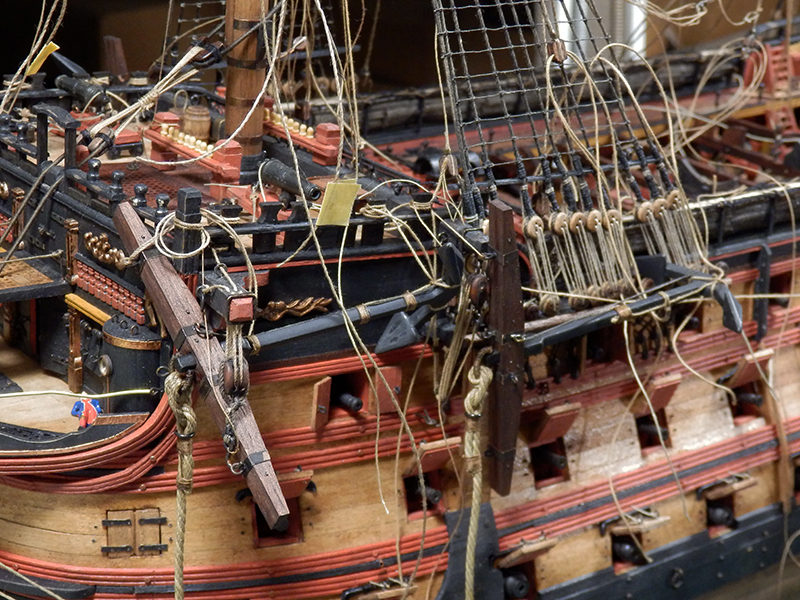

Until I took care of the yards and sails, I had to do the four main anchors ...

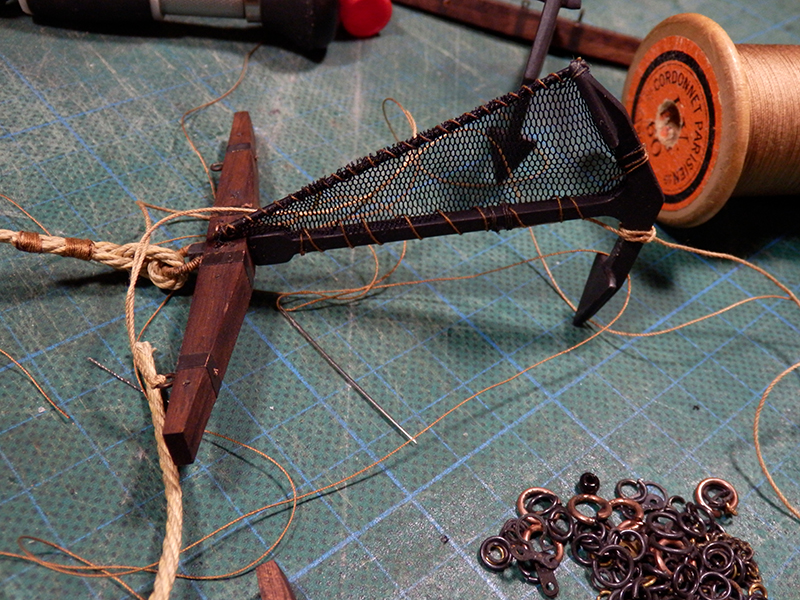

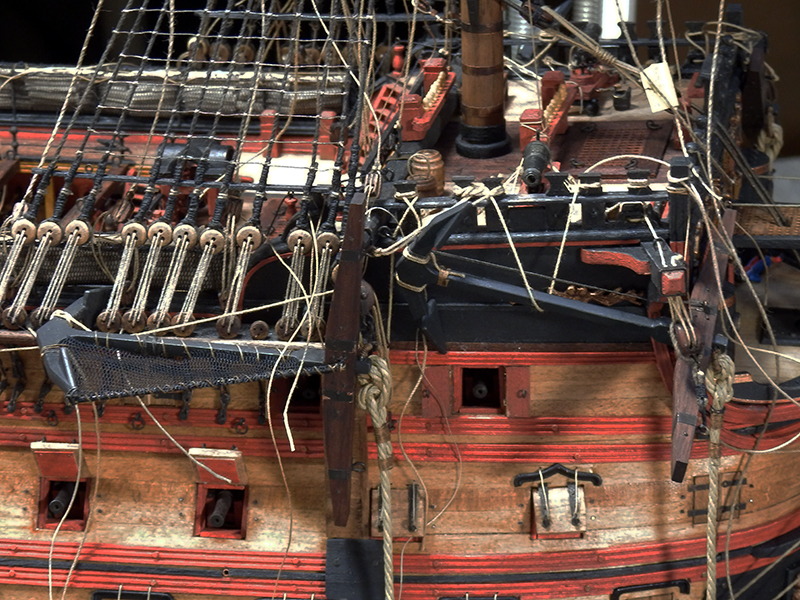

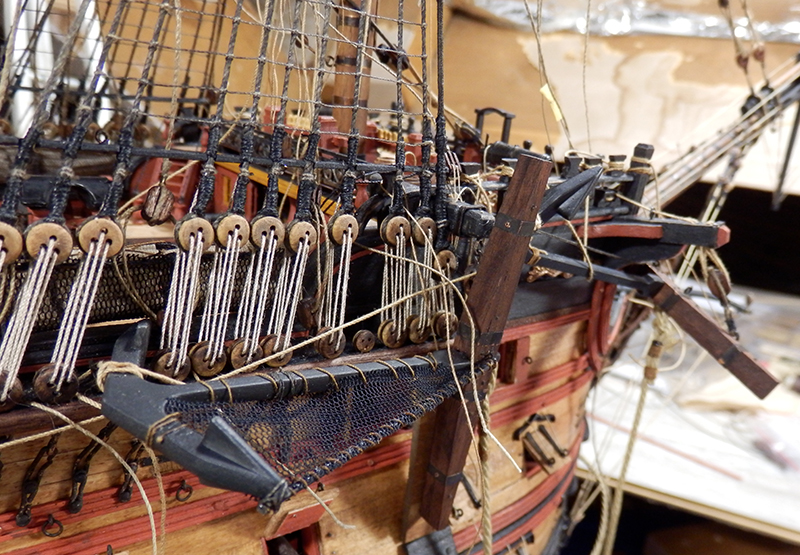

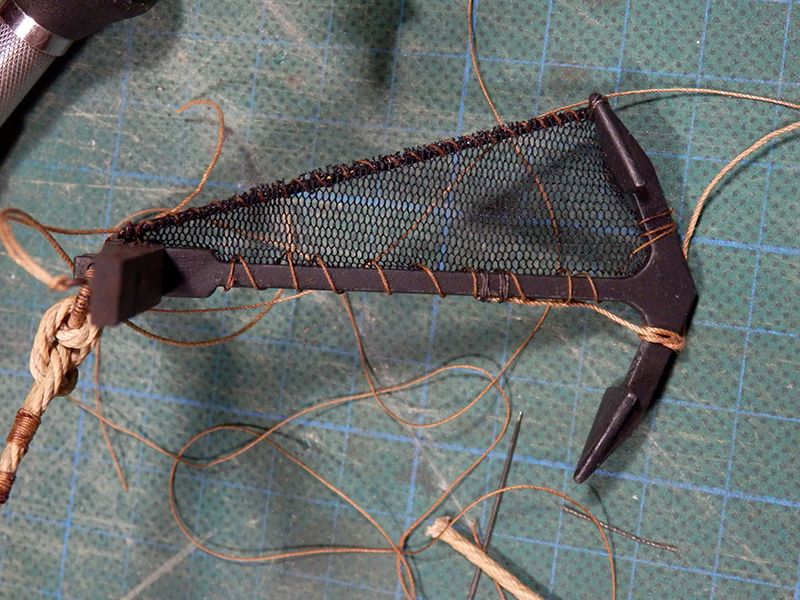

One of them is equipped with a net: it allowed when it was along the hull to have one or two sailors to do depth surveys without being hindered by the hull.

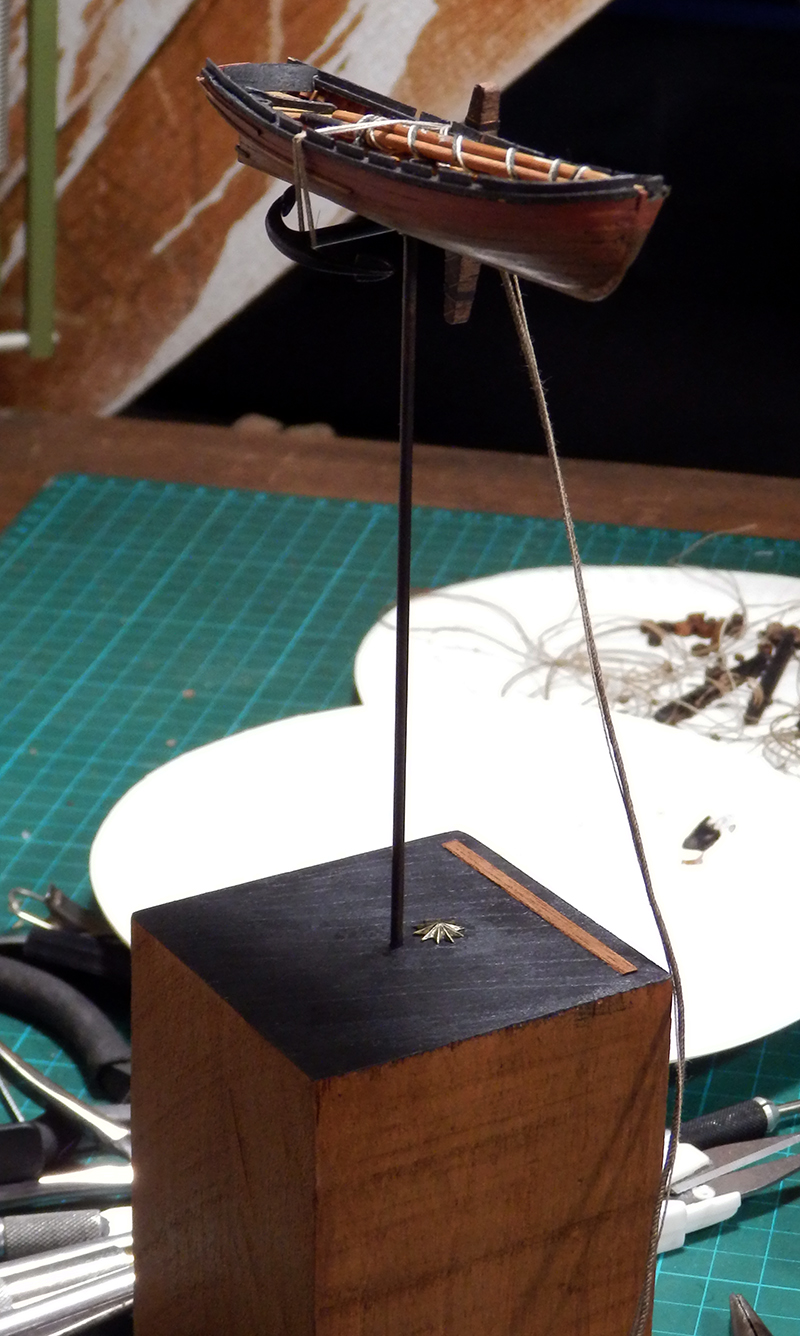

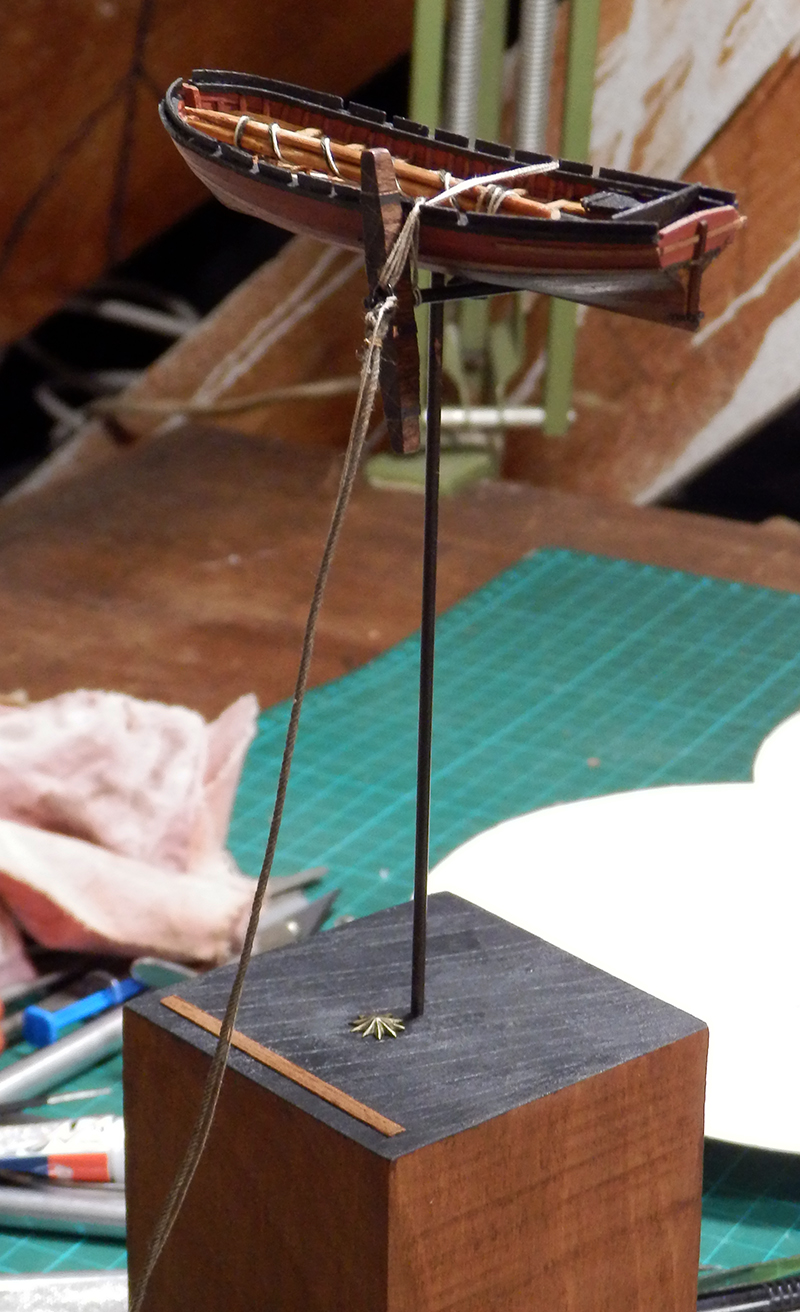

And then, while I was there, a 2nd boat is mounted on an individual support. But this one has an anchor below. This is how they were moved farther away from the ship to anchor in a safer way.

The boat will be attached to the boat by the cable of the anchor and a mooring end with a hook.






And now, the last big yard with yards and sails! :cool:


ziled68

Well-Known Member
Joined
Jul 22, 2017
Messages
174
Points
63

Mon Dieu mon ami, C'est magnifique.

Ekis, I am not French but I thought the very least I can do is show you the respect you deserve in your native tongue. All the work you have done up to now has been nothing short of stupendous. Your interpretation and artistic abilities has made this a fun and educational thread. I hope to see more of your work in the near future.

Raymond


Ekis

Well-Known Member
Joined
Aug 14, 2018
Messages
173
Points
93

Location
France
Thank you all for your comments: much appreciate and encouraging to show details that we rarely see on the models!
Raymond (ziled68), thank you especially for your nice comment and for all your likes on this thread!
This is really my idea of a forum like Ships of Scale: to share and interest the readers. They can, in turn, make things different from the basic kit manuals, or the plans of a single boat ...
I myself take ideas everywhere by observing others, or by looking closely at the museum models. ;)


Ekis

Well-Known Member
Joined
Aug 14, 2018
Messages
173
Points
93

Location
France

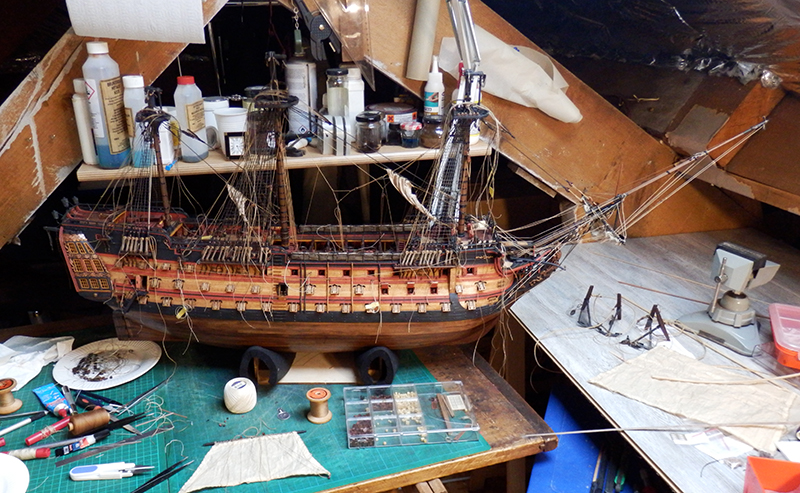

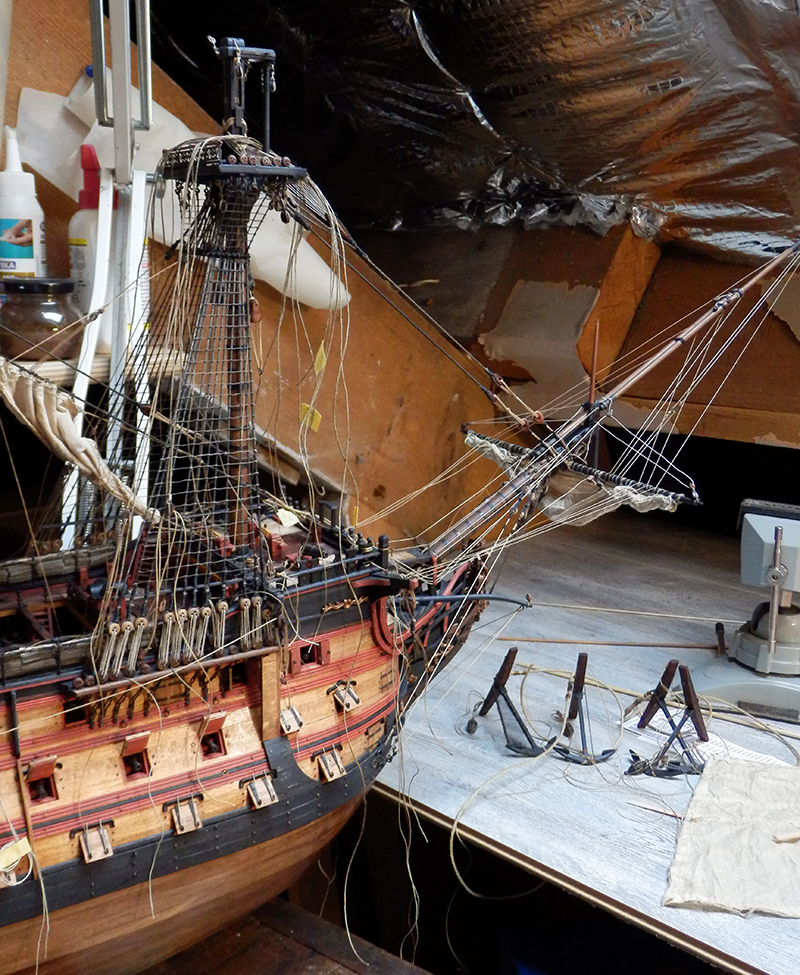

Some views of the job in progress ... It is really a considerable time this type of rigging !!
I still have many, many hours to spend on it, but it goes at its own pace.
As a reminder, all the sails will be carved, which adds time to spend on each one so that it is presentable and relatively realistic (taking into account that I use the sails of the kit AL which are of a quality say more than medium ...). All the lines of each sail are to rethink from the plans to be able to moor them properly once folded. Speechless

























Jimsky

Well-Known Member
Joined
Nov 3, 2018
Messages
694
Points
93

Location
Brooklyn, New York USA
Bonjour Ekis,
I am impressed how much details you make into this build. Those details are so obvious to make her a superb build. Honestly, I don't even know if I ever consider building three-decker for the amount of rigging work I would have to do. Amazing rigging work. Thumbsup


Ekis

Well-Known Member
Joined
Aug 14, 2018
Messages
173
Points
93

Location
France
In fact, I did not manage to make a proper folded sail with the tissue paper. So for now, I use cloth sails that were to be the Studding sails and I cut them to become the sails of forestay.
For the other sails, I will take those in fabric of the kit. ;)


Ekis

Well-Known Member
Joined
Aug 14, 2018
Messages
173
Points
93

Location
France
Before I started assembling the sails on the yards, it was necessary to cut them correctly: it's done!
It remains to fix them, to prepare the ropes for each one ... and to put them on hold until the top of the rigging is in place.






But first, there were still and always details to finish ...

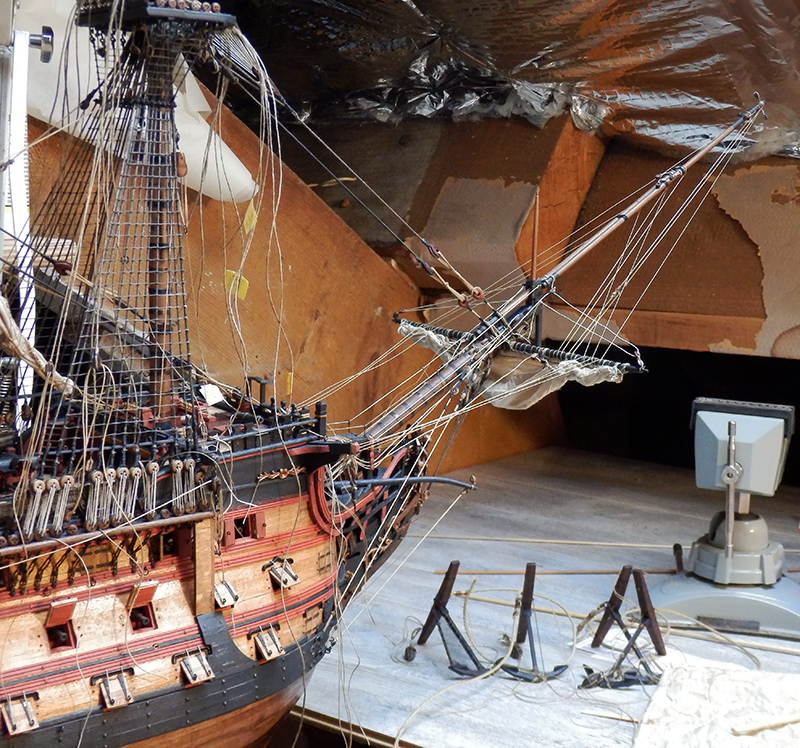

Set up the spritsail topsail,




And all the ropes that pass through the bowsprit racks,



Tarred canvas protection of rudder head,



rail with nets for the front platform:








And finally, for fun, a 18th century buoy (image found in my archives to reproduce it):





That's it, and now I'm immersing myself in the rigging of the yards ... :cool:


Ekis

Well-Known Member
Joined
Aug 14, 2018
Messages
173
Points
93

Location
France

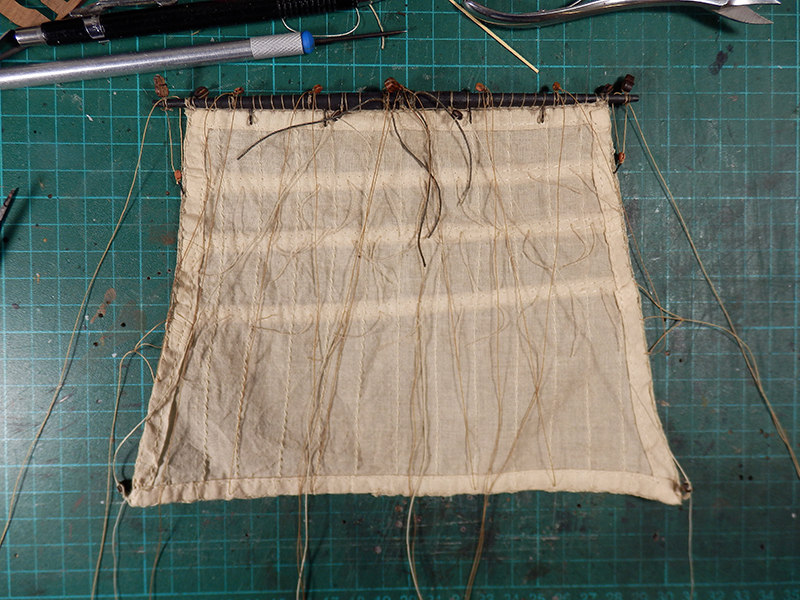

I continue the work on sails and yards. It's a big job at the base, work on the octagonal part of the yards, aggravated by my choice to show these sails furrowed ... It is necessary to work the folds, to think the bolting otherwise for that seems realistic. I am obliged to put invisible threads to create gathers, etc ...











md1400cs

Active Member
Joined
Nov 18, 2017
Messages
43
Points
33

Location
Santa Monica CA
Ekis,

As alway beyond stunning - I - along with many of us - have visually devoured your photos of your astonishing build, and log.

PS: could be an "oops" on your part?? -- with thousands and thousands of astonishing details you might have missed this, or is it still rigging in progress /////



Ekis

Well-Known Member
Joined
Aug 14, 2018
Messages
173
Points
93

Location
France
Go, pulleys and ... ropes!
A few close-ups of the bowsprit, the rigging of the yards, the flag pole at the stern.






















And then, finally, all yards rigged with high masts: a bunch of wires everywhere !!






Finally, again the stern ports finished with their string shutters.




Now, I'm tackling the preparation of dozens of wraps on the toggles with all kinds of threads used. ;)
