I think those things are called "bollards".
HMAV BOUNTY - A “face lift “
- Thread starter GrantTyler
- Start date
- Watchers 47
-
- Tags
- bounty
…… I stole some of Justin’s throttle grip wire (0.4mm) from his motocross tool box. Hey he won’t let me buy anything so it feels like sweet revenge.
“Bollards” - That’s the word I use when someone takes things out of my tool box too
.
Last edited:
- Joined
- Jan 21, 2022
- Messages
- 667
- Points
- 353
Great restoration GrantGood morning Peter. Thank you kindly. I amazed myself
Good morning Johan. The dead eyes are easy- I just 3D designed and printed them. As these will be black I just paint them.
View attachment 466817
The blocks and ropes I have the kit version from the Victory and Xebec. They are typical kit ropes and blocks. Hmmmm??
View attachment 466818View attachment 466819
I also have some supplies of the “good stuff” from Dry dock Models however I’m not sure the scale will work on my Bounty. Definitely short supply tho.
Last resort will be to eat humble pie and concede and buy some more of the good stuff
Cheers Grant
If you don't mind printing blocks from resin here you have a set just to adjust

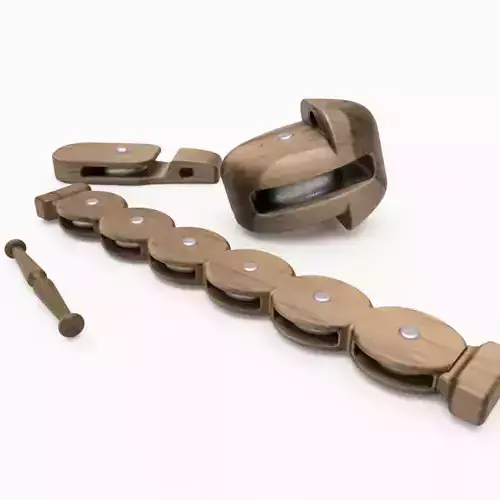

Maritime rigging bundle | 3D Print Model
Model available for download in Stereolithography format. Visit CGTrader and browse more than 1 million 3D models, including 3D print and real-time assets
www.cgtrader.com

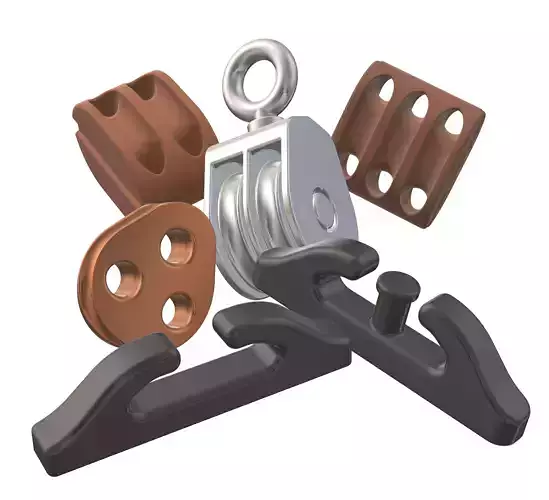

Model ship rigging fittings for resin printing | 3D Print Model
Model available for download in OBJ format. Visit CGTrader and browse more than 1 million 3D models, including 3D print and real-time assets
www.cgtrader.com
In the running for funniest post of 2024. Good luck Roger.“Bollards” - That’s the word I use when someone takes things out of my tool box too
Good morning Peter. Thanks. I have struggle with the tiny hooks and blocks. I think I should have used 2.5mm blocks but don't have any. As for those hooks, I just made them as small as I could and look more like wire bent into a "S" than hooks. Looks OK tho, unless you view under a microscope.A good start of ‘the rigging proces’ with nice tiny iron work, Grant. And ……. The wires is not stolen ……. He forced you …..
Regards, Peter
.Roger and roger. Thankfully only 4 cannons on the Bounty
Good morning Ron. Thank you for the compliment and having a look at my renovation. In many situations my ambition has exceeded my talent, however I then just go for more of a representation than an actual replication. Been super fun tho.....and it continues.
Good morning Jim. Thanks for the compliment. Yep canon rigging.......enough said... quickly raised - does not considered fallen
Cheers Grant
Thanks Don.
“Bollards” - That’s the word I use when someone takes things out of my tool box too
Good morning Roger. Im with Paul......Brilliant wit....so funny.
Although I have a feeling Justin may use a stronger term when he next looks for his grip wire;Thank you very much indeed. This is so cool. I generally only attempt to print metal parts if needed, however I may not get my leftover kit blocks looking good so this is an awesome alternative.Great restoration Grant
If you don't mind printing blocks from resin here you have a set just to adjust
Maritime rigging bundle | 3D Print Model
Model available for download in Stereolithography format. Visit CGTrader and browse more than 1 million 3D models, including 3D print and real-time assetswww.cgtrader.comModel ship rigging fittings for resin printing | 3D Print Model
Model available for download in OBJ format. Visit CGTrader and browse more than 1 million 3D models, including 3D print and real-time assetswww.cgtrader.com
Cheers
Grant
You could consider emptying the roll except for ten centimeter, and put the roll back where you found it.
Canon is looking great bye the way
I like the way you think PeterYou could consider emptying the roll except for ten centimeter, and put the roll back where you found it.
Canon is looking great bye the way
. Thanks for the compliment. Cheers Grant
A very good afternoon.
I thought I had better post just to show I am playing in my shipyard. I have nothing finished so deviating from my “show and tell” log - I must have “SOSADS” SOS Attention disorder syndrome “
.
The starboard channels : I lost one of the old kit chain plates.
- where is my swear barrel?? I will have make one I guess.
Oh I added some steps- also WIP.
Hey those steps look way out of line
.
A serious MACRO- for fun
Mast tops:
I was going to clean up and modify the old ones however these just won’t work- they are also too thick 4mm vs 3mm and for some reason very noticeable. Too much so for Grants “near enough to scale “ approach with this face lift. So made some 2mm x3mm laminated walnut for base, cut scrap solid pieces to 1.6mm for “those strips” (sorry don’t know what they are called). Ok they are not really 1.6mm…the scraps are too small to fit in my mini table saw and I struggled to keep them in place when trimming- they sort of range 1.8 to 1.4mm. Eish. No redos on this build…
Old top clearly highlighted
Plenty shaping and detailing still to do.
……and the RICOCHET RABBIT award goes to…...
Remember guys, life needs fun, it’s plenty serious and way too short……so build model ships
Cheers Grant
I thought I had better post just to show I am playing in my shipyard. I have nothing finished so deviating from my “show and tell” log - I must have “SOSADS” SOS Attention disorder syndrome “
.The starboard channels : I lost one of the old kit chain plates.
- where is my swear barrel?? I will have make one I guess.Oh I added some steps- also WIP.
Hey those steps look way out of line
.A serious MACRO- for fun
Mast tops:
I was going to clean up and modify the old ones however these just won’t work- they are also too thick 4mm vs 3mm and for some reason very noticeable. Too much so for Grants “near enough to scale “ approach with this face lift. So made some 2mm x3mm laminated walnut for base, cut scrap solid pieces to 1.6mm for “those strips” (sorry don’t know what they are called). Ok they are not really 1.6mm…the scraps are too small to fit in my mini table saw and I struggled to keep them in place when trimming- they sort of range 1.8 to 1.4mm. Eish
. No redos on this build…Old top clearly highlighted
Plenty shaping and detailing still to do.
……and the RICOCHET RABBIT award goes to…...
Remember guys, life needs fun, it’s plenty serious and way too short……so build model ships
Cheers Grant
Bravo - ver yclean and accurate work -> very good
Thank you kindly Uwek.
Good morning.
Got a second cannon rigged…whew.
While playing with fiddly bits I decided to complete the brass on my pumps and fit them:
Cheers Grant
Got a second cannon rigged…whew.
While playing with fiddly bits I decided to complete the brass on my pumps and fit them:
Cheers Grant
Nice details on the rope work of the canons and on the iron work on the pumps, Grant. It’s ‘Bounty worthy’.
Regards, Peter
Lovely work, Grant. The cannon rigging is very tidy - and you know I like tidy...
Stunning work Grant.
Back in my RC aircraft days some guys would rebuild after unintentional landings. I was never one to rebuild. I would 'dispose' of mine.
You're setting the bar pretty high for restoring.
Back in my RC aircraft days some guys would rebuild after unintentional landings. I was never one to rebuild. I would 'dispose' of mine.
You're setting the bar pretty high for restoring.
Grant,
awesome pumps - super detailed indeed
- cannon rigging has also always been your forté ---
Regards,
awesome pumps - super detailed indeed
- cannon rigging has also always been your forté ---Regards,
Good morning Gentlemen. Thank you kindly for your comments. It is always a source of encouragement and valued indeed.Grant,
awesome pumps - super detailed indeed
Regards,
Only 2 more cannons to rig, and May take a while as rigging cannons is always on my “procrastination list”
.Cheers Grant
Your fine work continues Grant. I really like the look and how you rigged the cannons. Securing the tackle the way you show in your photos is, to me, a more realistic and practical approach than little coils deployed on deck.
Good afternoon Roger. Thank you. I agree however in my case it is more of - I’m not very good at making coils and this is the lazy option. How are your stunning carronades coming on? Cheers Grant
