Not to much of an update, but between the fun of building the stove also the ribs continue towards the end, stil 16 to go.
Hopefully towards Christmas all ribs will be finished.
Hopefully towards Christmas all ribs will be finished.
G'day Maarten
This kit is absolutely magnificent, and I believe that any kit's manufacturer should give you their kits for free!
When you post your brilliant ingenuity in consultation, so many others members would buy the said kits.
Greg
This kit is absolutely magnificent, and I believe that any kit's manufacturer should give you their kits for free!
When you post your brilliant ingenuity in consultation, so many others members would buy the said kits.
You would be a great advertisement for them.
Happymodeling Greg
Madness accrues! Just kidding - looking great, including that pig roast. Thanks.
When I see this huge number of frames -> looks like the framing of the CAF Le Coureur is an "Easy Going" or a "Walk in the Park"
Looking very good
Looking very good
Hi Gents, thx again for all your comments and likes.When I see this huge number of frames -> looks like the framing of the CAF Le Coureur is an "Easy Going" or a "Walk in the Park"
Looking very good
Uwe, dont forget the shape of your frames. You have to file them all, bit by bit.
With Alert you can sand them in one go on the disc sander. I do not envy you Le Coureur builders with its stepped frames.
a walk in a very big park with hills.
Due to some extra hobby time these days my frames are finished, so now the major repetative work is done it will be more and more fun to build.
For sanding the inside of the hull I made foam pieces with sanding linnen glued to it with hotmelt glue, this helps you to properly sand all the inside curvatures without sanding dents into it. I made them with course 150, 220 and 320 to get a smooth surface.
After sanding the inside.
For sanding the inside of the hull I made foam pieces with sanding linnen glued to it with hotmelt glue, this helps you to properly sand all the inside curvatures without sanding dents into it. I made them with course 150, 220 and 320 to get a smooth surface.
After sanding the inside.
- Joined
- Oct 26, 2020
- Messages
- 38
- Points
- 78
This precision is incredible!
I wish you a Merry Christmas and continued success in building the Alert.
Best regards
Fritz Baur
I wish you a Merry Christmas and continued success in building the Alert.
Best regards
Fritz Baur
Excellent...
and nothing more to say, mon Amie!!! A very special way to end this year. Yet, another milestone!
Happy New Year!
and nothing more to say, mon Amie!!! A very special way to end this year. Yet, another milestone!Happy New Year!
Outstanding job, Maarten! Gorgeous! You must be itching to cut her out of the building berth. After installing deck clamps? Thanks for sharing.
Thx gents for your comments and likes, hope you all had a nice Christmas. And @Gennaro yes hopfully she will be released from her berth in the coming two weeks.
Today I had some time to work on the keelson.
The keelson consists of 3 large timber pieces joined together with scarphs and an additional knee at the stern. I decided to glue these together outside the ship as I use black pva for these joints.
For later fitment of the limber boards I milled a space in the top of the keelson to counter sink the limber boards into.
After sanding the keelson with 220 emery paper followed by steelwool it can be dry fitted.
The keelson is bolted to every second frame with 1" bolts, 0,8 mm to scale.
I pre drill these holes in the keelson outside the ship. After drilling all holes I pin the keelson in place with a needle pin in the front and stern.
Now with the keelson in place I drill all the holes into the frames and keel. And after removing the keelson all the holes are in place.
For fitting the keelson I use spots of pva and 0,8 mm brass wire.
The brass wire I prise into the 0,75 mm drilled holes with some pliers.
With the wire in place I cut of the remaining part flush on the keelson.
Then with a jewelers cup burr I transform the wire into a countersunk round bolthead.
Continueing until the keelson is finished.
Next will be fitting the limberstrakes, thickstuff and shelfclamps.
Today I had some time to work on the keelson.
The keelson consists of 3 large timber pieces joined together with scarphs and an additional knee at the stern. I decided to glue these together outside the ship as I use black pva for these joints.
For later fitment of the limber boards I milled a space in the top of the keelson to counter sink the limber boards into.
After sanding the keelson with 220 emery paper followed by steelwool it can be dry fitted.
The keelson is bolted to every second frame with 1" bolts, 0,8 mm to scale.
I pre drill these holes in the keelson outside the ship. After drilling all holes I pin the keelson in place with a needle pin in the front and stern.
Now with the keelson in place I drill all the holes into the frames and keel. And after removing the keelson all the holes are in place.
For fitting the keelson I use spots of pva and 0,8 mm brass wire.
The brass wire I prise into the 0,75 mm drilled holes with some pliers.
With the wire in place I cut of the remaining part flush on the keelson.
Then with a jewelers cup burr I transform the wire into a countersunk round bolthead.
Continueing until the keelson is finished.
Next will be fitting the limberstrakes, thickstuff and shelfclamps.
Last edited:
- Joined
- Jul 9, 2019
- Messages
- 495
- Points
- 323
This is an interesting technique. Do you use a power rotary tool for this, or just a cup burr in a pin vise with hand turning?
Could you recommend a set of cup burrs? I see many online--diamond/carbide? Any brands that are known to be more durable?
Last edited:
I use Busch burrs for this on my proxon micro drill, works perfect.
Busch has the smallest 0,8 mm increasing by 0,1 mm up to 2,3 mm.
See page 22 in the attached brochure.

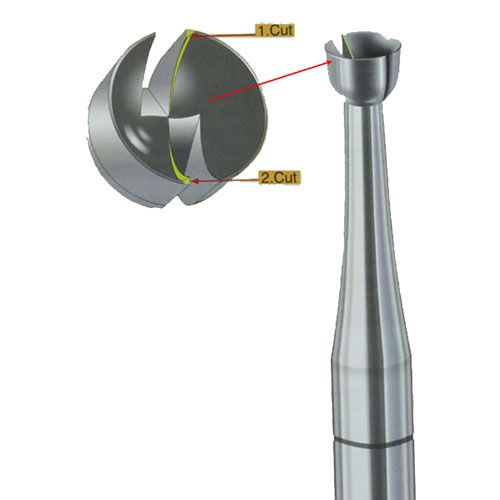

Is this the burr cutter you are using?:
I was able to find this retailer for Australian buyers:
BUSCH 411 CUP BUR
Buy Busch 411 Cup Bur 2.7mm online at Australian Jewellers Supplies
www.jewellerssupplies.com.au
Yes this is the one I use for the 0,4 mm wire. For the 0,8 I used the 1,2 mm to get the countersunk effect.Is this the burr cutter you are using?:
View attachment 201647
I was able to find this retailer for Australian buyers:
BUSCH 411 CUP BUR
Buy Busch 411 Cup Bur 2.7mm online at Australian Jewellers Supplies
Small update. I am now working on the limber strake, the thickstuff and the shelf clamp. These provide rigidity in the frame structure.
First I put in some clamps marking the positions of these timbers, again a handy tool of Trident.
The first is the limber strake along the keel.
In the kit these are one piece of cherry timber, I have carved scarph joints in these to make them look as three parts as mentioned in the AOTS.
The carved scarph joint I fill with a pencil to accentuate the scarph joint
The second strake is called the thickstuff, in the kit 2mm thick. Here also I simulated the scarphs. These are the first to glue into the hull. First I steam it to twist and bend to a fit. For this I use a simple household steam cleaner and a copper pipe. Put the strake in the pipe and steam it.
As the copper pipe gets hot you can directly use it to bend the wood on top of it.
The dry fit the strake, file it to a perfect fit on both ends. When finally dry fitting I pull a knive along the stroke to mark the area for the glue. It leaves a very subtle mark.
Then glue with a small drop of Pva on frame 1 CA on frame 2 and so on. Put in the stroke and clamp it.
This process should be repeated for all. For the shelf clamps I use the positions of the slots for the deck beams to position the correctly along the hull. You can easily take the correct position and frame number from the drawing and mark it inside your hull. Now the limber strakes, thickstuff and shelf clamp for the lower deck is fitted. The small white plank is a limber board sample.
First I put in some clamps marking the positions of these timbers, again a handy tool of Trident.
The first is the limber strake along the keel.
In the kit these are one piece of cherry timber, I have carved scarph joints in these to make them look as three parts as mentioned in the AOTS.
The carved scarph joint I fill with a pencil to accentuate the scarph joint
The second strake is called the thickstuff, in the kit 2mm thick. Here also I simulated the scarphs. These are the first to glue into the hull. First I steam it to twist and bend to a fit. For this I use a simple household steam cleaner and a copper pipe. Put the strake in the pipe and steam it.
As the copper pipe gets hot you can directly use it to bend the wood on top of it.
The dry fit the strake, file it to a perfect fit on both ends. When finally dry fitting I pull a knive along the stroke to mark the area for the glue. It leaves a very subtle mark.
Then glue with a small drop of Pva on frame 1 CA on frame 2 and so on. Put in the stroke and clamp it.
This process should be repeated for all. For the shelf clamps I use the positions of the slots for the deck beams to position the correctly along the hull. You can easily take the correct position and frame number from the drawing and mark it inside your hull. Now the limber strakes, thickstuff and shelf clamp for the lower deck is fitted. The small white plank is a limber board sample.
Looks just perfect. Very accurately made. I like it very much.
