LE ROCHEFORT - Harbour yacht from 1787 1:36 by Tobias (Monograph by ANCRE)

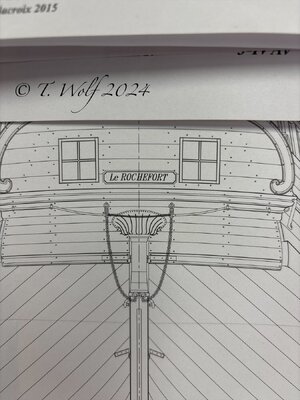

Frame construction of the rear windows:

eZy Watermark_23-07-2024_08-41-41-0500PM.jpeg

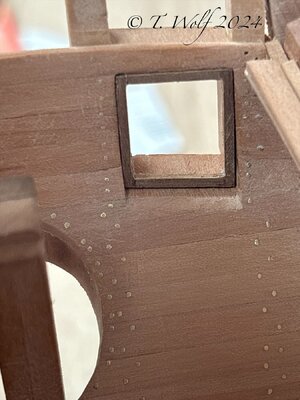

Step 1:

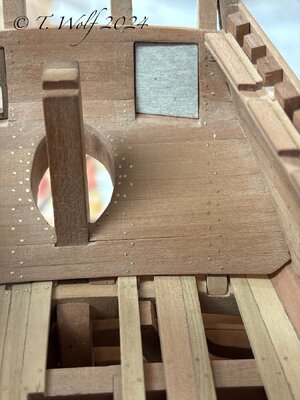

Make a template, in my case I used a slightly firmer cardboard. I cut this until it fits.

eZy Watermark_23-07-2024_07-33-44-0500PM.jpeg

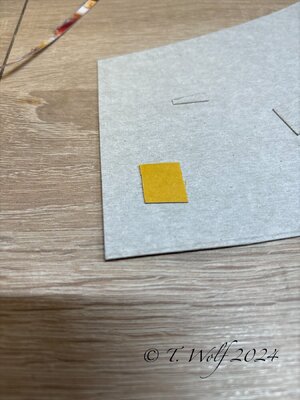

Step 2:
On the cardboard, I mark the upper edge on the inside with an arrow and stick double-sided tape on both sides.

eZy Watermark_23-07-2024_07-38-43-9630PM.jpeg

3rd step:

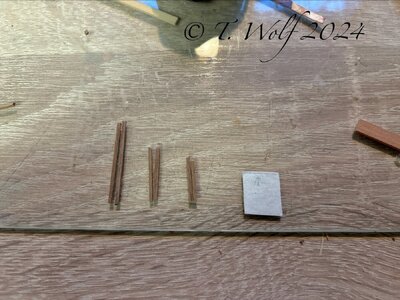

Here I make 6 small strips 1x1mm with a slight overhang.

eZy Watermark_23-07-2024_07-42-36-3990PM.jpeg

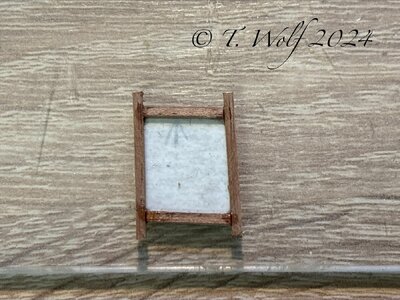

Step 4:

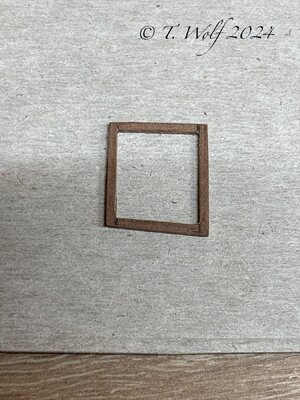

Glue the two outer strips on. The advantage of the window frames is that they are not mitred. Then I adjust the upper and lower strips and fix them with superglue. Let the whole thing dry a little and very carefully remove it from the template (if it breaks, do it again straight away).

eZy Watermark_23-07-2024_07-50-35-0320PM.jpeg

eZy Watermark_23-07-2024_08-21-50-5890PM.jpeg

eZy Watermark_23-07-2024_08-24-14-3500PM.jpeg

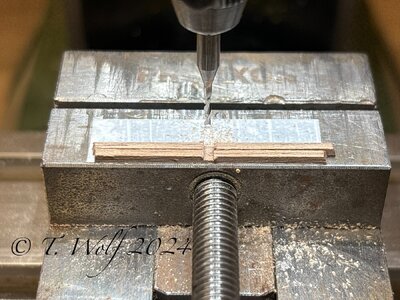

Step 5:
Now for the center cross, place a small piece of double-sided tape on the vice of the MF70 and mill it halfway.

eZy Watermark_23-07-2024_08-28-22-2090PM.jpeg

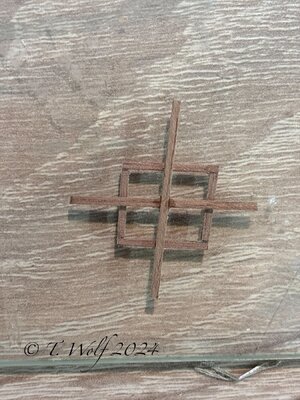

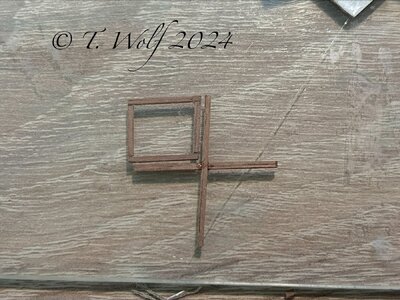

Step 6:

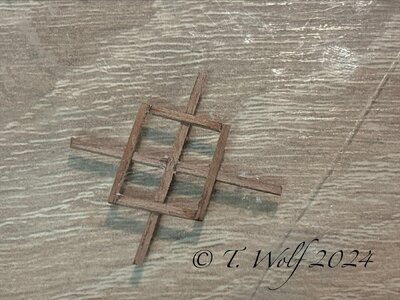

Now place the two struts next to the window, adjust them to the shape of the window and glue them.

eZy Watermark_23-07-2024_08-29-27-4900PM.jpeg

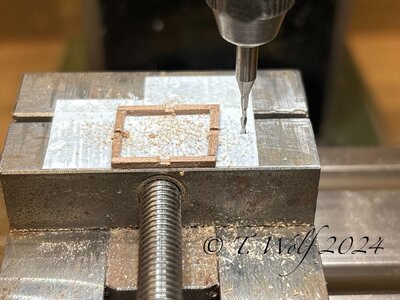

Step 7:
Once the cross has dried, align it on the frame and mark it. Fasten the frame back onto the vice with double-sided tape and mill the marked frame.

eZy Watermark_23-07-2024_08-46-44-6280PM.jpeg

eZy Watermark_23-07-2024_08-49-10-7650PM.jpeg

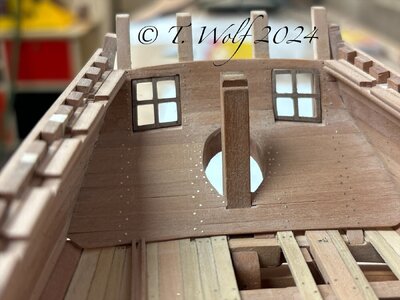

Last step:
Carefully remove the frame again and place the cross in the joints and then mark the inside of the cross on the frame. The cross is also fixed to the vice again with double-sided adhesive tape and the ends are milled. Now glue the cross and the frame together, sand off the excess, clean everything and you're done.

eZy Watermark_23-07-2024_08-50-07-5450PM.jpeg

eZy Watermark_23-07-2024_09-02-00-2670PM.jpeg

I hope I was able to explain it clearly. If something is unclear, just ask.

Frame construction of the rear windows:

View attachment 460805

Step 1:
Make a template, in my case I used a slightly firmer cardboard. I cut this until it fits.

View attachment 460806

Step 2:
On the cardboard, I mark the upper edge on the inside with an arrow and stick double-sided tape on both sides.

View attachment 460807

3rd step:
Here I make 6 small strips 1x1mm with a slight overhang.

View attachment 460808

Step 4:
Glue the two outer strips on. The advantage of the window frames is that they are not mitred. Then I adjust the upper and lower strips and fix them with superglue. Let the whole thing dry a little and very carefully remove it from the template (if it breaks, do it again straight away).

View attachment 460809

View attachment 460810

View attachment 460811

Step 5:
Now for the center cross, place a small piece of double-sided tape on the vice of the MF70 and mill it halfway.

View attachment 460812

Step 6:
Now place the two struts next to the window, adjust them to the shape of the window and glue them.

View attachment 460813

Step 7:
Once the cross has dried, align it on the frame and mark it. Fasten the frame back onto the vice with double-sided tape and mill the marked frame.

View attachment 460814

View attachment 460815

Last step:
Carefully remove the frame again and place the cross in the joints and then mark the inside of the cross on the frame. The cross is also fixed to the vice again with double-sided adhesive tape and the ends are milled. Now glue the cross and the frame together, sand off the excess, clean everything and you're done.

View attachment 460816

View attachment 460817

I hope I was able to explain it clearly. If something is unclear, just ask.
Magnificent, I understood it perfectly. Good explanation and good work.

Frame construction of the rear windows:

View attachment 460805

Step 1:
Make a template, in my case I used a slightly firmer cardboard. I cut this until it fits.

View attachment 460806

Step 2:
On the cardboard, I mark the upper edge on the inside with an arrow and stick double-sided tape on both sides.

View attachment 460807

3rd step:
Here I make 6 small strips 1x1mm with a slight overhang.

View attachment 460808

Step 4:
Glue the two outer strips on. The advantage of the window frames is that they are not mitred. Then I adjust the upper and lower strips and fix them with superglue. Let the whole thing dry a little and very carefully remove it from the template (if it breaks, do it again straight away).

View attachment 460809

View attachment 460810

View attachment 460811

Step 5:
Now for the center cross, place a small piece of double-sided tape on the vice of the MF70 and mill it halfway.

View attachment 460812

Step 6:
Now place the two struts next to the window, adjust them to the shape of the window and glue them.

View attachment 460813

Step 7:
Once the cross has dried, align it on the frame and mark it. Fasten the frame back onto the vice with double-sided tape and mill the marked frame.

View attachment 460814

View attachment 460815

Last step:
Carefully remove the frame again and place the cross in the joints and then mark the inside of the cross on the frame. The cross is also fixed to the vice again with double-sided adhesive tape and the ends are milled. Now glue the cross and the frame together, sand off the excess, clean everything and you're done.

View attachment 460816

View attachment 460817

I hope I was able to explain it clearly. If something is unclear, just ask.
A instructive manual for cutting and milling ‘not squared windows’, Tobias. Whit a nice outcome.:)
Regards, Peter

Good evening everyone, what follows is the expansion of the interior, i.e. the small bed and the cupboard.

Thank you @Mirek @pianoforte @Adry @Peter Voogt for your nice comment and all the likes you received as well as for your interest.

View attachment 461710

View attachment 461711

View attachment 461712

View attachment 461713

View attachment 461714

View attachment 461715
Good morning Tobias. Everything you build is so immaculate. Your joinery, wood finish and colour is admired. Cheers Grant

Every day I learn something new here in this forum
great work on the window frame and a nice comfortable bed you made.
So the captain has problem to enter his room, but when he is inside it is like a 4* hotel ;)

Thank you @RogerD @Herman @shota70 @dockattner @pianoforte @Mirek @Uwek @OlivierF @GrantTyler @Peter Voogt @Tony P for your comments and interest. Also thanks to everyone for the likes received.

Next I made the rudder, intended as a prototype from two different types of wood, walnut and pear, to see how it looks, but I might leave it. The main thing is the upper rudder passage in the aft deck. Two longitudinal beams with dovetails have to be installed here and an oval opening has to be filed. For this reason I built the rudder to see how everything fits.

eZy Watermark_05-08-2024_09-33-03-6540PM.jpeg

eZy Watermark_08-08-2024_06-43-28-7860PM.jpeg

eZy Watermark_08-08-2024_06-56-02-4630PM.jpeg


Like everything in the rear, nothing has been glued yet because the next step is to install the windows. For this, the hinges and the side locks still had to be made. The hinges for the small cupboard door were also on the agenda.

eZy Watermark_05-08-2024_11-28-54-5050PM.jpeg

eZy Watermark_09-08-2024_10-39-00-5480PM.jpeg

The plan is that everything is movable, and the plan worked for the small cupboard door. I hope it works for the windows too. Since a window like this also has glass panes, these cannot be missing. Here I am using "Micro Crystal Klear" and I am attaching a picture of the product.

eZy Watermark_11-08-2024_07-44-00-5490AM.jpeg

eZy Watermark_11-08-2024_07-51-48-5450AM.jpeg

Last but not least, the hatch for the cargo area in the rear area, various brass parts are still missing and the second window and parts of the interior fittings, then the rear area will be finished. I hope I can get it done before our big vacation in Croatia.

eZy Watermark_11-08-2024_07-47-27-6830AM.jpeg

eZy Watermark_11-08-2024_07-49-04-7580AM.jpeg

eZy Watermark_11-08-2024_07-50-36-2220AM.jpeg

I wish you a wonderful Sunday, see you soon.

Thank you @RogerD @Herman @shota70 @dockattner @pianoforte @Mirek @Uwek @OlivierF @GrantTyler @Peter Voogt @Tony P for your comments and interest. Also thanks to everyone for the likes received.

Next I made the rudder, intended as a prototype from two different types of wood, walnut and pear, to see how it looks, but I might leave it. The main thing is the upper rudder passage in the aft deck. Two longitudinal beams with dovetails have to be installed here and an oval opening has to be filed. For this reason I built the rudder to see how everything fits.

View attachment 464138

View attachment 464139

View attachment 464140


Like everything in the rear, nothing has been glued yet because the next step is to install the windows. For this, the hinges and the side locks still had to be made. The hinges for the small cupboard door were also on the agenda.

View attachment 464141

View attachment 464142

The plan is that everything is movable, and the plan worked for the small cupboard door. I hope it works for the windows too. Since a window like this also has glass panes, these cannot be missing. Here I am using "Micro Crystal Klear" and I am attaching a picture of the product.

View attachment 464143

View attachment 464144

Last but not least, the hatch for the cargo area in the rear area, various brass parts are still missing and the second window and parts of the interior fittings, then the rear area will be finished. I hope I can get it done before our big vacation in Croatia.

View attachment 464145

View attachment 464146

View attachment 464147

I wish you a wonderful Sunday, see you soon.
Some very nice additions with fine details, Tobias.
Regards, Peter
