L'Orenoque Mamoli 1:100 scale

[The Gavel]

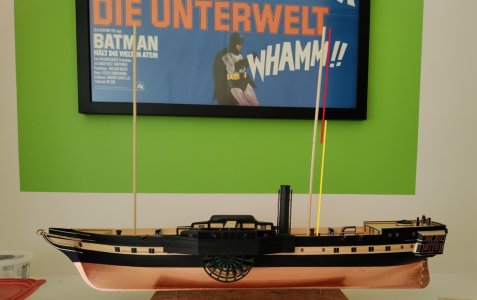

I decided to do a mockup of the fore and mainmasts based on the lengths given in the Magellan plans. 28 meters lower masts 20 meters topmasts. So, 280mm, less the distance from the bottom of the keel to the top of the deck (yellow line) and then 200mm less 40mm doubling (red line). Looks very tall - too tall?



[dockattner]

Happy anniversary to you both!



[Martin By Eye]

I decided to do a mockup of the fore and mainmasts based on the lengths given in the Magellan plans. 28 meters lower masts 20 meters topmasts. So, 280mm, less the distance from the bottom of the keel to the top of the deck (yellow line) and then 200mm less 40mm doubling (red line). Looks very tall - too tall?

View attachment 581187

Magellen gives 17M for the topmasts , not 20 so you are probably 3CM too tall.



[Martin By Eye]

happy anniversary, may there be many more.



[Namabiiru]

Happy anniversary, Chuck! And thanks for the lovely card!
