POF La Palme (L'Amarante) Corvette 1744 1:36 (Ancre Monograph) by Tobias

[Tobias]

Hello dear friends of model making. After several attempts I managed to finish the bow, I think it should be 4.0 or so. Yes, I had my problems but I was able to achieve a reasonably good result. My first attempt was a few months ago and it was actually not bad, but I sanded it according to the instructions and probably a bit too much in the upper area. As I said, after a few attempts I was wiser. As I now know, it was not the sanding but the fitting of the individual parts, which in turn have no glue markings, and that was my problem as it now turned out. I also fixed the keelson and started with the limberboard (1x1mm), the inner planking will follow in the next few days.



[AnobiumPunctatum]

This book is also in my collection. If I ever will build a french ship, then this beautyful sloop.



[Tobias]

This book is also in my collection. If I ever will build a french ship, then this beautyful sloop.

Hello Christian, yes it is really fun and relatively well described but my lack of English can be a bit confusing.



[Tobias]

Two more pics of the 1x1mm strip on the keelson, totally forgot.



[Tobias]

The first planks are fitted and glued. It is very tedious, each plank is adjusted with the plane-> tapering to the bow and stern.



[Maarten]

Wow Tobias, what a progress.



[Steef66]

This is something I never done and looks to me very difficult to make.



[Tobias]

This is something I never done and looks to me very difficult to make.

Hello Stephan, thank you for your interest, it looks more difficult than it is. However, it is very time consuming as each plank has to be adjusted to get a reasonably good result.



[dockattner]

So impressive Tobias. I’m sure it is tedious to customize each plank but the value is seen in the result. I am constantly amazed and impressed by your fast learning curve.



[Hoss6262]

Two more pics of the 1x1mm strip on the keelson, totally forgot.



View attachment 338923

View attachment 338924

Wonderful work Tobias! I see some small Xs and Os on your futtock timbers. They remind me of a game we played when I was young, Tic-Tac-Toe. Would you share the purpose of those marks. Your joinery is flawless, so I'm trying to understand their purpose.

Thanks mate!



[Tobias]

Hi Ken, of course I can explain what the x and o mean. X stands for the frames that will be removed and those with O will remain.

Something like this:


Paul @dockattner, Martin, @Maarten thank you for the encouragement



[Jimsky]

Looks like a La Belle Poule in the photo above, Am I correct?



[Tobias]

Looks like a La Belle Poule in the photo above, Am I correct?

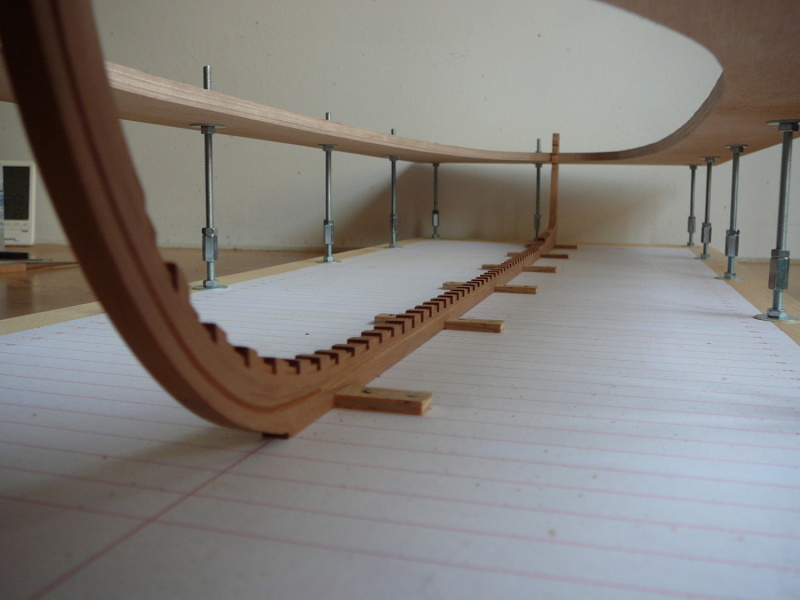

Sorry Jim it is La Renommee built by Petr Simek in scale 1:48

La Renommée au 1/48ème par Petr Simek

A year ago I started building "La Renommée" according to the monograph of Mr. J.Boudriot. ----- Il y a un an, j'ai commencé à contruire "La Renommée" d'après la

5500.forumactif.org



[Hoss6262]

Hi Ken, of course I can explain what the x and o mean. X stands for the frames that will be removed and those with O will remain.

Something like this:
View attachment 340097

Paul @dockattner, Martin, @Maarten thank you for the encouragement

Makes perfect sense. Thank you.



[Tobias]

Hello everyone,

I have continued with the inner planks, one plank needs to be partially dovetailed by inserting boards to prevent debris from falling between the inner and outer planks.

First the plan of the inner planks



Adjust the plank and mill grooves at a 15 degree angle.





Gluing in the plank and waiting, during which I made the inlay boards.



Fitting and gluing the boards.





Thanks for all your likes and comments, have a nice Sunday.



[Uwek]

Great detail with these small elements between the frames - not very often made by modelers - Great !!



[Tobias]

Great detail with these small elements between the frames - not very often made by modelers - Great !!

Hello Uwe, thank you for the compliment, but I did it wrong and GD drew my attention to it today. I'll try to change it without making a big mess. I misinterpreted the plans.



[pianoforte]

Hallo Tobias, nevertheless, a fantastic job.



[Uwek]

Hello Uwe, thank you for the compliment, but I did it wrong and GD drew my attention to it today. I'll try to change it without making a big mess. I misinterpreted the plans.

View attachment 340570

View attachment 340569

Schwalbenschwanz



[Maarten]

Hi Tobias,

This dove tail is also cut into the frame to keep the plank in position.
